• Single-phase 3kWp cabinet

16A AC Single-phase lightning arrester box

€249.51
Tax included
09940
0712971131163

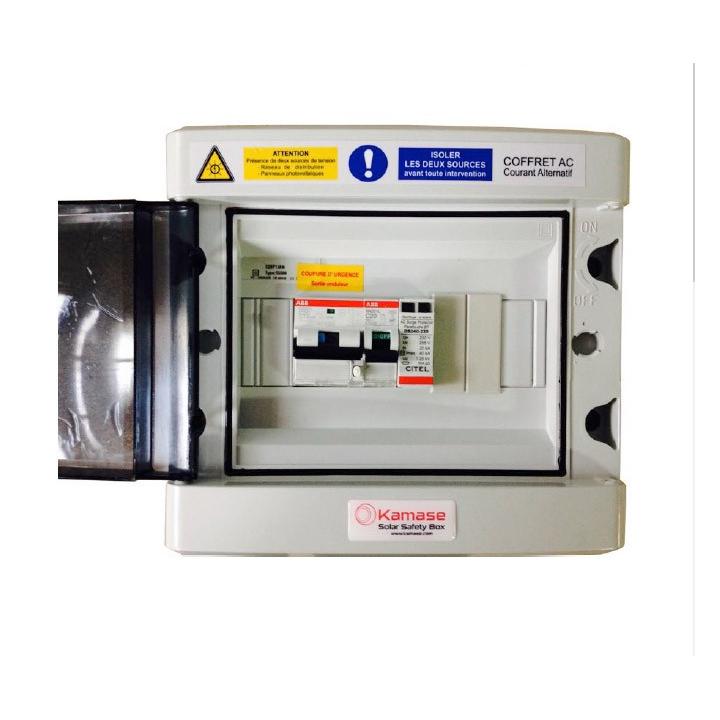

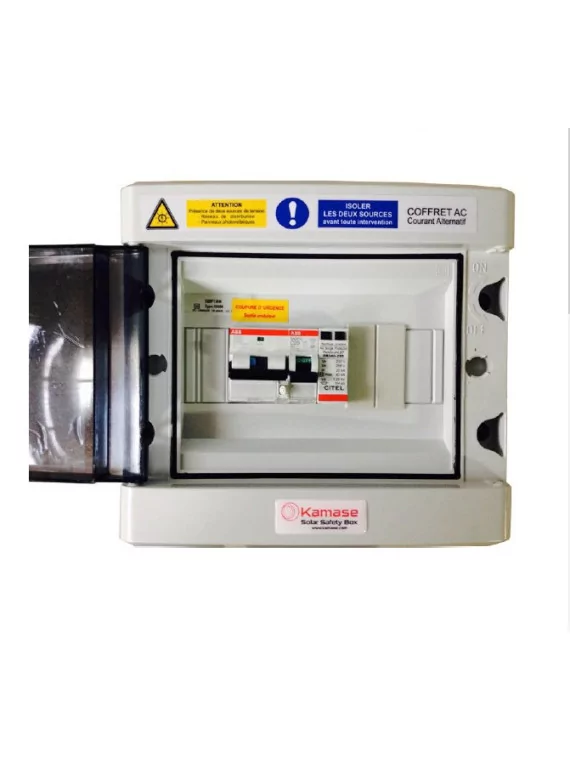

3kWp single-phase AC surge protection box – Comprehensive and compliant protection

The 3kWp single-phase AC protection box is a ready-to-install solution to safeguard your residential photovoltaic system. Fitted with professional-grade ABB and Citel components, it guarantees optimum protection in strict compliance with standard NFC 15-712-1.

Professional protection from ABB + Citel

  • ABB 30mA Type A-APR residual current circuit breaker: High immunity to prevent any false tripping caused by the inverter.
  • Citel AC20-APR Type 2 surge arrester: Robust protection against surges up to 40kA.
  • Disconnect switch: Ph/N local disconnection for safe maintenance.
  • 16A circuit breaker: Dedicated protection for the inverter circuit and surge arrester.

Quick installation with Wago terminals

Fitted with 10–16 mm² Wago spring-loaded terminals for a quick and durable screwless connection of the inverter and AC cable. Guaranteed time savings and connection reliability on site!

IP65 - Indoor or outdoor installation

IP65-rated waterproof enclosure made from high-strength polycarbonate. Designed for durable wall mounting, even outdoors (temperature resistance from -25°C to +60°C).

Compatible avec :

Deye 3.6 kW 48V single-phase hybrid inverter – SUN-3.6K-SG05LP1-EU-AM2-P
Deye 3.6 kW 48V single-phase hybrid inverter –...
€1,237.90
Voir le produit →
Deye 5 kW Mono Hybrid Inverter – SUN-5K-SG05LP1-EU-AM2-P
Deye 5 kW Mono Hybrid Inverter –...
€1,195.70
Voir le produit →
Deye Mono 5 kW Hybrid Inverter – SUN-5K-SG04LP1-BE – Synergrid
Deye Mono 5 kW Hybrid Inverter –...
€1,247.20
Voir le produit →
Huawei 3 kW single-phase hybrid inverter – SUN2000-3KTL-L1
Huawei 3 kW single-phase hybrid inverter –...
€943.80
Voir le produit →
Hybrid Inverter Huawei Single-Phase 4 kW – SUN2000-4KTL-L1
Hybrid Inverter Huawei Single-Phase 4 kW –...
€1,154.34
Voir le produit →
Hybrid Inverter Huawei Single-Phase 4.6 kW – SUN2000-4.6KTL-L1
Hybrid Inverter Huawei Single-Phase 4.6 kW –...
€1,239.04
Voir le produit →
Affichage de 6 sur 15 produits compatibles
ℹ️ Cette liste est non exhaustive. Contactez-nous pour vérifier une combinaison.

Comments (0)

No customer reviews for the moment.

16A single-phase AC surge protection box for 3kWp photovoltaic systems


The 3kWp single-phase AC switch and protection box is a comprehensive, compliant solution specifically designed for residential photovoltaic installations up to 3000W. Fitted with professional-grade ABB and Citel components, it guarantees optimum protection for your inverter and your installation against surges and electrical faults.


This ready-to-install box incorporates all essential safety features: a high-immunity 30mA ABB residual current circuit breaker, a Citel single-phase Type 2 AC surge arrester, and Wago 10-16mm² spring-loaded terminals for quick and reliable connection.





Comprehensive protection in compliance with standards

Designed to meet the requirements of standard C15-712-1 governing photovoltaic installations in France and Belgium, this box provides:

  • 30mA Type A-APR residual current protection: High-immunity ABB residual current circuit breaker, specially designed for photovoltaic inverters (prevents false tripping)
  • Surge protection: Citel AC20-APR single-phase Type 2 surge arrester with its dedicated circuit breaker
  • Emergency shutdown: Integrated isolating switch to safely disconnect the installation
  • Overcurrent protection: 16A rated circuit breaker suitable for installations up to 3680VA

Complies with standard C15-712-1: This enclosure meets the requirements of the UTE C15-712-1 guide for grid-connected photovoltaic installations in France and Belgium.





High-quality professional components from ABB and Citel

This enclosure contains only professional-grade equipment from recognised brands:

  • ABB 30mA Type A-APR residual current circuit breaker: High immunity (resistance to harmonics generated by inverters), breaking capacity Icc 4.5 kA
  • Citel AC20-APR surge arrester: Single-phase Type 2, discharge current In 20kA (Imax 40kA), 230V AC protection
  • 16A Type C circuit breaker: Surge arrester protection
  • Disconnect switch: Manual isolation of the installation
  • Wago spring-loaded terminals 10–16 mm²: Quick, screw-free connection, saving time on site





Quick and easy installation

This ready-to-install enclosure saves you valuable time during commissioning:

  • Wago spring-loaded terminals 10–16 mm²: Connect the inverter and AC cable in seconds, without screwing
  • Set of cable glands supplied: For a watertight and compliant cable entry
  • Single-line diagram included: Comprehensive technical documentation to facilitate connection
  • Labelling in accordance with UTE standards: Professional circuit identification pre-installed
  • IP65 enclosure: Suitable for outdoor installation (dust-tight and splash-proof)





Technical Specifications: 3kWp Single-Phase AC Cabinet
Wattuneed reference 09940
Maximum power 3000 W (3680 VA at 16A)
Circuit breaker rating 16 A
Number of modules 8 DIN modules
Dimensions (H x W x D) 215 x 238 x 118 mm
Protection rating IP65 (suitable for outdoor installation)
Terminals Wago spring terminals 10–16 mm²
Compliance standard C15-712-1
Installation type Wall-mounted (fixings included)





Protective components included
Residual current device ABB 30mA Type A-APR (high immunity) Ph/N - Icc 4.5 kA
AC surge protector Citel AC20-APR single-phase Type 2 - In 20kA, Imax 40kA - 230V
Surge protection circuit breaker 16A Type C (dedicated surge protection)
Disconnect switch Manual Ph/N disconnection





Contents of the enclosure

  • IP65 weatherproof enclosure (8 modules) with transparent door
  • ABB 30mA Type A-APR residual current circuit breaker with high immunity
  • Citel AC20-APR single-phase surge arrester with 16A circuit breaker
  • Ph/N isolating switch
  • Wago spring-loaded terminals 10–16 mm² (input and output)
  • Set of cable glands for watertight cable entry
  • Single-line diagram of the installation
  • Pre-installed labelling in accordance with UTE standards
  • Individual cardboard packaging with instructions





Applications and compatibility

This single-phase AC box is ideal for residential photovoltaic installations up to 3kWp:

  • Connection of single-phase inverters up to 3000W
  • Self-consumption installations with or without surplus feed-in
  • Residential solar kits (6 to 8 panels of 375–400Wp)
  • AC-side protection (from inverter output to distribution board)
  • Compatible with all single-phase inverters on the market





Compatibility with single-phase inverters

Compatible with all single-phase inverters up to 3kW available from Wattuneed.





Installation and commissioning

This box must be installed by a qualified electrician in accordance with current standards:



  1. Mounting the box: Wall-mounted near the inverter (max. 3m)
  2. Input connection: AC cable from the inverter to the Wago input terminals
  3. Output connection: AC cable to the main distribution board via Wago output terminals
  4. Earthing: The protective earth (PE) conductor must be connected
  5. Check: Test the RCD and surge protector

Important: The photovoltaic electrical installation must be carried out by a qualified professional in accordance with standards C15-712-1 and NF C 15-100. A Consuel declaration of conformity is mandatory.





Advantages of the Wattuneed single-phase AC surge protection box

  • Quick installation: Wago spring-loaded terminals, saving time on site
  • Complies with standard C15-712-1: Consuel compliance assured
  • ABB + Citel professional components: Quality and reliability guaranteed
  • High immunity: ABB Type A-APR residual current device (RCD) to prevent false tripping
  • IP65 waterproof: Suitable for indoor or outdoor installation
  • Ready to install: Diagram + labelling + cable glands supplied
  • Stock in Belgium: Fast delivery to France, Belgium and Luxembourg





Wiring diagram for the enclosure

Schéma câblage coffret parafoudre AC 16A mono





Order your compliant, ready-to-install single-phase AC box now!





FAQ - 16A AC Surge Protector Box (3kWp)

1. Why is this box essential for a 3kWp installation? +
This box ensures compliance with standard C15-712-1 (mandatory for Consuel certification). It protects your inverter against atmospheric surges thanks to its Citel surge arrester and ensures personal safety via its high-immunity residual current circuit breaker, whilst allowing for a rapid emergency shutdown of the installation.
2. What is the advantage of the ABB Type A-APR "High Immunity" residual current device? +
Photovoltaic inverters generate harmonics and slight natural leakage currents that often trip standard residual current devices. The ABB Type A-APR is specifically designed to filter out these disturbances, thereby preventing false trips that would interrupt your solar power generation for no real reason.
3. How do Wago spring terminals make installation easier? +
Unlike conventional screw terminals, Wago spring terminals (10–16 mm²) allow tool-free connection and ensure consistent contact pressure over time. This eliminates the risk of overheating due to insufficient tightening and significantly reduces commissioning time on site.
4. Is this box suitable for outdoor installation? +
Yes, thanks to its IP65-rated housing, this enclosure is completely dust-tight and protected against water spray. You can therefore install it safely outdoors, beneath your panels or near your inverter, whilst complying with weather protection standards.
09940

Data sheet

Protection AC - Rated current (A)
16 A
Protection AC - Rated voltage (V)
230 V
Protection AC - Poles
1P+N

Specific References

UPC
712971131163
EAN13
0712971131163
New
