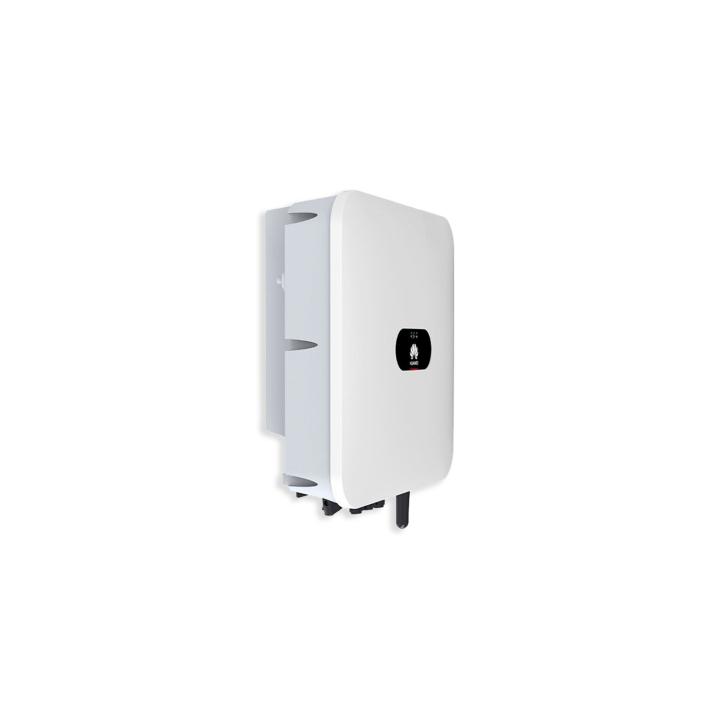

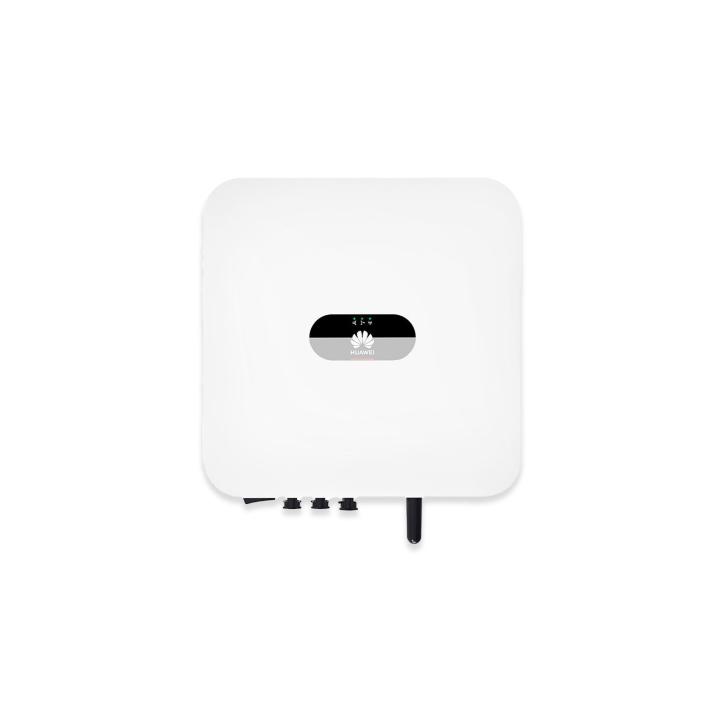

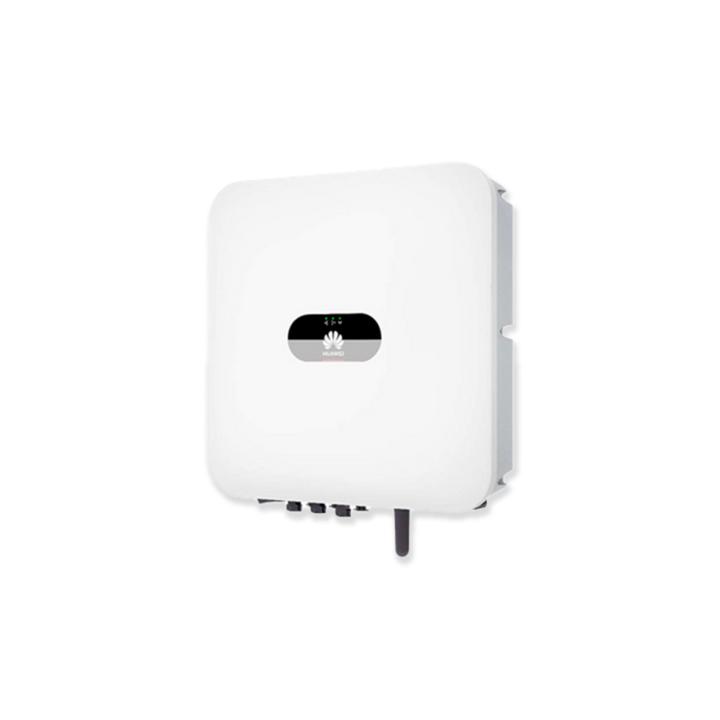

The Huawei SUN2000-5KTL-L1: a silent 5 kW inverter, the most powerful in the L1 range
The Huawei SUN2000-5KTL-L1 is the 5,000 W single-phase hybrid inverter in the L1 range — the most powerful model in the series. It is designed for homes of 100 to 160 m² with an annual consumption of 4,000 to 7,000 kWh. It shares the key features of the SUN2000-4.6KTL-L1: 98.4% efficiency, fanless passive cooling and a weight of just 12 kg — but with 7,500 Wp of connectable panels, 600 Wp more than the 4.6K, to make the most of a larger roof area.
What this inverter actually does
- It converts the energy from your solar panels into 230V AC electricity with a maximum efficiency of 98.4% — the best in the wattuneed.com hybrid range
- It stores the surplus in a high-voltage Huawei Luna 2000 battery for use in the evening or at night
- It monitors your installation in real time via the FusionSolar app, with built-in Wi-Fi at no extra cost
- It feeds surplus energy back into the grid if your contract allows it
With 12 to 15 solar panels (6 to 7.5 kWp) and a 5 to 15 kWh Luna 2000 battery, a house of 100 to 160 m² can achieve 65 to 78% self-consumption, representing an estimated saving of between €750 and €1,150 per year.
5 kW: the Synergrid single-phase power limit in Belgium
In Belgium, Synergrid regulations limit the power of single-phase inverters connected to the grid to 5,000 VA. The SUN2000-5KTL-L1 is exactly at this limit — it is the most powerful Huawei inverter that can be installed in a single-phase system with feed-in to the Belgian grid. If you wish to exceed 5 kW, you will need to switch to three-phase.
⚠️ Please note: Synergrid certification is not mentioned in the available technical data sheet. Contact us to confirm compliance with your network operator’s requirements before any installation with feed-in.
7,500 Wp of connectable PV: up to 18 panels
With a maximum PV power of 7,500 Wp, the SUN2000-5KTL-L1 supports approximately 15 to 18 panels of 400–500 Wp, distributed across its 2 independent MPPT trackers (range 90–560V, max 600V, 12.5A per MPPT). This PV oversizing compared to the nominal power of 5 kW (ratio 1.5×) ensures maximum output even during periods of low sunlight.
98.4% efficiency and passive cooling: Huawei’s two key strengths
The SUN2000-5KTL-L1 shares with the 4.6K the two key features of the L1 range:
- 98.4% efficiency: only 1.6% energy lost during conversion, compared to 2.3–2.4% for competing inverters. Out of 6,000 kWh generated per year, this represents an additional 40–50 kWh recovered at no extra cost

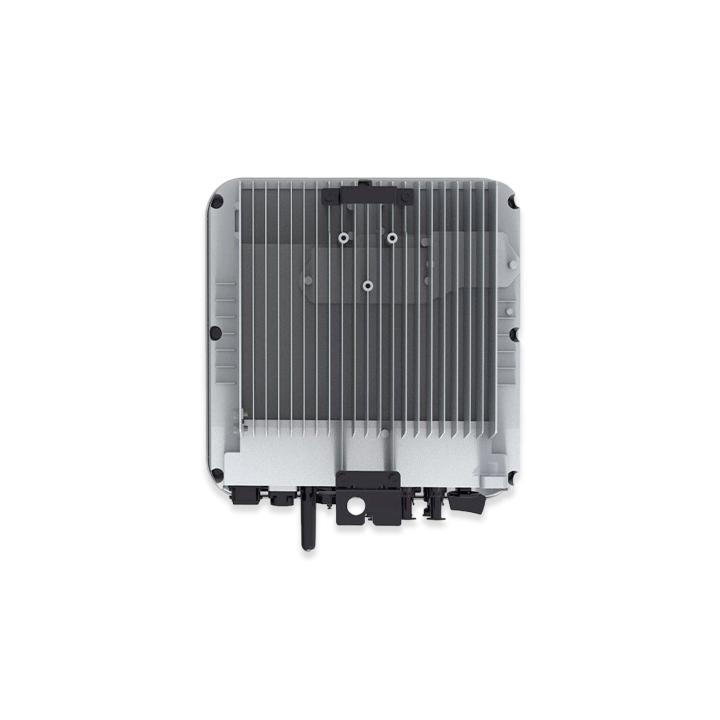

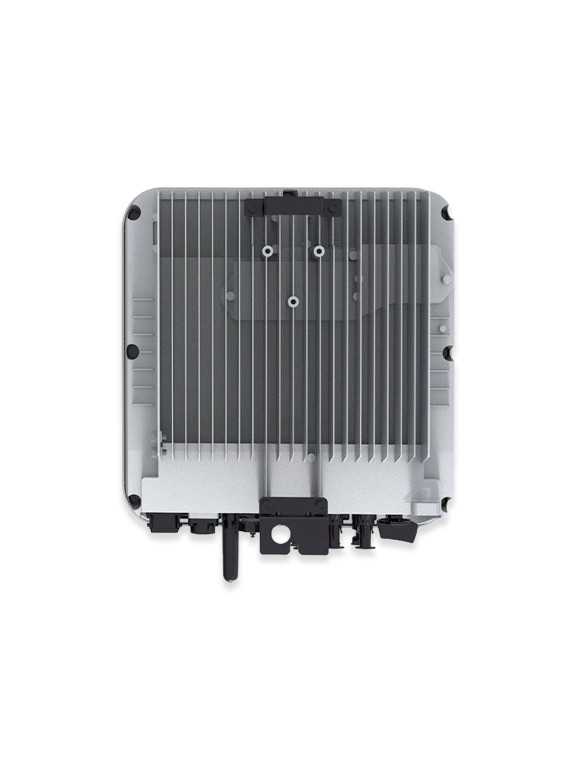

- Fanless natural convection: completely silent operation, even at full load. Extended lifespan (fans are the main cause of failure). Weight reduced to 12 kg — wall mounting by a single person
Compatible battery: the Huawei Luna 2000 ecosystem
The SUN2000-5KTL-L1 is exclusively compatible with Huawei Luna 2000 high-voltage batteries. It is a closed system — no third-party batteries can be connected.
Up to 3 Luna 2000-5-S0 modules can be stacked to achieve a total capacity of 15 kWh.
⚠️ Important: the LUNA2000-5kW-CO power module is required to activate the backup power supply in the event of a grid outage. Without this module, the inverter will shut down during an outage (standard anti-islanding protection).
Monitoring: FusionSolar
Wi-Fi is built into the inverter — no additional dongle is required for basic monitoring. The FusionSolar app (iOS / Android) allows you to:
- View real-time production, consumption and battery status
- Check your daily, monthly and annual savings
- Diagnose faults remotely
- Manage multiple installations from a single account
Additional options (optional): Smart Ethernet Dongle (WLAN-FE) for wired connection, Smart 4G/3G/2G Dongle for areas without Wi-Fi.
Installation
Installation must be carried out by a qualified electrician. Key points:
- Weight of 12 kg — easy wall mounting, installation by a single person possible
- Compact dimensions: 365 × 360 × 156 mm
- Main circuit breaker suitable for 5 kW single-phase (minimum 25A)
- Operates without a battery immediately after installation
- The Huawei DDSU666-H Smart Meter is required for smart self-consumption management (not included)
FAQ - [Huawei SUN2000-5KTL-L1 hybrid inverter] 5 kW single-phase
1. What power output does the Huawei SUN2000-5KTL-L1 provide, and for what type of self-consumption installation is it designed? +
The page describes a 5 kVA (5000 W) single-phase hybrid inverter, with a nominal AC output power of 5000 W, for residential and small business installations aimed at self-consumption and the transition to energy storage. Reference: SUN2000-5KTL-L1; EAN13: 0768563821332. Product image: https://www.wattuneed.com/42051-large_default/onduleur-hybride-huawei-monophase-5-kw-sun2000-5ktl-l1.jpg [Source](https://www.wattuneed.com/fr/onduleurs-hybrides/26583-onduleur-hybride-huawei-monophase-5-kw-sun2000-5ktl-l1-0768563821332.html)
2. What efficiency rating is stated to optimise photovoltaic conversion and energy savings? +
The stated (peak) efficiency is 98.4 (generally interpreted as 98.4%). This high efficiency is designed to maximise PV → AC conversion, in order to improve self-consumption and the overall efficiency of the installation. [Source](https://www.wattuneed.com/fr/onduleurs-hybrides/26583-onduleur-hybride-huawei-monophase-5-kw-sun2000-5ktl-l1-0768563821332.html)
3. How many MPPT trackers does it have and what is the MPPT voltage range to optimise solar production? +
The technical data sheet specifies 2 MPPT trackers. The MPPT voltage range is 90 V – 560 V, with a start-up voltage of 100 V: this helps to optimise photovoltaic output depending on the string configuration (orientation, shading, etc.). [Source](https://www.wattuneed.com/fr/onduleurs-hybrides/26583-onduleur-hybride-huawei-monophase-5-kw-sun2000-5ktl-l1-0768563821332.html)
4. What PV power (Wp) is recommended and what input limits (voltage/current) must be observed? +
The maximum recommended DC power is 7500 Wp, with a maximum PV input voltage of 600 V. The maximum input current is 12.5 A per MPPT and the maximum short-circuit current is 18 A: these limits are essential for safety, compliance and efficiency. [Source](https://www.wattuneed.com/fr/onduleurs-hybrides/26583-onduleur-hybride-huawei-monophase-5-kw-sun2000-5ktl-l1-0768563821332.html)
5. Is it suitable for outdoor use (IP65 rating) and what are the recommended operating conditions? +
Yes, the stated protection rating is IP65. The operating temperature range is −35 to +60 °C (derating above 45 °C), and the maximum operating altitude is specified as below 4000 m, for long-term installation. [Source](https://www.wattuneed.com/fr/onduleurs-hybrides/26583-onduleur-hybride-huawei-monophase-5-kw-sun2000-5ktl-l1-0768563821332.html)
6. What type of cooling is specified (silent) and what dimensions/weight are stated? +
Cooling is specified as natural convection (fanless), which promotes silent operation. The dimensions are 365 mm (width) × 360 mm (height) × 156 mm (depth), with a weight of 12 kg: a compact size suitable for home use. [Source](https://www.wattuneed.com/fr/onduleurs-hybrides/26583-onduleur-hybride-huawei-monophase-5-kw-sun2000-5ktl-l1-0768563821332.html)
7. Monitoring: what communication options are listed and what is the battery compatibility (Huawei LUNA2000)? +
The communication options listed include RS485 and WLAN via the integrated WLAN module (Wi-Fi). As an option, the page mentions Ethernet via the Smart Dongle-WLAN-FE and 4G/3G/2G via the Smart Dongle-4G. The advertised battery compatibility applies to Huawei LUNA2000 batteries, to facilitate the transition from self-consumption to storage. Point to check: the technical data sheet also states ‘AC input voltage: 360 V’, an unusual value for single-phase 230 V. [Source](https://www.wattuneed.com/fr/onduleurs-hybrides/26583-onduleur-hybride-huawei-monophase-5-kw-sun2000-5ktl-l1-0768563821332.html)
