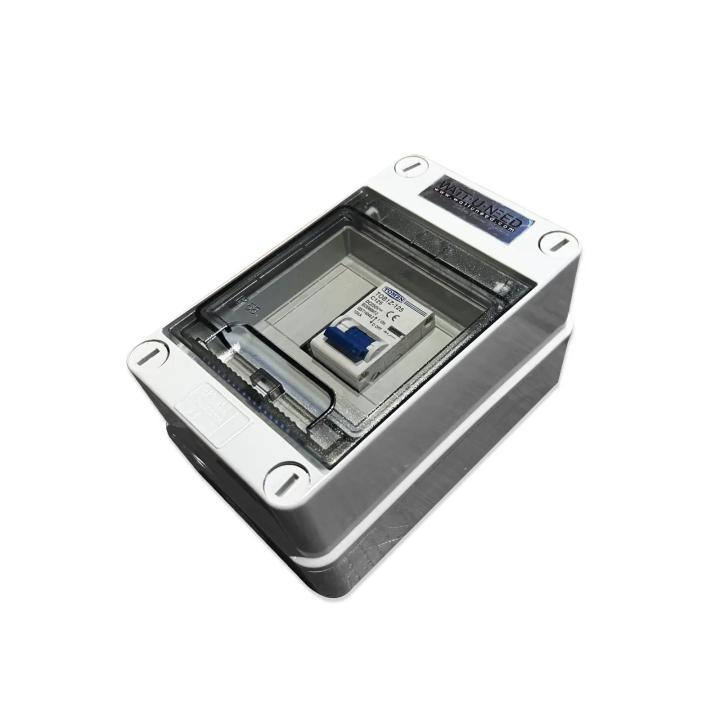

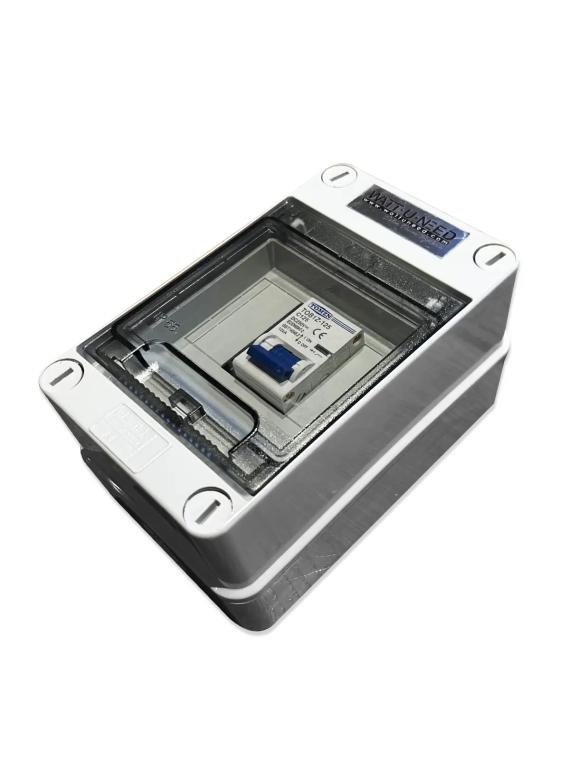

• Fuse box with automatic fuse 125A DC250V

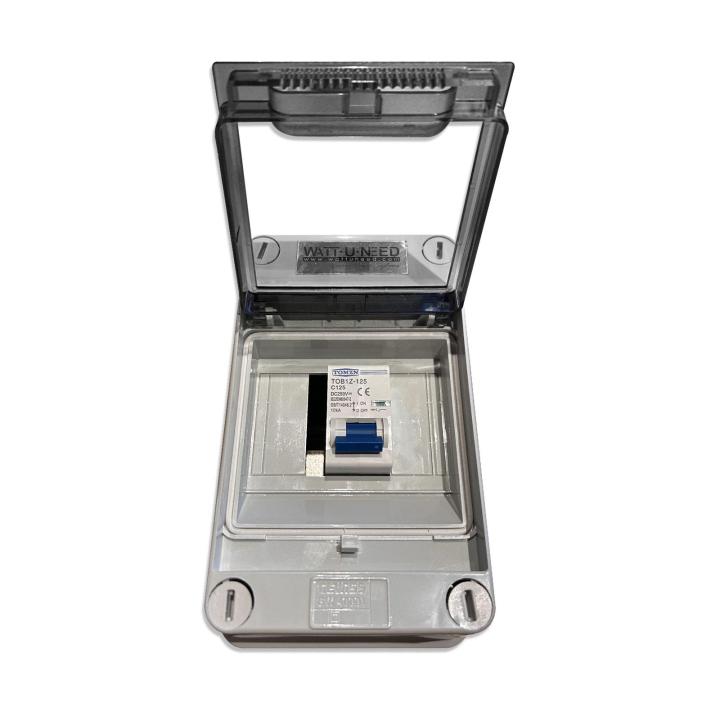

  • Automatic Fuse Battery Box 125 A 250 V DC - Solar Battery Protection

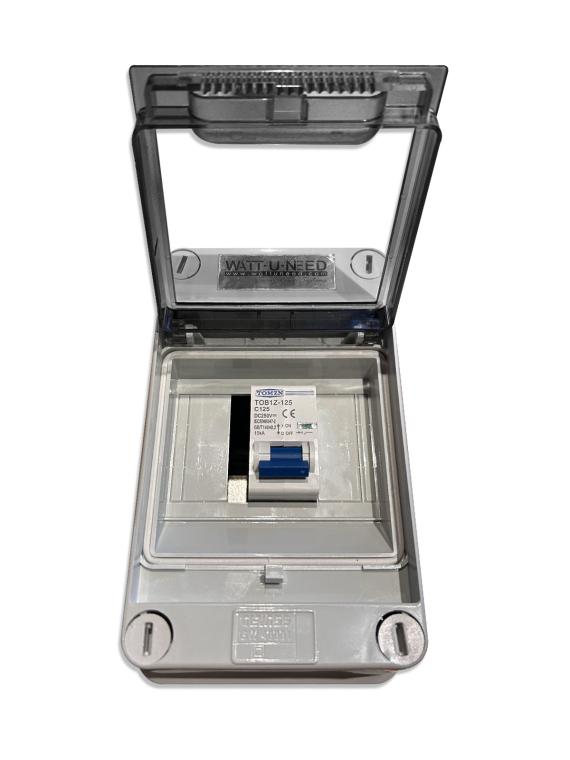

Battery box with automatic fuse 125A DC 250V

€61.29
Tax included
Coffret fusible-125A
0768563822841

Box with 125 A – 250 V DC automatic fuse designed to effectively protect your lithium, lead or gel solar batteries. Compatible with all types of photovoltaic installations up to 250 V DC, this ready-to-install box provides optimal protection against overcurrent and short circuits. Easy to install thanks to its integrated terminal blocks and compact size. A reliable, robust and universal solution to secure your DC battery circuit.

Comments (0)

No customer reviews for the moment.

Box with 125 A – 250 V DC Automatic Fuse for Solar Batteries

This 125 A – 250 V DC automatic fuse box is a robust solution for protecting your solar battery systems. It incorporates a class T fast-acting fuse that reacts instantly to overloads or short circuits.

Compatible with all lithium (LiFePO4, NMC) and lead-acid (AGM, gel) batteries, it secures your UN ≤ 250 V installations.
Perfect for hybrid inverters, MPPT chargers, and domestic or professional battery strings.





Advantages

  • High-intensity protection: class T 125 A – 250 V DC automatic fuse
  • Universal compatibility: Li-ion, LiFePO4, lead-acid (AGM, gel) batteries up to 250 V
  • Simple installation: ready-to-install box
  • Enhanced safety: quick cut-off in case of overcurrent or short circuit





125A DC 250V automatic fuse

  • Number of poles: 1
  • Nominal current: 125A
  • Breaking capacity: 4KA
  • Certification: CE, ISO9001





Technical specifications

  • TOP1Z-125
  • Compliance with IEC/EN IEC60947-2 standards
  • Rated operating voltage [Ue] [Ue] 250V DC
  • Rated breaking capacity according to IEC/EN 60947-2 [Icu] 4 kA
  • C125
  • GB14048.2





Installation tips

  • Position it as close as possible to the battery terminals
  • Use cables rated ≥ 125 A (25–95 mm² depending on length)
  • Integrate it into a cabinet
  • for tidy wiring
  • Check compatibility with IEC/EN 60947-2 sealed standards





1. Is this box reserved for Pylontech batteries? +
No, it is suitable for all solar batteries up to 250 V DC, whether LiFePO4 or lead-acid technology.
2. Can it be used on a 48 V system? +
Yes, it is ideal for providing DC protection on 48 V, 96 V or 240 V systems.
3. What is the difference between a fuse and a circuit breaker? +
The automatic fuse cuts out very quickly and requires no maintenance. It is specifically suited to solar systems with a high breaking capacity of 4 kA, which is highly recommended for direct current (DC).
4. Where should this box be installed? +
It should be placed as close as possible to the battery bank. It then serves as primary or secondary protection within your DC circuit.
