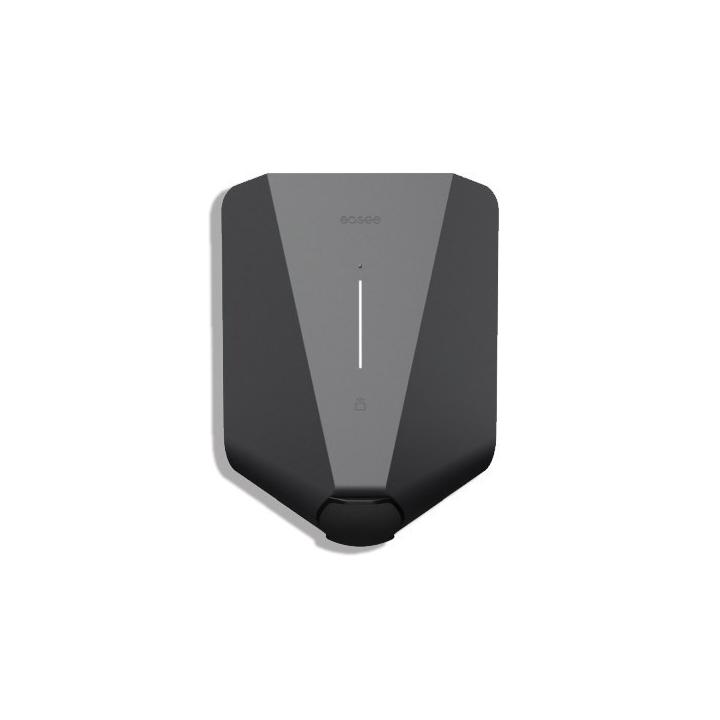

Easee Charge UP Charging Station – 1.4 to 22 kW – Type 2
The Easee Charge UP charging station represents the next generation of intelligent chargers, designed to adapt to all electrical realities. Replacing the famous Easee Home, it stands out for its total and automatic compatibility with all types of electrical grids. With power ranging from 1.4 kW up to 22 kW, its Scandinavian design, and certified safety, it is the ultimate universal solution for constraint-free home charging.
Unmatched Universal Grid Compatibility.
Total Adaptability (IT, TT, TN)
One of the greatest assets of the Easee Charge UP is its ability to operate on all types of electrical grids. Whether your installation is 230V single-phase or three-phase, and regardless of the earthing system (IT, TT, or TN networks), the station automatically detects the configuration. It is the ideal solution for regions with specific grid types (very common in Belgium and Norway).
Maximum Charging Speed
Charge up to 22 kW (32 A) on a three-phase installation and up to 7.4 kW (32 A) on a single-phase installation.
All-in-One Charger
The chargers are compatible with all electric vehicles and all phase configurations. No need to worry about technicalities: the station adapts to your current car and your next one.
Always Up to Date
Thanks to Over-the-Air (OTA) software updates, your station evolves over time and continuously integrates the latest energy management optimizations.
Main Advantages of the Easee Charge UP
Versatility and Grid Intelligence
- Guaranteed compatibility with IT, TT, and TN networks (automatic detection).
- Works perfectly on both 230V and 400V installations.
- Automatically adjusts power according to your meter's capacity.
High and Flexible Charging Power
- Up to 22 kW in three-phase for ultra-fast charging.
- Also compatible with single-phase (up to 7.4 kW).
Intelligent Energy Management
- Dynamic load balancing to avoid overloading your installation.
- Solar optimization available (via accessories) to charge with your own energy.
- Full control via app (Wi-Fi, Bluetooth, and free lifetime built-in 4G).
Advanced Safety
- Integrated residual current protection (AC 30mA and 6mA DC detection).
- Continuous thermal monitoring via internal sensors.
- Extreme durability: IP54 (water/dust) and IK10 (impact) certifications.
Simple Installation and Compact Design
- Ultra-compact and lightweight format (≈1.5 kg).
- Modern Scandinavian design with customizable covers.
Easee Charge UP Dimensions
| Detailed Technical Specifications |
Performance and Grids
- Power: 1.4 kW to 22 kW
- Grids: TN, IT and TT (automatic detection)
- Connector: Type 2 angled at 45° (self-draining)
- Balancing: Up to 3 units (Easee Link™)
- Optimization: Dynamic phase/load (Equalizer)
|
Connectivity and Safety
- Connectivity: WiFi 2.4 GHz, Bluetooth 4.2 & LTE 4G (Included)
- RCD Protection: Built-in Type A (30mA AC) & 6mA DC
- Safety: Temperature sensors & overload protection
- Access Control: Integrated RFID/NFC reader
- Updates: Automatic remote updates (OTA)
|
Physical Characteristics
- Dimensions: 256 x 193 x 106 mm
- Weight: 1.5 kg
- Protection Rating: IP54 / IK10
- Material: Durable polycarbonate
|
Warranty and Origin
- Warranty: 5 years (manufacturer)
- Origin: Designed and manufactured in Norway
- Temperature: -30°C to +40°C
- Usage: Exclusive private residential
|
An Intuitive App for Total Control
The Easee Charge UP doesn't just charge your vehicle; it’s controlled at your fingertips. The Easee App (available on iOS and Android) transforms your smartphone into a true intelligent energy management center.
Real-Time Management
Start, pause, or stop charging wherever you are. Instantly check the charging speed and the status of your current session.
Smart Scheduling
Schedule your charging during off-peak hours to optimize savings. The station activates itself when electricity is cheapest.
Security and Access
Permanently lock your charging cable via the app to prevent theft. Manage access rights for family or friends in just a few clicks.
Detailed History
Access a complete overview of your consumption. View your spending by month or session for total transparency on your energy budget.
Note: Thanks to free built-in 4G, your station remains connected to the app even without Wi-Fi nearby.
FAQ - Easee Charge UP Charging Station
1. Why is the Easee Charge UP compatible with "all grids" (IT, TT, TN)? +
This is one of Easee's biggest strengths: the station automatically detects the electrical grid type (IT, TT, or TN). This is essential in countries like Belgium or Norway where IT grids (230V three-phase without neutral) are common. You don't have to worry about the technical details; the station adapts to your installation.
2. What is the maximum charging speed of this station? +
The station delivers up to 22 kW (32 A) on a three-phase installation and up to 7.4 kW (32 A) on a single-phase installation. It intelligently adjusts its power based on the maximum capacity allowed by your electricity meter.
3. Is the integrated 4G connection really free? +
Yes, the LTE 4G is included and free. This ensures your station remains connected to the app and receives automatic updates even if your home Wi-Fi signal is too weak or non-existent in your garage or parking area.
4. How does the station protect my home's electrical installation? +
With dynamic load balancing (via the Easee Equalizer accessory), the station monitors your home's energy consumption in real-time. If you turn on a power-hungry appliance (oven, heat pump), it instantly reduces the vehicle's charging power to prevent any main circuit breaker overload.
5. Can I use surplus energy from my solar panels to charge my car? +
Absolutely. By combining the station with the Equalizer, you can activate the solar charging function. You will then charge your vehicle only with clean energy produced by your photovoltaic panels, making your trips eco-friendly and free.
6. What built-in security features prevent power theft? +
The station features a built-in RFID/NFC reader. You can lock access and only authorize charging for individuals with an Easee Key or via the app. Additionally, differential protection (AC 30mA and DC 6mA) is already built-in to ensure total electrical safety.
7. Is the station resistant to difficult weather conditions? +
Yes, it is certified IP54 (dust and water) and IK10 (impact resistance). Designed and manufactured in Norway, it functions perfectly under extreme temperatures ranging from -30°C to +40°C, making it ideal for year-round outdoor installation.
8. What are the main features of the Easee mobile app? +
The free app offers total control: you can remotely start or stop charging, schedule charging during off-peak hours to save money, permanently lock your charging cable to prevent theft, and view a detailed history of your energy consumption.
