Easee Base – Mounting Pedestal for Easee Charge UP

€550.90

Tax included

Reference: 90322

EAN13: 7090052310458

Easee Base is a robust and modular mounting pedestal for your Easee charging station. Designed in aluminum and stainless steel with a scratch-resistant matte black coating, it allows for the installation of up to 4 charging stations on a single post. Ideal for residential parking, apartment buildings, or businesses, it offers a flexible, aesthetic, and weather-protected installation while optimizing space and costs.

* The pedestal is delivered alone, without the Easee charging station.

Easee Base - Mounting post: 1-Way: Mounting post for 1 charging point

Comments (0)

No customer reviews for the moment.

Description
Product Details

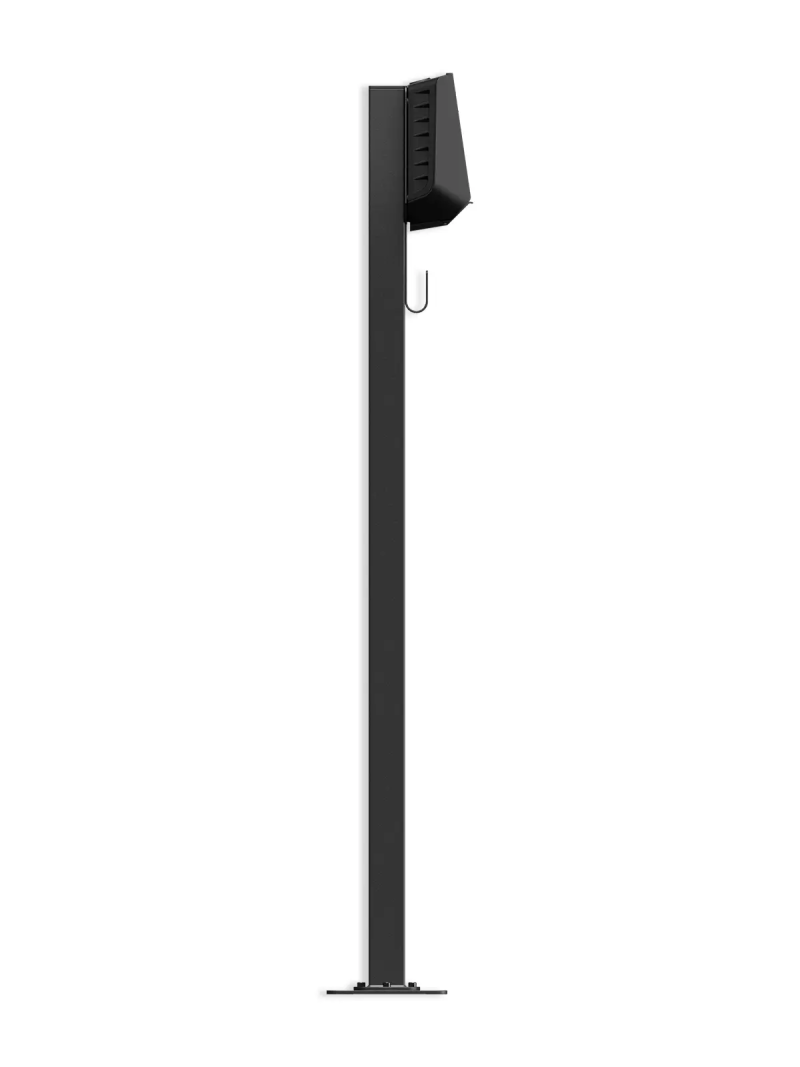

Easee Base – Mounting Pedestal for Easee Charge UP

Free your charging station installation with a robust, elegant, and scalable floor-mounted solution.

The Easee Base is a modular mounting pedestal designed to install your Easee charging stations wherever you need them, without relying on an existing wall. Whether for an outdoor parking lot, a driveway, or a business, this steel and aluminum post offers a professional and durable finish to your charging infrastructure.

Thanks to its intelligent design, it allows you to configure up to 4 charging stations on a single pedestal, thereby optimizing space and installation costs.

Key Features:

Unique Modularity: Choose between a 1, 2, or 4-station configuration on the same post.
Robust Design: Made of aluminum and stainless steel with an ultra-scratch-resistant matte black powder coating.
Invisible Cabling: All cables pass inside the post for a sleek look and maximum protection against the elements.
Integrated Power Rail: Patented connection system facilitating the serial connection of several posts for large-scale installations.
Weather Resistant: Designed to withstand the harshest climatic conditions (IP44 / IK10).

Technical Sheet: Easee Base Mounting Pedestal
Materials	Aluminum and stainless steel
Finish	Matte Black (High-quality powder coating)
Dimensions (H x W x D)	1500 mm x 156 mm x 70 mm
Weight	5.2 kg to 6.4 kg (depending on configuration)
Country of Origin	Norway

Available Configurations:

1-Way: For installing a single station with integrated U-Hooks.
2-Way: For installing two stations back-to-back with integrated U-Hooks.
4-Way: For installing four stations without U-Hooks.

Available configurations

Installation and Flexibility:

The Easee Base comes with its adapter plate allowing rotation at 45-degree intervals, providing full flexibility to orient the station according to vehicle access. Cable hooks are integrated (for 1 and 2 station versions) to keep your charging cables neatly stored.

The Easee Base is the ideal solution for company parking lots or apartment complexes. Its serial connection capability significantly reduces labor time and costs when installing multiple charging points.

Note: The pedestal is delivered alone, without the Easee charging station.

FAQ - Easee Base Mounting Pedestal

1. Why choose the Easee Base pedestal over wall mounting? +

The Easee Base is the ideal solution when you don't have a nearby wall or want to install your charging points in the center of a parking lot or driveway. It offers a professional floor-standing finish and allows the charger to be placed exactly where the vehicle parks, facilitating user access.

2. How many stations can be installed on a single Easee Base post? +

The post is extremely modular. Depending on the chosen configuration, you can install 1 station (1-Way), 2 stations (2-Way) back-to-back, or up to 4 stations (4-Way) on the same pedestal. It is a very cost-effective solution for businesses and residential complexes wishing to increase charging points in a limited space.

3. Is the cabling visible on the outside of the post? +

No, and that's one of its great aesthetic strengths. The design of the Easee Base allows all cabling to pass inside the post. Cables are thus completely invisible, protected from weather (IP44) and potential damage, while offering a clean visual appearance.

4. Is it resistant to corrosion and scratches? +

Absolutely. It is made of high-quality aluminum and stainless steel, with an ultra-resistant Matte Black powder coating. This finish effectively protects it against oxidation, UV rays, and scratches, ensuring a like-new appearance even after several years of outdoor exposure.

5. Can the station be oriented as needed on the pedestal? +

Yes, the Easee Base features an adapter plate allowing rotation in 45-degree intervals. This total flexibility allows each charging station to be perfectly oriented according to the parking layout and the location of the vehicle's charging port.

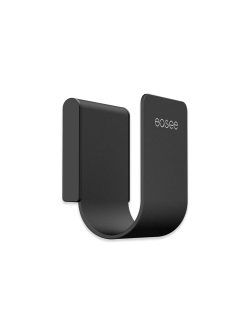

6. Does the pedestal include a holder for charging cables? +

For the 1-Way and 2-Way versions, cable hooks are directly integrated into the design. This allows the charging cable to be hung neatly between sessions, preventing it from lying on the ground, getting dirty, or being damaged prematurely.
