Type 2 Photovoltaic Surge Protector - VG Technology

€ 145,26
Belasting inbegrepen
09941
0712971130357

PV surge protector to protect against lightning surge voltages in photovoltaic power supply network.

  • Type 2 surge protector,
  • VG technology
  • PV Network voltage: 600 V  DC,
  • No leakAge, no operating currents,
  • Improved life expectancy,
  • Nominal discharge current : 15KA,
  • Max. discharge current : 40KA,
  • Common/Differential mode protection,
  • UTE C61-740-51, EN 50539-11 complianc

Commentaar (0)

Geen klantenbeoordelingen op het moment.

" Type 2 PV surge protector with VG technology to protect against lightning surge voltages in photovoltaic power supply network."





DS50VGPV-G/51 are type 2 surge protectors are designed to protect against lightning surge voltages in photovoltaic power supply network.
The DS50VGPV-G/51 SPDs incorporates CITEL`s exclusive patented `VG technology` guarantying a total absence of leakAge current and maximum reliability.





VG Technology surge protectors for AC power line and photovoltaic system

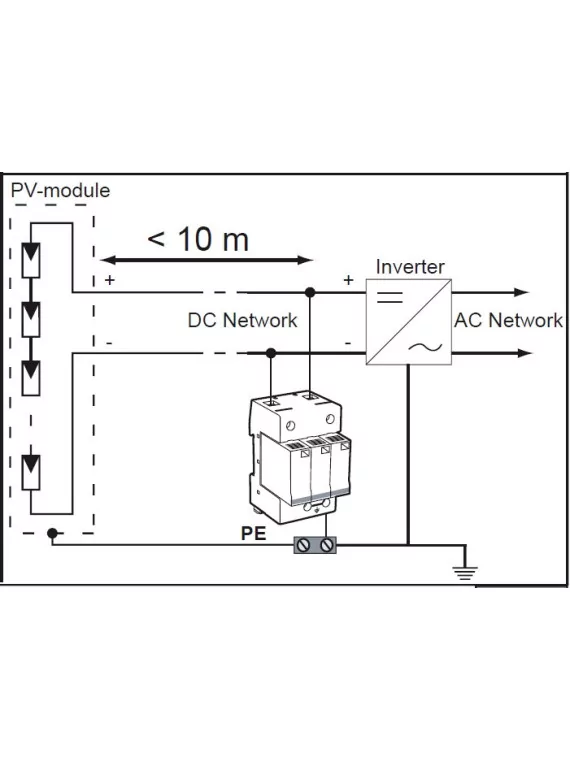

Surge Protectors for Photovoltaic systems (Roof top installation)





Surge Protectors for Photovoltaic systems (Solar farms)

Other models available on request, please contact us.





Technical Data



Electrical characteristics

SPD type

follow test IEC 61643-11

   2
Network   PV network 600 Vdc
PV Network voltage Uocstc 600 Vdc
Max. PV operating voltage Ucpv 720 Vdc

Permanent Operating current

Current consumption at Ucpv

 Icpv None

Residual Current

LeakAge current at Uc

 Ipe none
Follow current If none

Nominal discharge current

15 x 8/20 µs impulses

 In 15 kA

Max. discharge current

max. withstand @ 8/20 µs by pole

 Imax 40 kA

Total Maximal discharge current

max. total withstand @ 8/20 µs

 Imax Total 60 kA
Current withstand short circuit PV Iscwpv 1000 A
Connection mode   +/-/PE
Protection mode(s)   MC/MD
Protection level Up 2.2 kV

Protection level DM

@In (8/20µs) and @ 6kV (1.2/50µs)

 Up md 2.2/3.4 kV

Protection level L/PE

for multipolar surge protector

 Up L/PE 2.2 kV

Protection level L/N

for multipolar surge protector

 Up L/N 2.2 kV
Mechanical characteristics
Technology   VG
Connection to Network   Screw terminals: 2.5-25mm²
Format   Plug-in modular box
Mounting   Symmetrical rail 35 mm (EN60715)
Housing material   Thermoplastique UL94-V0
Operating temperature   -40/+85°C
Protection rating   IP20
Outdoor application   No
Failsafe behavior   Disconnection SPD of the PV line
Disconnection indicator   2 mechanical indicators
Spare module   DSM50VGPV-600G/51
Remote signaling of disconnection   Option DS50VGPVS-600G/51 - output on changeover co
Associated disconnection devices
Thermal disconnector   internal
Fuses   without
Standards compliance
Standards compliance EN 50539-11
Certification EAC
09941

Specifieke referenties

upc
712971130357
ean13
0712971130357
Nieuw
