Hybrid Solar Kit: Autonomy and Savings
Dive into energy autonomy with our complete hybrid solar kit! This innovative system combines solar power generation, battery storage and intelligent energy management.
Key benefits :
Production and savings:
With its 9 x 450Wp solar panels, this kit produces around 4,455 kWh/year (estimate for central France). This represents potential savings of around €1,336.50 per year (based on an electricity price of €0.30/kWh).
Why choose this kit?
Customisation:
Adapt your installation to your needs. Contact us for a personalised study.
Ready to go independent? Ask for your free quote!
This kit includes
Benefit from sustainable energy at your fingertips with our solar kit, combining simplicity and efficiency.
Choose from a range of options to create an energy system that's just right for you. Whether you're looking to power an isolated site or a stand-alone installation, this kit has been designed to do just that.
It can operate alternately with the public grid or with a generator.
This semi-autonomous configuration will enable you to gradually free yourself from the public grid.

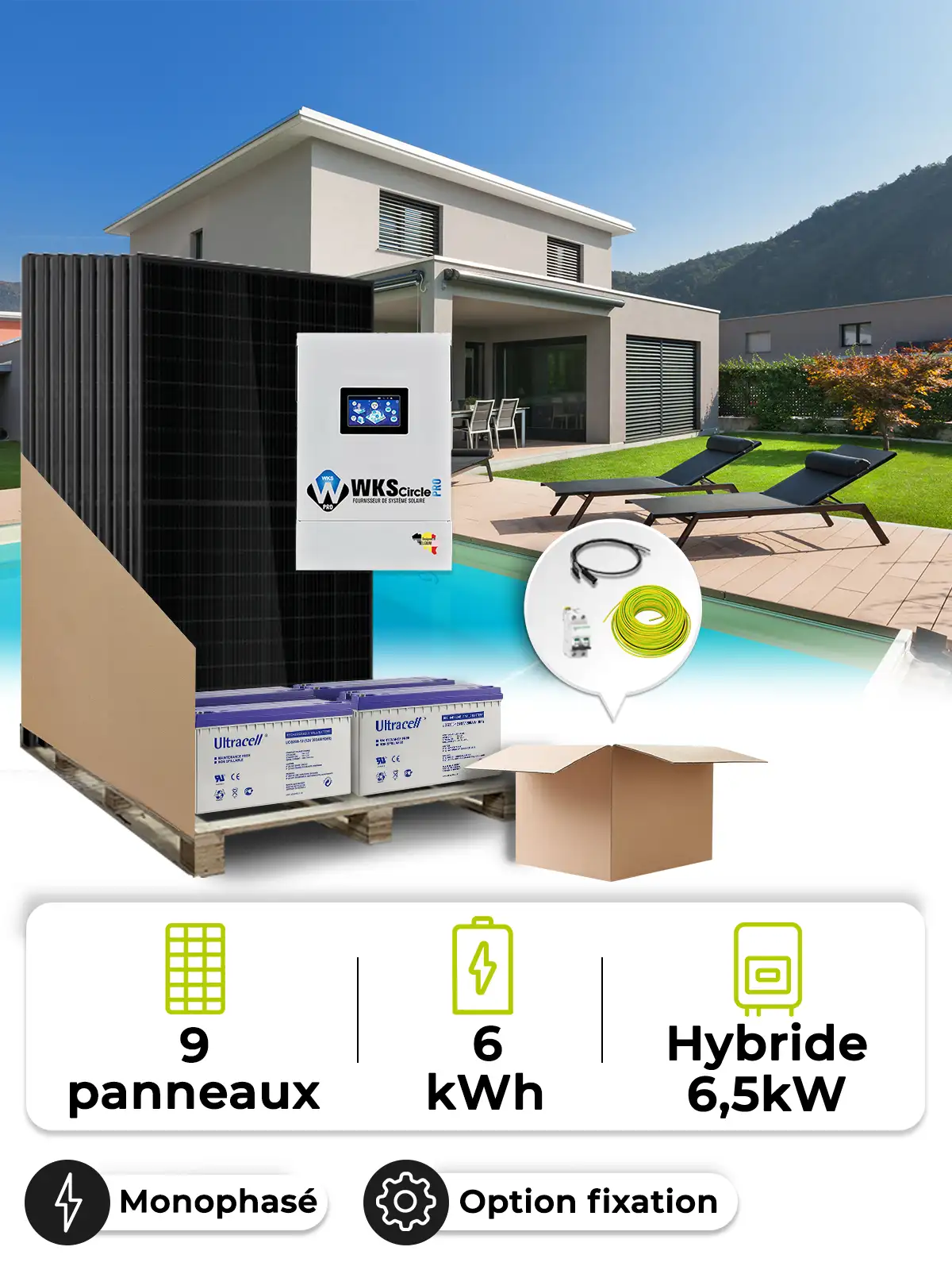

The basic kit contains 9 solar panels, a WKS Evo Circle Pro 6.5 kVA 48V hybrid inverter, four 200Ah ultracell batteries, solar cables to connect the panels to the inverter, and the panel mounting system is available as an option. (The mounting system as well as the cabling and protections can be modified to suit your needs).
All our kits are configurable. In the options you can click on the product to choose another model or change the quantities to adapt the kit to your needs. You can also see details of the products you have chosen directly below the price.

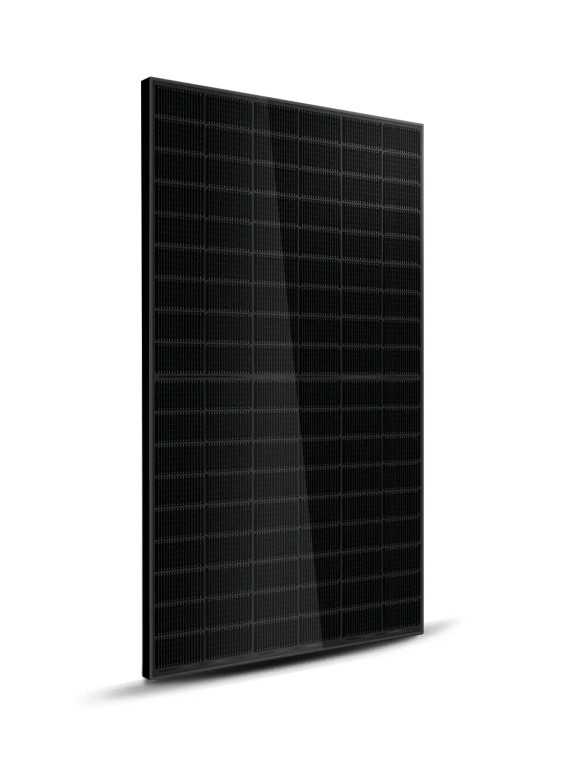

Selected from the latest technologies, this panel offers unrivalled efficiency.
See its product sheet in our panels section to find out more.
And don't forget, we offer you the flexibility to choose the panel model you prefer.
We invite you to consult our solar production simulator to find out exactly what your solar production will be.
|
Perc |
N-Type |
HJT |
|
|
Efficiency |
Approximately 19-22 | Approx. 20-23 | Approximately 21-24 |
|
Cost |
Moderate | High | Very high |
|
Temperature coefficient |
Approximately -0.3 to 0.4% per °C | Approx. -0.3% per °C | Approximately -0.2% per °C |
|
Annual degradation |
Approx. 0.5 - 07 | Approximately 0.4 - 0.5% | Less than 0.5% per year |
|
Durability |
Good | Very good | Excellent |

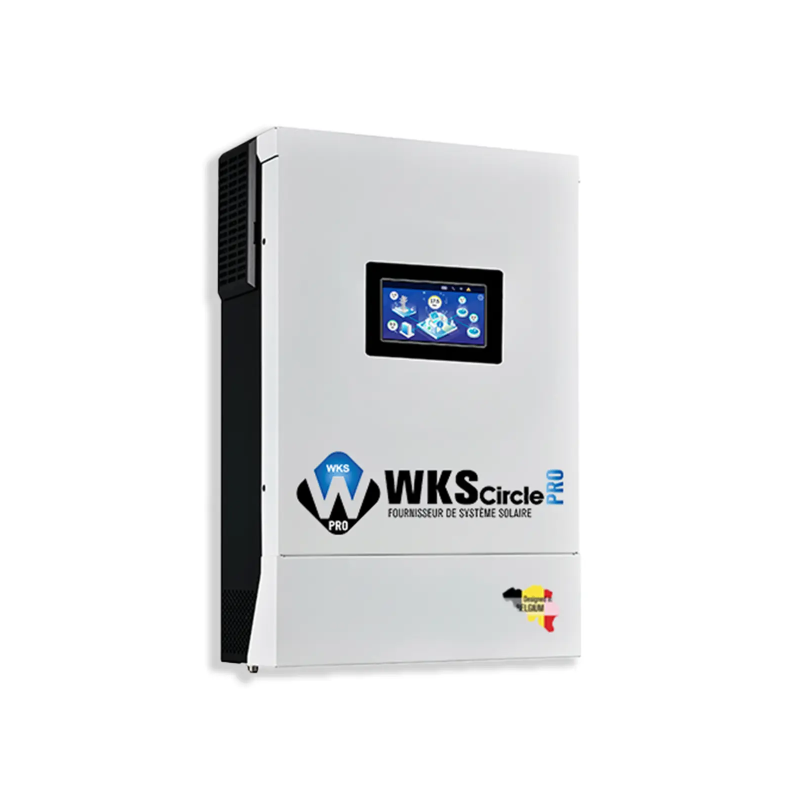

The WKS Evo Circle PRO 6.5 kVA / 48 V inverter is the ideal technical solution for a stand-alone or hybrid solar system. It combines power with intelligent energy management and ensures a stable power supply thanks to its UPS (emergency) function with rapid changeover (10 to 20 ms depending on the mode).
It has two programmable AC outputs:
Equipped with a 120 A MPPT regulator, it optimises photovoltaic production up to 9,000 Wp. Designed for 48 V batteries, it is compatible with LiFePO₄ lithium batteries.
Its all-in-one design (inverter + charger + controller) simplifies installation. Wi-Fi connectivity and the dedicated mobile app (iSolar/WatchPower) enable remote control.
For larger projects, it can be upgraded to 6 units in parallel (single-phase or three-phase) for a total output of 39 kW.
Key technical features:

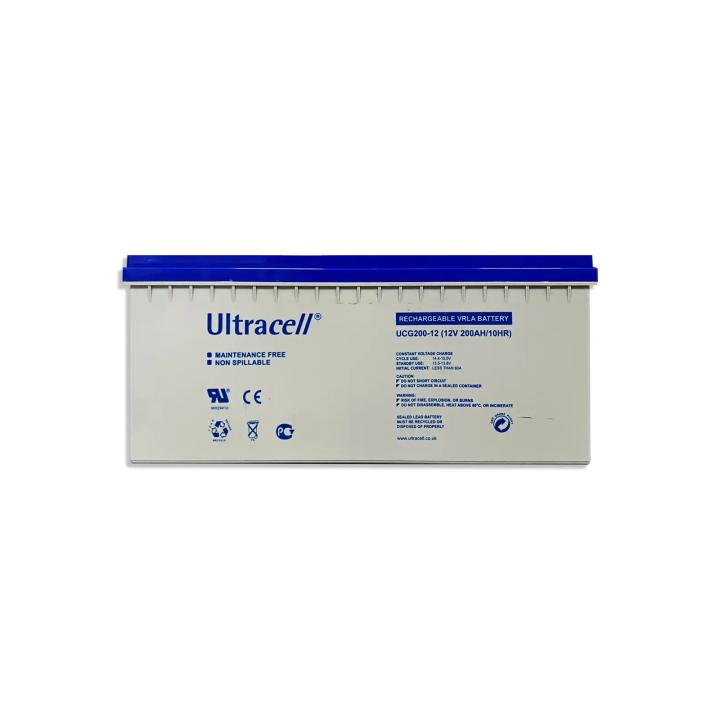

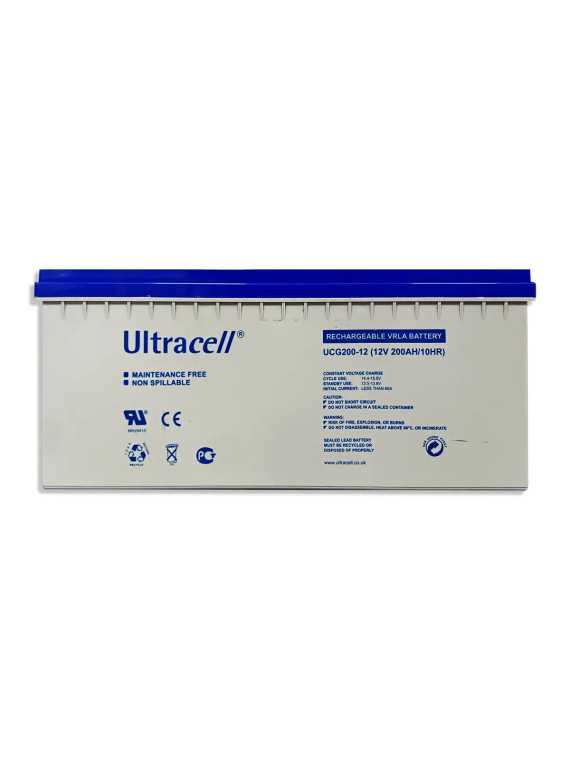

Gel batteries are sealed batteries: no maintenance, no need to add distilled water. Greater safety than open lead batteries.
A Gel battery can withstand a 100% discharge and recover its rated capacity if the discharge holding time is short. This series has a longer discharge time than other batteries. Its special plate design increases battery life, particularly in warmer temperatures. A separator within the battery improves its performance. It also has a longer shelf life.
Single-family home connected to the grid
Thanks to its power and storage capacity, this kit can cover a large proportion of daily consumption: lighting, household appliances, multimedia, small electrical appliances. It also provides back-up in the event of a power cut.
Isolated or semi-isolated house
The kit provides a stable power supply for homes in areas where the grid is absent or unreliable. The hybrid inverter and battery ensure continuity even during prolonged interruptions.
Second home / leisure home
Perfect for powering homes used only occasionally: cottages, holiday homes, occasional residences. It keeps subscription and connection costs to a minimum while guaranteeing comfortable autonomy.
Utility room / light workshop
Ideal for lighting, tools for moderate use, small electrical appliances or surveillance systems. Perfect for a workshop or technical room that doesn't require a lot of power.
Back-up mode / emergency inverter
In the event of a mains failure, the system automatically switches to battery power, ensuring that essential circuits in the home continue to be supplied.
Step towards a larger installation
This kit provides a scalable base: panels or batteries can be added according to the inverter's capacity, to support future increases in demand.
