• Circuit breaker Schneider mono 10A

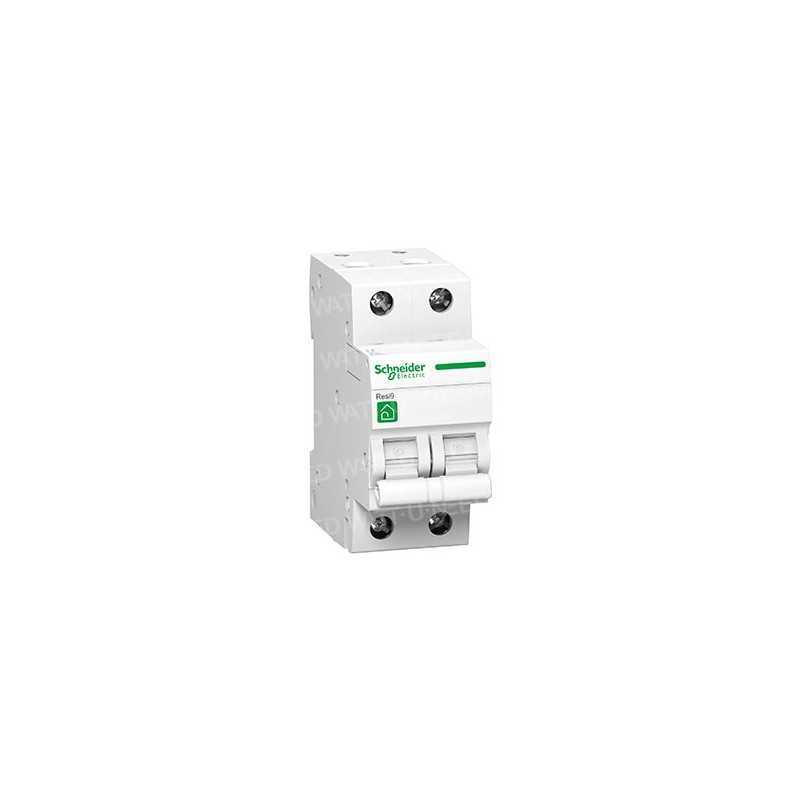

Disjoncteur Schneider Resi9 - 1P+N - 32A - Courbe C - 230V - Réf. R9F64232

€20.00
Tax included
R9F64232
0712971133228

- Circuit breaker Schneider 32A
- RESI9
- 2-pole

Comments (0)

No customer reviews for the moment.

Main features
Range Resi9
Product name Resi9 MCB
Type of product or component Miniature circuit-breaker
Device
application
Distribution
2P
Pole description
2
Number of protected poles
[In] rated operating current 32 A at 30 °C
C.
Mains type
a.
Trip technology Thermal-magnetic
C
Trip curve
capacity
Breaking
3000 A Icn at 230 V c.a. 50/60 Hz in compliance with EN/IEC 60898-1
Standards EN/IEC 60898-1
Product certifications CEBEC
Supplementary
Mains frequency 50/60 Hz
a.
[Ue] rated operating voltage 230 V
a. 50/60 Hz
5
Magnetic tripping limit
...10 x In
3
Limitation class
according to EN/IEC 60898-1
.
[Ui] rated insulation voltage 440 V a.c
50/60 Hz
4
[Uimp] rated impulse withstand voltage
kV
key
Control type Toggle
Local signaling Indication
ON/OFF
Installation mode Snap-on
Mounting bracket DIN rail
b
Compatibility of distribution block and comb Bas:
iconnect
4
9 mm pitch
Height 85 mm
Width 36 mm
Depth 75 mm
Installation depth 44 mm
0
Product weight
.22 kg
Color White
life
Mechanical
xml-ph-0031@deepl.intea.
50/60 Hz conforming to EN/IEC 60898-1
Description of optional interlocks Padlock in OFF position
Connection mode Tunnel terminals (bottom) - <= 35 mm² - rigid
Tunnel type terminals (top) - <= 35 mm² - rigid
Tunnel type terminals (bottom) - <= 25 mm² - flexible
Tunnel type terminals (top) - <= 25 mm² - flexible
Tightening 3
torque
.5 N.m
Environment
Degree of protection IP IP20 conforming to IEC 60529
IP40 (modular housing) conforming to IEC 60529
2
Pollution degree
conforming to EN/IEC 60898-1
Overvoltage category III
-25...
Operating temperature
60 °C
-40
Storage ambient temperature
...80 °C

R9F64232

Data sheet

Type of electrical equipment
Disjoncteur

Specific References

UPC
712971133228
EAN13
0712971133228
New
