11.3 kWp Self-Consumption Solar Kit – Tri 10 kW – 9.60 kWh Battery

A bright choice for a sustainable and economical future.

Designed with the latest technological advancements, it combines next-generation solar panels, an intelligent inverter, and a high-performance storage system for optimal efficiency.

All our kits are customizable. In the options, you can select another model or adjust the quantities to tailor the kit to your specific needs. The mounting system is not included but can be selected from the available options. Additionally, you can view the details of the selected products directly below the price.

Important notice for our customers in Belgium: An environmental contribution of € 114.73 excluding VAT will be applied to the purchase of each Pylontech US5000 lithium battery. More information at the bottom of the page.

Deye 10 kVA - SUN-10K-SG04/LP3-EU

This solar inverter is the ideal solution to make your home energy-independent by optimizing your solar energy production and reducing reliance on the electrical grid. It converts the energy produced by your solar panels into usable electricity, offering optimal efficiency thanks to advanced technical features.

Key Points:

• Versatility: Compatible with both lead-acid and lithium-ion batteries.
• High Power: Maximum PV input of 13,000W and 10,000W AC output.
• Efficiency: High conversion rate to maximize solar energy usage.
• Flexible Installation: Adapts to various configurations.
• Reliability: Designed to operate under extreme conditions.

Benefits:

• Energy Independence: Produce your own electricity independently.
• Energy Savings: Significantly reduce your electricity bills.
• Eco-friendly: Reduce your carbon footprint.
• Reliability: Stable power supply even in case of outages.

Technical Features:

• Batteries: Lead-acid or lithium-ion (40-60V).
• PV input power: Up to 15,600W.
• AC output power: 10,000W.
• PV input voltage: Maximum 800V.

Additional Features:

• Touchscreen LCD: Displays system information and any potential errors.
• Smart Monitoring: Remote shutdown in case of incidents and remote parameter updates.

This device provides a complete and reliable solution for an energy-efficient and environmentally friendly home.

---

UPS operation with Pylontech batteries

---

Lithium batteries

Choose the battery that suits your needs:

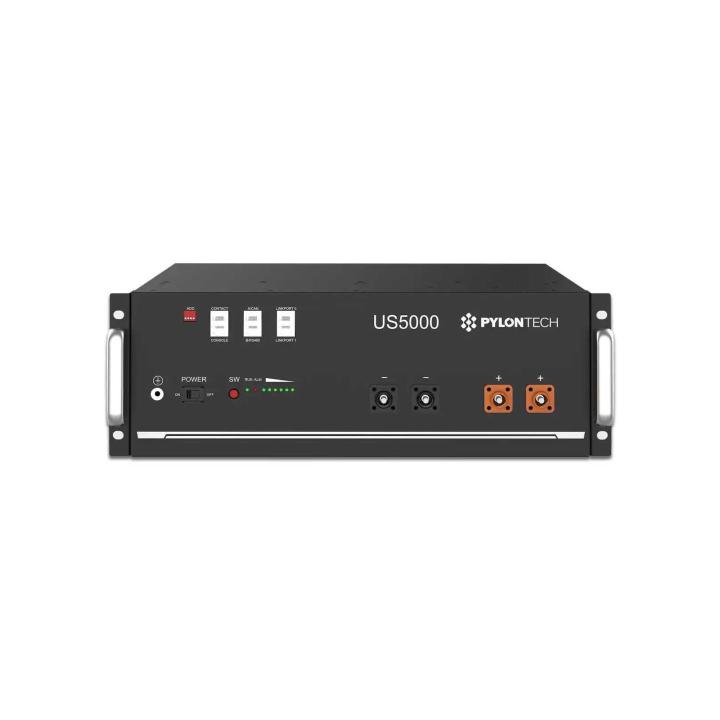

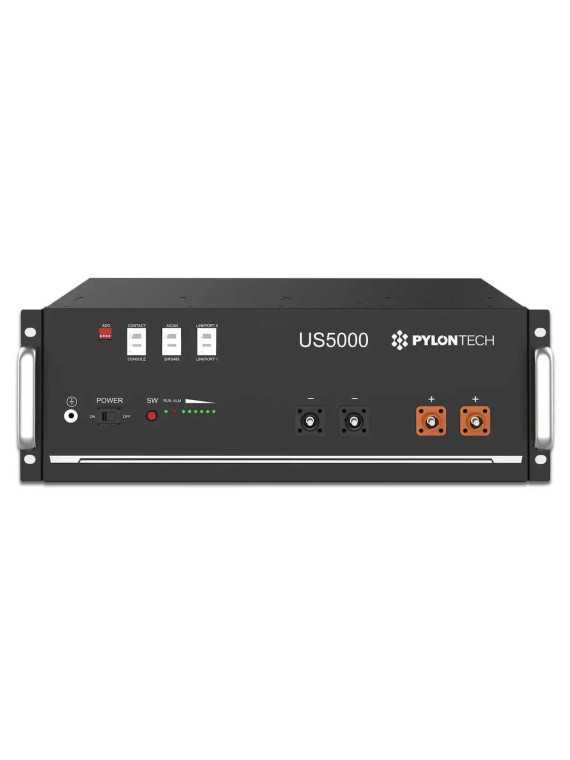

The Pylontech US5000 The LeaptonLiFePO4 EL-A05 5.12kWh 100Ah • Pylontech US5000: the "market standard/ESS ecosystem" choice The US5000 is a widely used model in residential applications (rack/ESS format), with modularity of up to 16 units and CAN/RS485 communications for UPS integration. The page highlights its reliability, modularity and service life of up to 6,000 cycles at 80% DOD. • Leapton EL-A05: the choice for "harsh conditions/outdoor use" Its key differentiators are its IP65 rating and heating function, which allows it to remain operational (discharge) down to -20°C, which is very useful if the battery is installed in an unheated room, garage, technical shelter or outdoors. It also boasts a power rating of 1C (100 A) ≈ 5.12 kW, which is useful for power demands.

Comparison table

Criterion	Pylontech US5000	Leapton EL‑A05
Technology	LiFePO4 (LFP)	LiFePO4 (LFP)
Nominal energy	4.8 kWh	5.12 kWh
Capacity	100 Ah (indicated in the product title)	100 Ah
Nominal voltage	48 V	51.2 V (48 V class)
Operating range (discharge)	Not specified on the page (in the visible excerpts)	-20 °C to 55 °C (thanks to integrated/optional heating)
Life cycles	Up to 6,000 cycles at 80% DOD	> 6,000 cycles (@25°C)
Maximum charge/discharge power	Not specified on the page (in the visible excerpts)	5.12 kW / max current 100 A (1C rate)
Communication	CAN / RS485 (mentioned)	RS485 / RS232 / CAN
Protection	Not specified on the page (in the visible excerpts)	IP65 (indoor/outdoor)
Dimensions	Not specified on the page (in the visible excerpts)	395 × 615 × 140 mm
Weight	42 kg	43 kg
Expandability	Up to 16 units (up to 76.8 kWh)	Up to 15 units in parallel (up to 76.8 kWh)
Warranty	10 years (with possible registration mention)	10 years

---

Low Voltage Hybrid System DEYE with Pylontech Battery - Introduction Video and Installation Guide

---

Important notice for our customers in Belgium: As part of our commitment to regulatory compliance and environmental responsibility in Belgium, we would like to inform our customers that the purchase of a Pylontech US5000 battery is subject to a mandatory environmental contribution. An amount of €114.73 excluding VAT must be added for each battery purchased, as a direct contribution to Bebat, the organisation in charge of managing batteries and accumulators in Belgium. This measure complies with current Belgian environmental legislation. For more information, click here Here is the reference list and the corresponding fee! When purchasing lithium batteries, please add the following product Pylontech US5000 environmental fee corresponding to the number of batteries you order. Otherwise, we will recalculate and invoice the amount after the purchase.
