Free yourself from screws!
Grounding clips enable quick and easy equipotential bonding of frames, modules and metal support structures to earth.
Rayvolt clips are a quick and easy-to-install grounding clip that ensures conductivity between aluminum or steel frames and shielded electrical cables.
- A single operation to strip, electrically connect and attach to the frame, without perforating it.
- Positioning across the entire module, independent of distances between modules.
- Mechanically and electrically: compliant with product standards IEC 61730-2 : 2007 and IEC 60947-1 : 2007, BS EN 60068-2-11 : 1999 (Bureau Véritas test report available on request).

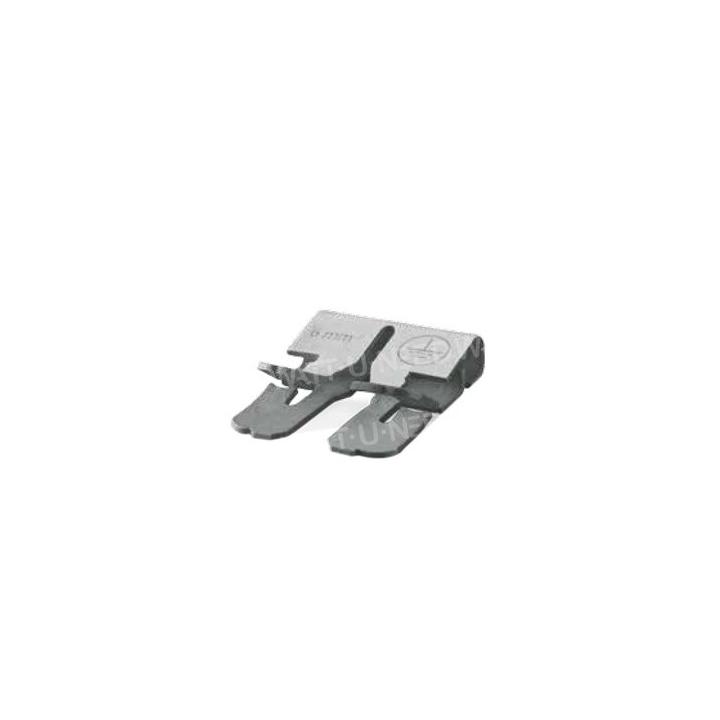

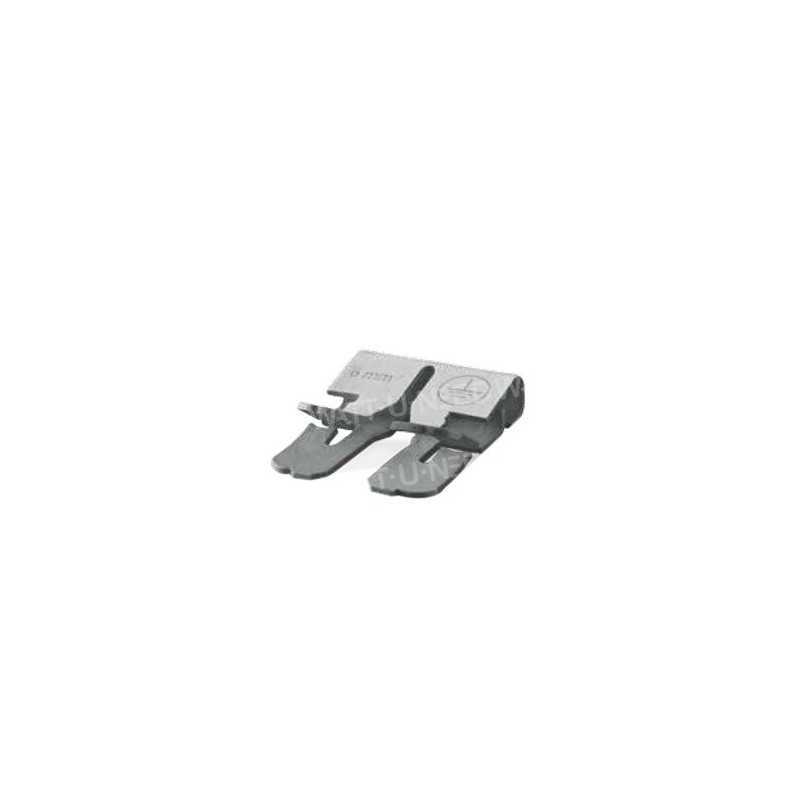

- The grounding symbol appears on the top of the clip.
For all aluminum-framed panels from 1.5 to 2.5mm thick, with flexible stranded wire (H07V-K) or rigid copper cable (H07V-R), cross-section 6 mm².
| MATERIAL | C67S Steel |
| SURFACE TREATMENT | Combines a zinc-rich base layer with an aluminum-rich finish |
| ELECTRICAL CABLE CHARACTERISTICS | 6 mm² section: flexible multi-strand V/J H07V-K or rigid copper cable H07V-R |
| CORROSION RESISTANCE | No red rust after 1000 hours of salt spray according to BS EN 60068-2-11:1999 |
| MODULE FRAME CHARACTERISTICS | Thickness 1.5 to 2.5mm - Internal lip of 12mm min |
| DIMENSIONS* (A x B x C in mm) | 23.3 x 20.0 x 5.6 |
