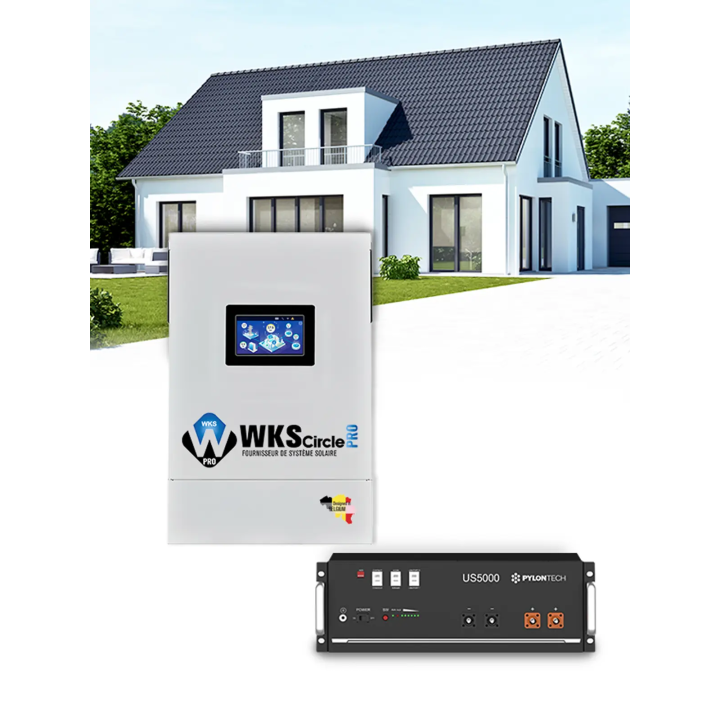

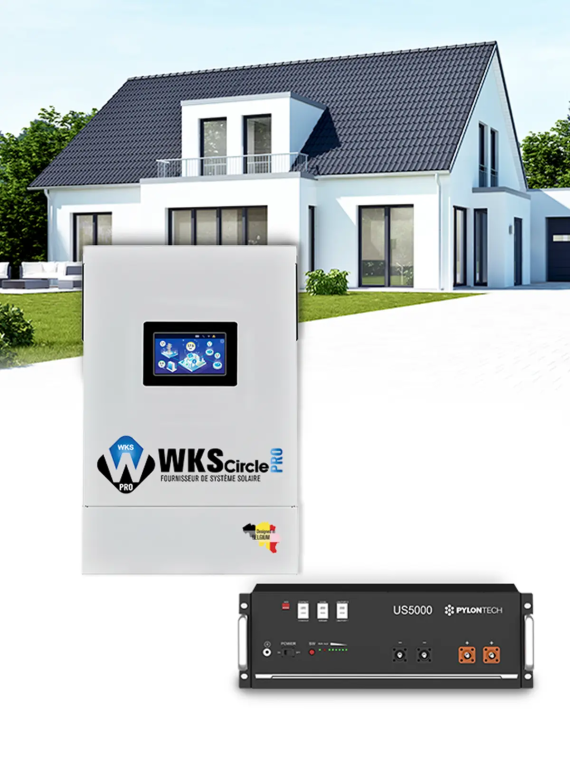

Pylontech WKS EVO Circle Pro 6.5 kVA UPS package and lithium battery

Combining the WKS Evo 6.5 kVA 48V hybrid inverter with a Pylontech battery bank is a smart choice for both residential and commercial solar installations. This combination ensures optimal energy efficiency, intelligent energy management, and increased system reliability. Pylontech batteries, renowned for their long lifespan and stable performance, perfectly complement the advanced technology of the WKS Evo Circle Pro inverter, providing a sustainable and cost-effective power solution.

All our packs are configurable. In the options, you can click on the product to choose a different model or change the quantities to adapt the kit to your needs.
You can also see the details of the selected products directly below the price.

Important notice for our customers in Belgium : An environmental levy of €114.73 excluding VAT will be applied to the purchase of each Pylontech US5000 lithium battery. More information at the bottom of the page.

Hybrid inverter

A hybrid inverter with grid injection is an essential device in solar power systems that converts electricity generated from renewable sources into alternating current (AC) compatible with the electrical grid.

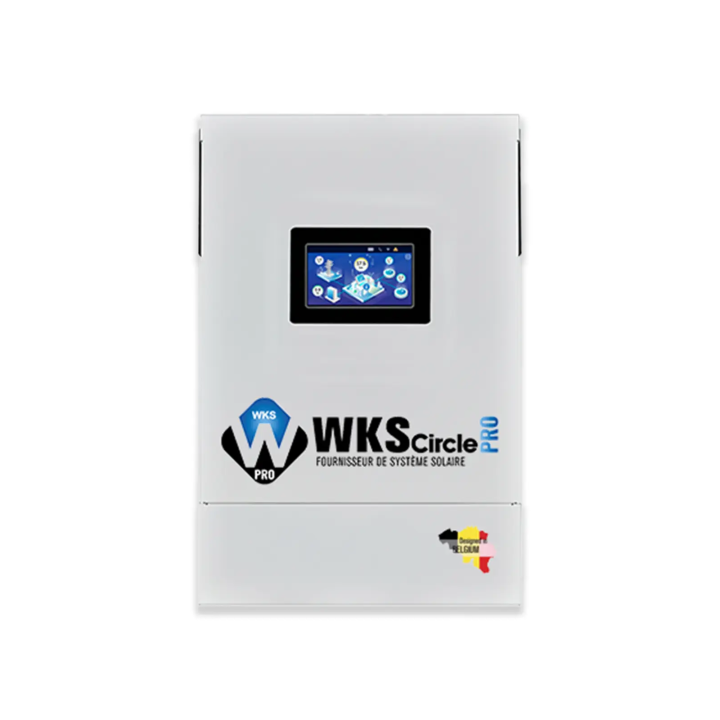

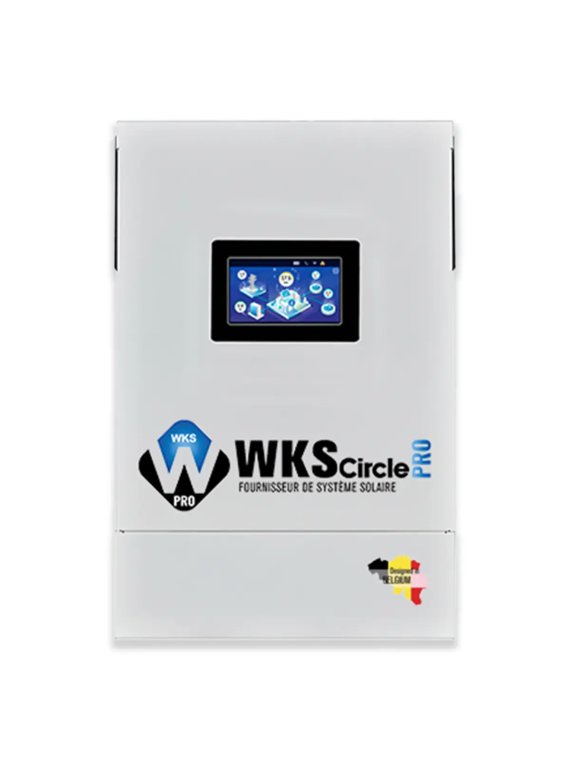

The most advanced hybrid solar inverter of its generation

The WKS Evo Circle PRO is a next-generation hybrid inverter designed for stand-alone and hybrid solar installations. It combines three essential functions in a single device: a pure sine wave inverter , an MPPT solar charge controller , and a mains charger . This all-in-one architecture significantly simplifies the design and management of a photovoltaic system while ensuring high energy efficiency and exceptional reliability.

The WKS Evo Circle PRO stands out for its versatility , advanced connectivity and ability to operate in parallel for cumulative power up to 39 kW.

This model is ideal for off-grid homes , hybrid systems with batteries , or industrial and commercial installations requiring a reliable and continuous power supply .

An all-in-one inverter for your energy independence

Designed to meet the needs of residential, professional or isolated installations, the WKS Evo Circle PRO ensures a stable, clean and continuous power supply , even without an electrical grid.
Thanks to its MPPT 120 A technology and its wide photovoltaic input range (90 V – 450 V) , it makes maximum use of available solar energy, guaranteeing an efficiency of over 93%.

Its dual output system allows critical and secondary loads to be managed separately: your essential devices remain powered, while non-priority loads only activate when solar production is sufficient.

Total control over your production and consumption

The WKS Evo Circle PRO is designed for precise and intelligent control of your solar installation.
Its 4.3-inch color LCD screen displays real-time solar power, charge status, battery voltage and instantaneous consumption.

Thanks to its WiFi connectivity and its i.Solar mobile application , you can monitor your data wherever you are: daily production, history, system alerts, remote diagnostics, etc.
A BMS port is provided for direct communication with modern lithium batteries, ensuring perfect charge balance and enhanced safety.

Parallel operation: scalable power up to 39 kW

The WKS Evo Circle PRO inverter can be installed in parallel with up to six identical units , providing a total power of 39 kW .
This flexibility makes it ideal for high-energy-consumption buildings: primary residences, businesses, workshops, agricultural buildings, tourist establishments or public institutions.

Each unit communicates via an intelligent parallel bus to balance the load and ensure maximum redundancy.

Unwavering safety and reliability

The WKS Evo Circle PRO incorporates a complete set of electronic protections :

• Overload and overheating
• AC and PV surge
• Short circuit
• Polarity reversal
• Automatic thermal management via variable ventilation

These safety features, combined with a robust ventilated steel design, ensure durable, quiet and reliable operation, even in demanding environments.

Battery compatibility

The WKS Evo Circle PRO works with the majority of batteries on the market:

• Lead-acid, AGM, and Gel batteries
• Lithium (LiFePO₄) batteries with integrated BMS communication
• Heavy-duty lead-carbon or hybrid batteries

It automatically adjusts its charging parameters according to the technology used, maximizing battery life.

Areas of application

• Residential off-grid systems
• Hybrid systems (solar + grid + batteries)
• Isolated sites : chalets, shelters, agricultural facilities
• Commercial buildings : offices, workshops, shops
• Backup power supply (UPS) for sensitive equipment

Why choose the WKS Evo Circle PRO on Wattuneed?

1. Bestselling product : adopted by thousands of installers and users in Europe.
2. Warranty and technical assistance provided by Wattuneed, solar energy specialist since 2008.
3. Full compatibility with our range of panels, batteries and accessories.
4. Permanent stock and fast delivery in Europe.
5. Pre-sales support for sizing and configuring your installation.

Wattuneed supports you at every stage of your project, from design to commissioning.

Installation tips

Proper ventilation of the room is essential to ensure adequate heat dissipation. It is recommended to use cables of appropriate cross-section and protective devices (DC circuit breakers, fuses, surge protectors) suitable for the installation's power rating.

Our technical teams can assist you with the initial setup and commissioning.

1. Practical application – Example of a real installation

Example: Self-sufficient house with lithium batteries

A detached house of 120 m², equipped with:

• 12 solar panels of 450 W each (i.e., 5.4 kWp),
• 1 WKS Evo Circle PRO 6.5 kVa inverter,
• a battery bank of two Delong or Pylontech Lithium batteries – 10 kWh .

The system works as follows:

• During the day, the WKS Evo Circle PRO directly converts solar production to power the house and recharges the battery via its 120A MPPT regulator.
• At night, it automatically switches to battery mode and continues to power essential equipment (lighting, refrigerator, freezer, telecommunications).
• In case of low battery or high consumption, the integrated AC charger activates and recharges the batteries via the generator or the mains.

Result :

• 100% autonomy for most of the year,
• reduction in electricity bills of more than 80%,
• no power outages, even in isolated locations.

Cabling and connection

1. PV Connectors
2. AC output connectors (load connection)
3. AC Input Connectors
4. Battery connectors
5. Power sharing port
6. Parallel communication port
7. Circuit breaker
8. On/Off Switch
9. External CT port
10. Internal WiFi
11. RS-232 communication port
12. BMS communication port: CAN, RS-485 or RS-232

A collection of videos to help you understand everything

Theme	Objective / Benefit
Technical labels	Decoding inverter information to make the right choice
DC voltage measurement	Use a voltmeter to measure direct current
Protective case	Securing the installation: differential + earth
Pylontech inverter & battery connection	Optimize installation and wiring
Surge protector box (polarity)	Avoid polarity reversal
Surge protector box (ground)	Understanding grounding
Connecting panels to the inverter	Maximize solar yield
AC IN/OUT connection	Correct electrical connection
AC wiring (neutral/phase)	Securing AC power installations
Pylontech battery → WKS Circle inverter	Ensuring optimal performance
Communication cable	Reliable system connection
Inverter pre-start	Pre-launch checks
Inverter-powered circuits	Ensuring proper functioning & safety
Standard start hybrid inverter	Understanding indications & tension
Basic parameters of inverter + lithium batteries	Optimize settings & performance

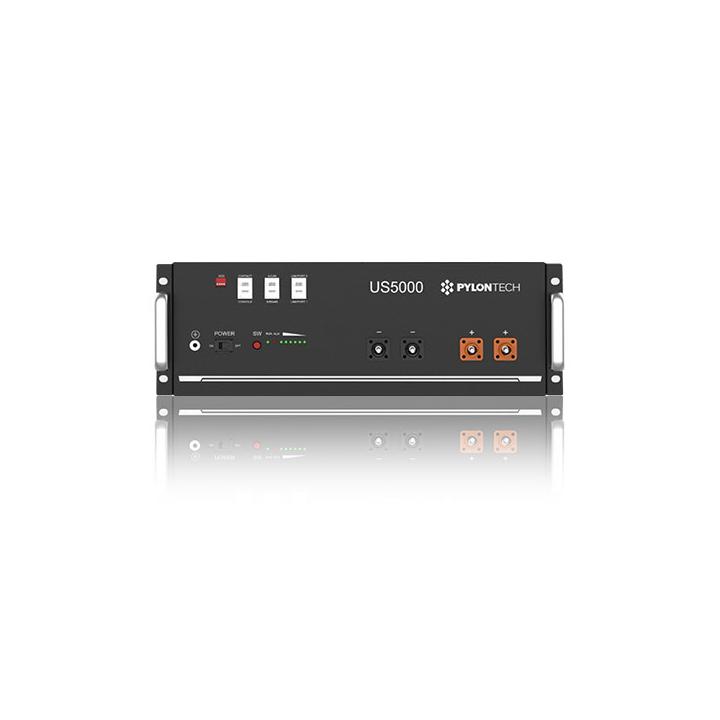

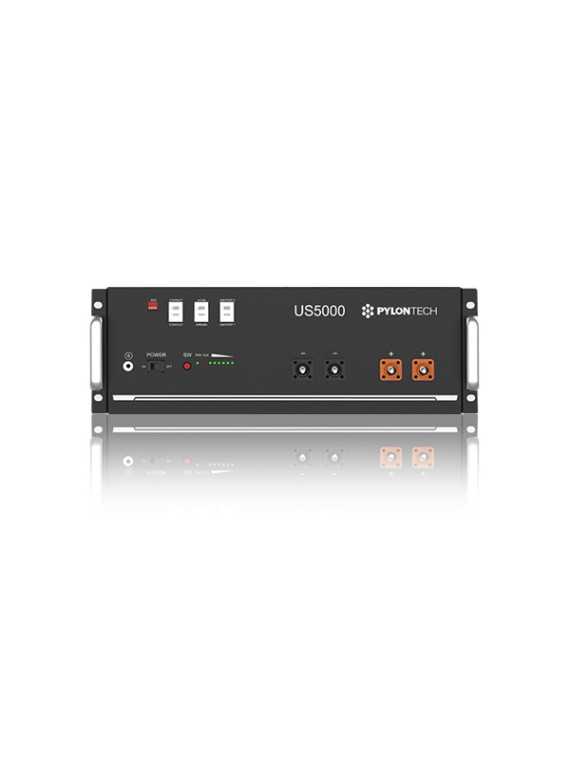

Pylontech US5000 +100 Lithium Battery - 4.8kWh

The Pylontech US5000 battery is a new, versatile energy storage product that provides reliable power with soft start to reduce current spikes. It features dual BMS protection, automatically adjusts the address in multiple connections, and supports wake-up via RJ45 signal. It allows for a 95% depth of discharge, meets environmental standards, and uses LiFePO4 for enhanced safety. The battery management system provides automatic protection and balancing. Compact, lightweight, and self-cooling, it offers low self-discharge, no memory effect, and is suitable for flexible parallel configurations.

We chose Pylontech lithium batteries for multiple reasons:
• Product warranty of 7 to 10 years;
• A very fast charging/discharging speed;
• Possibility of upgrading capacity whenever you want afterwards;
• No technical capacity limit.
