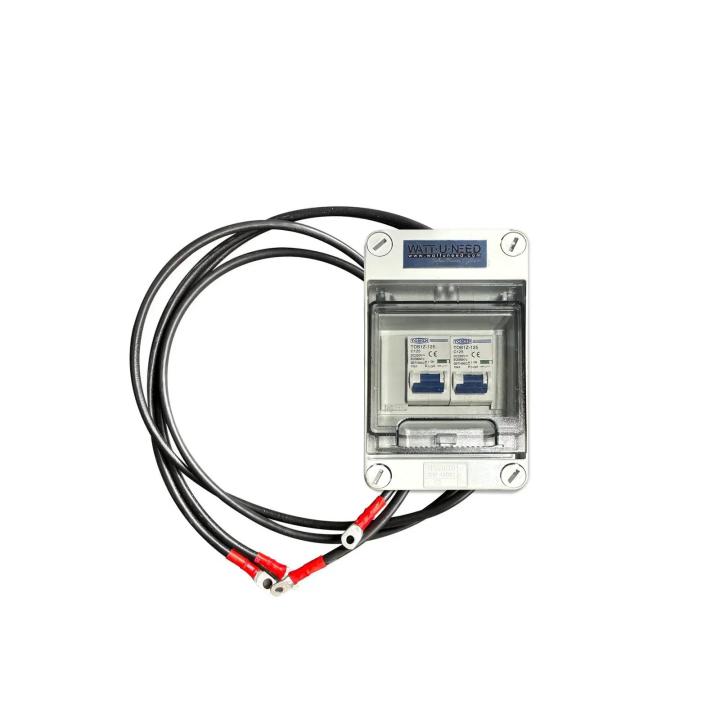

Battery box with automatic fuse 2X 125A DC 250V + cables

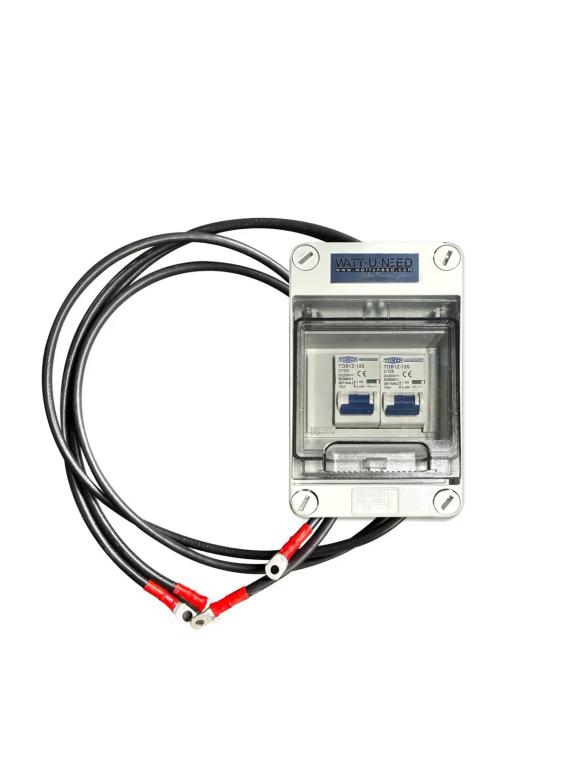

Battery box with automatic fuse 2X 125A DC 250V + cables — vue 2

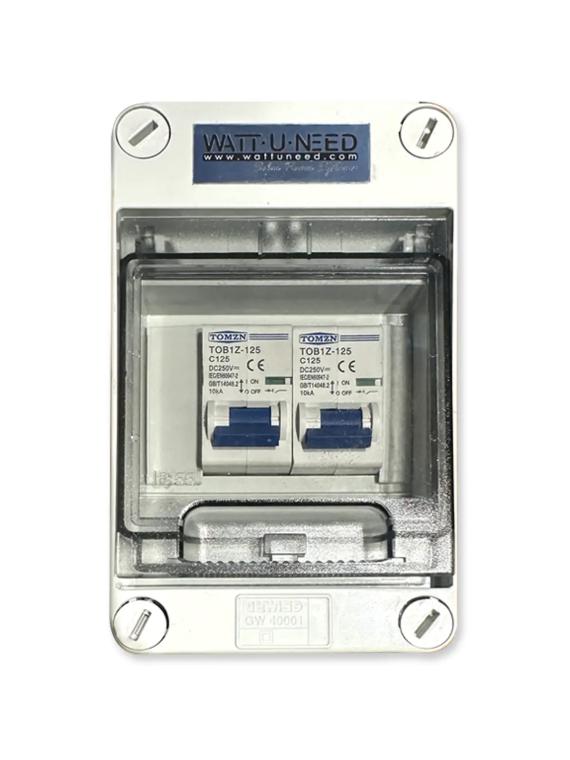

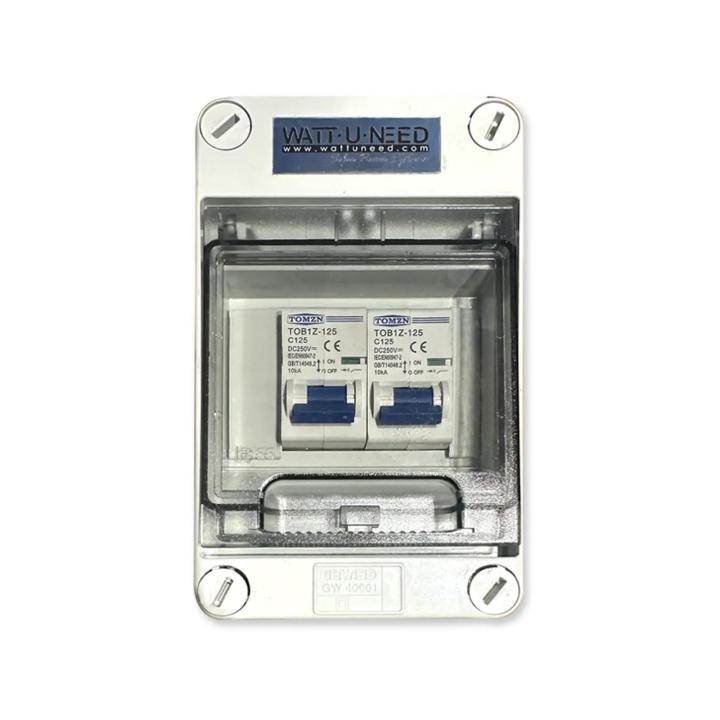

Battery box with automatic fuse 2X 125A DC 250V + cables — vue 3

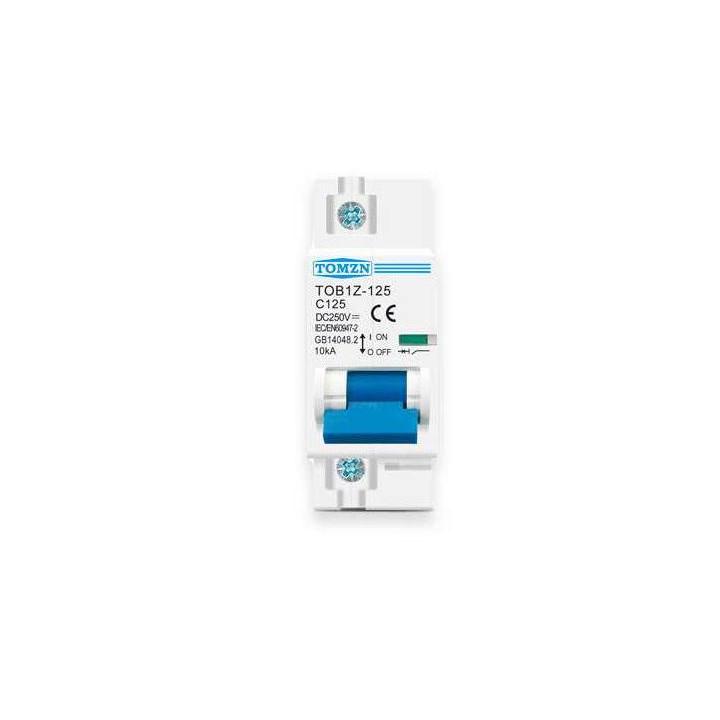

Battery box with automatic fuse 2X 125A DC 250V + cables — vue 4

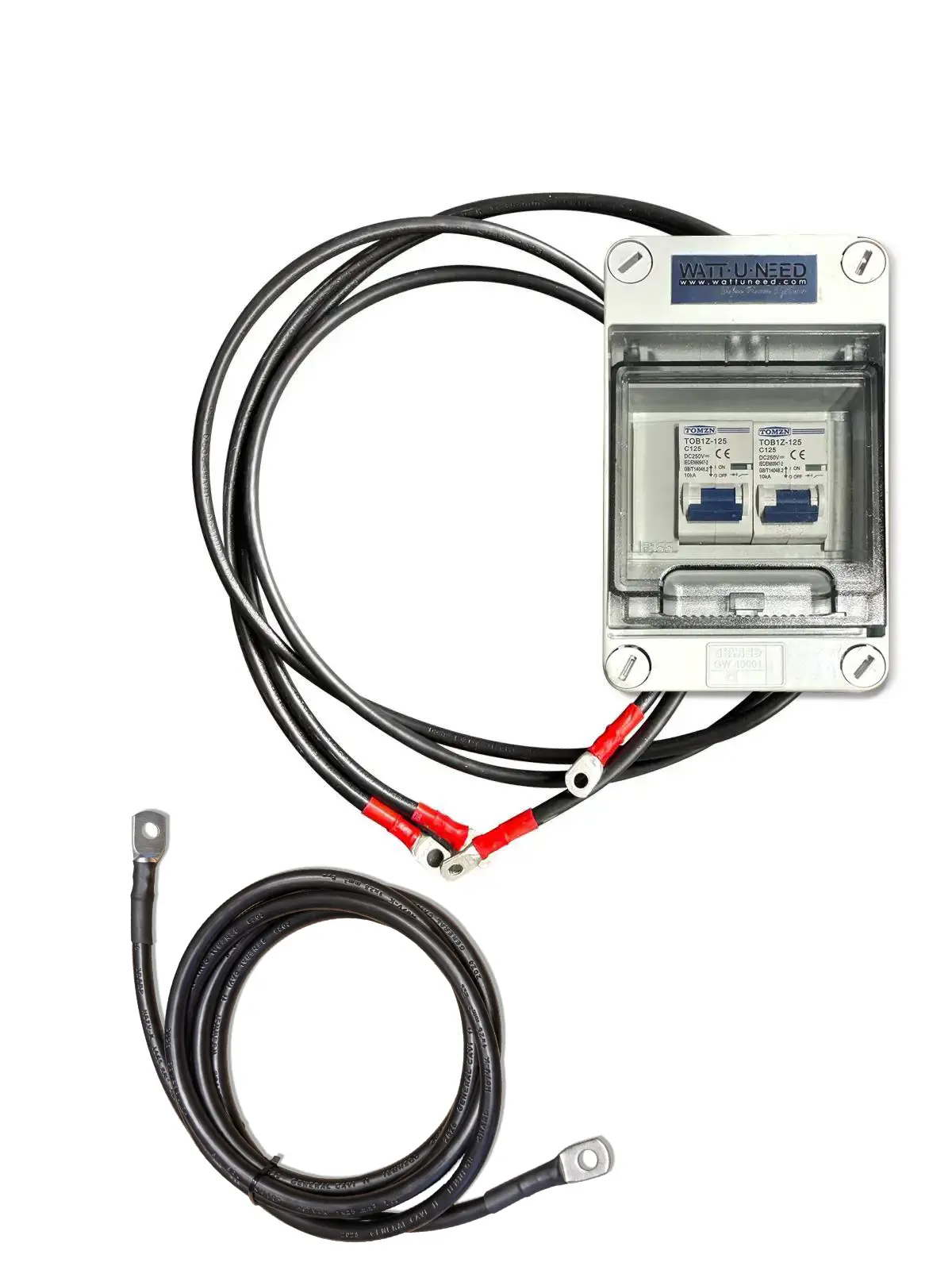

Battery box with automatic fuse 2X 125A DC 250V + cables
Battery box with automatic fuse 2X 125A DC 250V + cables — vue 2
Battery box with automatic fuse 2X 125A DC 250V + cables — vue 3
Battery box with automatic fuse 2X 125A DC 250V + cables — vue 4

Delong / Leapton 2X 125A DC 250V battery box with automatic fuse + 2x35 mm battery cables

By Julien Mawet · Solar PV Expert at Wattuneed • Updated April 2026
€180.77
Tax included
Cof-Fusible-2X-125A-DC-250V-Delong-Leapton
0768563822902

Protect your solar installation with this plug-and-play dual-circuit DC protection box. It simultaneously protects two circuits against overloads and short circuits, ensuring the safety of your energy storage system.

Battery compatibility: This system is universal (lead-acid and lithium) and 100% compatible with Delong and Leapton batteries.

Kit contents:

  • 1x DC box with 2 x 125A fuses (max 250V)
  • 4x 35 mm² battery cables (1m) with pre-fitted terminals
  • 2x 35 mm² battery cables (2m) with pre-fitted terminals

Key features:

  • Maximum safety: Dual circuit breakers for two independent circuits.
  • Plug-and-play: Cables and crimped terminals for immediate connection.
  • High performance: 35 mm² cross-section, ideal for high currents.
11

Devis personnalisé
Recevoir une proposition claire
Nos conseillers reprennent votre sélection pour préparer un devis adapté à votre demande.

125A – 250V Dual-Circuit DC Protection Box | 35mm² Cable Kit


Optimise the safety of your photovoltaic installation with this ready-to-use dual-fuse DC protection box. Designed to simultaneously isolate and protect two independent battery strings, this kit prevents any risk of short circuits and overloads on your energy storage circuit.

Manufacturer compatibility: This universal protection box is specially optimised and certified for use with Delong lithium batteries and Leapton batteries, as well as all LiFePO4, NMC, AGM or gel battery technologies up to 250V DC.





Benefits

  • Dual DC protection: 2 automatic fuses, 125 A – 250 V DC, Class T
  • Cabling included: 4 x 35 mm² battery cables (1 m each) with 35 mm terminals + 2 x 35 mm² battery cables (2 m each) with 35 mm terminals
  • Universal compatibility: lithium, lead-acid, LiFePO4 and gel batteries
  • Ready to use: pre-wired enclosure, +/− terminal blocks, cable ducts, fixing hardware





Installation advice

  • Use the cables supplied to connect the box directly to your batteries.
  • Mount the box on the wall.
  • Always check the polarity before switching on.
  • If necessary, tighten the terminals to the battery terminal using a torque wrench.





FAQ – 125A Dual-Circuit DC Protection Box

1. What exactly is a dual-line DC protection box used for? +
This box is an essential safety device positioned between your batteries and your hybrid inverter. Its ‘dual-line’ configuration allows it to simultaneously isolate and protect two independent battery banks or modules. It immediately cuts off the circuit in the event of a short circuit or overcurrent, thereby protecting your high-end batteries and your inverter’s electronics.
2. Which battery brands is this box compatible with? +
This universal protection box is specially optimised and certified for use with Delong lithium batteries and Leapton batteries. Generally speaking, it provides maximum protection for all battery technologies (LiFePO4, NMC, AGM, lead-acid or gel) operating on a direct current circuit up to 250V DC.
3. What cables and accessories are included in this turnkey kit? +
The kit is delivered 100% ready for use. The 35 mm² power cabling kit includes:
  • 4 battery cables, each 1 metre long, fitted with 35 mm terminals.
  • 2 battery cables, each 2 metres long, also fitted with 35 mm terminals.
  • All the necessary fixings, cable ducts and + / − distribution terminal blocks.
4. What type of fuse is used inside the box? +
The enclosure contains two 125 A automatic fuses rated for 250 V DC. They belong to class T, a category of very-fast-acting fuses with excellent current-limiting capacity, specifically recommended for the protection of high-energy-density lithium battery packs.
5. Why is a 35 mm² cable cross-section important? +
In low-voltage direct current (DC) systems, the flow of high power generates very high currents (amperage). A large cross-sectional area of 35 mm² allows continuous charging and discharging currents (up to 125A) to flow safely, whilst preventing the conductors from overheating and minimising energy losses due to voltage drop.
6. What precautions should be taken during installation? +
The enclosure must be securely fixed to the wall in the immediate vicinity of your battery bank. Before switching on the power, it is essential to meticulously check the polarity (+ and −) of your connections. Reversing the polarity on a DC circuit can cause irreversible damage to the inverter or the battery management system (BMS).
7. Why is it advisable to use a torque wrench for tightening? +
Inaccurate tightening of the battery or enclosure terminals is one of the main causes of failure. A connection that is too loose generates abnormal electrical resistance, causing arcing or hot spots that can melt the terminal blocks. Using a **torque wrench** ensures that the exact tightening torque recommended by your battery manufacturer is applied.
8. Is the cabinet expandable if I wish to add a third set of batteries? +
This model has a fixed architecture that is configured and wired strictly for two independent strings. If your installation is expanded in the future with the addition of a third independent battery bank, you will either need to add an additional single-channel protection box or opt for a distribution box or busbar of a higher rating.
Cof-Fusible-2X-125A-DC-250V-Delong-Leapton

Specific References

UPC
768563822902
EAN13
0768563822902
MPN
Cof-Fusible-2X-125A-DC-250V
New

Delong / Leapton 2X 125A DC 250V battery box with automatic fuse + 2x35 mm battery cables — Mounting and accessories

Delong / Leapton 2X 125A DC 250V battery box with automatic fuse + 2x35 mm battery cables by Wattuneed is available in our Mounting and accessories catalog.

Product weight: 2.0 kg.
