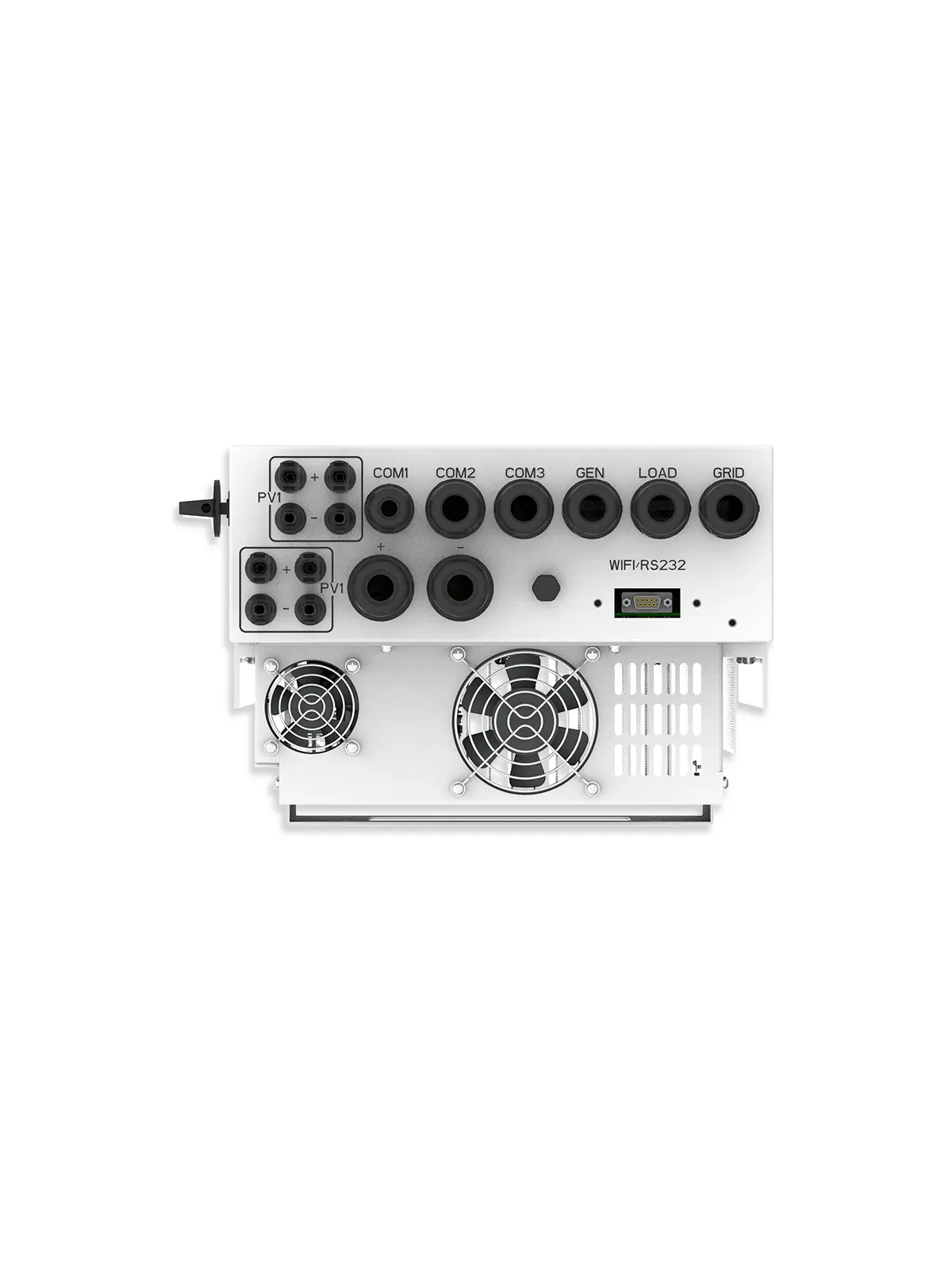

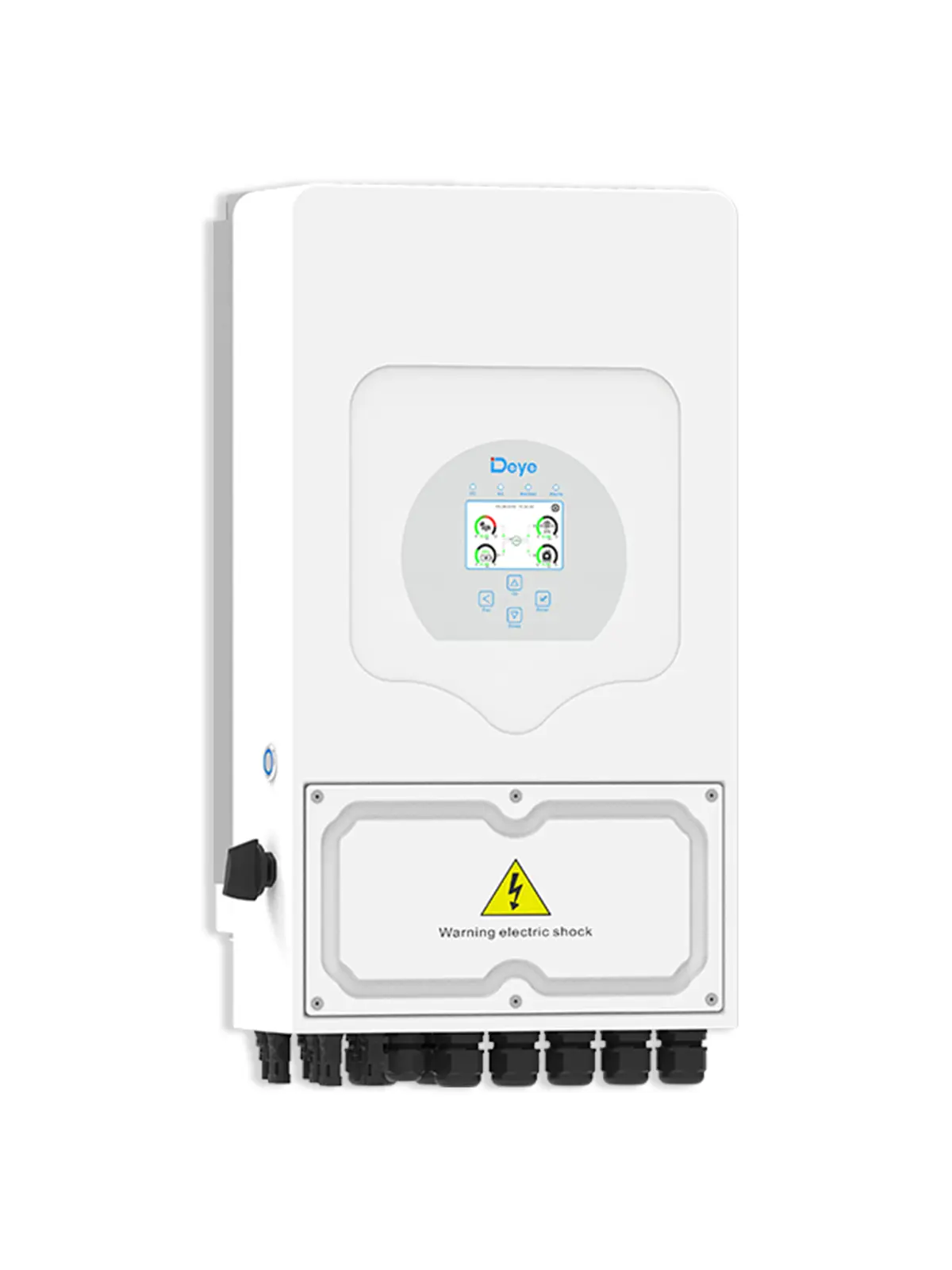

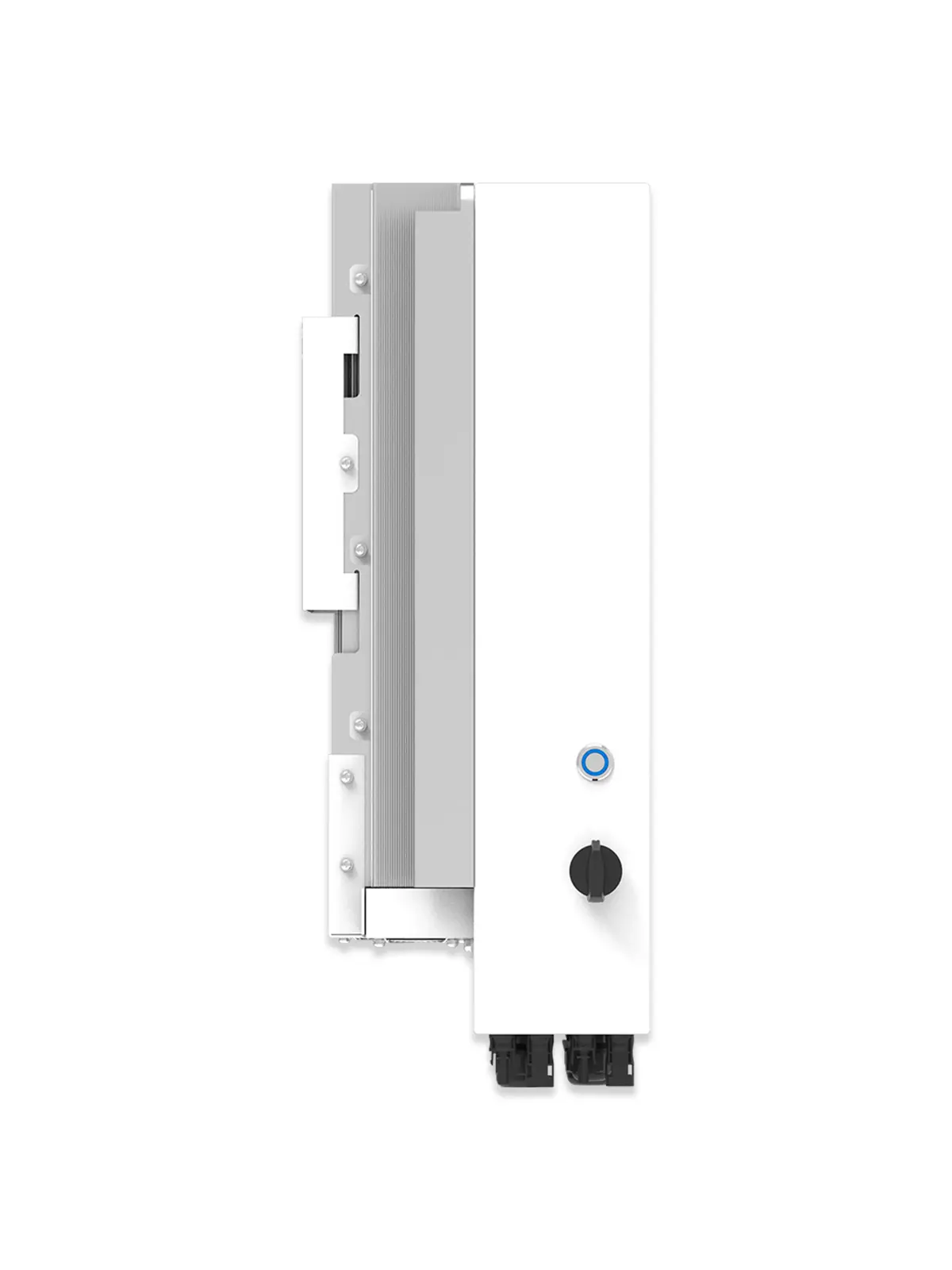

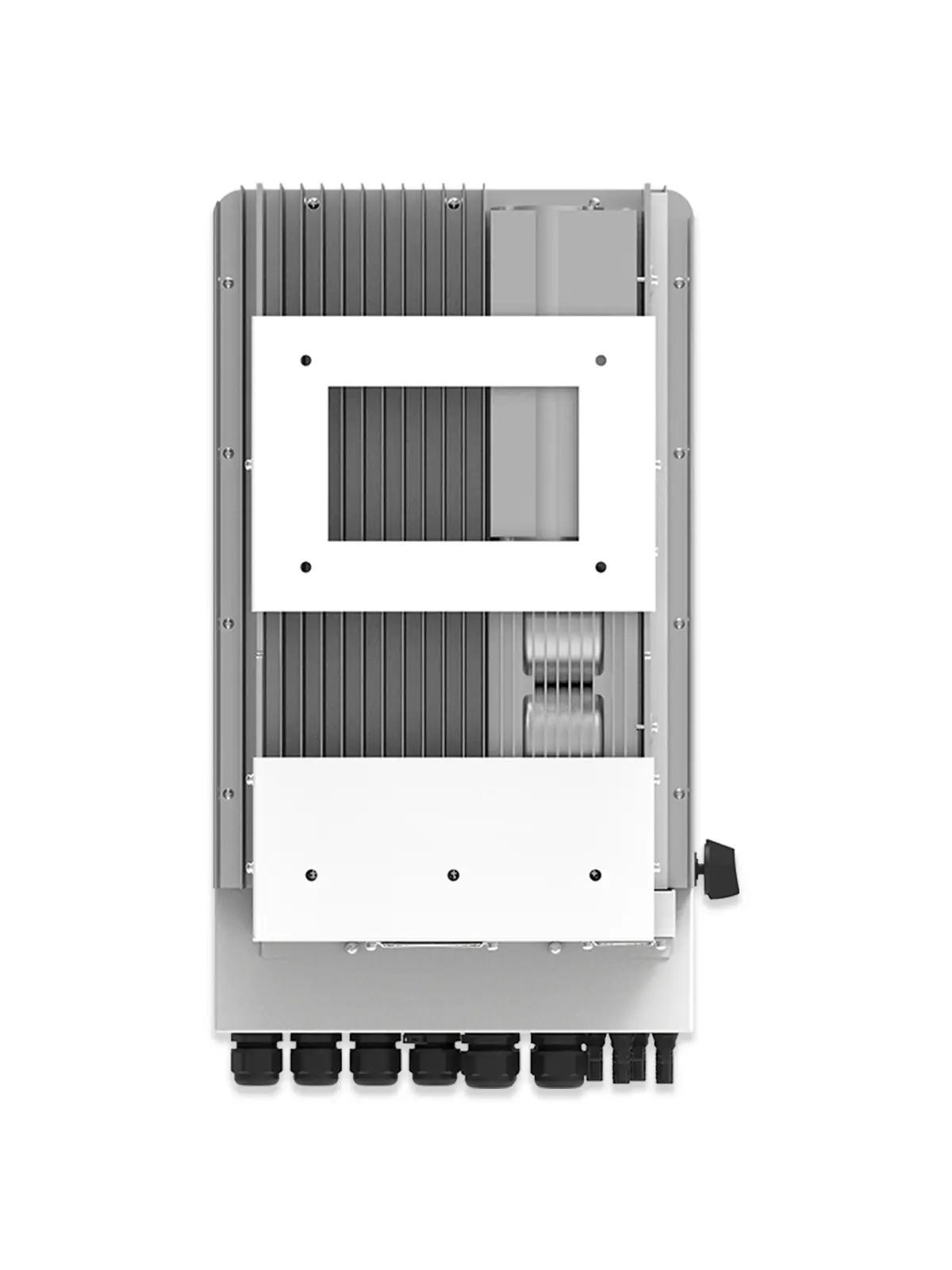

The Deye SUN-6K-SG05LP1-EU-AM2-P is a 6 kW 48 V single-phase hybrid inverter with multi-grid architecture: compatible with single-phase 220/230 V (Europe), split-phase 120/240 V and 2/3-phase 208 V. With a battery charge/discharge current of 90 A and an off-grid peak power output equal to twice the rated power for 10 seconds, it is a robust solution for homes and small businesses with high energy consumption.
Important: this inverter exceeds the regulatory limit of 5,000 VA for single-phase installations in Belgium. It cannot be installed as a single-phase unit in Belgium. It is designed for France, Luxembourg, Switzerland and any country without this restriction.
Optimise your solar energy production and consumption with the SUN-6K-SG hybrid inverter. Designed for homes and small businesses, it maximises self-consumption of photovoltaic energy and reduces electricity costs. The inverter distributes solar energy directly to appliances during the day and stores the surplus in the battery for later use. In the event of a power cut, the connection to a generator ensures an uninterrupted power supply. Its RS485/CAN port enables smart, automated management of your energy. Choose a reliable, sustainable and high-performance solution for your energy system.
Key featuresThe SUN-6K-SG delivers 6 kW nominal power, ideal for residential and light commercial energy needs. Easily adjust the power output to match your consumption.
Power your appliances directly with solar energy and store the surplus in the battery to reduce your reliance on the grid and optimise your energy savings.
The system prioritises energy consumption in real time and optimises battery storage, ensuring a constant supply of electricity.
In the event of a power cut, the connection to a generator ensures uninterrupted power supply, providing security and peace of mind for your operations.
Enables smart monitoring and remote software updates, ensuring optimal operation and simplified maintenance.
Designed for quick and easy deployment, reducing installation time and costs.
Access real-time data on production, consumption and battery status for proactive and efficient energy management.
The SUN-6K-SG combines power, flexibility and smart technology to maximise energy efficiency. Perfect for homeowners and small businesses, it helps reduce electricity costs whilst contributing to a sustainable lifestyle.

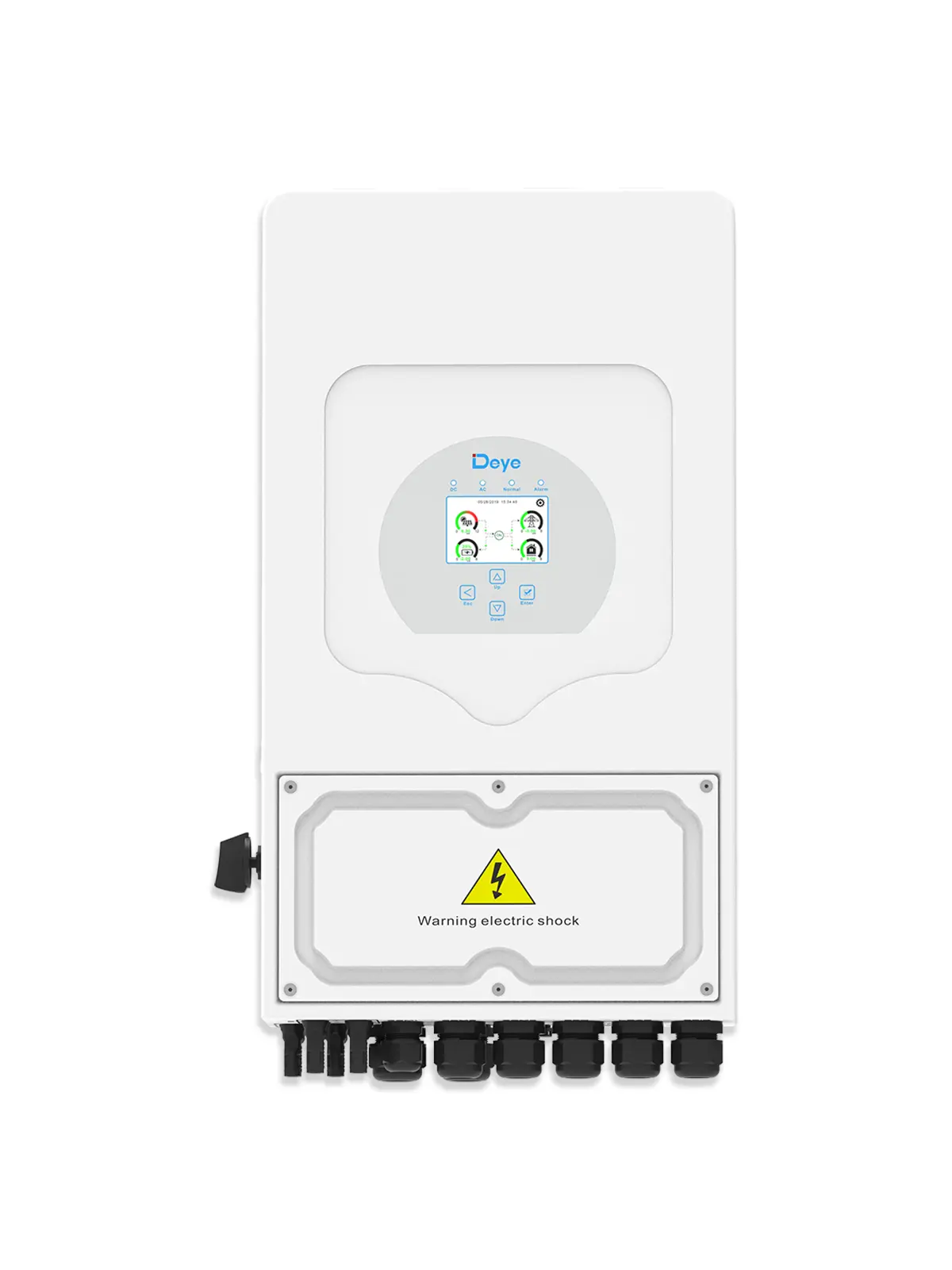

The touchscreen LCD provides all essential information about the inverter in real time.
1 • Central icon indicating normal operation or any errors.
2 • Display of the time and system status.
3 • Access to settings: system configuration, battery, grid and generator.
4 • Information on solar power, the grid, the battery and energy flows, with a clear display of power levels.
The smart monitoring platform enables immediate remote shutdown, firmware updates and simplified maintenance for your solar installation.
Find out how to connect and manage your Deye inverter with Pylontech lithium-ion batteries for maximum autonomy and optimal energy management.
Follow the comprehensive guide to correctly install your Deye SUN-6K-SG inverter and optimise your solar power generation.
Lead-acid and lithium-ion batteries, with integrated BMS support and 48V battery voltage.
Maximum efficiency 97.6%, European efficiency 96.5%, and MPPT >99%, for optimal energy savings.
6 kW nominal with double-power peak capacity for 10 seconds.
Protection against DC reverse polarity, AC overcurrent and overvoltage, overheating and earth fault.
Temperature -40°C to +60°C, altitude up to 2000 m, noise level <30 dB.
Interfaces: GPRS, Wi-Fi, Bluetooth, 4G, LAN, RS485, RS232, CAN for accurate monitoring and flexible integration.
330 mm × 580 mm × 232 mm, compact and easy to install.
25 kg, easy to handle.
Intelligent air cooling for efficient thermal management.
IP65, suitable for a variety of indoor and outdoor installations.
5 years to ensure reliability and peace of mind.
The Deye SUN-6K-SG hybrid inverter is a powerful and flexible solution for managing your solar energy efficiently. With high efficiency, comprehensive protection and an intelligent interface, it is ideal for your energy storage needs and modern photovoltaic applications.
