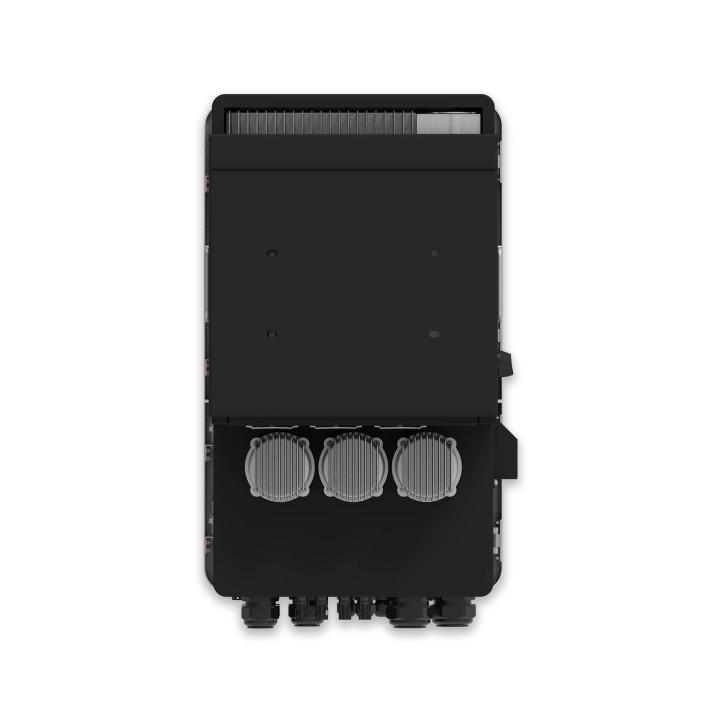

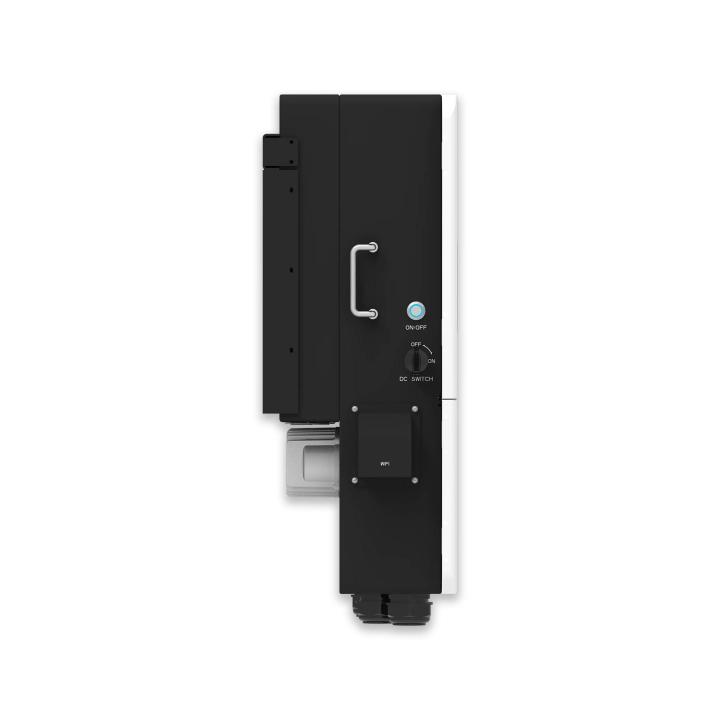

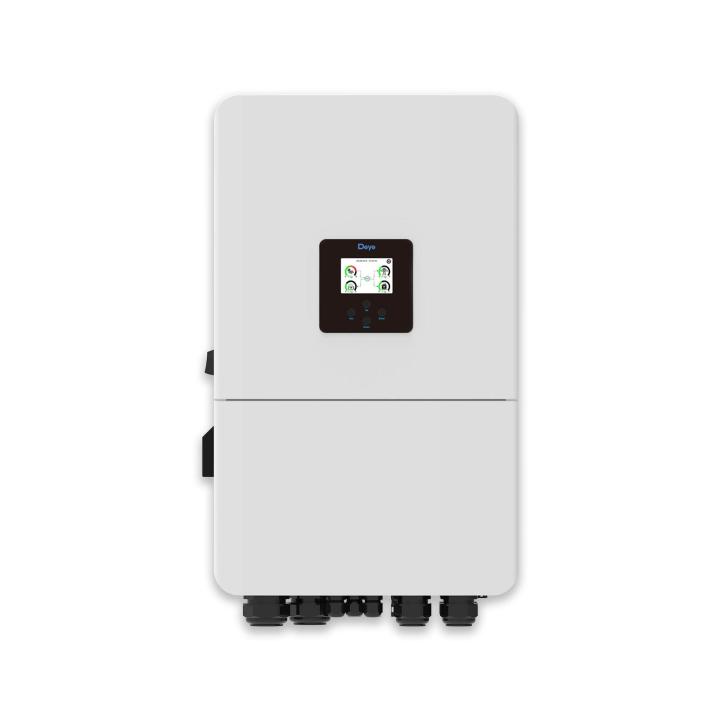

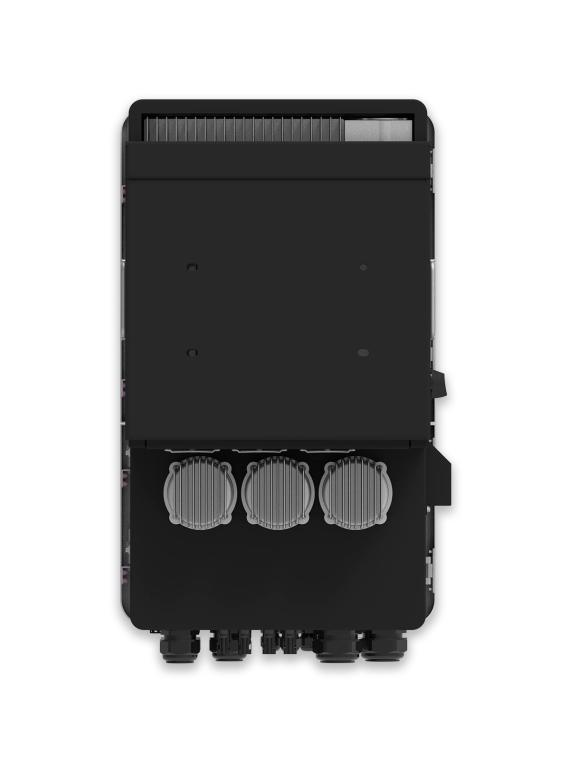

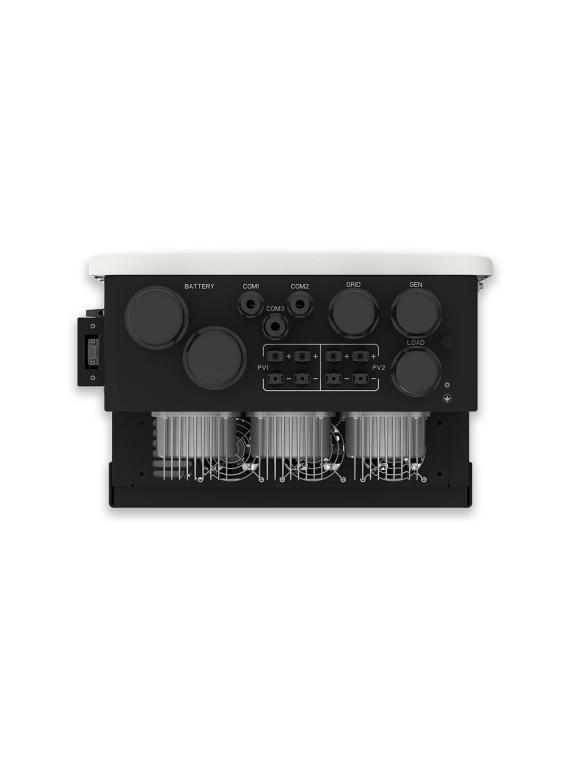

Hybrid Inverter SUN-20K-SG05LP3-EU-SM2

Optimize the management of your solar installation with the Deye SUN-20K-SG05LP3-EU-SM2 hybrid inverter. Designed to meet the needs of large-scale photovoltaic systems, this 20 kW three-phase inverter offers exceptional performance and rock-solid reliability. Whether for residential or commercial installations, the SUN-20K-SG05LP3-EU-SM2 is a top choice for maximizing energy efficiency and ensuring optimum return on investment.

Concentrated technology for your energy needs

This solar inverter, the heart of your photovoltaic system, is designed to convert the energy produced by your solar panels into electricity that can be used in your home. Thanks to its advanced technical features, it guarantees optimum yield and rock-solid reliability.

• Rated power: 20,000 W
  Ideal for large-scale installations, this inverter guarantees optimum conversion of the energy produced by your solar panels.

• Advanced hybrid technology:

The Deye SUN-20K-SG05LP3-EU-SM2 inverter combines solar energy conversion and storage functions, enabling you to optimize the use of the energy produced, even in periods of low sunlight.

• Battery compatibility:
  This inverter is fully compatible with energy storage systems, enabling you to store surplus energy for later use. It is particularly suitable for installations seeking to maximize self-consumption.

• Maximum efficiency:
  With high efficiency and intelligent energy management, this inverter ensures optimum performance, even in variable weather conditions. It is designed to operate efficiently over long periods.

• Increased protection and safety:

The inverter is equipped with advanced safety systems, providing protection against overloads, short-circuits and overvoltages, to ensure the safety of your installation.

• Easy installation and maintenance:
  Thanks to its optimized design and intuitive user interface, installation and maintenance of this UPS are simplified, saving time for professionals and providing a hassle-free experience for end-users.



Why choose the SUN-20K-SG05LP3-EU-SM2?

• Reliable performance: This model is designed to guarantee optimum energy conversion over long periods of time, even in difficult conditions.

• Versatility of use: Perfectly suited to large-scale photovoltaic installations, whether residential, commercial or industrial.

• Energy savings: Thanks to its compatibility with storage batteries, you can store excess energy for use when demand is higher.

• State-of-the-art technology: Benefit from the latest innovations in solar energy management with a reliable, high-performance product.

Recommended applications:

• Medium/large-scale residential photovoltaic installations.

• Solar systems for businesses

• Solar energy storage systems for maximum consumption

• High-performance solar solutions for commercial or industrial buildings

Key technical data

• Power rating: 20 kW

• Inverter type: Three-phase hybrid

• Input voltage range: Compatible with a wide range of photovoltaic panels

• Battery compatibility: YES, for optimized energy storage

Main display

The LCD screen is touch-sensitive and displays general inverter information.

1 - The icon in the center of the home screen indicates that the system is operating normally. If it displays "comm./F01~F64", this means that the inverter is experiencing communication or other errors. The error message will be displayed below this icon (errors F01-F64, error details can be viewed in the System Alarms menu).

2 - At the top of the display is the time.

3 - System configuration icon. Press this button to access the system configuration screen, which includes basic configuration, battery configuration, network configuration, system operating mode, generator port usage, advanced functions and Li-Ion battery information.

4 - The main screen displays solar, network, load and battery information. It also indicates the direction of power flow by arrows. As power approaches a high level, the color of the panels changes from green to red, providing a clear view of system information on the main display.

- PV power and charging power always remain positive.

- Negative grid power means selling to the grid, positive means receiving from the grid.

- Negative battery power means charging, positive means discharging.

Remote shutdown function

Intelligent monitoring platform

Thanks to the intelligent monitoring platform, inverter products in the Deye complete series support remote shutdown immediately in the event of an accident. Parameter settings and firmware updates can be performed remotely, facilitating the operation and maintenance of photovoltaic systems.

Technical data

- Compatibility and Battery Input

Compatible with lead-acid and lithium-ion batteries, automatically adapting to battery management systems (BMS). 48V battery voltage range.

- High efficiency

Maximum efficiency of 97.6%, European efficiency of 97% and MPPT efficiency in excess of 99%, guaranteeing maximum energy conversion and minimum losses.

- Nominal power

With peak power capacities up to twice the nominal power for durations of 10 seconds.

- Advanced protection mechanisms

Includes comprehensive protection features: DC reverse polarity protection, AC output overcurrents, AC output overvoltages, thermal protection and ground fault protection.

- Standards compliance

Meets numerous international safety and performance standards, including IEEE 1547.1, EN 62109-1/2 and UL 1741.

- Operating range

Works well over a wide temperature range (-40°C to +60°C) and can operate at altitudes of up to 2000 meters, maintaining noise levels below 30dB.

- Monitoring and communication

Supports various monitoring and communication interfaces, including GPRS, WIFI, Bluetooth, 4G and LAN. RS485, RS232 and CAN communication interfaces for robust connectivity and flexible integration.

Physical specifications

- Dimensions

Measures 456 mm × 750 mm × 268.5 mm.

- Weight

Weighs 51.9 kg

- Cooling

Intelligent air cooling for efficient thermal management.

- Protection class

IP65 protection, suitable for various indoor and outdoor installations.

UPS operation with Pylontech batteries

Discover the advanced features of Deye hybrid inverters

Optimize your solar installation and manage your energy consumption more efficiently with videos dedicated to Deye hybrid inverters. Discover the best features and applications of this innovative technology. Simply click on the title to access the corresponding video.

1. Deye hybrid inverter peak shavingfunction

Learn how to use the Peak Shaving function to reduce your energy consumption during peak demand and optimize your energy costs.

2. Priority re-injection mode for the Deye hybrid inverter

Discover the first sales mode of the Deye hybrid inverter, a must-see video for understanding how to present and sell this product.

3. Configuration withPylontech lithium-ion battery

Follow our guide to connecting and configuring a Deye UPS with a Pylontech lithium-ion battery to maximize the efficiency of your installation.

4. Deye hybrid UPS time-of-usefunction

Optimize your energy consumption according to the time of day with the Time of Use function, to better manage your energy costs.

5. Deye hybrid inverter intelligent load function

Maximize the efficiency of your system with the intelligent load function, for optimum energy management.

6. Using battery-free mode with the Deye hybrid inverter

Learn how to operate your Deye hybrid inverter without a battery for a simpler, more cost-effective configuration.

7. Parallelfunction of the Deye hybrid inverter

Discover how to connect several Deye inverters in parallel to increase the capacity of your installation according to your energy needs.

8. Charging the battery with a diesel generator

An ideal solution for areas without constant access to the power grid. Learn how to use a diesel generator to charge your batteries with the Deye hybrid inverter.

Optimize your energy consumption today!

Choose the video that interests you and discover how to take advantage of the advanced features of Deye hybrid inverters for optimal energy management and sustainable savings.

Warranty & Support

Warranty

5-year warranty for peace of mind and reliability.

Deye's SUN-20K-SG05LP3-EU-SM2 inverter is an essential choice for large-scale photovoltaic installations. Thanks to its hybrid technology, it offers maximum efficiency, enhanced safety and high reliability. This product is ideal for users wishing to make the most of their solar installation while optimizing their energy consumption.
