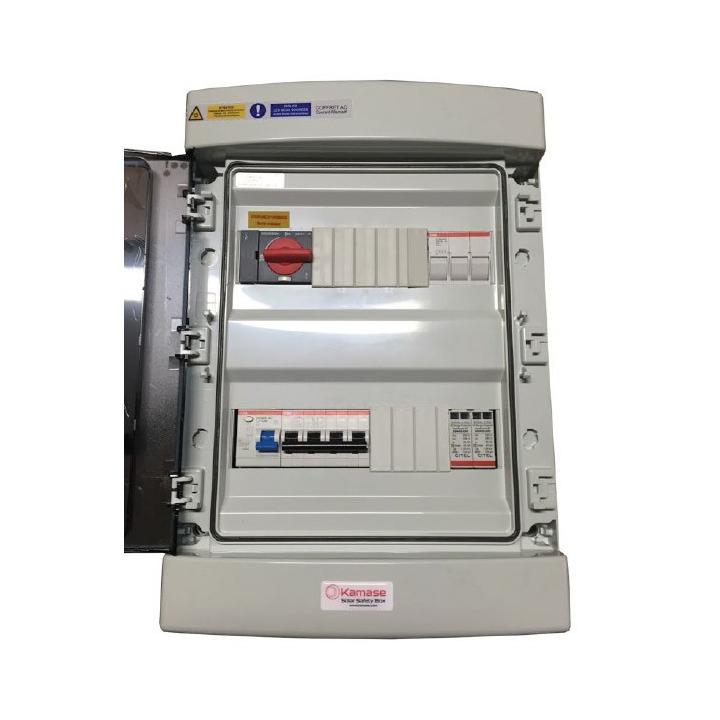

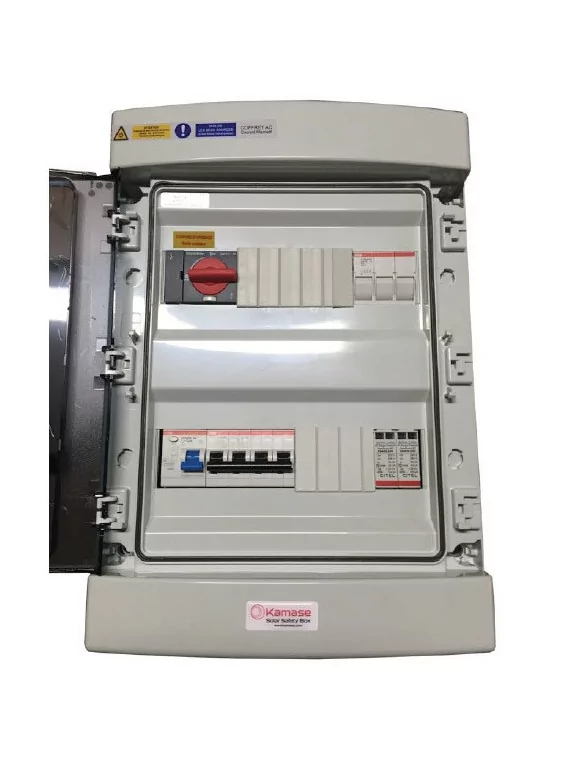

The Kamase Three-Phase Surge Protection Box , compliant with standard C15.712.1, is pre-wired and ready to install. Compact and robust (2x12 modules, IP65), it protects your installations against overvoltages and lightning, with a residual current circuit breaker, a fuse holder, and a Type 2 surge protector.
The Kamase Three-Phase Surge Protection Box is designed to offer complete and reliable protection for your electrical installations, in accordance with standard C15.712.1 . Ideal for domestic or industrial installations, it is pre-wired and ready to install , facilitating installation and guaranteeing maximum safety.
Main features:
Three-phase Type 2 surge arrester (common and differential mode, In 20kA – Imax 40kA) to protect your equipment against overvoltages.
4-pole 20A 300mA residual current circuit breaker C curve Icc 4.5kA for inverter protection.
4-pole 32A C curve fuse holder Icc 4.5kA + 32A fuse for surge arrester protection.
4-pole 25A switch and earth terminal block for reliable control and earthing.
Dimensions: 2x12 modules, L420 x W310 x D148 mm.
Protection rating: IP65, suitable for outdoor installation.
Included in the box:
Assembly of cable glands.
Single-line diagram for simplified installation.
Labeling compliant with UTE standards.
Individually packaged in cardboard boxes for secure transport.
This box ensures safety, reliability and durability , protecting your electrical equipment against damage from power surges and lightning, while simplifying installation thanks to its pre-wired and complete design.
