Optimize your energy performance and security with the three-phase hybrid inverter Sofar Solar HYD-60K-T1 60 kW. This professional system integrates solar production, high voltage battery storage and a powerful backup output, guaranteeing total autonomy and business continuity for your installations.
Professional robustness : Certification IP66, ability to manage 150% AC overload and 100% unbalanced loads.
High performance : 4 40A MPPT inputs with an efficiency of 98.6%, optimizing the production of solar panels, including bi-facial.
Integrated security : Protections AFCI (anti-arc) and SPD (surge protectors) included for reliable operation.
Scalable and flexible : Parallel connection up to 10 units and easy integration of a generator for isolated sites.
Cost control : Reduction of your bills thanks to thepeak shaving.
Business continuity : Protection of critical equipment with a backup switchover in < 4 ms.
Total resilience Enhanced autonomy, even on isolated sites, thanks to the coupling with generator.
Power: 60 kVa (Three-phase)
MPPT Inputs: 4 (40A per MPPT)
Protections: IP66, AFCI, SPD DC Type I+II, AC Type II
Compatibility: High voltage (HV) batteries
Pre-order: Arrival expected soon

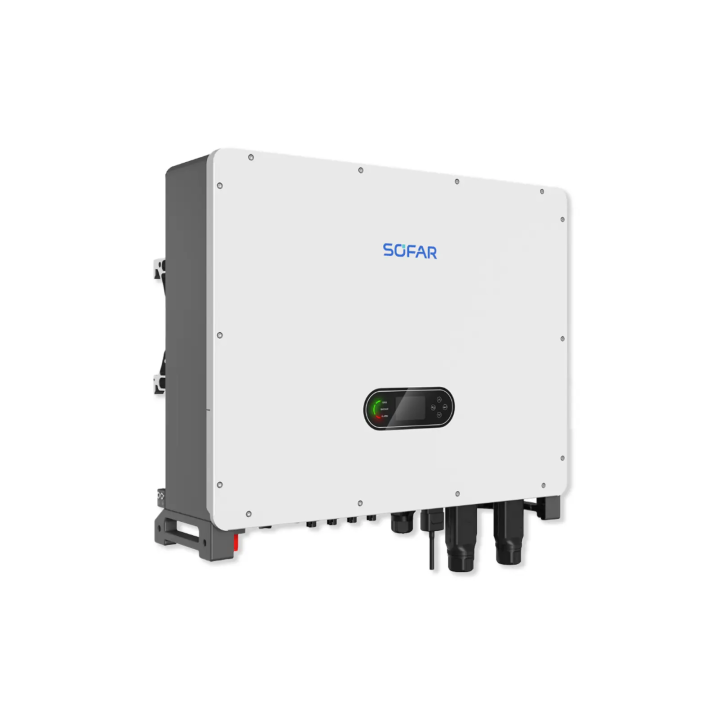

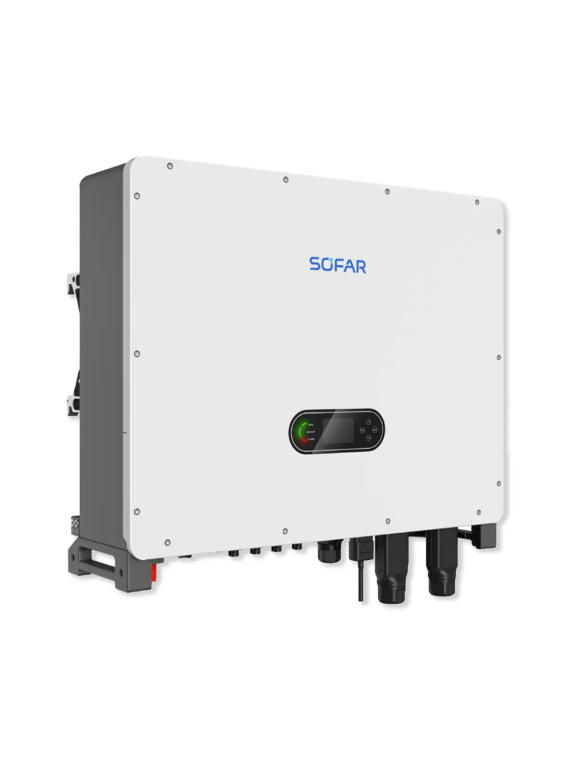

Discover the Sofar Solar HYD-60K-T1, thethree-phase hybrid inverter of 60 kW designed for demanding professional photovoltaic installations. It integrates solar production, high voltage battery storage and a emergency output (AC-Backup) robust, ensuring maximum reliability and optimal energy autonomy.
Ideal for tertiary buildings, industrial sites, large condominiums or micro-grids, it secures your three-phase supply while maximizing self-consumption. Its compatibility with a generator and its exceptional efficiency make it the complete and scalable solution for critical sites requiring absolute continuity of service.
| Type of installation | Example of application |
|---|---|
| Commercial and tertiary buildings | Offices, supermarkets, shopping centers (securing of EFTPOS, servers, lighting) |
| Industrial and agricultural sites | Three-phase power supply for machines, pumps, cold rooms, with peak load management |
| Large condominiums or micro-grids | Shared energy management (collective self-consumption) and common backup power supply |
| Isolated or semi-autonomous sites | Off-grid systems backed up by a standby generator |
| Solar installations with batteries | Advanced self-consumption optimization and surplus resale (peak shaving) |
| Model | HYD-60K-T1 |
|---|---|
| AC nominal power | 60 000 W (60 kW) |
| Number of MPPT | 4 independent MPPT |
| Max current per MPPT | 40 A |
| Max PV voltage (Voc) | 1000 V DC |
| MPPT voltage range | 160 – 950 V DC |
| Max efficiency | 98.2 % |
| Emergency output (AC-Backup) | Three-phase, 60 kW, supports 100% unbalanced load |
| Protection index | IP66 (adapted for outdoor) |
| Operating temperature | −30 °C à +60 °C (dérating > 45 °C) |
| Weight / Dimensions | 75 kg / 850 × 660 × 305 mm |
| Communication | RS485, optional: Wi-Fi, CAN, Ethernet, |
| Generator compatibility | Yes |
| Included protections | AFCI, SPD DC Type I+II, SPD AC Type II |
The Sofar Solar HYD-60K-T1 is a complete, robust and flexible solution for professional sites wishing to combine solar production, storage and energy security. Thanks to its high efficiency, intelligent connectivity and IP66 design, it is a strategic choice for any installation three-phase photovoltaic of 60 kW.
SofarSolar redefines the energy future with smart inverters. The HYD-60K-T1 does not by default include the WiFi Stick (Logger) for smooth connectivity to the monitoring platform SolarMan. Transform each installation into a connected, intelligent and sustainable experience.
Android - Google Play - Solarman Smart
Configuration steps :
1. After starting the application, register or log in to your SOLARMAN account.
2. Create a new system and fill in the necessary data.
3. Scan the barcode of the logger stick to associate the inverter.
4. Configure the recorder in the newly created system.
5. Press the WiFi key button for 1 second to activate WPS mode.
6. Select your local WiFi network and enter your password.
7. The WiFi key is now configured.
1. Can the HYD-60K-T1 operate without a battery?
Yes, it can operate as a standard grid-tied (on-grid) inverter. Adding batteries activates hybrid and backup functions.
2. What type of battery is compatible?
This inverter is designed for high voltage (HV) batteries. SofarSolar maintains an official compatibility list.
3. Is it compatible with a generator?
Yes, the inverter has a dedicated port or can be configured to integrate with a generator, ensuring continuous power supply even in case of prolonged outage.
4. Should the three-phase loads be balanced on the emergency exit?
No. This is one of its strong points: the AC-Backup output supports up to 100% unbalanced load between phases, which is crucial for tertiary buildings.
5. Can we put several inverters in parallel?
Yes, the system is designed for parallel connection (up to 10 units) in order to create high power plants (up to 400 kW) with storage and backup function.
6. How to monitor production and consumption?
Via the platform SolarMAN Cloud (mobile application or web interface), accessible thanks to the optional Wi-Fi logger, allowing real-time monitoring of production, consumption and battery status.
