1000A Busbar Distribution Box for Pylontech Battery

€1,064.80

Tax included

Reference: BUSBAR-EXPERT

EAN13: 0768563824227

The 1000A distribution box is the essential central component for protecting and balancing Pylontech battery banks (US2000C, US3000C, US5000) connected to multi-inverter systems (WKS, Deye, Victron, etc.). Thanks to its large-gauge tinned copper busbars, it ensures perfectly uniform current distribution, eliminating critical voltage drops in high-power installations.

Choose your model:

Expert: 4 inverters / 9 batteries (Ideal for commercial and large residential applications).
Max: 6 inverters / 11 batteries (High-performance three-phase configuration).
Elite: 6 inverters / 14 batteries (Industrial power and maximum autonomy).

Why this cabinet?

1000A capacity: Designed to handle massive power flows and discharge peaks without overheating.
Perfect balancing: Exactly the same resistance on each line for synchronised operation of the system.
Pylontech-specific: Dimensions and connectors optimised for the brand’s cable cross-sections.
Industrial safety: Structured cabling, integrated protection and enhanced heat dissipation.

Give your installation a robust backbone, capable of handling your most demanding energy requirements.

Non-contractual image; the final product may differ.

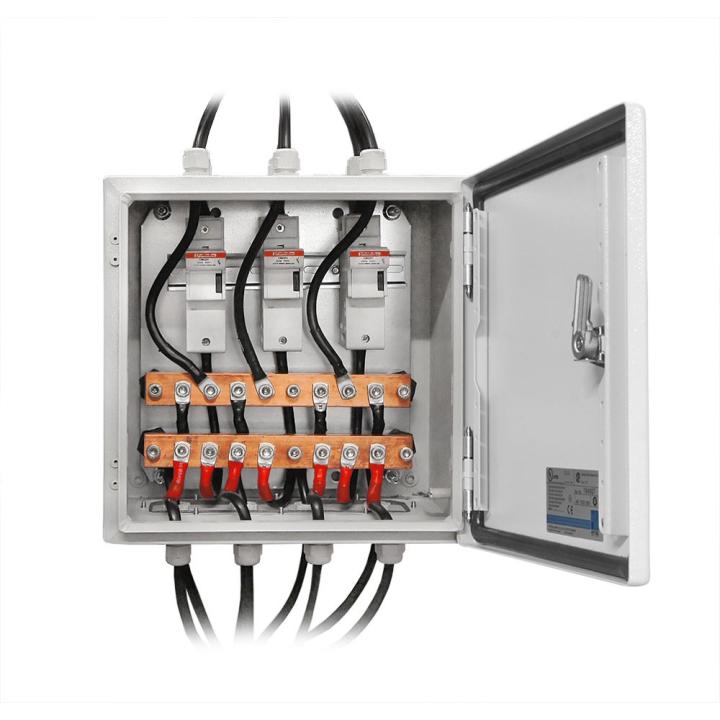

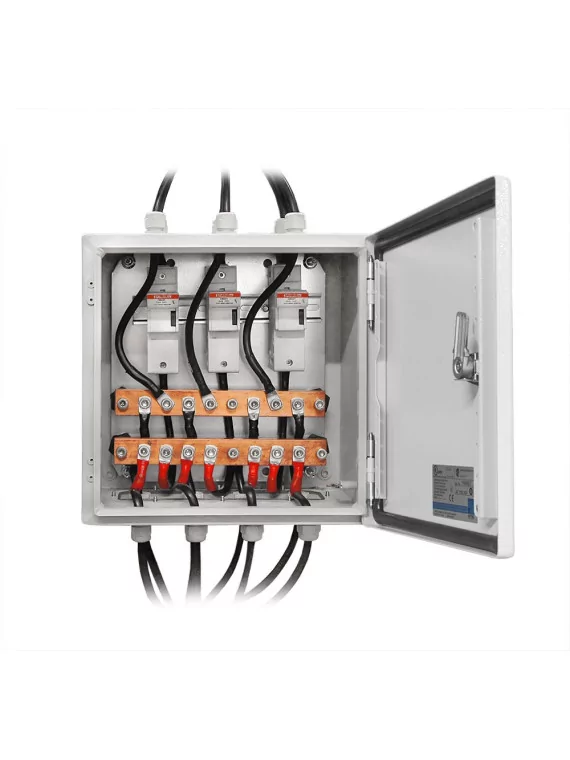

BUSBAR 1000A enclosure model: Expert (4 inv. / 9 batt.)

Comments (0)

No customer reviews for the moment.

Description
Product Details

1000A Busbar Distribution Cabinet – High Power Pylontech

The 1000A Busbar Distribution Box represents the pinnacle of DC connectivity for large-scale solar farms. Designed to centralise power from Pylontech batteries (US2000C, US3000C, US5000), it enables the distribution of massive power to clusters of inverters (WKS, Deye, Victron, etc.) with industrial-grade reliability.

Thanks to large-gauge electrolytic copper busbars, this enclosure handles high current flows without excessive heating. It is a superior alternative to complex cabling, ensuring virtually zero voltage drop – a key factor for the longevity and balancing of your storage modules.

Model options table (select your model)

See below for the available configurations to design your high-power system.

Selection Guide: 48V DC Distribution Enclosures - 1000A Range
Model	Inverter Outputs	Battery Outputs	125A Fuses	Pylontech cables	Current (Amps)	Ideal for & Use
Expert	4	9	9	9	700 A	Tertiary & XL Storage: For connecting up to 4 inverters. Perfect for a large energy reserve with 9 US5000 batteries.
Max	6	11	11	11	840 A	Three-phase installations: Up to 6 inverters (2 per phase). Ensures a constant output for industrial power demands.
Elite	6	14	14	14	1050 A	Critical runtime: Maximum capacity of 14 batteries. Ideal for remote sites or demanding server backups.

Why choose this 1000A distribution box?

High current handling for large battery banks: Rated for a nominal current of 1000A, it easily absorbs current peaks during the start-up of heavy loads.
Cycle synchronisation: The internal structure of the busbar ensures that each battery has the same impedance. This guarantees uniform charging and discharging of every cell in the pack.
DC flow protection: The cabinet centralises protection devices and organises the cabling professionally, reducing the risk of electric arcing or local overheating.

Technical specifications: 1000A Busbar distribution box
Rated current	1000 A
Busbar material	Tinned pure copper (large cross-section)
Structure	Enclosure with high thermal and mechanical insulation

Expert advice: For currents approaching 1000A, check the tightness of the terminals every three months. A perfect contact is key to preventing any energy loss in the form of heat.

Safety for your energy independence

Installing a high-capacity Pylontech storage system requires infrastructure that is up to the task. Undersized cabling is the primary cause of failure in high-power systems.

By choosing this 1000A Busbar distribution box, you are equipping your installation with a robust electrical core, capable of handling intense energy transfers with flawless safety. This ensures long-term reliability, simplifying the installer’s work and providing peace of mind for the end user.

Choose the version suited to your system architecture and upgrade to industrial-grade power management.

FAQ - 1000A Busbar Distribution Box

1. Why is a 1000A Busbar necessary for large Pylontech battery banks? +

For installations with more than 9 batteries, discharge currents become massive (up to 1000A). Conventional cascade wiring would cause significant voltage drops and overheating of the first cables. This cabinet centralises the power on high-cross-section copper busbars, ensuring smooth and safe distribution throughout the entire system.

2. How do I choose between the Expert, Max and Elite models? +

The choice depends on the number of inverters and batteries. The Expert model (700A) is suitable for 4 inverters and 9 batteries. The Max model (840A) is ideal for three-phase systems (6 inverters). Finally, the Elite model (1050A) offers maximum capacity for 14 batteries, perfect for critical autonomy on off-grid sites.

3. How important is the ‘cycle synchronisation’ mentioned? +

Thanks to the Busbar’s internal structure, each battery ‘sees’ the same electrical resistance. This means that no battery discharges faster than another. This perfect synchronisation of charge and discharge cycles prevents voltage imbalances and significantly extends the lifespan of your US5000 or US3000C modules.

4. Is this unit compatible with high-power inverters (Deye, Victron)? +

Absolutely. It is designed to act as an interface between your Pylontech batteries and clusters of hybrid inverters or high-power chargers. Whether you are using three-phase Deye inverters or Victron Quattro systems in parallel, the 1000A Busbar ensures a stable and safe current flow.

5. What precautions should be taken during installation? +

For currents approaching 1000A, the quality of the contacts is paramount. It is essential to use cables of the same cross-section for all batteries. Furthermore, tightening to the recommended torque and a quarterly check of the connections are essential to prevent any overheating caused by contact resistance.

6. Does the enclosure provide protection against electric arcs? +

Yes, by centralising and organising the DC flows, the enclosure eliminates the ‘clusters of loose cables’ that are often the cause of short circuits or arcing. The enclosure features high thermal and mechanical insulation, and the tinned pure copper busbars prevent corrosion, guaranteeing industrial-grade safety for 20 years.
