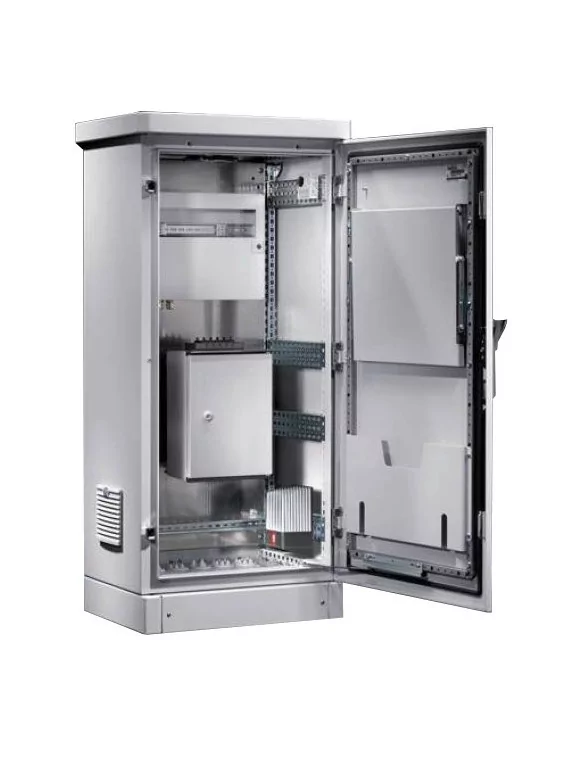

Outdoor bay with 100 mm transport base and rain roof protruding from all sides.
600 x 1200 x 500mm metal box
Useful dimensions: 512 x 1112 x 449 mm
Outdoor bay with 100 mm transport base and rain roof protruding from all sides.
600 x 1200 x 500mm metal box
Useful dimensions: 512 x 1112 x 449 mm
| Material | Aluminum AlMg3 |
| Finishing | Powder coating Pure UV resistant polyester |
| Color | RAL 7035 |
| Protection class | IP55 |
| Dimensions | 1200 x 600 x 500mm Base height : 100mm Mounted height : 1335mm |
| Useful dimensions | 1112 x 512 x 449mm |
| Rain cover | 650 x 55 x 550mm |
| Number of door | 1 with lock |
| Weight | 66kg |
| Full description | Single walled outdoor bay, fully pre-assembled Main housing with cable management plate, in three parts TS 8 perforations at 25 mm pitch in the roof, base, front and in the depth of the bay Front door with lock, swivel handle and half cylinder lock, lock BJ20027 Transport base with baseplates screwed on the front and rear Rain cover |
