Solar Kit Off-Grid 13.5 kWp – Mono 6.5 kW – Battery 4.80 kWh

Designed in collaboration with Brian from the L'Archipelle chain, this 15KVA three-phase stand-alone solar kit is a complete solution designed to meet the energy needs of self-sufficient households or isolated sites. With its 30 solar panels and high-performance lithium storage system, the kit guarantees optimized energy production, long autonomy and intelligent electricity management. Robust, scalable and easy to install, this kit is ideal for those who want to combine energy independence with sustainability.

Your needs, our selection

In this demonstration, Brian introduces you to the products available on our website and guides you step-by-step through the connection of a three-phase photovoltaic system.

A clear, educational and 100% practical installation to help you understand how to optimize your self-consumption.

👉 Watch the video now and get inspired for your own solar project!

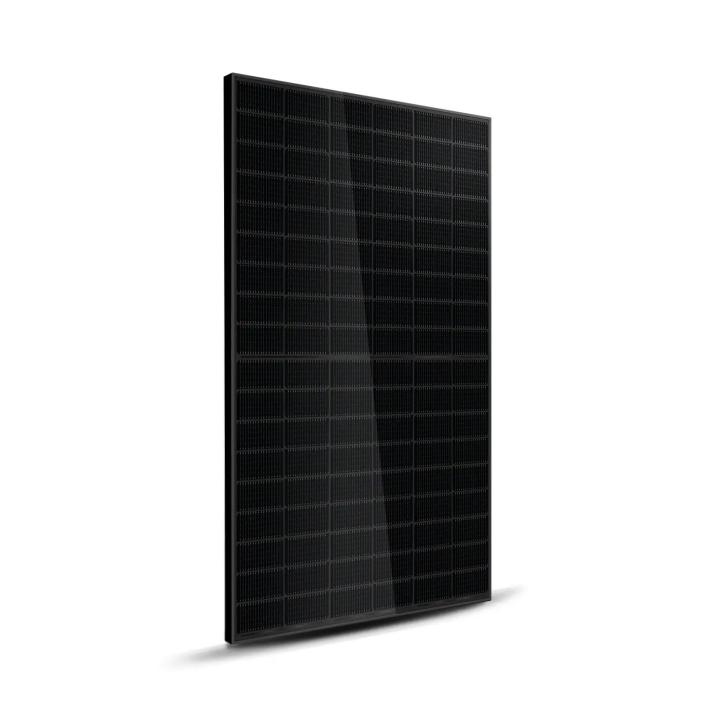

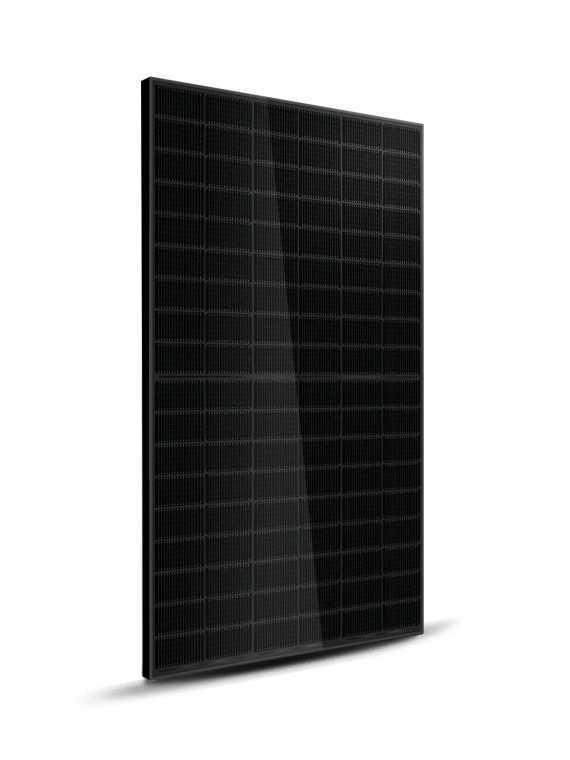

See the product data sheet in our panels section to find out more.
And don't forget, we offer you the flexibility to choose the panel model you prefer.

We invite you to consult our solar production simulator to determine exactly what your solar production will be.

Different cell types

Inverters

Choose the best partner to convert your solar energy.

If you want to maximize the use of your photovoltaic solar energy, the hybrid inverter in combination with domestic storage may be the ideal solution for you.

We've selected the WKS range for their performance and excellent value for money.
It's perfectly possible to use several inverters in the same installation to increase the power available.

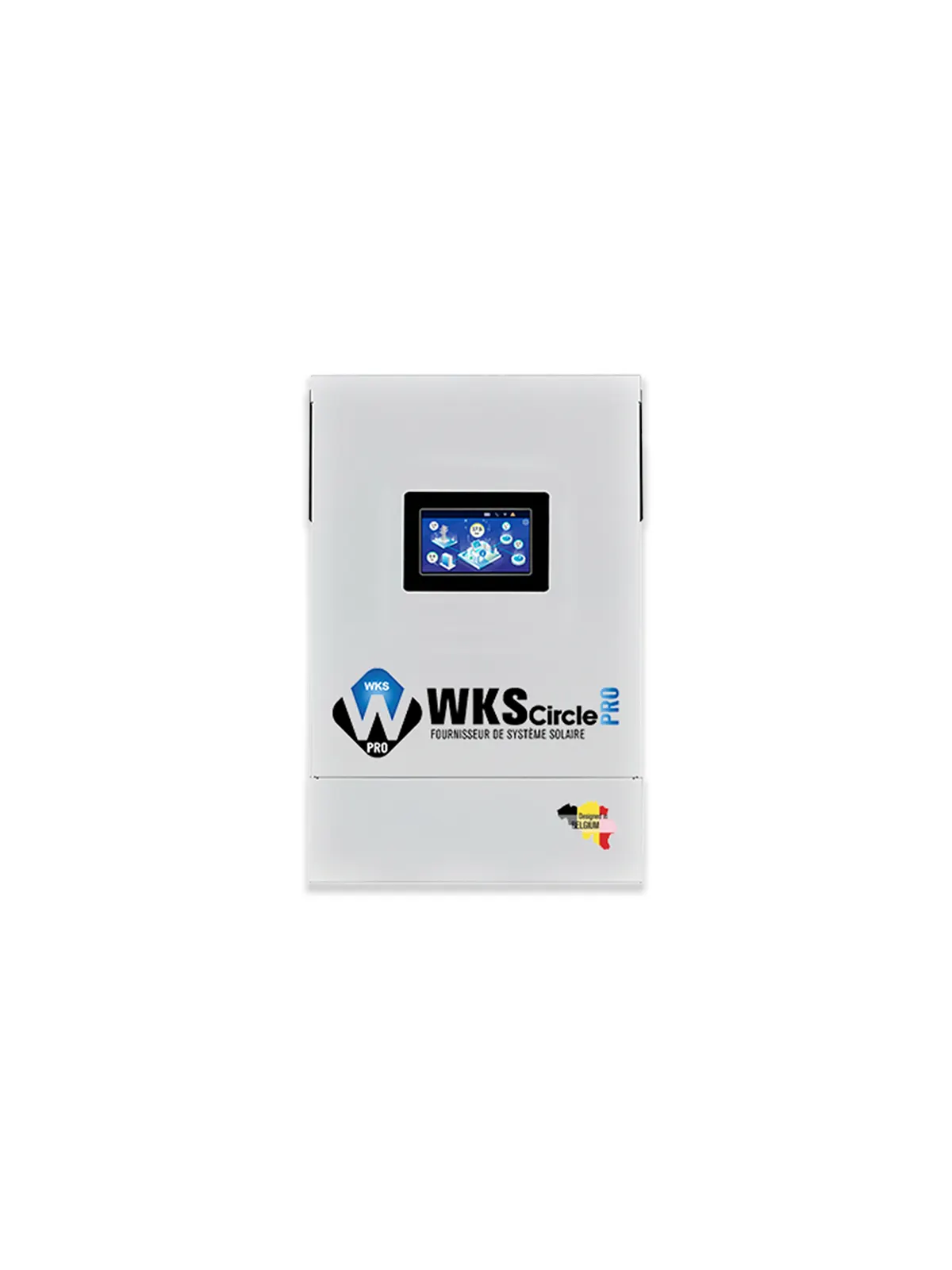

Hybrid inverter WKS EVO Circle

Hybrid inverter WKS EVO MAX II

1 MPPT

-> 9 Inverters

2 MPPT

-> 6 Inverters

Rated power 5600 VA - 5600W

Battery voltage 48 VDC

Rated power 10000 VA - 1000W

Battery voltage 48 VDC

Maximum PV load current 120 A

Maximum AC load current 120 A

Maximum PV load current 150 A

Maximum AC load current 150 A

Key benefits Intuitive design: Customizable LED ring, 4.3-inch color LCD screen, touch button. Flexibility: Option to choose operating mode via timer. Connectivity: Built-in Wi-Fi, USB On-The-Go port, BMS communication port. Performance: High-performance MPPT controller, wide DC input range. Reliability: Transformerless design, parallel operation up to 9 units. Notable technical features Power: 5.6 kVA MPPT Solar Charger: 120A LCD Screen: Color, 4.3 inches Wi-Fi: Built-in Parallel Operation: Up to 9 units LED Ring: Customizable with RGB effects

Key benefits Energy flexibility: maximum self-consumption, storage, grid injection. High performance: Two independent MPPT trackers, high efficiency. Reliability and durability: microprocessor control, robust construction. Ease of use: Intuitive LCD display, communication options. Safety: Overload and short-circuit protection. Environment: Clean energy, reduced carbon footprint. Notable technical features Power: 10kW Two independent MPPT trackers: Optimization of solar production Communication: Several options for home automation integration Environmentally-friendly: Solar energy

Our battery selection

Optimize your installation by choosing a suitable, high-performance storage solution.
Store your surplus solar production for later use to get rid of the grid.

We chose Pylontech lithium batteries for many reasons:
- 7 to 10-year product warranty;
- Fast charge/discharge speed;
- Possibility of upgrading capacity whenever you want;
- No technical capacity limits.

We offer two different capacities. They are compatible with each other.

Battery storage Pylontech US3000C

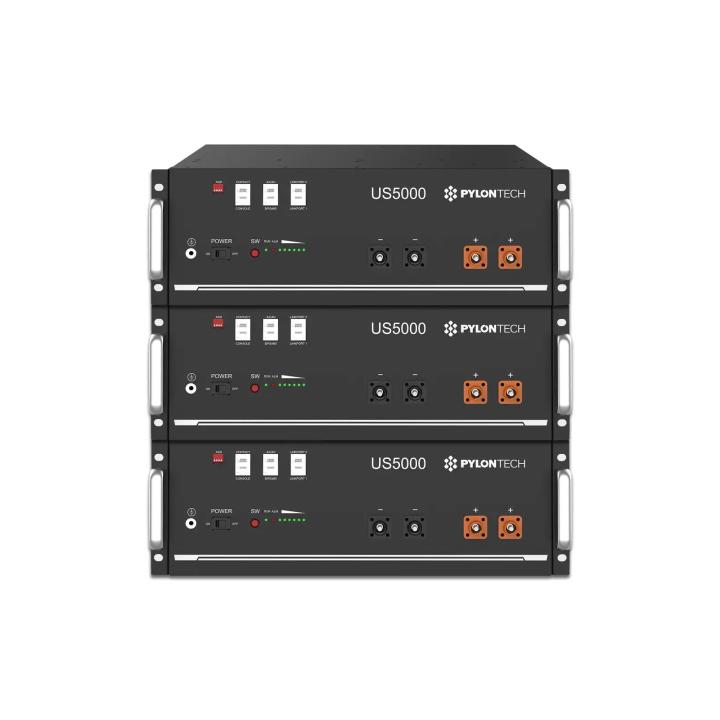

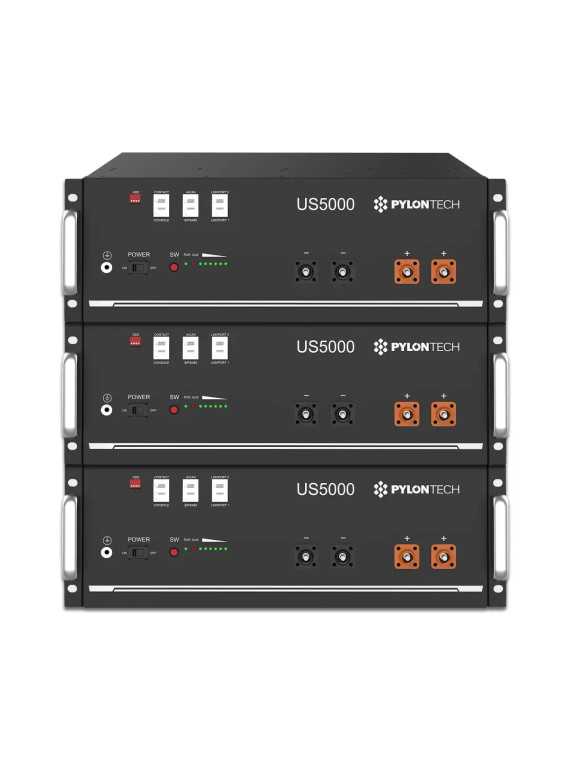

Battery storage Pylontech US5000

Rated capacity 74 Ah

DOD 95%

Rated capacity 100 Ah

DOD 95%

Tension 48 VDC

Charge/discharge 37 Ah (recommended) 37 Ah@ (Maximum)

Tension 48 VDC

Charge/discharge 80 Ah (recommended) 120 Ah@ 15min (Max.)

Cycle >6000, 25°C

Upgradable -> 16 batteries

Cycle >6000, 25°C

Upgradable -> 16 batteries

Benefits • Over 6000 cycles at 95% discharge • Compact modular design for easy capacity expansion • Supplies up to 3.552KW  • Useful capacity of 4560Wh • Short current/time duration of <2000A/1ms • TüV CE UN38.3 safety certificate  • Price per kwh: 0.08 cent

Benefits • Over 6000 cycles at 95% discharge • Compact modular design for easy capacity expansion • Supplies up to 4.8KW  • Useful capacity of 3374Wh • Short current/time duration of <4000A/2ms • TüV CE UN38.3 safety certificate • Price per kwh: 0.08 cent

Important notice for our customers in Belgium: As part of our commitment to regulatory compliance and environmental responsibility in Belgium, we would like to inform our customers that the purchase of a Pylontech US5000 battery is subject to a mandatory environmental contribution. An amount of €114.73 excluding VAT must be added for each battery purchased, as a direct contribution to Bebat, the organisation in charge of managing batteries and accumulators in Belgium. This measure complies with current Belgian environmental legislation. For more information, click here Here is the reference list and the corresponding fee! When purchasing lithium batteries, please add the following product Pylontech US5000 environmental fee corresponding to the number of batteries you order. Otherwise, we will recalculate and invoice the amount after the purchase.

Board

Optimize your production with Tigo TS4-A-O

(available as an option)

Connection diagram

Single- or three-phase wiring possible

Connection to
WKS EVO Circle inverter

Important notice for our customers in Belgium:

As part of our commitment to regulatory compliance and environmental responsibility in Belgium, we would like to inform our customers that the purchase of a Pylontech US5000 Lithium Battery is subject to a mandatory environmental contribution. An amount of €94.41 excluding VAT will be applied to each battery purchased, as a direct contribution to Bebat, the organization in charge of managing batteries and accumulators in Belgium. This measure complies with current Belgian environmental legislation. For further information, click here

Here's the reference list and the corresponding fee!
