• Deye BOS-G40 Pro High Voltage Lithium Battery - 40.96 kWh
  • Deye BOS-G40 Pro High Voltage Lithium Battery - 40.96 kWh

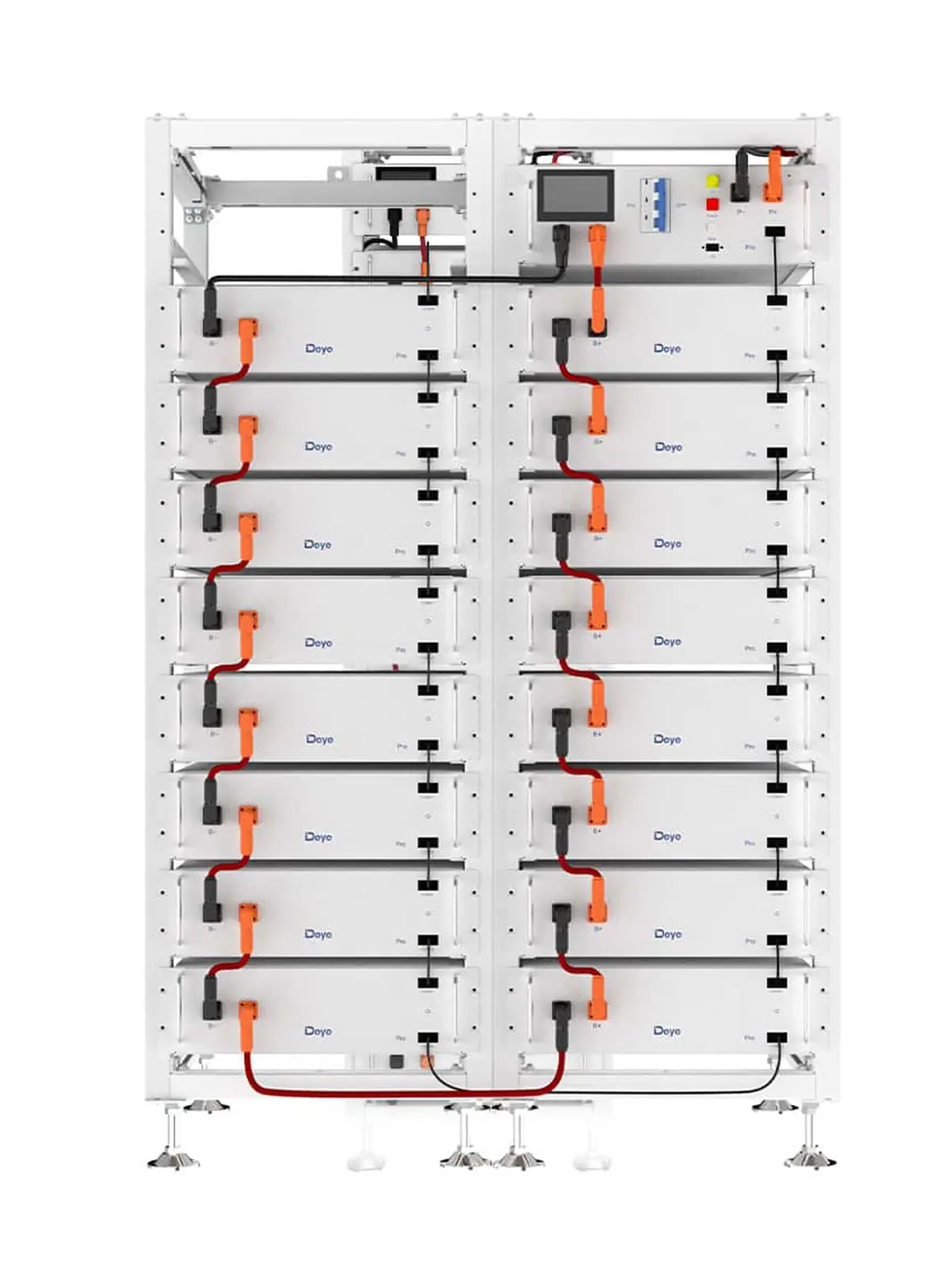

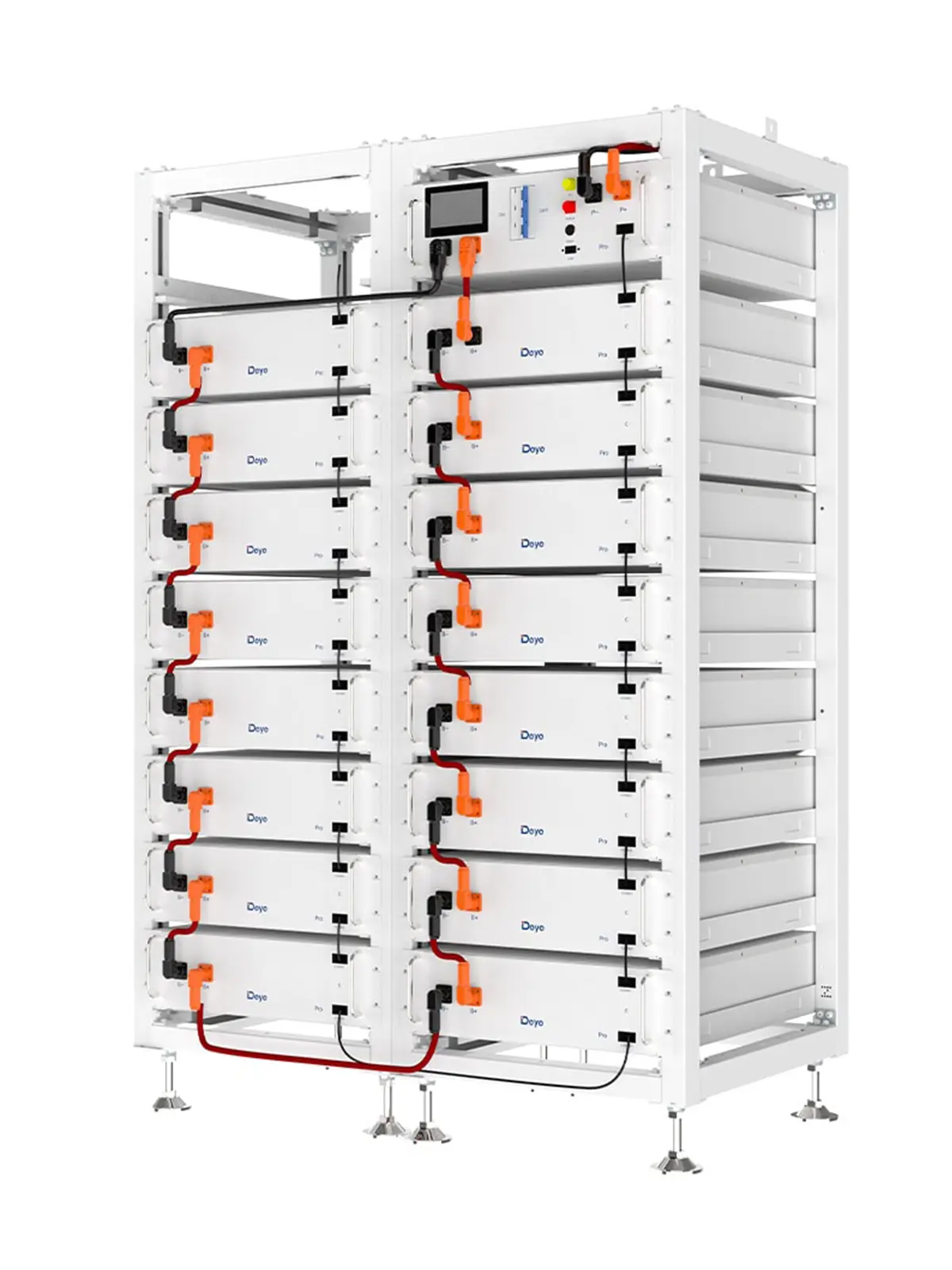

Deye BOS-G40 Pro High Voltage Lithium Battery - 40.96 kWh

€11,820.80
Tax included
BOS-G40-Pro
8370000036739

Take it to the next level with the Deye BOS-G40 Pro, a high-voltage storage solution (ESS) designed for those who demand power and reliability. Combining the safety of LiFePO4 with cutting-edge intelligence, this system is your ally for optimized energy management.

Dimensions and Format

The system is integrated into a rack (3U-LRACK)

  • Height: 162.9 cm
  • Width: 53 cm
  • Depth: 60.20 cm
  • Weight: Approx. 428 kg (including 8 modules and the control unit).

Performance and Reliability

  • High Capacity: Benefit from 40.96 kWh of total energy (36.86 kWh usable).
  • Power: Nominal voltage of 409.6 V and current of 100 A.
  • Extreme Longevity: Certified for ≥6000 cycles with a 10-year warranty.
  • Intelligent BMS: Protection against overcharging, overcurrent, and extreme temperatures (-20°C to 55°C).
  • Maximum Flexibility: Easy 19-inch rack installation, with the possibility of connecting up to 16 racks in parallel.

Installation and Scalability

Designed for fast 19-inch rack mounting, it allows for easy maintenance. Its flexible structure supports the paralleling of 16 racks to increase power.

Certifications: UN38.3, CE, IEC62040, VDE.

Invest in sustainable peace of mind: secure your energy independence today with technology guaranteed for 10 years.

Contact us now to configure your self-consumption solution with our experts.

Only compatible with high-voltage inverters

Compatible avec :

Deye Tri 30 kW Hybrid Inverter – SUN-30K-SG02HP3-EU-AM3
Deye Tri 30 kW Hybrid Inverter –...
€4,449.10
Voir le produit →
ℹ️ Cette liste est non exhaustive. Contactez-nous pour vérifier une combinaison.

Comments (0)

No customer reviews for the moment.

Deye BOS-G40 Pro: High Voltage Energy Storage System (40.96 kWh)


The Deye BOS-G40 Pro is a state-of-the-art energy storage solution (ESS) designed for high-end residential and small commercial and industrial (C&I) applications. This high-voltage system features a modular 19-inch rack structure for easy installation and maintenance.





icone bebat

Important notice for our customers in Belgium: An environmental contribution of €1,063.52 excluding VAT will be applied to the purchase of Deye BOS-G40 Pro lithium batteries.

More information at the bottom of the page.





Technology and safety

The heart of the system is based on LiFePO4 (LFP) chemistry, renowned for its intrinsic safety, thermal stability and long service life.

  • Non-toxic materials: The entire module is environmentally friendly.
  • Sustainable performance: Over 6,000 cycles (at 25°C, 0.5C) up to an end-of-life (EOL) of 70%.
  • Optimised self-discharge: Can remain up to 6 months without recharging, with no memory effect.





Intelligent management (BMS)

Each system incorporates a sophisticated BMS (Battery Management System) ensuring total protection:

  • Integrated protections: Overcharge, excessive discharge, overcurrent, out-of-range temperatures.
  • Automatic balancing: Charge/discharge state management and cell-by-cell voltage and current balancing.
  • Simplified updates: Compatible with Deye inverters, updates via USB or remotely.





Technical Specifications: BOS-G40 Pro Battery Rack (8 modules)
Total system energy 40.96 kWh
Usable energy (90% DOD) 36.86 kWh
Nominal voltage 409.6 V
Operating voltage range 352 V to 467.2 V
Nominal charge/discharge current 100 A
Peak current (2 min, 25°C) 125 A
Rack dimensions (W x D x H) 530 x 602 x 1629 mm
Approximate total weight 428 kg





System components

A complete unit consists of:

  1. 8 BOS-G-Pack5.1 modules: Each 5.12 kWh module weighs 46 kg.
  2. BOS-G-PDU-2 control unit: High-voltage enclosure managing the cluster, IP20 waterproof rating.
  3. 3U-LRACK rack: Standard 19-inch rack that can accommodate up to 8 batteries and the control unit.





Environment and flexibility

Designed to integrate easily into a variety of environments, the BOS-G40 Pro combines safety, modularity and simplified maintenance.

  • Temperature range: Operates from -20°C to 55°C (discharge).
  • Expandability: Up to 16 racks can be connected in parallel to meet increased energy needs.
  • Warranty: 10-year manufacturer's warranty for long-term peace of mind.





Any questions? Need advice?

Call us on +32 (0) 87 45 00 34
Contact: info@wattuneed.com





bebat

Specific information for Belgian customers - Bebat tax

As part of our commitment to regulatory compliance and environmental responsibility in Belgium, we would like to inform our customers that the purchase of a Deye BOS-G40 Pro lithium battery is subject to a mandatory environmental levy.

An amount of €1, 063.52 excluding VAT must be added to each system purchased as a direct contribution to Bebat, the organisation responsible for managing batteries and accumulators in Belgium. This measure complies with current Belgian environmental legislation.

Important: When purchasing lithium batteries, please add the corresponding product "Bebat Deye BOS-G40 Pro environmental levy" according to the number of batteries you are ordering. Otherwise, we will recalculate and invoice the amount after purchase.

This tax only applies to Belgian customers.





FAQ - Deye BOS-G40 Pro storage system

1. What is the actual storage capacity of the Deye BOS-G40 Pro? +
The system displays a total energy of 40.96 kWh. To preserve the longevity of the cells, the usable energy is 36.86 kWh (based on a DOD of 90%). This power reserve is ideal for ensuring self-consumption in large residential projects or small commercial buildings.
2. Why choose LiFePO4 (LFP) chemistry for this rack? +
LiFePO4 technology is the benchmark for safety in stationary storage. It offers exceptional thermal stability, is completely non-toxic and guarantees long-lasting performance with over 6,000 cycles, ensuring excellent efficiency throughout the system's lifetime.
3. Is this system scalable if my needs increase? +
Yes, modularity is one of the strengths of the BOS-G40 Pro. If your energy needs increase, you can connect up to 16 complete racks in parallel. This scalability allows you to adapt the storage capacity to the growth of your business or building.
4. What safety functions are managed by the BMS? +
The sophisticated BMS (Battery Management System) monitors each cell in real time. It provides comprehensive protection against overcharging, excessive discharge, overcurrent and out-of-range temperatures. It also manages automatic voltage balancing to maintain cluster efficiency.
5. Can I install the BOS-G40 Pro in an unheated room? +
The system is operational over a very wide temperature range, from -20°C to 55°C during discharge. However, to optimise service life and charge cycles, it is recommended that it be installed in a dry, temperate environment. Its protection rating is IP20, so it must be protected from water splashes.
6. What exactly does a complete BOS-G40 Pro unit contain? +
The unit consists of 8 BOS-G-Pack5.1 battery modules (5.12 kWh each), a BOS-G-PDU-2 high-voltage control unit responsible for cluster management, and a standard 19-inch rack (3U-LRACK) for clean and robust integration.
7. How long is the manufacturer's warranty? +
To protect your investment in self-consumption, Deye offers a 10-year manufacturer's warranty on this system. This warranty highlights the reliability of the high-voltage system and the robustness of its modular design.
8. Is it easy to update the system? +
Absolutely. The system is designed for simplified maintenance. It allows firmware updates via a simple USB stick or even remotely when paired with a compatible Deye inverter, ensuring you always benefit from the latest software optimisations.
BOS-G40-Pro

Data sheet

Storage temperature
0 ~ 35°C
Voltage
High voltage (400V)
Technology
LFP (LiFePO4)
Battery capacity
100Ah
Width
530 mm
Height
1629 mm
Thickness
602 mm
Certification
UN38.3 / CE / CE-EMC / IEC62040 / CEC / VDE
Standard warranty (years)
10 years
Protection Degree
IP20
Rated load current
100 A
Communication
RS485/CAN
Service life
6000 cycles
Rated voltage
409,6 V
Altitude
Less than or equal to 3000m
DOD
90 %
Operating temperature (discharge/load)
Charge: 0 ~ 55°C / Discharge: -20 ~ 55°C
Recommended charge/discharge current
50 A
battery operating voltage range
352 ~ 467,2 V
Basic storage (kWh)
40,96 kWh

Specific References

UPC
837000003673
EAN13
8370000036739
MPN
DEY-BOS-G-ESS-4096-PDU-2
