Solar Panel Ground Mounting Kit 160-178 cm

Ground mounting kit for solar panels measuring 160 cm to 178 cm

€565.36

Tax included

Reference: 08081

EAN13: 0712971131026

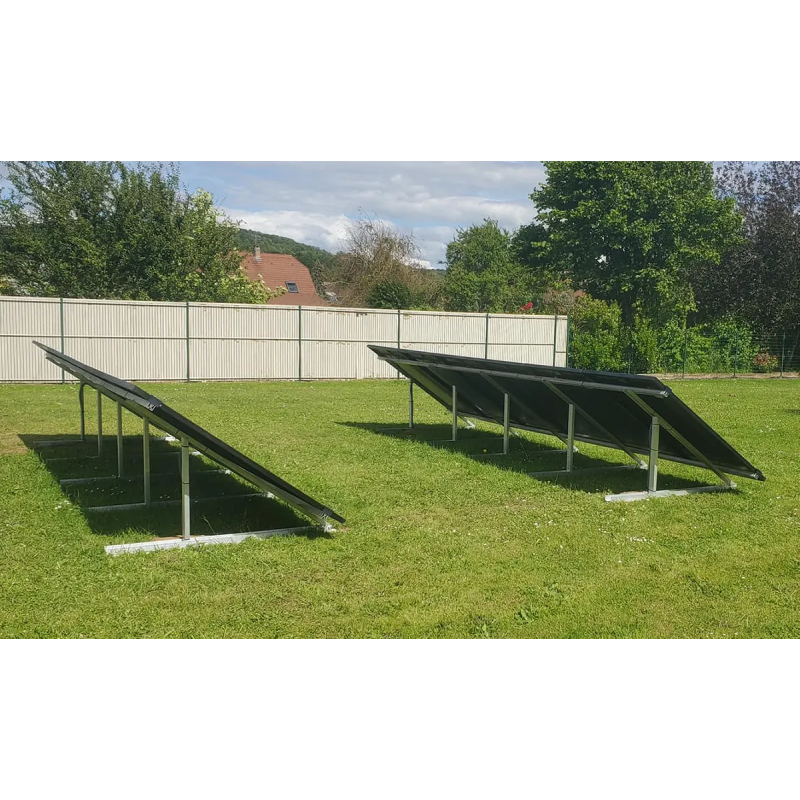

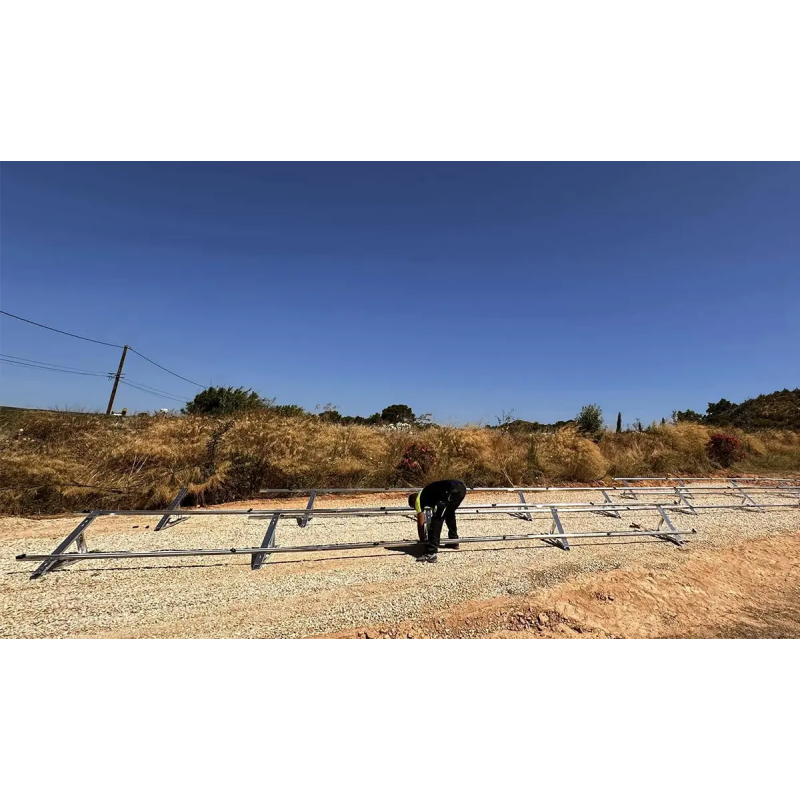

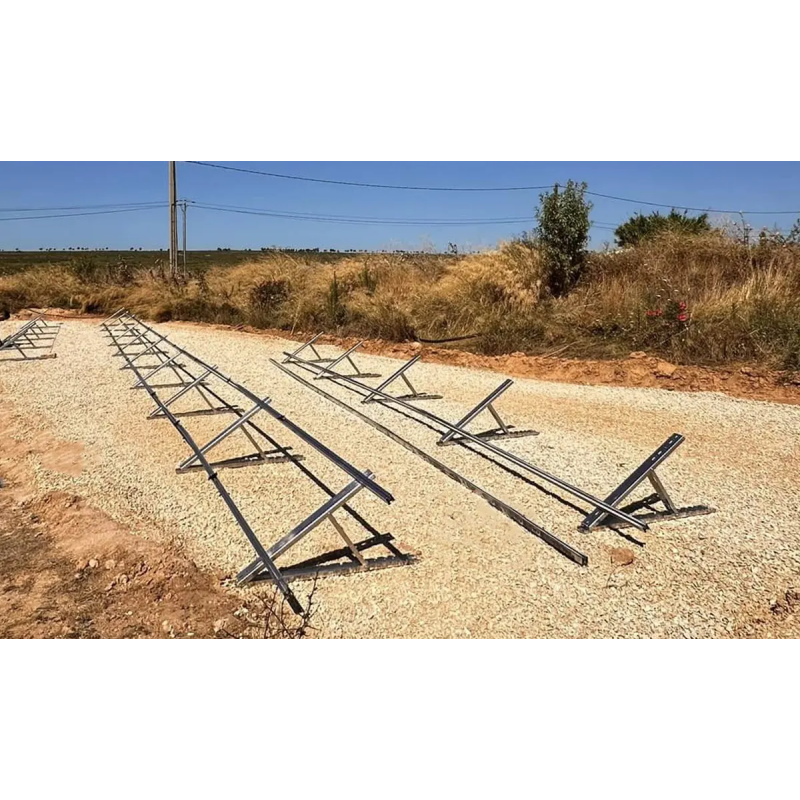

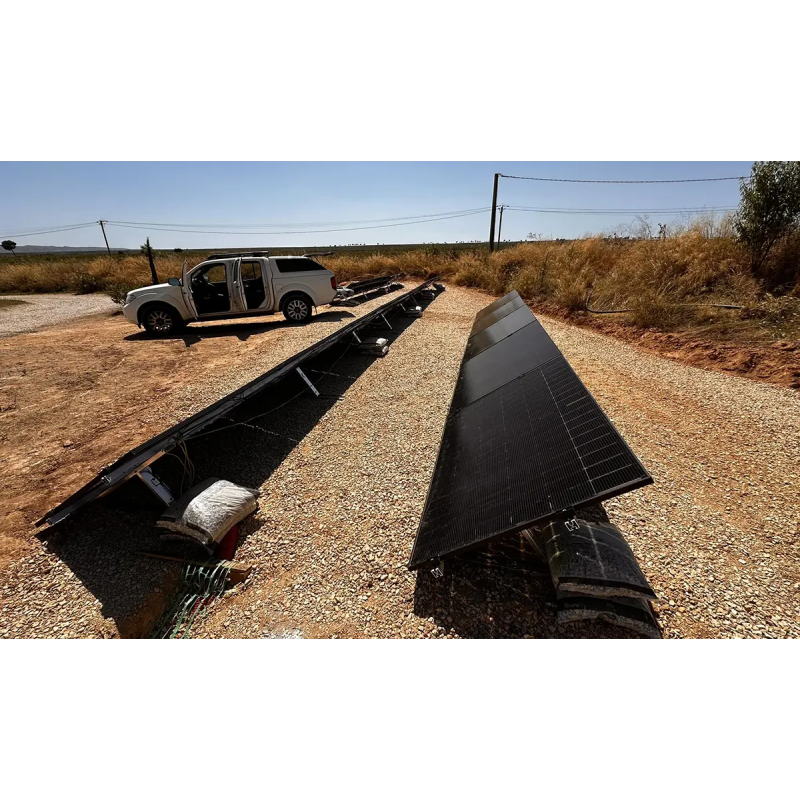

Discover our ground structure mounting kit for solar panels, a solution designed to guarantee a safe, stable, and durable installation. Specifically designed for panels ranging from 160 cm to 178 cm, this versatile kit is perfect for flat roofs, ground mounting, barges, or any other flat surface. Thanks to its intelligent design, it automatically adapts to the number of panels and the orientation (portrait or landscape) you select.

This kit includes all the necessary hardware for a reliable and robust assembly (ballast not included). The use of an anodized aluminum structure provides maximum protection against corrosion and ensures exceptional longevity against the elements.

Main features:

Optimized for panels 160 cm to 178 cm in length
Multi-surface compatible: ground structures, flat roofs, barges, and terraces
Flexible installation in portrait or landscape
High-resistance anodized aluminum structure
Robust and durable fastening system for all standard panel types
Complete "ready-to-install" kit for optimal time savings

Customizable options: configure your installation by choosing the number of panels and the layout best suited to your space.

Please note: For configurations with multiple rows (e.g., 2 rows of 6 panels), you must order two separate mounting kits.

✅ Compatibilités vérifiées

▼

Compatible avec :

AIKO NEOSTAR 2S MONO GLASS-GEN2 460Wp

€147.48

Voir le produit →

AIKO NEOSTAR 3S+ DUAL GLASS-GEN3 470Wp

€147.48

Voir le produit →

Leapton N-Type 450Wp TOPCon bifacial

€84.95

Voir le produit →

Palette 37X AIKO NEOSTAR 2S MONO GLASS-GEN2 460Wp

€5,155.23

Voir le produit →

Pallet 36X Q-Sun Qrystal N8 N-Type 450Wp Bifacial

€3,155.47

Voir le produit →

Pallet of 37 AIKO NEOSTAR 3S+ DUAL GLASS‑GEN3...

€5,155.23

Voir le produit →

Affichage de 6 sur 7 produits compatibles

ℹ️ Cette liste est non exhaustive. Contactez-nous pour vérifier une combinaison.

Clames: 30 mm

Number of panels per row: 6 panels in portrait

Comments (0)

No customer reviews for the moment.

Contents of the solar panel mounting kit – Ground structure

The components of the kit vary depending on the number of panels.Rail connectors are included for 2 landscape panels and 3 portrait panels (see table at the bottom of the page).

Included

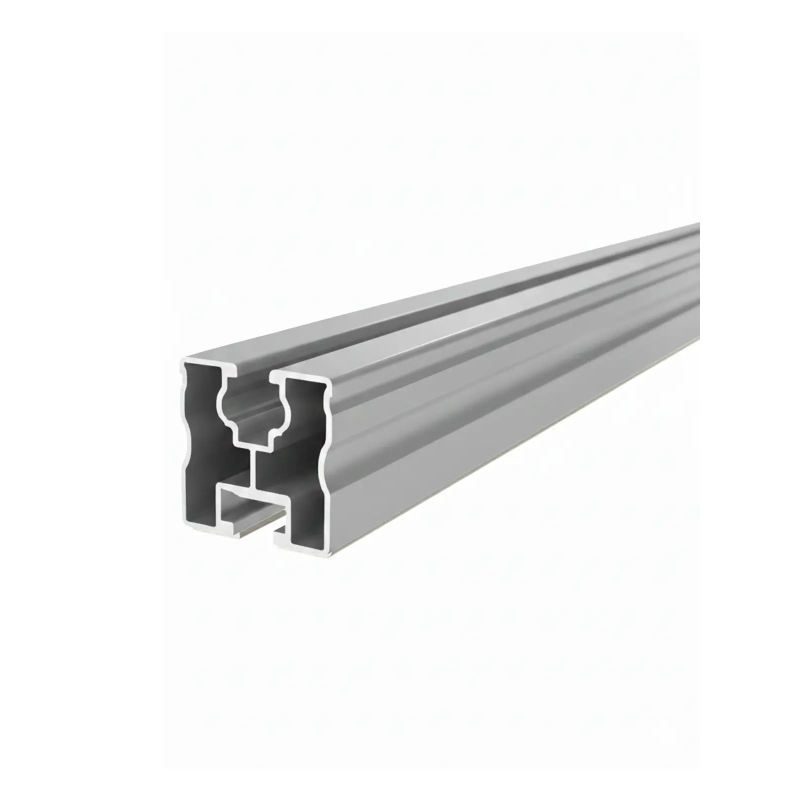

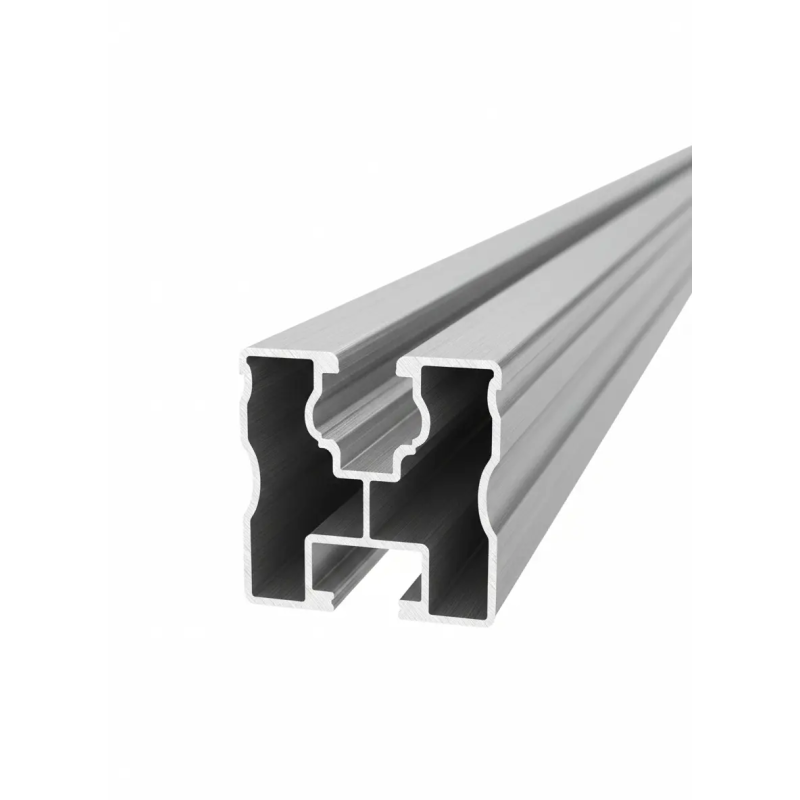

40×40 aluminium rail

Main support providing the structure for the photovoltaic installation.

Product details

Included from 2 PV Jonctions de rails

Rail connector

Rail assembly for longer rows. Included with two landscape panels and three portrait panels.

Product details

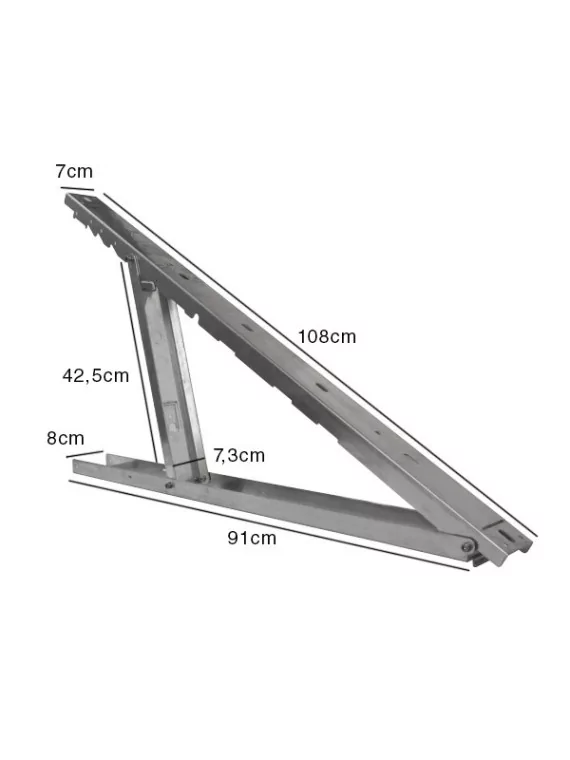

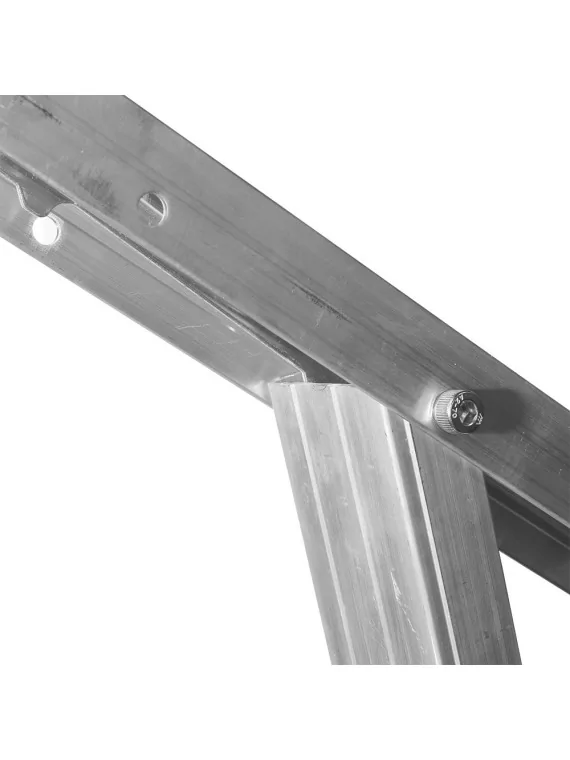

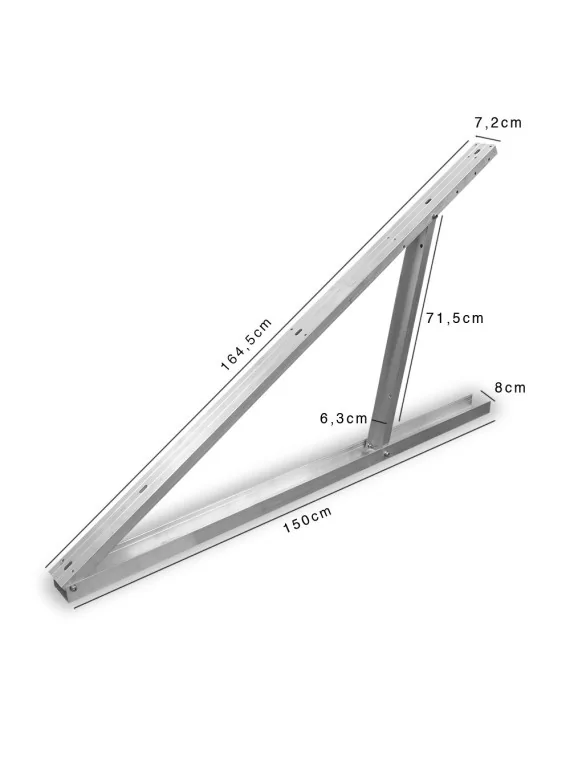

Included if portrait Grand support en alu

Large aluminium support (for portrait panels)

Triangular bracket supplied with the kit for portrait-oriented solar panels, allowing the aluminium rail to be fixed in place.

Product details

Included if landscape Petit support en alu

Small aluminium bracket (for landscape panel)

Enables quick manual tightening during installation.

Product details

Included

Écrou hexagonal à embase crantée DIN 6923 M10

M10 hexagonal nuts with serrated flange

Enable quick manual tightening during installation.

Product details

Included

Rayvolt grounding clips

Ensure electrical continuity and grounding.

Product details

Included

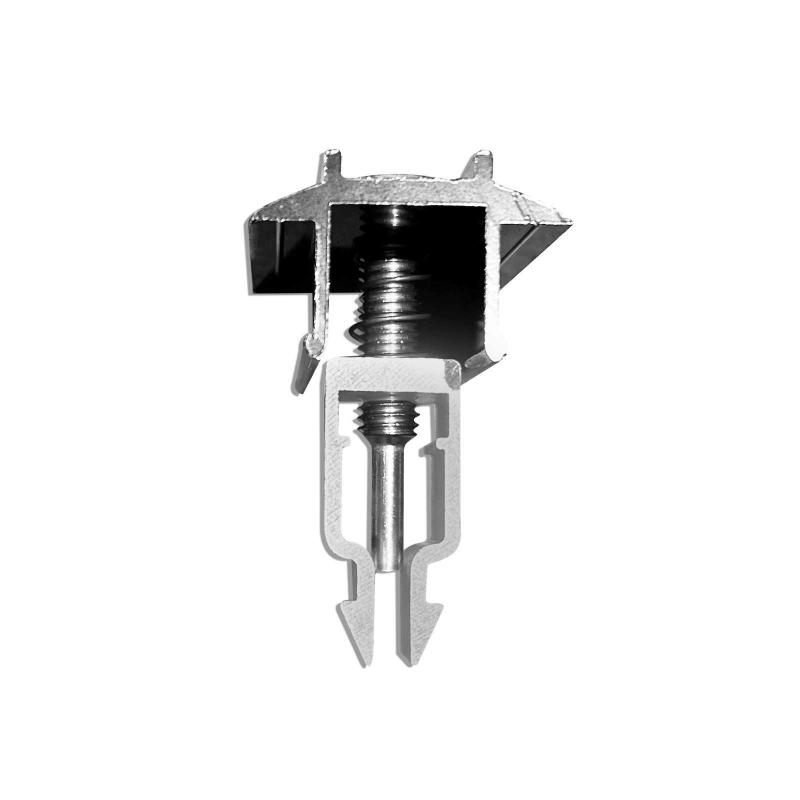

Quick middle clamps

Quick fastening between each panel.

Product details

Included

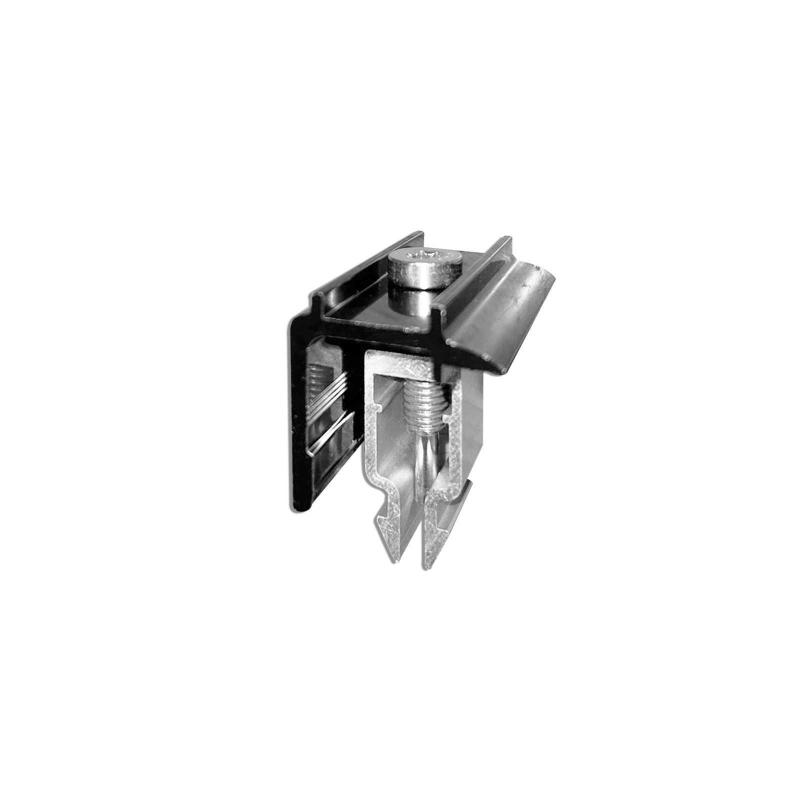

Quick end clips

Securely holds panels at the end of the structure.

Product details

Included

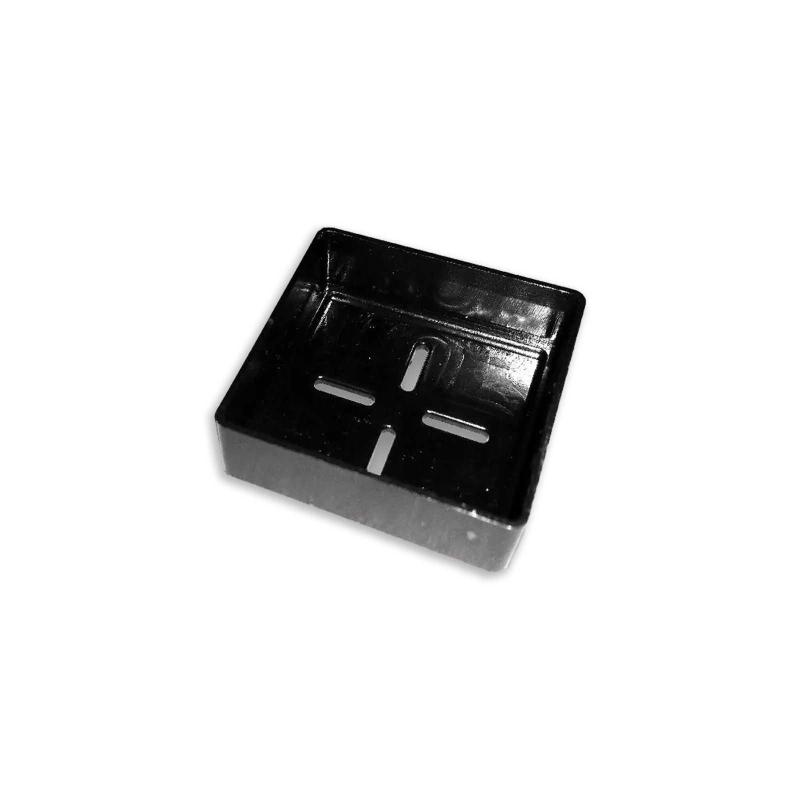

40x40 mm black rail end caps

For an attractive finish and durable protection of mounting rails.

Product details

Included

M10 hammerhead bolts

Ideal for reliable and easy fastening.

Product details

How do I choose the right kit for my panels?

The mounting kit is suitable for all tiled roofs. Thanks to its options, it can be adapted to the layout of your panels.

The fixings are compatible with standard-sized panels (approximately 1.60 m x 1 m).

1. Select the number of portrait or landscape panels

Choose the number of panels arranged in portrait or landscape format per row.

Example: the layout shown opposite requires 3x the Mounting Kit product:

1st kit for row 1: 3 panels in portrait orientation
2nd kit for row 2: 2 landscape panels
3rd kit for row 3: 2 landscape panels

2. Select the clamp that is suitable for your panel

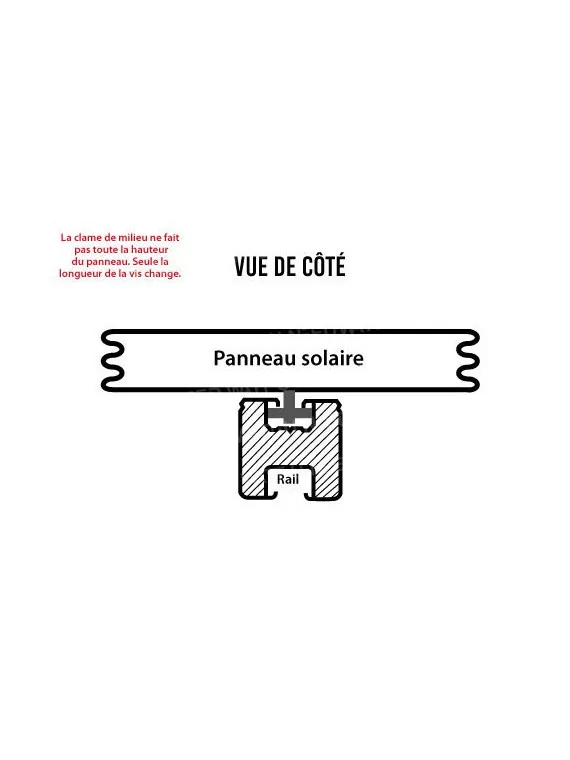

The clamp is used to fix the panel to the aluminium rail. Its height must correspond to the thickness of your panel frame to ensure a secure hold.

Available heights: 28 - 30 - 35 - 40 - 45 - 50 mm

Details of the equipment supplied depending on the number of panels

Portrait panels

Number of panels	Rail (m)	Details of rails*	Junction	Large aluminium support	Middle clamp	End clamp	M10 hammer head bolt	M10 hexagonal nuts	Rayvolt	Rail plug
1 panel	2.4	(2 x 1.20 m)	0	2	0	4	4	4	1	4
2 panels	4.8	(2 x 2.40 m)	0	2	2	4	6	6	2	4
3 panels	7.2	(4 x 1.80 m)	2	3	4	4	8	8	3	4
4 panels	9.6	(4 x 2.40 m)	2	4	6	4	10	10	4	4
5 panels	12.0	(4 x 2.40 m and 2 x 1.20 m)	4	5	8	4	12	12	5	4
6 panels	14.4	(6 x 2.40 m)	4	5	10	4	14	14	6	4
7 panels	16.8	(6 x 2.40m and 2 x 1.20m)	6	6	12	4	16	16	7	4
8 panels	19.2	(8 x 2.40 m)	6	6	14	4	18	18	8	4
9 panels	21.6	(8 x 2.40 m and 2 x 1.20 m)	8	7	16	4	20	20	9	4
10 panels	24.0	(10 x 2.40 m)	8	8	18	4	22	22	10	4
11 panels	26.4	(10 x 2.40 m and 2 x 1.20 m)	10	8	20	4	24	24	11	4
12 panels	28.8	(12 x 2.40 m)	10	9	22	4	26	26	12	4
13 panels	31.2	(12 x 2.40 m and 2 x 1.20 m)	12	10	24	4	28	28	13	4
14 panels	33.6	(14 x 2.40 m)	12	11	26	4	30	30	14	4
15 panels	36.0	(14 x 2.40m and 2 x 1.20m)	14	11	28	4	32	32	15	4
16 panels	38.4	(16 x 2.40 m)	14	12	30	4	34	34	16	4
17 panels	40.8	(16 x 2.40 m and 2 x 1.20 m)	16	13	32	4	36	36	17	4
18 panels	43.2	(18 x 2.40 m)	16	13	34	4	38	38	18	4
19 panels	45.6	(18 x 2.40 m and 2 x 1.20 m)	18	14	36	4	40	40	19	4
20 panels	48.0	(20 x 2.40 m)	18	15	38	4	42	42	20	4

* Rail details are provided for information purposes only and depend on the size of the panels.

Panels in landscape format

Number of panels	Rail (m)	Rail details*	Junction	Small aluminium support	Middle clamp	End clamp	M10 hammer head bolt	M10 hexagonal nuts	Rayvolt	Rail plug
1 panel	3.6	(2 x 1.80 m)	0	2	0	4	4	4	1	4
2 panels	7.2	(4 x 1.80 m)	2	3	2	4	6	6	2	4
3 panels	10.8	(6 x 1.80 m)	4	4	4	4	8	8	3	4
4 panels	14.4	(8 x 1.80 m)	6	5	6	4	10	10	4	4
5 panels	18	(10 x 1.80 m)	8	6	8	4	12	12	5	4
6 panels	21.6	(12 x 1.80 m)	10	7	10	4	14	14	6	4
7 panels	25.2	(14 x 1.80 m)	12	8	12	4	16	16	7	4
8 panels	28.8	(16 x 1.80 m)	14	9	14	4	18	18	8	4
9 panels	32.4	(18 x 1.80 m)	16	10	16	4	20	20	9	4
10 panels	36	(20 x 1.80 m)	18	11	18	4	22	22	10	4
11 panels	39.6	(22 x 1.80 m)	20	12	20	4	24	24	11	4
12 panels	43.2	(24 x 1.80 m)	22	13	22	4	26	26	12	4
13 panels	46.8	(26 x 1.80 m)	24	14	24	4	28	28	13	4
14 panels	50.4	(28 x 1.80 m)	26	15	26	4	30	30	14	4
15 panels	54	(30 x 1.80 m)	28	16	28	4	32	32	15	4
16 panels	57.6	(32 x 1.80 m)	30	17	30	4	34	34	16	4
17 panels	61.2	(34 x 1.80 m)	32	18	32	4	36	36	17	4
18 panels	64.8	(36 x 1.80 m)	34	19	34	4	38	38	18	4
19 panels	68.4	(38 x 1.80 m)	36	20	36	4	40	40	19	4
20 panels	72	(40 x 1.80 m)	38	21	38	4	42	42	20	4

* Rail details are provided for information purposes only and depend on the size of the panels.

FAQ - Ground structure mounting kit

1. Can I install this kit myself?

Yes, this kit is designed to be easily installed by anyone with some DIY skills.

2. Is the kit weather-resistant?

Yes, all components are made of stainless steel with an anti-corrosion coating, ensuring optimal resistance to rain, wind and UV rays.

3. Is this kit compatible with solar panels?

Yes, the kit is compatible with most standard solar panels, providing stable and secure mounting for ground-mounted or flat roof installations.

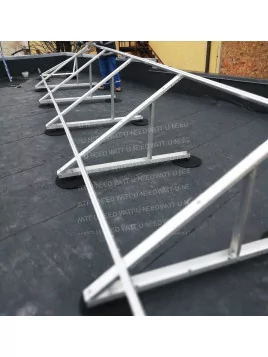

4. Can I install this kit on a flat roof?

Yes, this kit can be installed on a flat roof, following the ballast recommendations to ensure the stability and safety of the structure.

5. Is ballasting required for the structure?

Yes, ballast is necessary depending on the surface area, type of soil or flat roof, and local wind strength. The guide provided indicates the recommended weight and how to attach the ballast.

6. Does the kit allow the angle of the solar panels to be adjusted?

Yes, it is possible to adjust the angle to optimise sun exposure and energy production, whether on the ground or on a flat roof.

7. Is this kit suitable for all types of ground?

It is suitable for stable, flat surfaces (concrete, compacted gravel, stabilised soil). For loose or unstable surfaces, additional reinforcement or ballasting may be necessary.

8. What tools are needed for installation?

The tools required are standard: drill, spanner, screwdriver and possibly pliers. No special tools are required.
