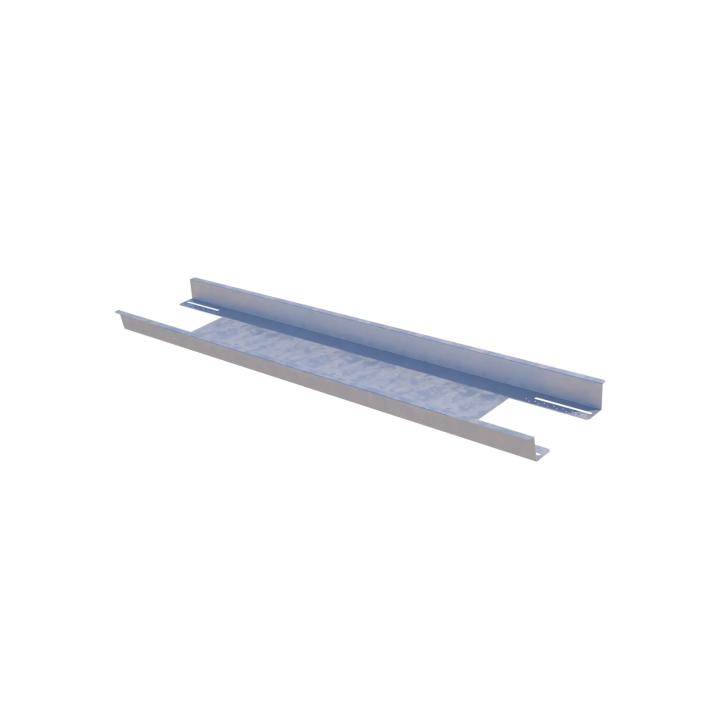

FlatFix Fusion Portrait ballast tray

FlatFix Fusion Portrait Ballast Tray | Flat Roof Ballast

The ESDEC FlatFix Fusion Portrait Ballast Tray is an essential accessory for securely fixing your photovoltaic panels to flat roofs. This component stabilises the solar installation by ballasting it, ensuring perfect wind resistance without perforating the waterproofing.

Why use the ESDEC FlatFix Fusion ballast tray?

The FlatFix Fusion mounting system is based on a self-supporting structure. To prevent the panels from blowing away or slipping, the ballast tray allows weight (slabs, gravel, concrete) to be added at strategic points.

Technical advantages and benefits:

• Waterproofing protection: No mechanical fastenings in the roof membrane (EPDM, bitumen, PVC).
• Extreme resistance: Made of galvanised steel, designed to resist corrosion and weathering over the long term.
• Ultra-fast installation: Integrates with the modular system with click connections, reducing installation time on site.
• Portrait optimisation: Specifically sized for portrait-mode panel configurations, maximising the available roof space.

Ballast operation and implementation

The operation is based on the principles of gravity and aerodynamics. By filling the ballast tray with weights (usually standard concrete slabs), you create a downward force that counterbalances the wind uplift.

How to install ballast

1. Position the ballast tray between the line supports.
2. Clip it onto the FlatFix Fusion structure.
3. Place the required weight on top.
4. The installation is secure and ready to produce energy.
