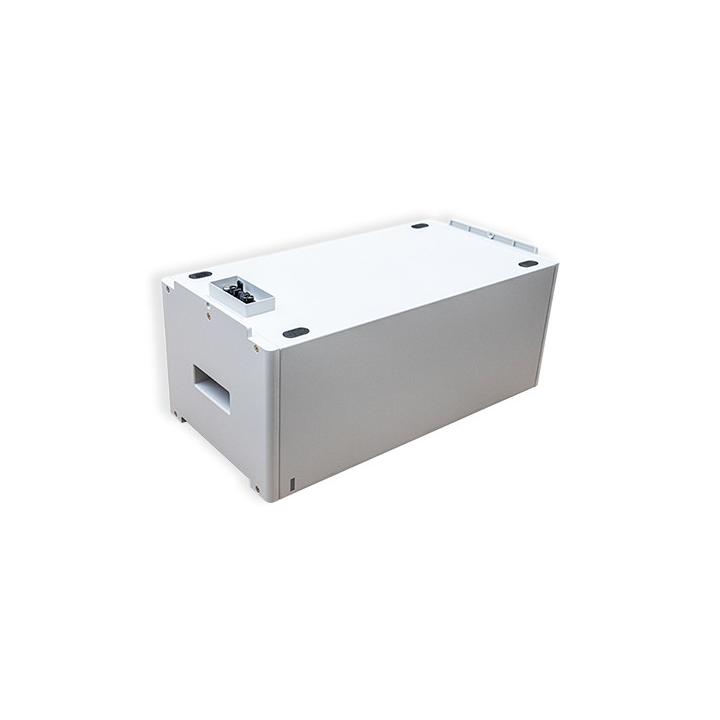

BYD PREMIUM HVM 2.76 kHw lithium battery

€1,064.80

Tax included

Reference: BYD-HVM-2,76 kHw

EAN13: 0768563820427

BYD Premium HVM 2.76 kWh Battery: Safely Store Your Solar Energy

The BYD Premium HVM 2.76 kWh battery is a modular and high-performance solar energy storage solution. With its lithium iron phosphate (LFP) technology, known for its safety and longevity, it efficiently stores the energy produced by your solar panels. Its modular design allows for flexible storage capacity adjustments, providing unmatched installation flexibility.

Why choose the BYD Premium HVM 2.76 kWh battery?

Modularity: Adjust the storage capacity to your needs by adding modules.
Performance: 96% efficiency and high output current for optimal use.
Reliability: Proven LFP technology, long lifespan, manufacturer warranty.
Safety: Cobalt-free battery, robust design, and rigorous certifications.
Flexibility: Compatible with many inverters, easy and quick installation.

The benefits of self-consumption:

Reduce your electricity bill: Use the energy you produce.
Become autonomous: Mitigate the impacts of power outages.
Protect the environment: Reduce your carbon footprint.

Key features:

Capacity: 2.76 kWh
Voltage: 51.2V
Technology: Lithium iron phosphate (LFP)

Ready to optimize your solar installation? Contact us for a personalized study and a free quote.

Comments (0)

No customer reviews for the moment.

BYD HVM 2.76 kWh battery: modular, high-performance solar storage

Standby and off-grid functionality thanks to high power output

- Maximum efficiency thanks to true high-voltage series connection
- Patented modular design requires no internal wiring for maximum flexibility and ease of use
- Cobalt-free lithium-iron-phosphate (LFP) battery: maximum safety, longevity and power supply
- Compatible with many single-phase and three-phase high-voltage battery inverters
- Two different models to enable

BATTERY-BOX PREMIUM HVS

A Battery-Box Premium HVM consists of 3 to 8 HVM battery modules connected in series to achieve a useful capacity of 8.3 to 22.1 kWh.
In addition, direct parallel connection of up to 3 identical HVM Premium Battery-Boxes provides a maximum capacity of 66.2 kWh.
Upgradeable by adding HVM modules or parallel HVM batteries at a later date.

Important notice for our customers in Belgium: An environmental contribution of € 90.82 excluding VAT will be applied to the purchase of each BYD PREMIUM HVM lithium battery.

More information at the bottom of the page.

FLEXIBLE, EFFICIENT, SIMPLE

Utilisation des batteries

Model	HVM 8.3	HVM 11.0	HVM 13.8	HVM 16.6	HVM 19.3	HVM 22.1
Battery module	HVM (2.76 kWh, 51.2 V, 35 / 38 kg)
Number of modules	3	4	5	6	7	8
Usable energy	8.28 kWh	11.04 kWh	13.80 kWh	16.56 kWh	19.32 kWh	22.08 kWh
Maximum output current	50 A
Peak output current	75 A, 3 s
Rated voltage	153.6 V	204.8 V	256 V	307.2 V	358.4 V	409.6 V
Operating voltage	120~177 V	160~236 V	200~295 V	240~354 V	280~413 V	320~472 V
Dimensions (H / W / D)	995 x 585 x 298 mm	1228 x 585 x 298 mm	1461 x 585 x 298 mm	1694 x 585 x 298 mm	1927 x 585 x 298 mm	2160 x 585 x 298 mm
Weight	119~129 kg	153~167 kg	188~205 kg	222~243 kg	257~281 kg	291~319 kg
Operating temperature	-10 °C to +50 °C
Battery cell technology	Lithium iron phosphate (cobalt-free)
Communication	CAN / RS485
Protection level	IP55
Round-trip efficiency	≥ 96%
Certification	VDE2510-50 / IEC62619 / CEC / CE / UN38.3
Applications	ON Grid / ON Grid + Backup / OFF Grid
Guarantee	10 years

Important notice for our customers in Belgium:

As part of our commitment to regulatory compliance and environmental responsibility in Belgium, we would like to inform our customers that the purchase of a BYD PREMIUM HVM battery is subject to a mandatory environmental contribution. An amount of €90.82 excluding VAT must be added for each battery purchased, as a direct contribution to Bebat, the organisation in charge of managing batteries and accumulators in Belgium. This measure complies with current Belgian environmental legislation. For more information, click here

Here is the reference list and the corresponding fee!

When purchasing lithium batteries, please add the following product BYD PREMIUM HVM environmental fee corresponding to the number of batteries you order. Otherwise, we will recalculate and invoice the amount after the purchase.

Reference BYD-HVM-2,76 kHw

Data sheet

Power: 2,76 kWh
Rated Battery Voltage: 51,2
Weight: 38 kg
Model: HVM 2,7
Battery module: HVM (2.76 kWh, 51.2 V, 35 / 38 kg)
Number of modules: 1
Maximum output current: 50A
Peak output current: 75A, 3s
