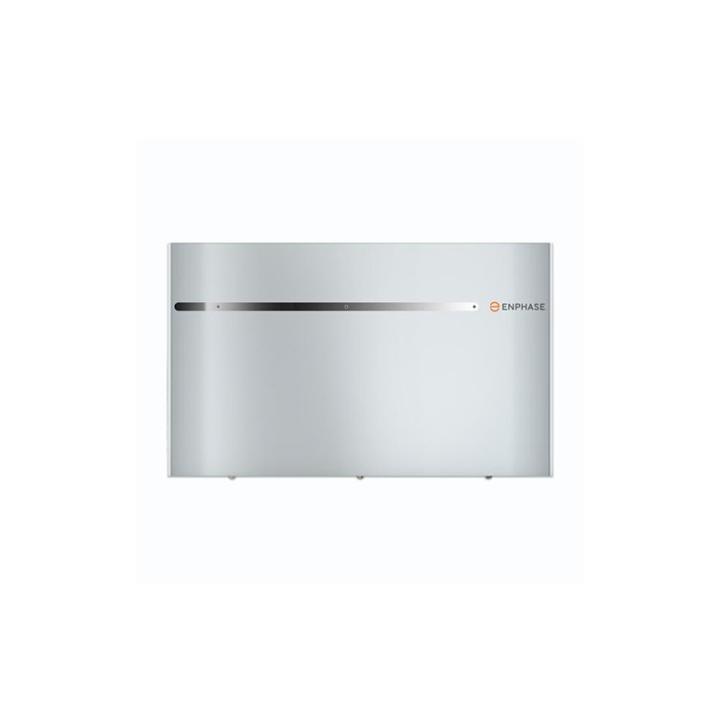

Enphase Encharge 10T: Maximize Your Energy Independence
The Enphase Encharge 10T storage system is designed to optimize your solar energy production. With its three Encharge 3T storage units and twelve integrated microinverters, it offers a capacity of 10.5 kWh, ideal for households looking to reduce their dependence on the electrical grid. Its plug-and-play installation and intelligent management make it a simple and effective solution.
Why choose the Enphase Encharge 10T?
The benefits of self-consumption:
Ready to switch to energy independence? Contact us for a personalized study of your solar project.
This kit includes:
The Enphase Encharge 10T™ all-in-one AC-coupled storage system is reliable, intelligent, simple and safe. It consists of three Encharge 3T™ base storage units, has a total usable energy capacity of 10.5 kWh and twelve integrated microinverters rated at 3.84 kW.
Installers can quickly design the right system size to meet the needs of new and retrofit customers.
- Enphase IQ 10T 10.5kWh battery (3x IQ Batteries 3T) (cover kit not included) (B03-T01-INT00-1-2)
- Enphase 10T 10.5kWh battery cover kit (3x IQ Batteries 3T not included) (B10T-C-1290-O)
- IQ series microinverters with proven reliability
- Ten-year limited warranty

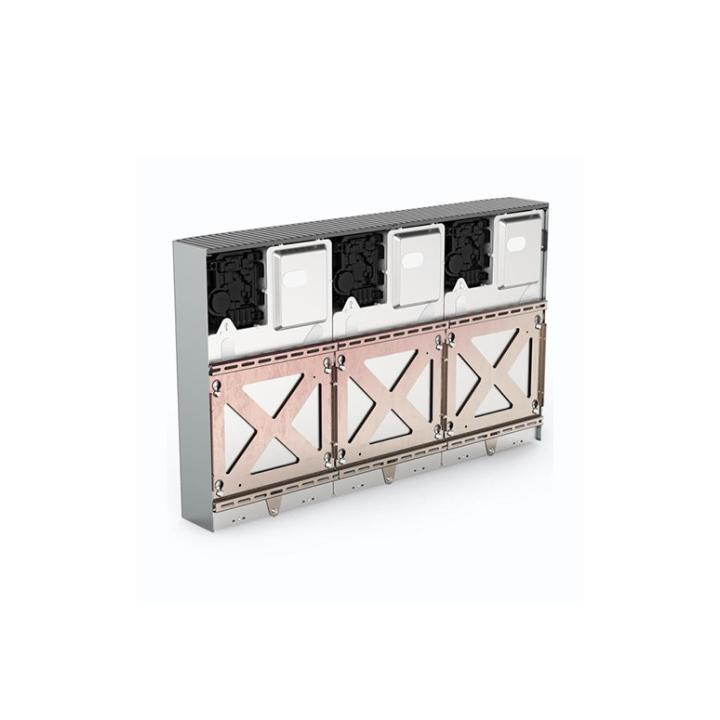

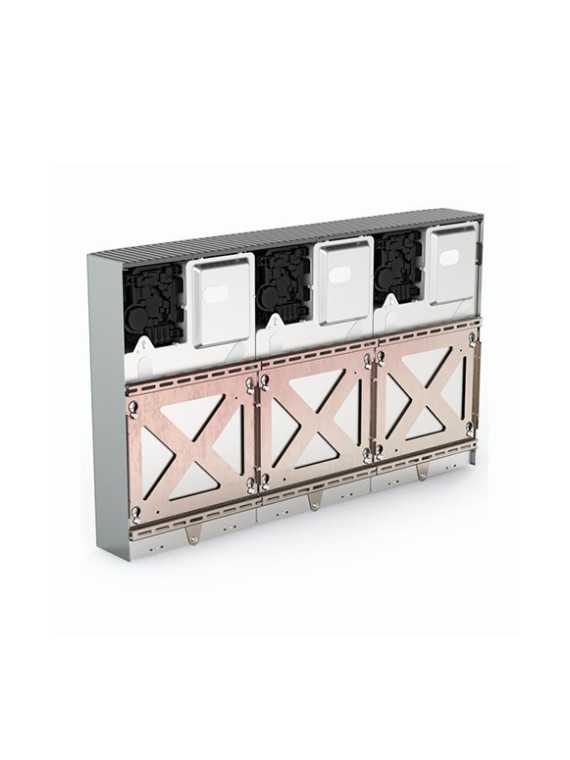

- Three independent Encharge storage base units
- Twelve on-board IQ8X-BAT microinverters
- Passive cooling (no moving parts/fans)
- Remote software and firmware updates
- Mobile application-based monitoring and control
- Support for self-consumption
- Utility time-of-use (TOU) optimization
- Fully integrated AC battery system
- Quick and easy plug-and-play installation
- Interconnection with standard household AC wiring
- Safety-tested cells
- Lithium iron phosphate (LFP) chemistry for safety and longevity
 |
Important notice for our customers in Belgium: An environmental contribution of € 342.98 excluding VAT will be applied to the purchase of each Enphase IQ-Battery 10T lithium battery. More information at the bottom of the page. |
| ENCHARGE-10T-1P-INT |
Encharge 10T™ battery storage system with integrated Enphase IQ series microinverters and battery management unit (BMU). Includes:
- Three Encharge 3T™ base units (B03-T01-INT00-1-2) - An Encharge 10T™ cover kit with lid, wall mounting bracket, and interconnection cable for wiring between batteries (B10T-C-1290-O) |
| OUTPUT (AC) | |
| Nominal Output Power (Continuous) | 3.84 kVA |
| Nominal Voltage / Range |
230/207—264 VAC
|
| Nominal Frequency / Range | 50/47—52Hz |
| Nominal Output Current | 16.7 A |
| Power Factor (Adjustable) |
0.85 leading ... 0.85 lagging
|
| Maximum Units per 20A Breaker Circuit |
1 unit (single-phase)
|
| Interconnection | Single-phase |
| Maximum AC Short-Circuit Fault Current (over 3 cycles) | 69.6 Arms |
| Round-trip Efficiency1 | 89% |
| THE BATTERY | |
| Total Capacity | 10.5 kWh |
| Usable Capacity | 10.5 kWh |
| Round-trip Efficiency | 96% |
| Nominal DC Voltage | 67.2 V |
| Maximum DC Voltage | 75.6 V |
| Operating Ambient Temperature Range |
-15º C to 55º C (5º F to 131º F) without condensation
|
| Optimal Operating Temperature Range |
0º C to 30º C (32º F to 86º F)
|
| Chemistry |
Lithium Iron Phosphate (LFP)
|
| MECHANICAL DATA | |
| Dimensions (LxHxD) |
1283 x 775 x 188 mm (50.5 x 30.5 x 7.4 inches)
|
| Weight |
Three individual base units of 40.5 kg (89.3 lb) plus a lid and mounting bracket of 22.1 kg (48.7 lb); total 143.6 kg (316.5 lb)
|
| Enclosure | Outdoor – IP55 |
| IQ8X-BAT Microinverter Enclosure | IP67 |
| Cooling |
Natural convection – No fans
|
| Altitude |
Up to 2500 meters (8200 feet)
|
| Mounting | Wall mount |
| FEATURES AND COMPLIANCE | |
| Compatibility |
Compatible with grid-connected PV systems. Compatible with Enphase M215/M250 and IQ Series microinverters and Enphase Envoy-S.
|
| Communication | Wireless 2.4 GHz |
| Service Features |
Self-consumption, TOU, Demand Charge, NEM Integrity
|
| Monitoring |
Enlighten Manager and MyEnlighten monitoring options; API integration
|
| Compliance |
UN 38.3, EN 62040.1, VDE AR-N 4105:2018
EMI: CE, EFT, ESD, Surge, dips and interruptions, CRF Cell Module: IEC 62619:2017, UN 38.3, UL1973, UL9540A Inverters: EN 62109-1, EN 62109-2, EN 62909-1:2017, EN 50549 -1:2019 |
| LIMITED WARRANTY | |
| Limited Warranty2 |
> 70% capacity, up to 10 years or 4000 cycles
|
- 1 Enphase IQ Battery
- 2 Enphase M-series or Enphase IQ-series microinverter/inverter Inverter
- 3 Enphase communication kit and signal amplifier
- 4 IQ Gateway Metered - network communication device
- 5 Enphase App
- 6 IQ Relay - network system relay controller
|
