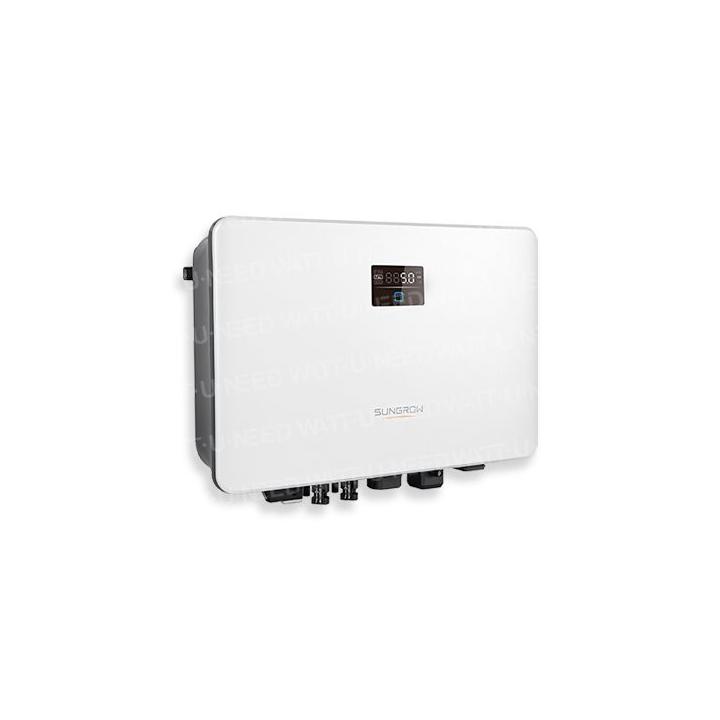

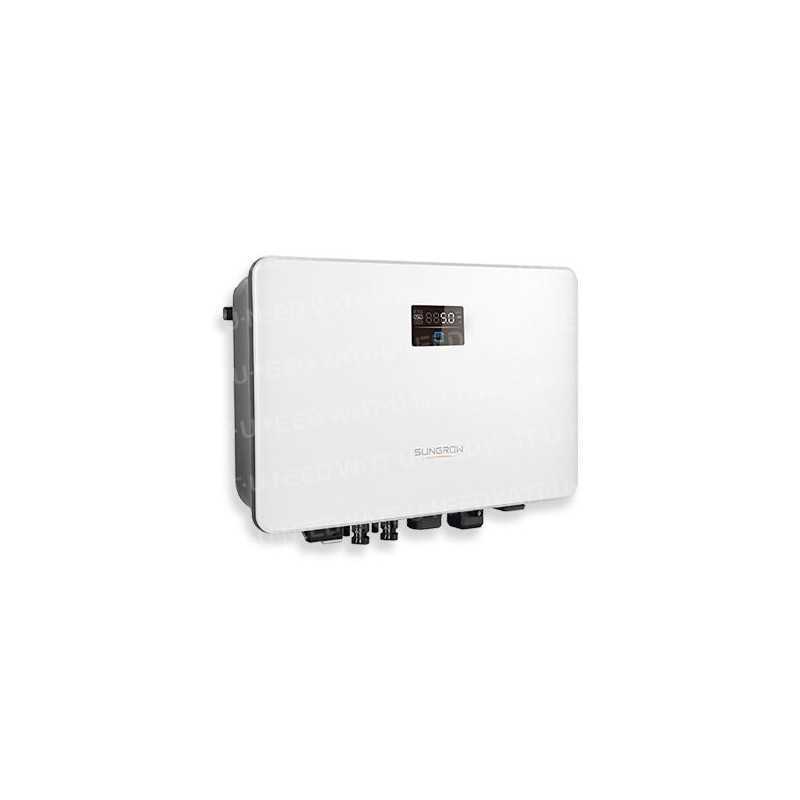

SunGrow SG5.0RS Single-Phase Inverter: Solar Energy at Your Fingertips
Choose excellence with the SunGrow SG5.0RS single-phase inverter, the result of Sungrow’s global expertise in solar solutions. Designed to maximize your energy production, this inverter combines performance, simplicity, and reliability. With its advanced technology and intuitive installation, it allows you to fully enjoy solar energy.
Why choose the SunGrow SG5.0RS inverter?
Key advantages of the SunGrow SG5.0RS inverter:
Trust Sungrow, a major player in solar energy. Benefit from 25 years of experience and recognized expertise for a high-performance, durable solar solution.
Sungrow Power Supply Co, Ltd ("Sungrow") is the world's most bankable inverter brand, with over 269 GW installed worldwide by June 2022. Founded in 1997 by university professor Cao Renxian, Sungrow is a leader in solar inverter research and development with the industry's largest dedicated R&D team and a broad product portfolio offering PV inverter solutions and energy storage systems for utility, commercial and industrial, and residential applications, as well as internationally recognized floating PV power plant solutions, NEV driving solutions, EV charging solutions and renewable hydrogen production systems. With 25 years' experience in the photovoltaic field, Sungrow products supply power to over 150 countries worldwide.
Offering a wide range of solutions and services, Sungrow is committed to providing clean energy for all and continues its efforts to become the world leader in clean energy conversion technology.
| DC INPUT |
| PV input power max | 7500 W |
| PV input voltage max | V |
| PV operating voltage min. | |
| / Start-up input voltage | 40 V / 50 V |
| Nominal PV input voltage | 360 V |
| MPP voltage range | 40 - 560 V |
| Number of |
| of independent MPP inputs |
| Default number of PV strings per MPPT |
| Max PV input current | 32 A (16A /16A) |
| Short-circuit currentcircuit max | 40A (20A/20A) |
| AC |
| Nominal AC output power | 5000 W |
| AC output power supply max | 5000VA |
| Nominal AC output current (a 230V) | 21,8 A |
| Max AC output current | 22,8 A |
| Rated AC voltage | 220 / 230 / 240 V |
| AC voltage range | 154 - 276 V |
| Rated grid frequency Grid frequency range |
50 Hz / 45 - 55 Hz 60 Hz / 55 - 65 Hz |
| Harmonic (THD) | <3% (at rated power) |
| Power factor at rated power / adjustable power factor | > |
| 0.99 / 0.8 leading - 0.8 lagging |
| Supply phases / Connection phases |
| - 1 |
| EFFICIENCY |
| Maximum efficiency | 97.9% |
| European efficiency | 97,3% |
| PROTECTION |
| Grid monitoring | Yes |
| DC polarity reversal protection | Yes |
| short-circuit protectioncircuits | Yes |
| Leakage current protection | Yes |
| Overvoltage protection | DC type II / AC type |
| II |
| DC switch | Yes |
| PV string current monitoring | Yes |
| Arc fault circuit switch | Optional |
| Function |
| recovery |
| Yes |
| GENERAL |
| Dimensions (l x h x d) | 410 x 270 x 150 mm |
| Weight | 10 kg |
| Mounting | Mounting |
| Wall mounting |
| Topology | Transformerless |
| Degree of protection | IP65 |
| Operating ambient temperature range |
| 25 to 60 °C |
| Permissible relative humidity range (non-condensing) |
| - 100% |
| Cooling method | Natural cooling |
| Max. operating altitude | 4000 m |
| Display | Digital LED display and |
| LED indicator |
| Communications | Ethernet / WLAN / RS485 / DI (ripple control and DRM) |
| DC connection type | MC4 type (Max 6mm²) |
| AC connection type | Plug and play connector (max 6mm²) |
| Conformity | IEC/EN62109-1/2, IEC/EN62116, IEC/EN61727, IEC/EN61000-6-2/3, EN50549-1, AS4777.2, ABNT NBR 16149, ABNT NBR 16150, UNE 217002:2020, NTS V2 TypeA, IEC 0-21:2019, VDE0126-1-1/A1 (VFR-2019), UTE C15-712, |
| , G98/G99 |
| Grid support | Active and reactive power control and power ramp speed control |
