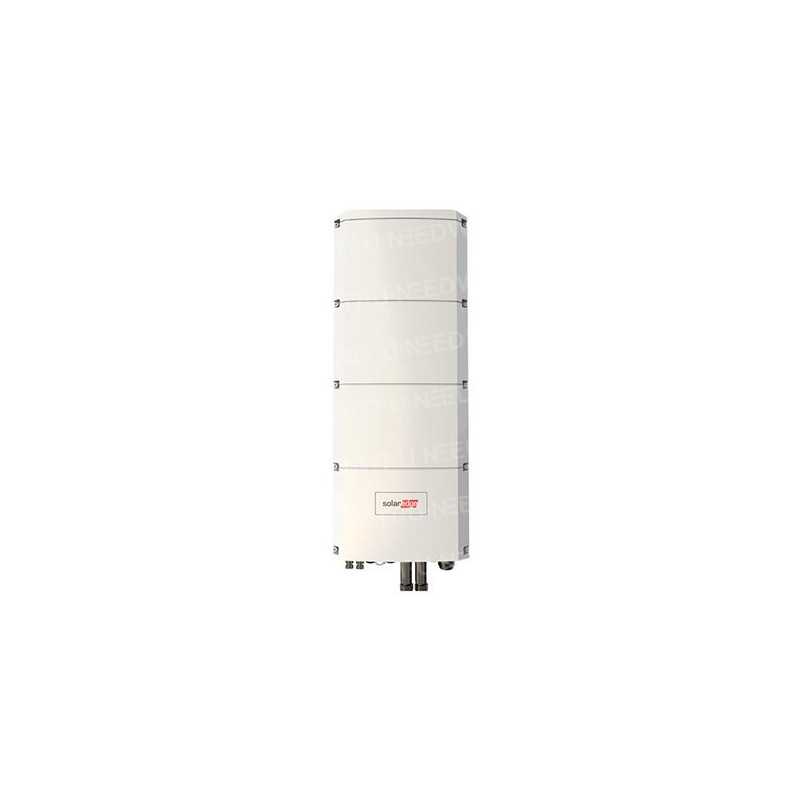

The SolarEdge StorEdge three-phase inverter is the ideal solution for maximising your solar energy production and moving towards energy autonomy. Designed for residential and commercial installations, it allows you to store excess production in a battery for flexible use.
Why choose SolarEdge StorEdge?
Key advantages:
SolarEdge StorEdge: Invest in the future and gain energy independence.
A single inverter unit directly connected to one or more 48 V batteries available from different suppliers. This highly efficient inverter manages solar energy production and consumption, as well as battery power, for homes with three-phase installations. It comes with a standard 12-year warranty.
Suitable for both indoor and outdoor installations, inverters are available in models from 5 kW to 10 kW.
SolarEdge single-phase inverters now feature a new, intelligent commissioning method. Inverter commissioning is carried out directly via smartphone using the intuitive SetApp mobile application. Switch to the new standard for inverter commissioning.
More energy thanks to a DC-coupled solution that stores solar energy directly in the battery without losses due to AC conversion
Quick and easy inverter commissioning directly from a smartphone using SolarEdge SetApp
Design eliminates high voltages during installation
,maintenance or transport for enhanced safety
Integrated module-level supervision and full visibility of battery status, solar energy production and self-consumption data
Compatible with low-voltage 48 V batteries from different suppliers for greater flexibility
| Model | SE5K-RWB48 | SE8K-RWB48 | SE10K-RWB48 | Value |
| - | ||||
| With mains supply |
| Nominal AC output power | 5000 |
| 10000 | VA |
| Maximum AC output power | 5000 |
| 10000 | VA |
| AC output voltage Phase to phase/phase to neutral (nominal) |
380/220 ; | |||
| 400/230 | Vac | |||
| AC output voltage - Phase-to-phase/phase-to-neutral range | 184 to 264,5 | Vac | ||
| AC frequency | 50/60 +- | ||
| 5 | |||
| Maximum continuous output current (per phase) |
| 13 | 16 |
| Residual current detector Residual current level detector |
|||
| 300 /30 | mA | ||
| networks - three-phase | ||
| / N / PE (Star with neutral) | ||
| Energy consumption monitoring, anti-islanding protection, configurable power factor, | |||
| country-configurable thresholds | Yes | ||
| PV INPUT |
| Maximum DC power (STC module) | 10000 | 13000 | 15000 |
| Maximum input voltage | 900 | ||
| Nominal DC input voltage | 750 | ||
| Maximum input current | 13,3 | 17,3 | 20 | Adc |
| Reverse polarity protection | Yes | ||
| Ground fault detection | 700 kΩ sensitivity | ||
| Maximum inverter efficiency | 98 | ||
| European weighted efficiency | 97,3 | 97.6 | |
| ADDITIONAL FEATURES |
| communication interfaces | ||
| x RS485, Ethernet, | ||
| SolarEdge home network | ||
| STANDARDS COMPLIANCE |
| Safety | IEC-62109 | ||
| Network connection standards | ||
| 4105, | ||
| Tor Erzeuger Typ A, EN 50549-1, CEI 0-21, G98 Type A, G98 NI Type A, RD1699 / RD413 / NTS, VDE-V 0126-1-1, VFR 2019, EN 50438 | ||
| Emissions | IEC61000-6-2, | ||
| IEC61000-6-3, IEC61000-3-11, IEC61000-3-12, EN55011 | |||
| INSTALLATION SPECIFICATIONS |
| AC output - Cable gland diameter | 15 to 21 | mm | ||
| DC battery - Cable gland diameter | ||
| x 11-16, | ||
5
| mm |
| PV DC input | ||
| x pair type MC4 | ||
| Dimensions (H x W x D) | 907 x 317 x 192 | mm | ||
| Weight | 37 | kg | ||
| Operating temperature range | |||
| to + 60 | °C | ||
| Cooling | Internal and external fans | ||
| xml-ph-0030@dee | ||
| 50 |
| Degree of |
| IP65 - Indoor and outdoor |
| Support supplied |
