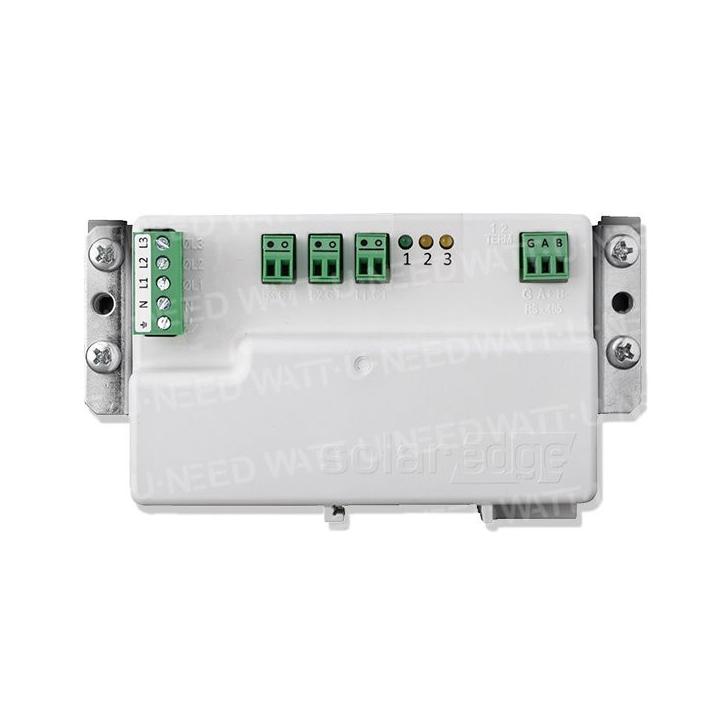

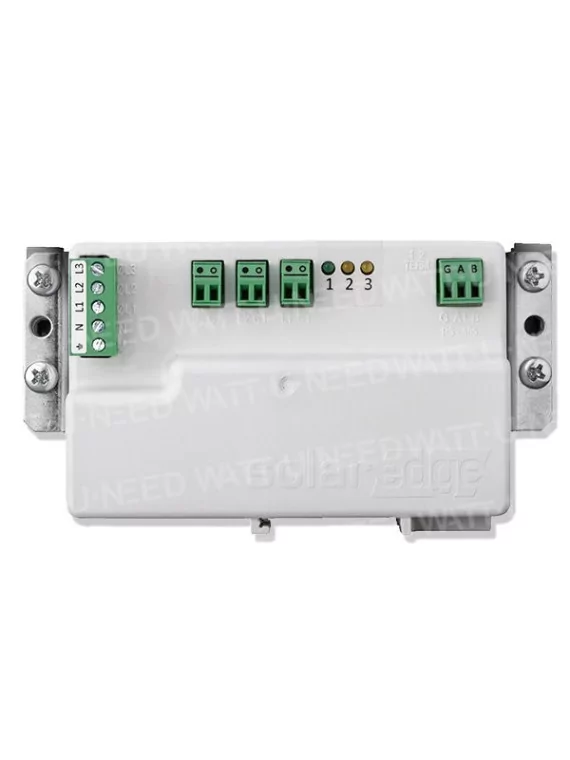

• SolarEdge Modbus meter

Energy meter with Modbus connection SolarEdge 400V

€339.70
Tax included
SE-MTR-3Y-400V-A
0712971133969

Small in size and easy to install, this Modbus meter fits into standard electrical cabinets and is suitable for SolarEdge installations, giving accurate production/consumption readings.

Comments (0)

No customer reviews for the moment.

Energy meter with Modbus connection suitable for
for SolarEdge installations

- High-accuracy meter readings (up to 0.5%) for production/consumption readings

- Restricted export of production to the grid

- Small in size and easy to install - suitable for standard electrical cabinets

- Suitable for residential, tertiary and ground truss installations

- Compatible with RS485 end-of-line resistors up to 120 Ohms

ELECTRICAL DATA
Operating voltage range - phase to neutral, phase to phase Vac
Nominal: 230/400
184-264.5 / 320-460
AC frequency Hz 45 / 65
networks - single-phase; three-phase*
/ N / PE ; L1 / L 2 / L3 / N / PE
Power consumption (norm.)
CT inputs
333
COMMUNICATION
communication interfaces
RS485 half-duplex, 3-wire (A, B,
GND)
Response time sec ≤200
device identification (Modbus)
End-of-line resistance
RS485 at 120 Ohms
PRECISION (@25°C, PF:

0

.7- 1)(5)
5% - 100% of rated CT current
±1.0
Accuracy IEC
IEC 62053-21 Class 1, IEC 62053-23 Class 2
STANDARDS COMPLIANCE
Safety
IEC 61010-1, UL 61010-1, CAN/CSA-C22.2 No.
61010-1-04
Immunity
EN 61326:
2000, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6,EN 61000-4-5, EN 61000-4-6,
Emissions
EN 55022 Class B
INSTALLATION SPECIFICATIONS
Dimension (HxLxW) 75 x 138.6 x 35
Weight
.2
Enclosure type °C
to +85
Operating temperature range
5% to 90% up to 40°C decreasing linearity to 50% RH at 55°C
Relative humidity (non-condensing)
IP2
Suitable for indoor use
Mounting type
DIN rail / Surface mounting
SE-MTR-3Y-400V-A

Data sheet

Number of MPPT
1 MPPT

Specific References

UPC
712971133969
EAN13
0712971133969
