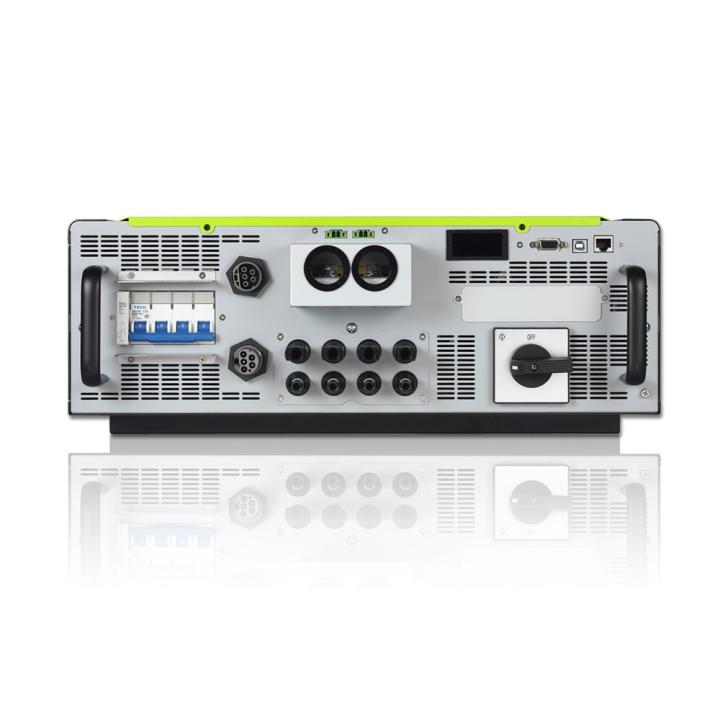

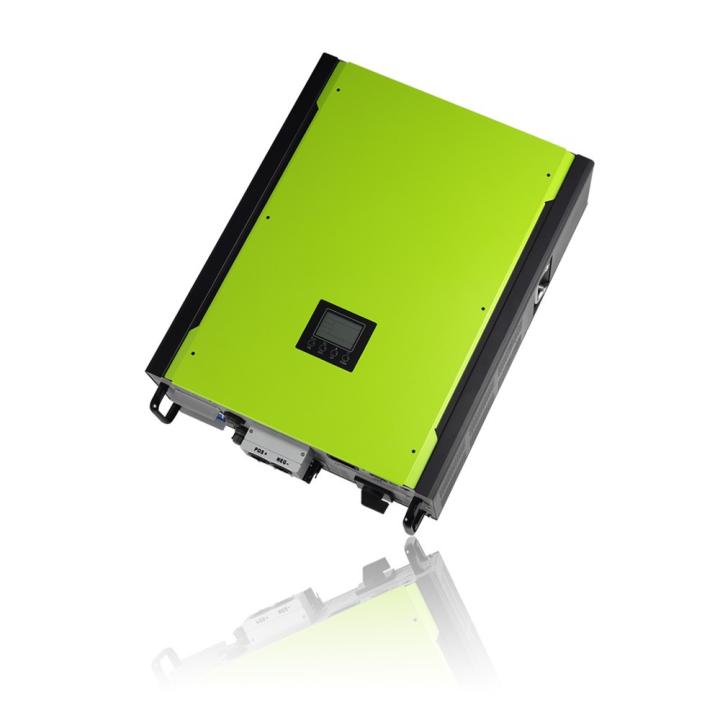

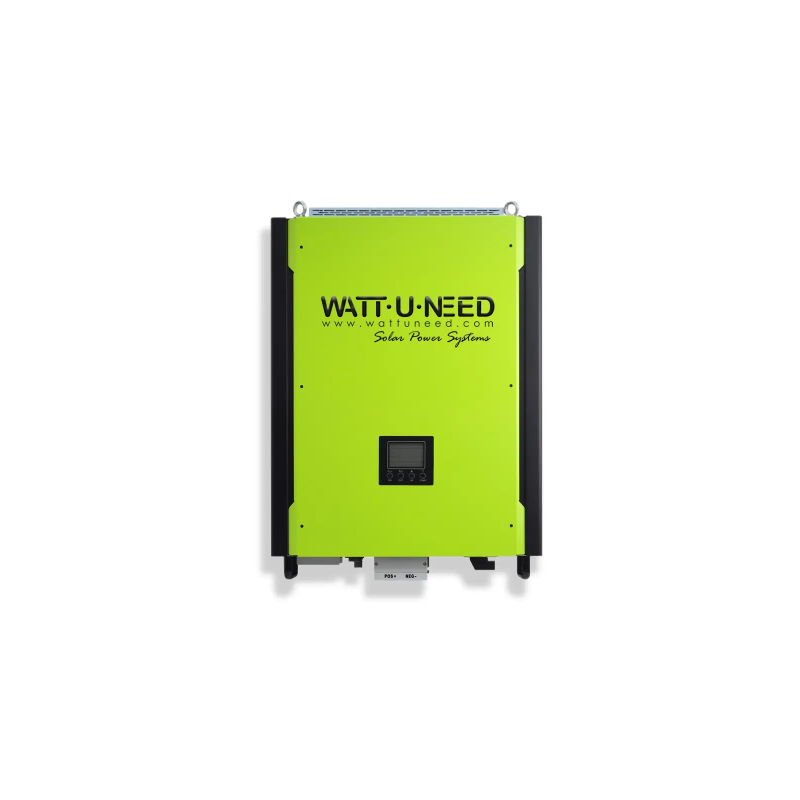

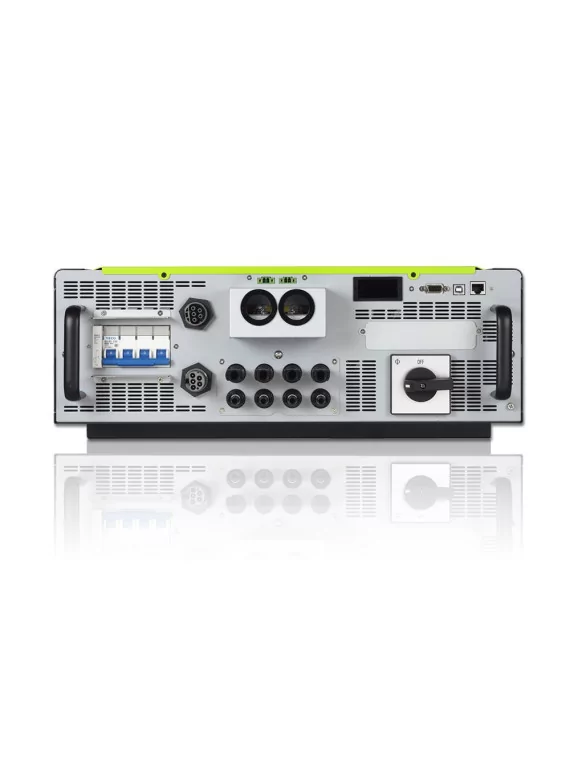

Multisolar 10kW grid-injection-storage hybrid inverter
€3,507.32
Tax included
0586
0712971128019
Multisolar 10kW Inverter: Master Your Solar Energy
The Multisolar 10kW is a high-performance hybrid three-phase inverter designed to optimize your solar energy production and ensure your energy independence. With its versatility and performance, it allows you to store excess energy, use your solar energy at any time, and secure your power supply.
Why choose the Multisolar 10kW inverter?
- Maximum Flexibility: Manage your solar energy freely with multiple operating modes: grid-connected, off-grid, or hybrid.
- Optimal Performance: Dual independent MPPT trackers ensure maximum yield from your solar system, even in shading conditions.
- Proven Reliability: Robust design and high-quality components for extended lifespan.
- Simplified Installation: Easy installation thanks to its compact design and intuitive LCD screen.
Key Benefits:
- Optimized Self-Consumption: Use your own solar energy and reduce your electricity bill.
- Energy Independence: Protect yourself from power outages with the backup function.
- Simplified Monitoring: Monitor your system in real-time with the LCD screen and communication options.
Multisolar 10kW: The Future of Solar Energy at Your Fingertips.
⚡
Combien allez-vous économiser ?
Simulez vos économies
avec ce kit de 6 kWc
Étude personnalisée
Faites valider la composition de ce kit
Nos conseillers reprennent les panneaux, l'onduleur, la batterie et les accessoires sélectionnés pour préparer un devis adapté à votre projet.
Multisolar 10kW hybrid inverter: Energy autonomy and guaranteed savings
MultiSolar: Store the bare minimum in your batteries and feed it back into the grid, provided the batteries are full.
Conversely, use the grid to make up for the shortfall in winter production, and top up the batteries when it rains.
Optimize your production to the maximum and never worry about a power cut again.
Connect up to 14850Wp to the PV input of the Hybridinverter.
Store and use your solar-generated electricity at a later date.
Description
High-performance three-phase MultiSolar inverter for hybrid power systems.
Connect solar panels, batteries and, optionally, a grid input to power your system.
Enjoy top performance thanks to two independent integrated mppt trackers, as well as user-friendliness thanks to its compact design and intuitive LCD display.
- Pure sine wave output signal: 10kW
- Max PV input power: 14850Wp
- AC input: 3-phase
- AC output: 3-phase
- Microprocessor-controlled for greater stability
- Multiple operations:
- Grid-connected, off-grid and grid-connected with backup power
- Integrated mppt solar charger (two independent inputs)

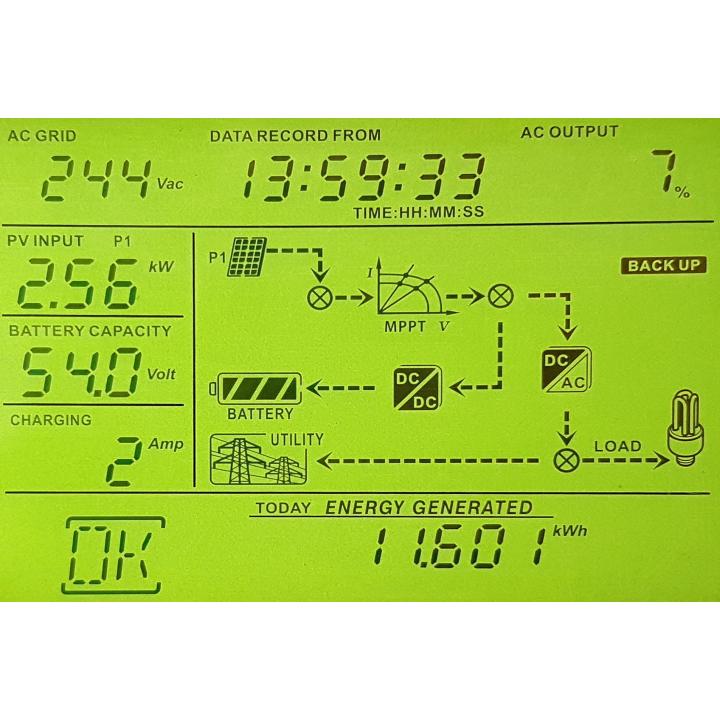

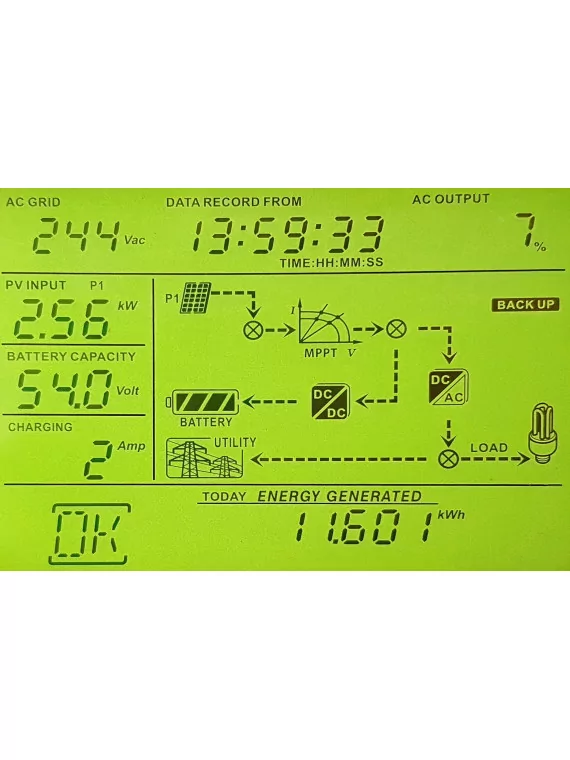

- Backlit LCD display for simple, interactive operation
- Multiple means of communication
- "Green" alternative to generators
- User-adjustable battery charging current, up to 200A
General features
| Power rating | 10000W |
| Physical characteristics |
| Dimension (mm) | 167.5 x 500 x 622 |
| Weight (kg) | 45 |
| Interface |
| Communication port | RS 232/USB |
| Environment |
| Humidity |
| - 90% |
| Operating temperature |
| - 50° C |
| Altitude |
| - 1000 m |
On-grid operation
| PV input (DC) |
| Nominal DC voltage - Max. voltage | 720 V DC - 900 V DC |
| Starting voltage | 320 V DC- 350 V DC |
| MPPT voltage range | 400 V DC - 800 V DC |
| Max. input current |
| x 18. |
6
| A |
| AC input |
| Nominal input voltage | 230 VAC (P-N) / 400 VAC (P-P) |
| Input voltage range | 184 - 265 V AC per phase |
| Max input current | 25 A |
| Efficiency |
| Maximum efficiency | > |
| 96% |
| Rated power efficiency | > 95% |
Off-grid operation
|
PV input (DC) |
|
Max voltage |
|
900 V DC |
|
Voltage range mppt |
|
400 V DC - 800 V DC |
|
Max current |
|
x 18. |
6
|
A |
|
AC output battery mode |
|
Nominal output voltage |
|
230 VAC (P-N) / 400 VAC (P-P) |
|
Output signal |
|
Pure Sine |
|
Efficiency (DC to AC) |
|
91% |
Hybrid operation
| PV input (DC) |
| Rated voltage DC - max voltage | 720 V DC - 900 V DC |
| Starting voltage | 320 V DC - 350 V DC |
| Max current |
| x 18.6A |
| Voltage range mppt | 400 V DC - 800V DC |
| AC output |
| Rated output voltage | 230 VAC (P-N) / 400 VAC (P-P) |
| Output voltage range | 184 V DC - 264.5 V DC per phase |
| Max. current | 14. |
| A per phase |
| AC input |
| AC start-up voltage | 120 V AC - 140 V AC per phase / 180 VAC per phase |
| Input voltage range | 170-280 VAC per phase |
| Max input current | 40 A |
| AC output battery mode |
| Output voltage | 230 VAC (P-N) / 400 VAC (P-P) |
| Efficiency (DC to AC) | 91% |
| Battery and charger |
| Nominal voltage | 48 V DC |
| Max. charging current | 100- 200 A |
Remote control and UPS configuration
Connect the UPS to your computer using the USB cable supplied.
SolarPower software enables control and monitoring of multiple devices via LAN, Internet or USB.
Alert notifications, pop-up screen, sms and email.
Software
SolarPower 1.20SP10
- SolarPower MAC AMDLien produitSolarPower MAC ARMLien produit
- (32bit) Linux
- (64bit) MAC
- Windows
- Manual
0586
Data sheet
- Inverter power in VA
- 10000 VA
- Phase
- Triphasé
- Number of MPPT
- 2 MPPT
- Width
- 500 mm
- Height
- 622 mm
- Thickness
- 176 mm
- Inverter type
- Hybrid
- Weight
- 45 Kg
Specific References
- UPC
- 712971128019
- EAN13
- 0712971128019
Related articles
Solar Retrofit: Unlock the potential of your micro-inverters with a Deye inverter
Find out how to add affordable storage to your existing micro-inverter system using a Deye hybrid inverter, without...
Solar Retrofit: Unlock the potential of your micro-invert...
MQTT + Deye: 2 ways to integrate your inverter into your home automation system
Find out how to send data from your Deye inverter (SUN-5K, 8K, 12K, 20K) to your MQTT home automation system (Home...
MQTT + Deye: 2 ways to integrate your inverter into your ...
Multisolar 10kW grid-injection-storage hybrid inverter — Inverters and converters
Multisolar 10kW grid-injection-storage hybrid inverter by Multisolar is available in our Inverters and converters catalog.
Technical specifications:
- inverter power in va: 10000 VA
- phase: Triphasé
- number of mppt: 2 MPPT
- width: 500 mm
- height: 622 mm
- thickness: 176 mm
- inverter type: Hybrid
- weight: 45 Kg
Product weight: 45.5 kg. Reference: 0586.
