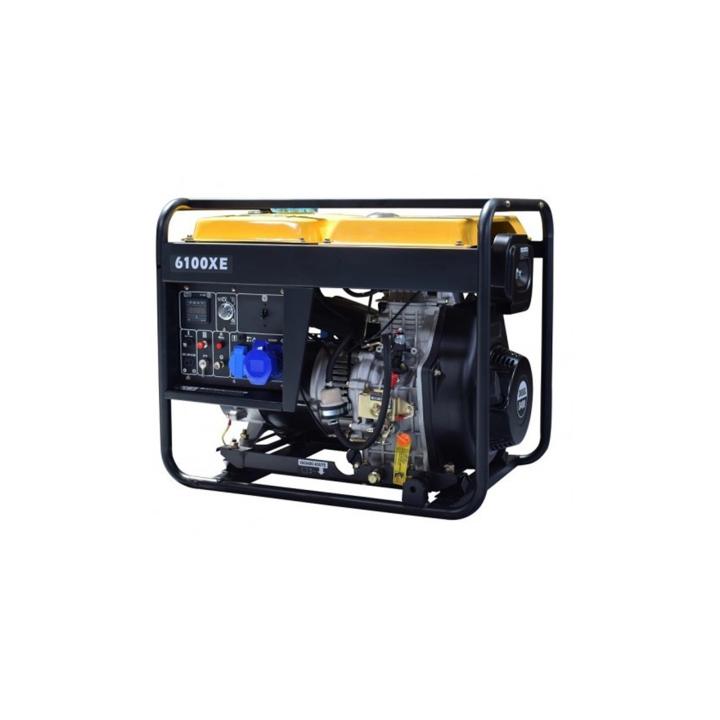

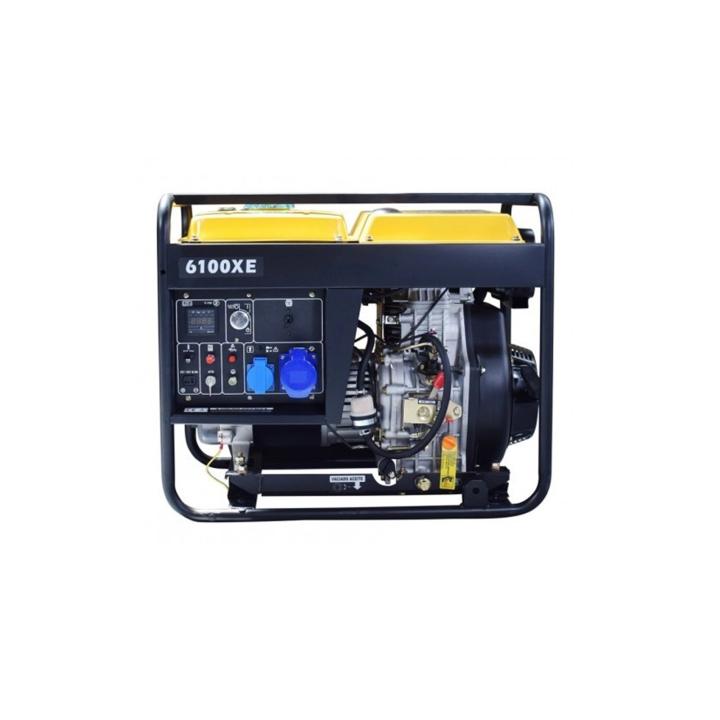

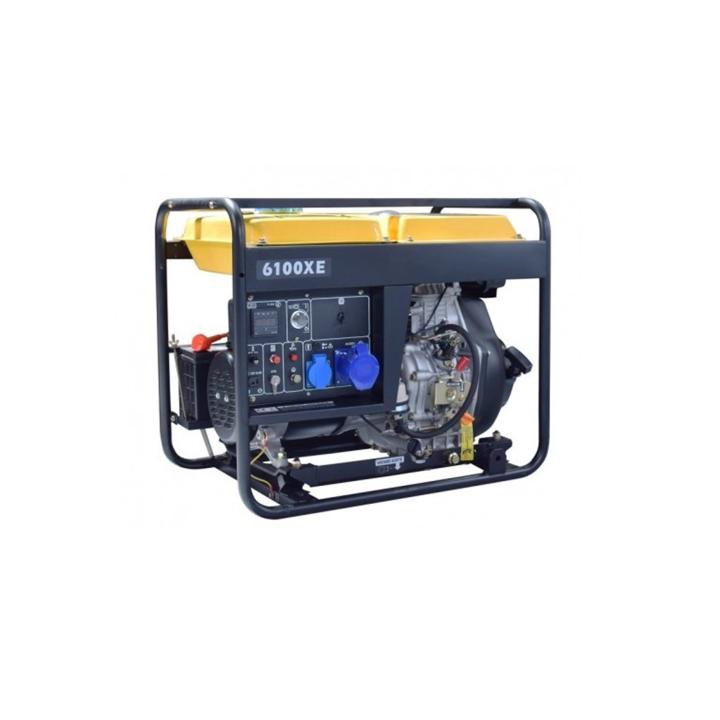

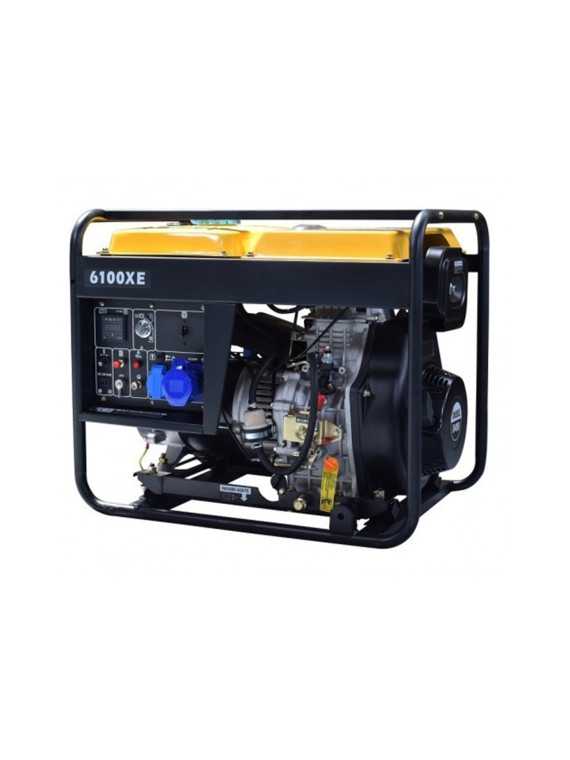

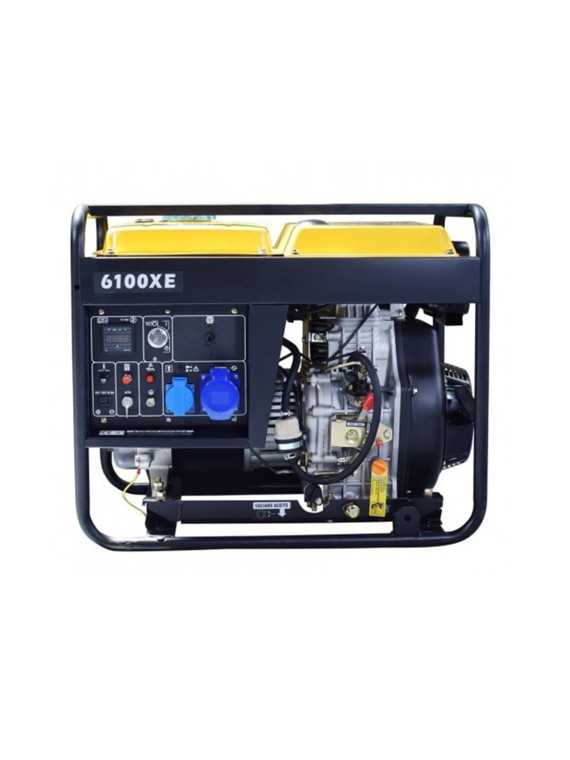

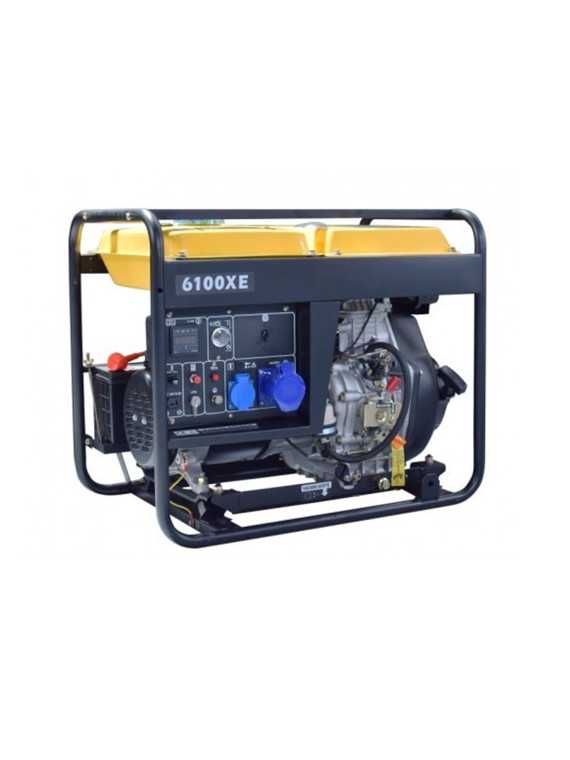

Kompak NT-6100XE 5500W Single-Phase 230V Diesel Generator

€1,309.83
Tax included
NT-6100XE
3760236754050

The diesel generator Kompak NT‑6100XE delivers up to 5500 W (5.5 kW) of maximum power, with a single-phase output of 230 V – 50 Hz. This generator is designed to provide stable and efficient power for your household appliances, workshop tools, electrical devices, or temporary installations.

It is equipped with a 4-stroke engine (418 cc, 10 HP) of OHV type, ensuring robustness and durability. The full copper alternator guarantees high-quality electricity production, and the AVR regulation system limits voltage fluctuations to ±1.5%, making it perfectly suitable for sensitive devices.

The control panel features 230 V sockets (2 × 16 A), a 12 V socket (8.3 A), an hour meter, a thermal circuit breaker, and a connector for automatic start via ATS. Start-up can be electric or manual, offering flexibility and ease of use.

With a 14 L fuel tank, the NT‑6100XE provides an autonomy of about 11 hours at 50% load. Its robust steel chassis and easy transport make it suitable for a variety of uses: workshop, construction site, domestic backup, standalone installation, or occasional use.

Reliable, versatile, and easy to operate, the Kompak NT‑6100XE is an effective solution to ensure stable, safe, and long-lasting power — whether for DIY, work, home, or emergency backup.

Comments (0)

No customer reviews for the moment.

Kompak NT-6100XE 5500W Single-Phase 230V Diesel Generator


The Kompak NT-6100XE is a reliable and robust diesel generator, designed to provide a high-performance 230V single-phase power supply. Fitted with a 418cc (10 hp) 4-stroke engine and a 100% copper alternator, it features an AVR (Automatic Voltage Regulator) system with a variation margin of just 1.5%, ensuring a stable current even for your sensitive equipment.

This versatile model features an electric start for effortless start-up, whilst retaining a manual recoil starter as a backup. With its 14-litre fuel tank, it offers ample running time for a full day’s work or extended use as a domestic backup power source.





Technical Specifications: 5500W Diesel Generator
Power (Max / Rated) 5,500 W / 5,000 W
Engine 4-stroke OHV diesel (418 cc - 10 hp)
Voltage regulation AVR (variation ± 1.5%)
Start-up Electric (key) & Manual / ATS compatible
Voltage 230 V single-phase
Tank capacity 14 L
Runtime Approximately 11 hours (at 50% load)
Available sockets 2 x 230V 16A / 1 x 12V 8.3A
Chassis Large-diameter steel tubing with silent blocks
Net weight 114 kg





Recommended uses

  • Camping, vans, caravans, leisure.
  • Food trucks, mobile stands, events.
  • Domestic backup power for lighting and light household appliances.
  • Computers and sensitive equipment (thanks to the inverter).
  • Light DIY / travel.





Kompak’s strengths and benefits

  • European expertise: Kompak is recognised worldwide for the robustness of its construction site tools.
  • 100% Copper Alternator: Ensures high-quality electricity generation and an extended service life for the generator.
  • Full control panel: Includes an LED controller with hour meter, thermal circuit breaker and an ATS connector for automatic start-up (optional box).
  • Exhaust silencer: Reduces noise emissions for greater user comfort.
  • Engine safety: Integrated oil level alarm preventing start-up if the level is too low.





Start-up and maintenance

  • Preparation: Fill up with diesel and 4-stroke engine oil. Check that the battery is connected before starting via the ignition key.
  • ATS start-up: This model is ready for full automation in the event of a mains power cut via an external ATS unit.
  • Maintenance: Follow the recommendations for regular oil changes to ensure the engine’s longevity (maintenance kit available separately).





Warranty

Kompak equipment comes with a 2-year warranty.





FAQ - Kompak NT-6100XE Generator

1. What is the actual power output of this diesel generator? +
The NT-6100XE delivers a maximum power output of 5,500 W (for start-up peaks) and a constant rated power of 5,000 W to ensure stable and efficient operation of your appliances over time.
2. Is it suitable for sensitive electronic equipment? +
Yes. This generator is equipped with a high-performance AVR (Automatic Voltage Regulator) system that limits voltage fluctuations to just 1.5%. The current is therefore perfectly regulated, effectively protecting your sensitive equipment against power surges.
3. Can this generator start automatically in the event of a power cut? +
Absolutely. It is fitted with a built-in ATS connector. By adding the optional ATS box, the generator will detect the mains failure itself and start automatically to supply power to your home independently.
4. What is the maximum runtime of the diesel tank? +
Thanks to its 14-litre tank and the fuel efficiency of its diesel engine, you can expect a running time of approximately 11 hours of continuous operation at an average load (50%).
NT-6100XE

Data sheet

Phase
Monophasé
Standard warranty (years)
2 ans
Weight
114 kg
How it works
Thermal
Voltage in Volts
230 V
Maximum power in Watts
5500 W
Rated power in Watts
5000 W
Frequency
50 hz
Amperage
16/32
Prises
1x16A, 1x16A
Carburant
Diesel
Fuel capacity in liters
14 l
Oil capacity in liters
1,6 l
Autonomy and heure
11h at 50% load
Multifunction display
Oui
Inverter
Non
AVR
Oui
Parallel connection
Non
Noise level at 7 metres in dB
79 dB
Silencer
Non
Manual start
Oui
Electric start
Oui
Engine
D400E
Displacement in cc.
418
Engine power in hp
10
Motor speed
3000 rpm
Oil shortage safety device
Oui
Thermal circuit breaker
Oui
Alternator
Copper
ATS
Compatible
Protection class
IP23M
Dimensions (L x l x H)
72 x 48 x 60 cm

Specific References

UPC
760236754050
EAN13
3760236754050
MPN
NT-6100XE
