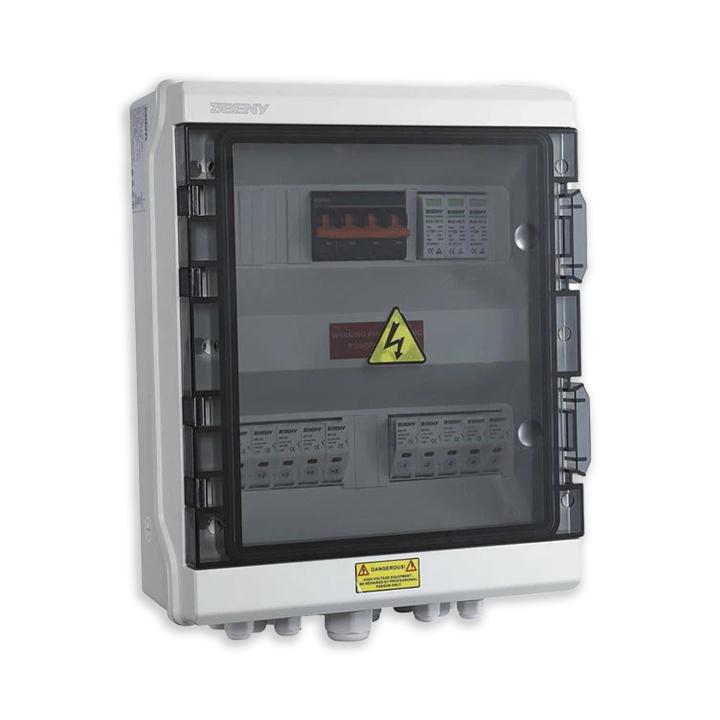

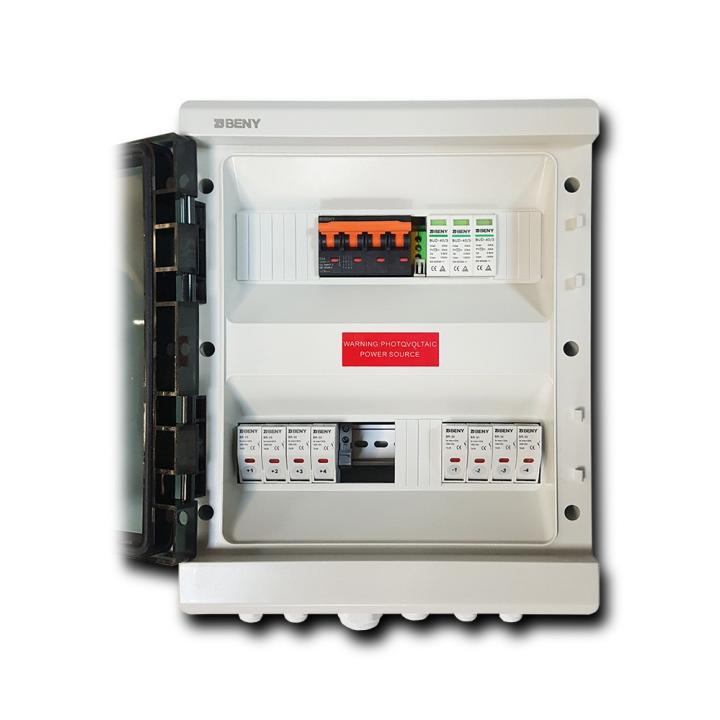

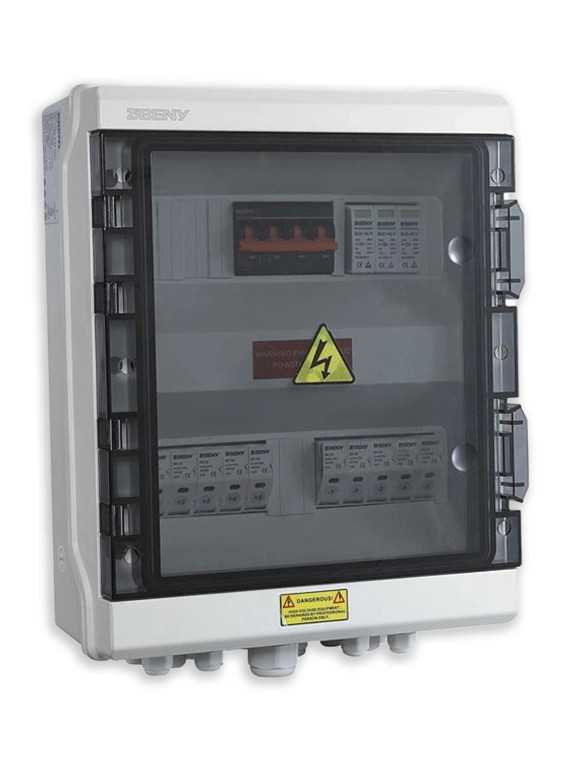

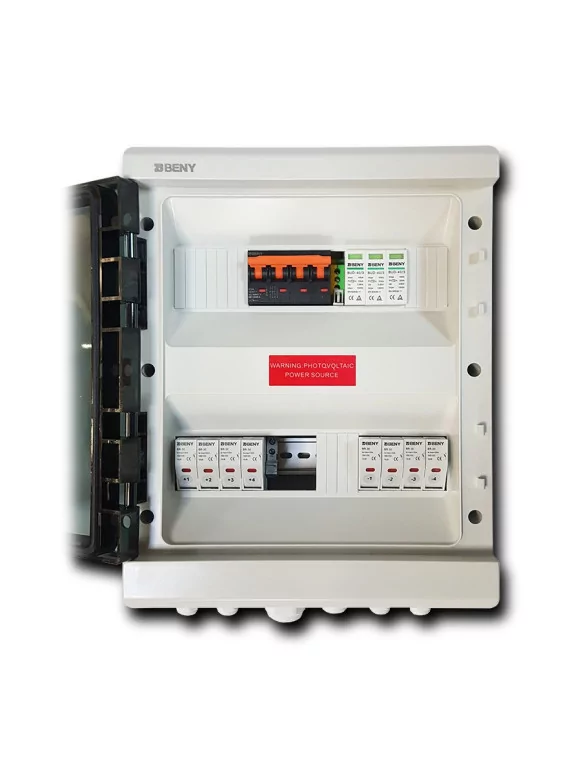

5-input paralleling box with surge arrester and disconnector + 2m 16² cable

Parallel Box with 5 Inputs, Surge Protector and Disconnect Switch + 2m of 16²

The ZJBENY BHS-5/1 parallel box is a complete solution for combining up to 5 photovoltaic strings into a single output while ensuring optimal protection against overvoltages and short circuits. Designed for solar installations in self-consumption or grid injection, it ensures efficient energy distribution and simplified installation.

Main Features:

• Number of inputs: 5 inputs for solar panels (strings)
• Number of outputs: 1 single output for connection to the inverter
• Nominal voltage: Up to 1000V DC
• Maximum current per string: 15A
• Maximum output current: 63A
• Integrated protection:
  • DC circuit breaker to prevent overloads and short circuits
  • DC surge protector to protect against lightning-induced overvoltage
  • Protective fuses for each input
  • Backflow diodes to prevent reverse currents
• Protection rating: IP65, ensuring complete protection against water and dust
• Enclosure material: UV and weather-resistant polycarbonate
• Operating temperature: -25°C to +60°C
• Installation: Pre-wired system, ready to be quickly installed

Why choose the ZJBENY BHS-5/1 box?

• Guaranteed safety: Protect your solar installation with a reliable device that complies with standards.
• Performance optimization: Reduce energy losses with an efficient parallel connection.
• Quick and simplified installation: Pre-wired system for time-saving and fast commissioning.
• Durability and resistance: Robust enclosure designed for outdoor use, even in extreme conditions.

Choose the ZJBENY BHS-5/1 and maximize the reliability and efficiency of your photovoltaic installation.

Specifications
