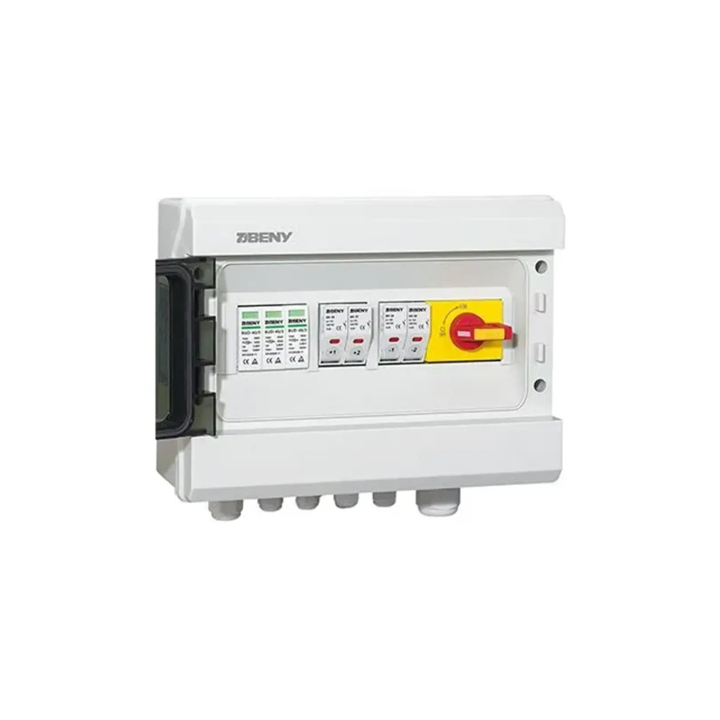

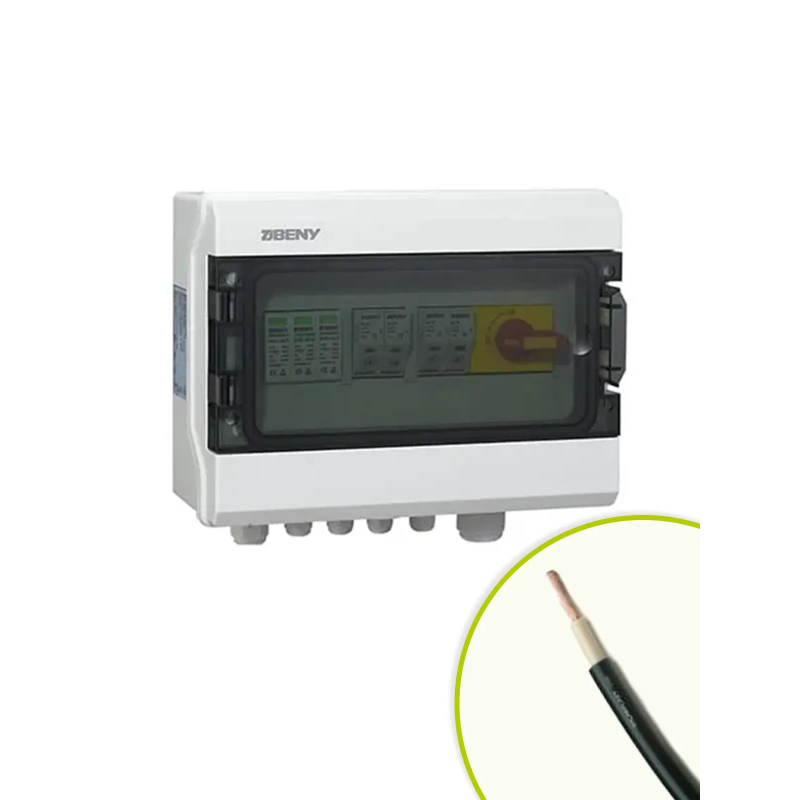

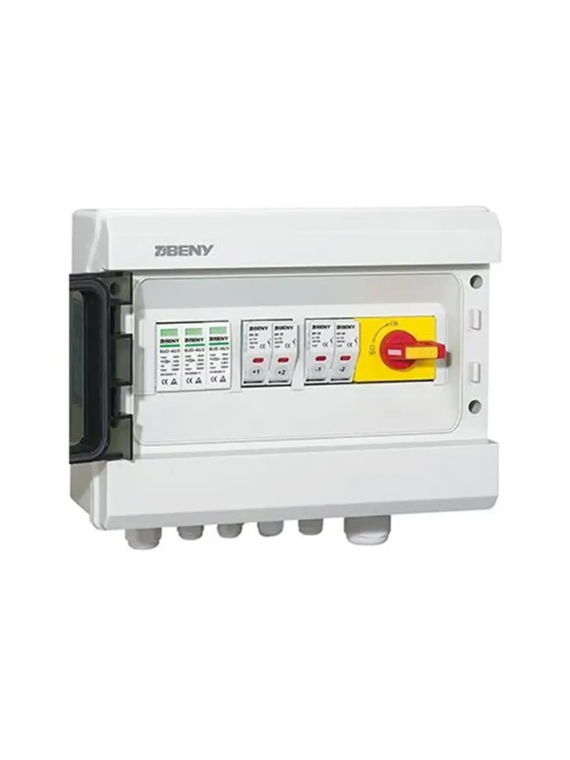

DC lightning arrester box
The 1000V BHS-2/1 DC box is installed between the solar panels and the solar inverter.
To protect the solar DC circuit from damage due to overcurrent or overvoltage, extend the life of the solar system and improve system safety.
Equipped with the most reliable DC components for maximum protection.
| General data |
BHS-2/1
| Model number |
2
| Input |
| strings |
1
| Output |
| string |
| Maximum voltage | 1000V |
| Maximum DC short-circuit current per input (Isc) | 15A (Modifiable) |
| Maximum output current | 32A |
BX-
| Housing |
| 13 |
| Material type | Polycarbonate/ABS |
| Degree of protection | IP65 |
IK10
| Degree of impact resistance |
| Dimension | 292 x 220 x 120mm |
| Cable input Input | PG09 Cable gland, |
| 2.5-16mm |
| Output cable gland | PG21 2.5-16mm |
| DC switch-disconnector | BYT.2-32/BYS |
| Rated insulation voltage | 1000V |
| Rated current | 32A |
| Category | DC21B/PV2 |
| Conformity to standard | IEC 60947-3 |
| Certification | UL, TUV,KEMA,SAA,CE |
| DC surge arrester | BUD-40/3 |
| Maximum operating voltage (Ucpv) | 1000V |
| Conformity to standard | EN 50539 Type 2 |
| Maximum discharge current | 40 KA |
TUV
| Attestation |
| CE |
DCholder
| Fuse-holder |
| DC fuse |
| BR-30 |
| LED indicator | Yes |
| Rated operating voltage | 1000V |
| Fuse link | 10x38mm LITTEL 15A |
| Attestation | UL, |
C
| B,CE |
| Environment |
-20°C~+60°C
| Operating temperature |
| Humidity | 99,00% |
| Altitude | 2000M |
| Installation | Wall mounting |
