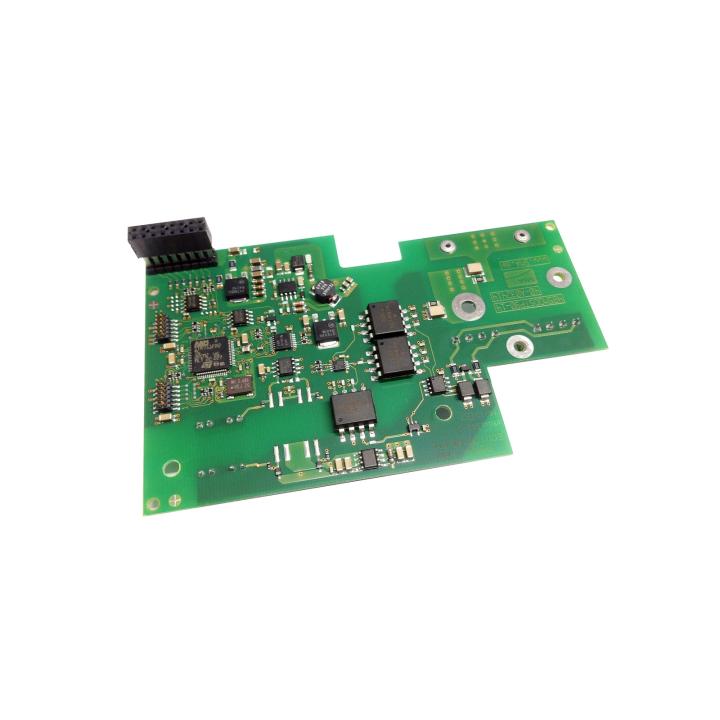

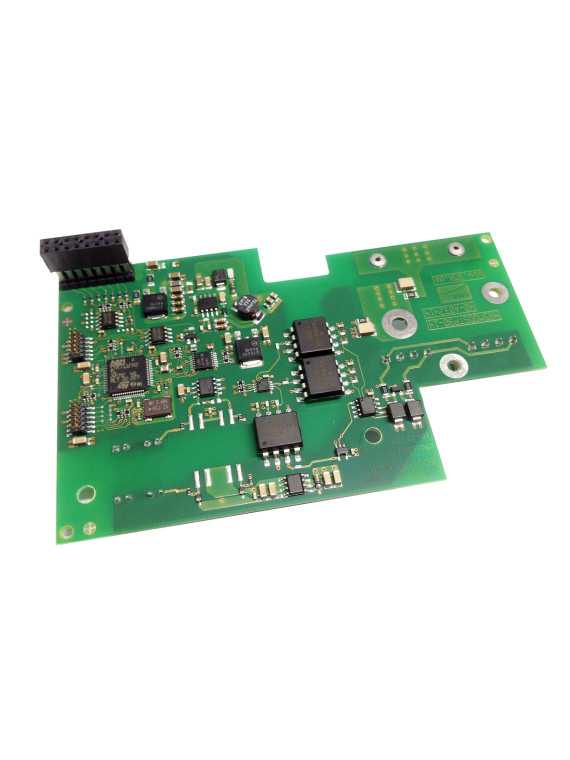

SMA RS485 "QM 485 10-NR" card

The SMA RS485 card QM-485 10-NR is an RS485 communication module developed for SMA inverters, enabling centralized monitoring and management of photovoltaic systems. This type of card is particularly useful for installations where several inverters need to be interconnected on a wired network, facilitating centralized management via the RS485 protocol.

Key features of the SMA RS485 QM-485 10-NR card :

1. RS485 communication interface: The QM-485 10-NR module enables SMA inverters to be connected via RS485, a robust and stable communication protocol, ideal for large environments or industrial installations.
2. Multi-inverter compatibility: Designed for multi-inverter configurations, this card enables the creation of a network where several SMA inverters communicate with each other and with a central monitoring device.
3. Long communication range: RS485 enables communication over distances of up to 1,200 meters, ideal for large-scale photovoltaic installations.
4. Daisy chain topology: Thanks to the daisy chain connection, several inverters can be connected to the same network, simplifying wiring and optimizing installation costs.
5. Integration with SMA monitoring devices: This card is compatible with SMA monitoring solutions such as Sunny WebBox and other energy management platforms, enabling remote management of system performance.

Advantages of the SMA RS485 QM-485 10-NR card :

• Stable, secure communication: The RS485 connection is less prone to interference, ensuring stable, secure data transmission even in noisy environments.
• Ease of centralized management: By grouping inverters on the same network, the card enables centralized management and reduced infrastructure costs.
• Simplified diagnostics and maintenance: Real-time monitoring via a wired network makes it easier to identify malfunctions quickly and take proactive action.

Typical use of the RS485 QM-485 10-NR card:

This card is particularly suitable for large solar, commercial or industrial installations, where communication stability is paramount and wireless monitoring may be unreliable. It is ideal for sites requiring reliable, continuous remote monitoring, and is also suitable for installations requiring a long-distance connection between inverters and the central management device.

In summary, the SMA RS485 QM-485 10-NR card is a robust and reliable solution for multi-inverter RS485 communication, offering stable transmission and centralized monitoring options, making it a preferred choice for large-scale photovoltaic installations.
