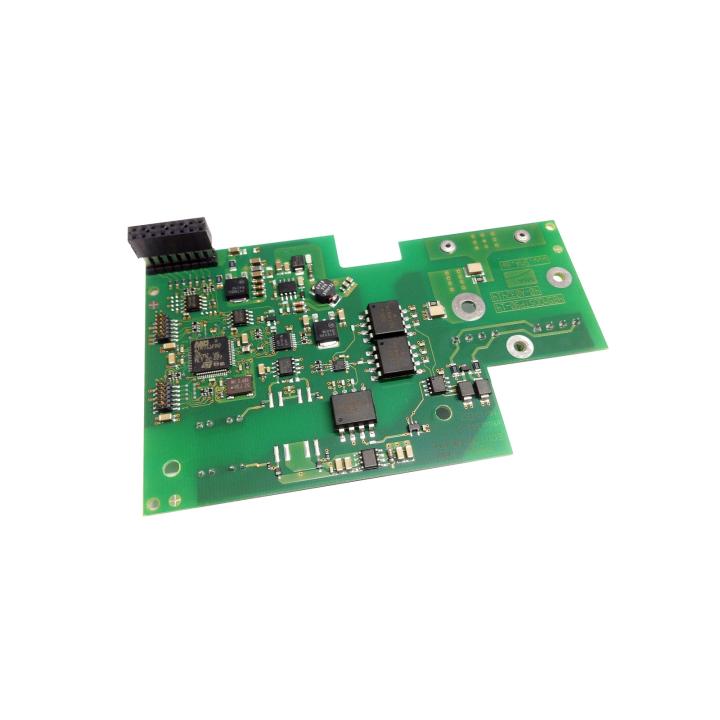

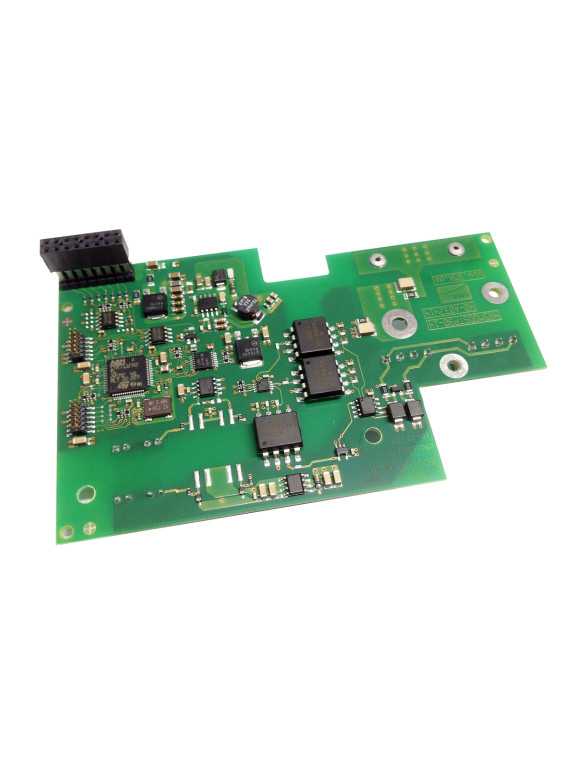

SMA RS485 "RS485 BRD-10" card

The SMA RS485 BRD-10 card is a communication module developed by SMA to enable RS485 connection to certain SMA inverters. This module is often used in photovoltaic installations where several inverters need to be monitored and controlled from a central point via a wired RS485 connection, offering a reliable and cost-effective alternative to Bluetooth or Ethernet.

Key features of the SMA RS485 BRD-10 card:

1. RS485 communication: The card connects an SMA inverter to an RS485 communication network, which is particularly useful in environments where wireless connections are not ideal.
2. Multi-inverter compatibility: With the RS485 card, several SMA inverters can be daisy-chained on a single network, simplifying centralized monitoring of a photovoltaic installation.
3. Reliable data transfer: RS485 is a robust and stable communication protocol, less prone to interference and capable of transmitting data over long distances (up to around 1,200 meters), making it ideal for large installations.
4. Remote monitoring and control: The BRD-10 RS485 card can be used with SMA management devices, such as the Sunny WebBox, to enable remote monitoring and control of inverter performance.

Features and benefits of the BRD-10 RS485 card :

• Stability and robustness: Unlike wireless connections, the RS485 connection is more resistant to interference, ensuring reliable data transmission even in industrial environments or large installations.
• Daisy-chain installation: Enables "daisy-chain" wiring of multiple inverters, simplifying cabling and reducing connection costs.
• Convenient for large installations: For installations with several inverters spread over a large area, RS485 is an efficient solution for ensuring smooth communication between all inverters.

Typical use of the BRD-10 RS485 card:

The BRD-10 RS485 card is particularly suitable for medium to large-scale photovoltaic installations, where several inverters need to be monitored together. It is often used in commercial or industrial configurations where distance and communication stability are important factors.

All in all, the SMA RS485 BRD-10 card is a practical addition to SMA systems, enabling centralized monitoring and reliable communication over long distances, ideal for complex, multi-inverter environments.
