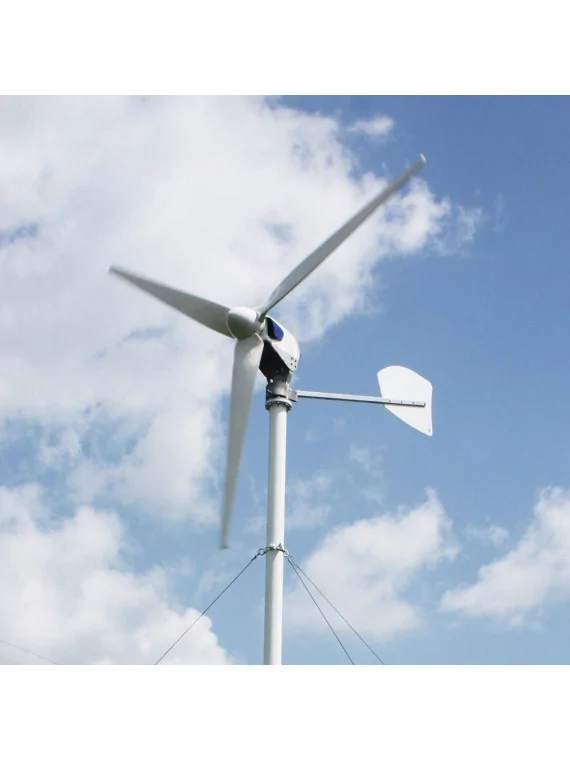

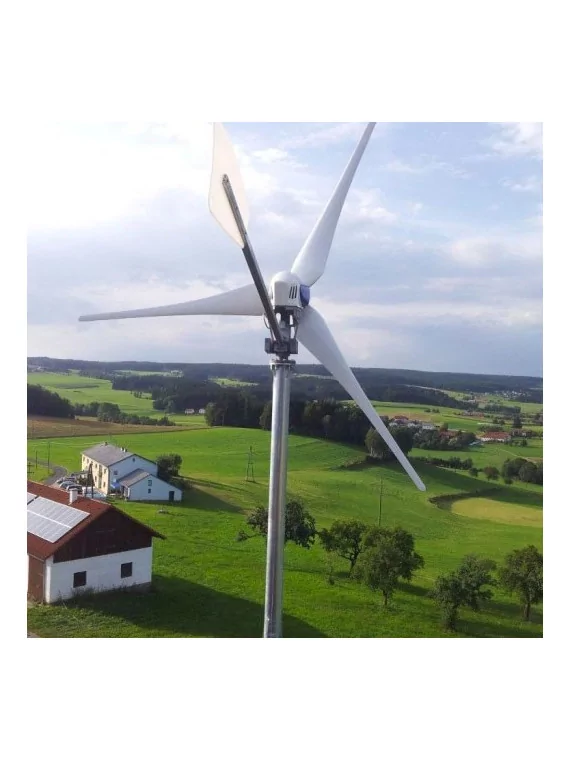

Wind turbine ANTARIS 3.5 kW connected to the grid

The Antaris wind turbine is specially adapted to sites inland. It is specially designed for network connection, charging batteries (24VDC / 48 VDC etc.) and powering heating systems. Because of its robust design, the Antaris wind turbine is also suitable for storm-prone locations.

The rotor blades are laminated by hand and benefit from a computer-designed aerodynamic profile, they are also balanced statically and dynamically. Each blade has an identification number and comes with its appropriate documentation. The highest importance has been to ensure the speed and simplicity of installation of this wind turbine.

Thanks to its robust and careful design, the Antaris wind turbine has excellent efficiency and is offered at a highly attractive price.  It starts very quickly (starting already at a wind speed of 2.2 m/s) and operates silently (43 dB). This wind turbine can therefore be installed in residential areas.

The connection to the network requires the use of two inverters programmed specifically to operate with Antaris wind turbines as well as according to local wind conditions. In less windy areas, it is possible to connect the wind turbine to the grid via a single inverter. The inverters come with a declaration of compliance. The ENS (Electronic grid guard system) is integrated into the inverter.

Technical features



Generator



• Permanent magnet rotor without brooms and gears. Doesn't require maintenance!
• NdFeBo permanent magnets very powerful for great efficiency, resists up to 150oC
• Phase
• Separate lifter
• Rotation in both directions
• Tension 0-1000 VDC
• Starts production at about 100 t/mn
• Power: 6000 watts at 380 t/mn and 400V
• Linear power curve
• Weight: 31kg
• Carter aluminum, cooling of the surface and the fastening base
• Protection IP56

---

Rotor



• Connection hubs with aluminum strap and overpressure plate
• Stainless steel fitting screws and counter-nuts
• 3 Carbon rotor blades
• Computer-designed aerodynamic profile
• Noise reduction on the end of the blades
• 4m in diameter
• Blade weight: 3.3 kg
• Dynamically balanced
• Anti-clockwise rotational sense
• Rotation speed up to 300 t/min
• GRP spinner cap
• The colour of the rotor of your choice

---

Chassis



• Weather-resistant HDPE Girouette
• Support element: stainless steel square tube
• All threaded fittings are made of stainless steel and equipped with nuts
• Steel support for the generator, configured for plug-in in the azimut bearing frame, fully galvanized
• Protected by a patented rotor-blade positioning system
• Mast adapter with bridle connector (114.3 mm tube)



Storm protection



• Switching the pale rotor to the "helicopter" position
• Electronic control of turbines

---

Control cabinet



• Control system with voltage monitor
• Electronic control of turbines with regulator
• Connector protections against polarity inversions
• Controlling the phases of the alternator during the turbine mode
• Emergency shutdown switch
• Key switch re-initializer (removable)
• 2x 3 kW braking resistance







---







Dreiphasiger Stromrichter für kleine Windkraftanlagen





MODERN - FLEXIBEL - LEISTUNGSSTARK



Max. 20 kW Windkraftanlagen-Ladung (SW-10)

Dreiphasige Netzkopplung mit 10 kW (SW-10)

Flexibles und intelligentes Management von sauberem Strom, Heizung, Batterie und Entladung durch 4 separate CC-Energieabgänge

Energiezähler für Strom und Heizung

Blindleistungsregelung

Batteriepuffer-Schnittstelle - optional



Kompakt



Direkter Anschluss des Partikelgenerators ohne Zusatzgeräte

Großer Eingangsspannungsbereich für Partikelgeneratoren

Kompaktes Gehäusedesign mit separatem Blendenanschlussbereich

Passive Konvektionskühlung in einem weiten Leistungsbereich

Integrierter Netz-/Anlagenschutz (NA-Schutz nach VDE AR-N 4105)



RENTABEL - SICHER



Eingebaute Regelungsfunktionen für eine Windkraftanlage Intelligente und fein abgestimmte Kennlinie für optimale Windnutzung

Kennlinie frei wählbar in Abhängigkeit von Spannung oder Drehzahl

Viele Überwachungsfunktionen, wie Windgeschwindigkeit oder Drehzahl

Schalter zum Abschalten der KWEA mit weiteren Sicherheitsfunktionen



Kommunikativ



Eingebautes Grafikdisplay

Eingebauter Webserver

Smart!wind Explorer PC's komfortable Bedien- und Einstelloberfläche



ANWENDUNGSBEREICHE



Kleine Windkraftanlagen

Kleinwasserkraftwerke

Mini-Blockheizkraftwerke
