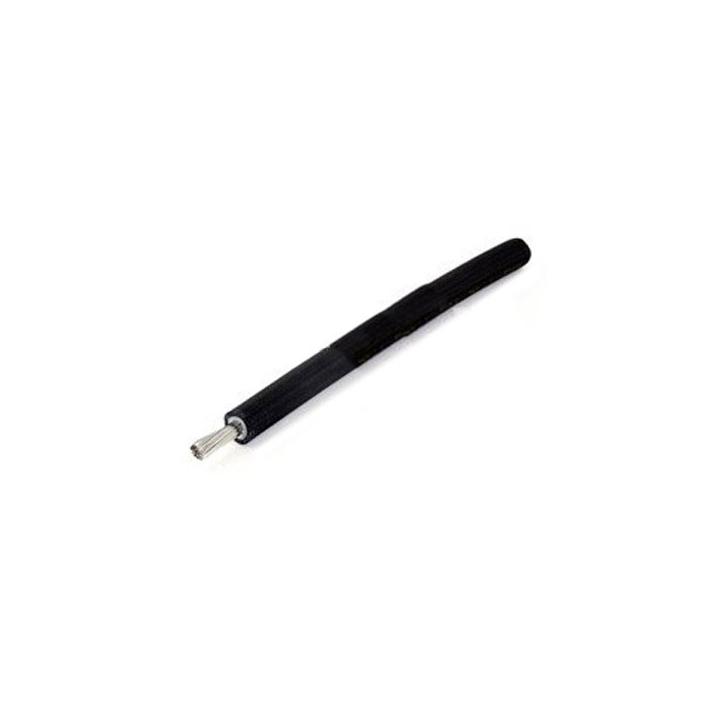

• Solar cable 10mm2- (sold by the meter)

Solar cable 10mm2 (sold by the meter)

4,20 €
Inklusive Steuer
01910
0712971128194

10 mm² solar cable for photovoltaic system.
Sold by the meter.

 Remains : 80m

Kommentare (0)

Aktuell keine Kunden-Kommentare

" Solar cable 10 mm² Black "



10 mm² solar cable for photovoltaic system.
Sold by the meter.
solar cable 10mm2This quality cable is intended for indoor and outdoor photovoltaic applications for flexible or fixed installations, according to the standards 2 Pfg 1169 / 08.2007 and UTE C32-502.



Main Features



 1. Conductor :
   - Tin plated copper class 5 according to IEC 60228.
 2. Insulation :
   - Polyolefin
 3. Sheath :
   - Polyolefin
   - Black color



Technical characteristics



1. Construction features :
   - Flexibility of the core : Flexible class 5
   - Halogen free : IEC 60754-1
2. Electrical characteristics :
   - Rated operational voltage Uo / U (Um): 0,6 / 1 kV
3. Usage characteristics :
   - Low smoke generation : IEC 61034-2
   - Ozone resistance: yes
   - Corrosivity of fumes : IEC 60754-2
   - Maximum core temperature : 120°C
   - Ambient operating temperature, range: -40 ° to 90 ° C
   - Weather resistance: excellent
   - Flame retardant: IEC 60332-1
