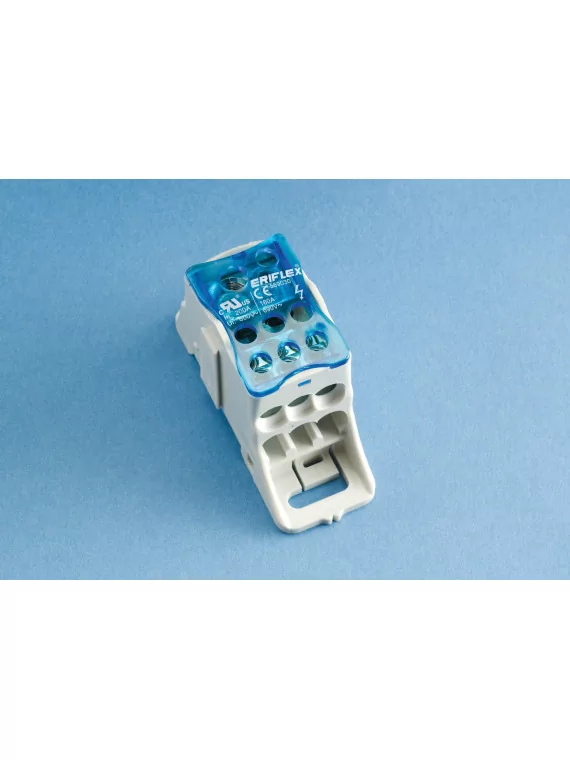

Single Pole Distribution Block Eriflex 125A

33,65 €
Inklusive Steuer
045788-125A
0712971135321

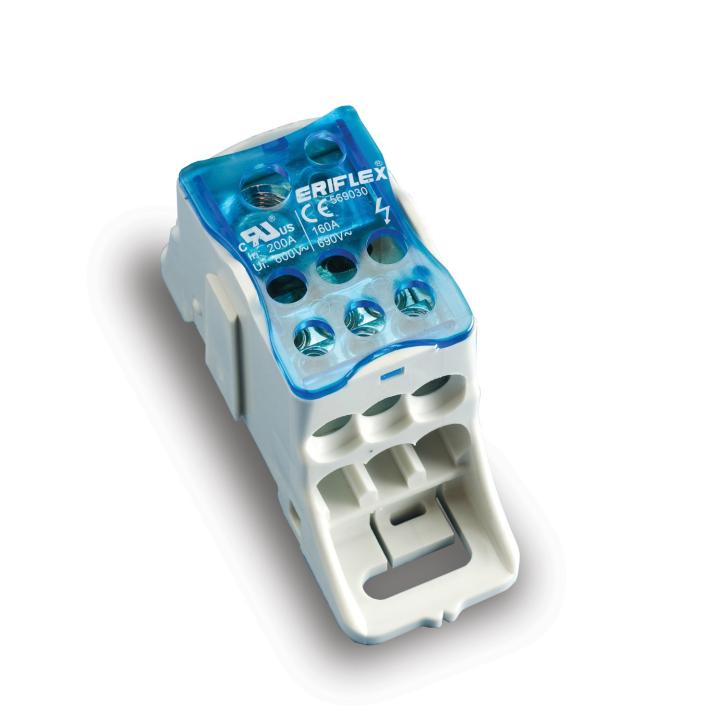

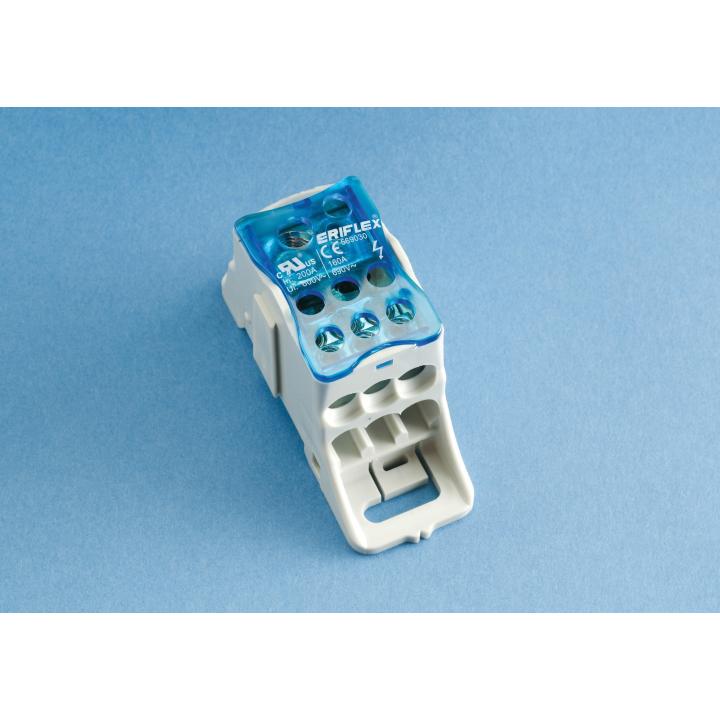

Unipolar distributor Eriflex 125A

Kommentare (0)

Aktuell keine Kunden-Kommentare

" Unipolar distributor 125A Eriflex "



Features :

  • Increase the number of outputs with one input using a jumper wire

  • Tinned copper block allows for copper or aluminum conductor connections

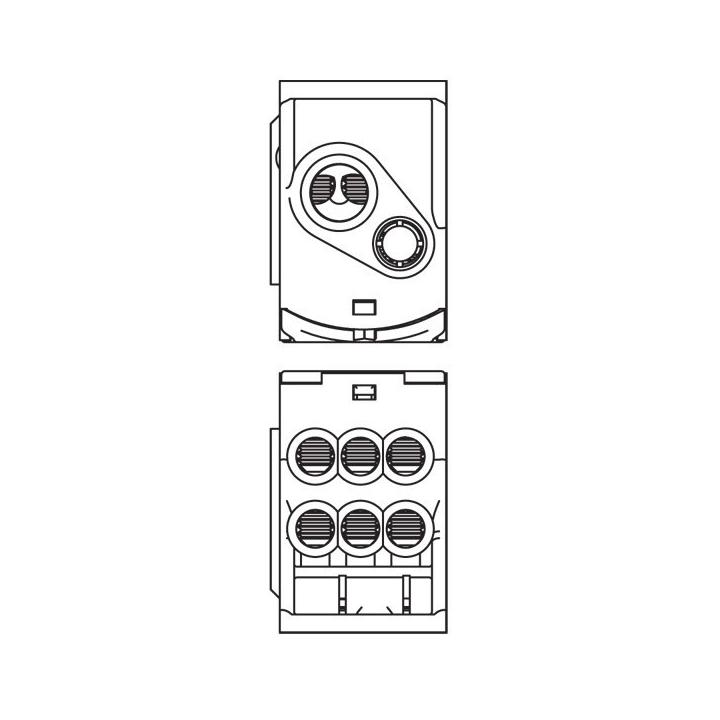

  • Screw retaining cover is hinged and removable

  • Design allows for visual inspection of conductor and confirmation of connection

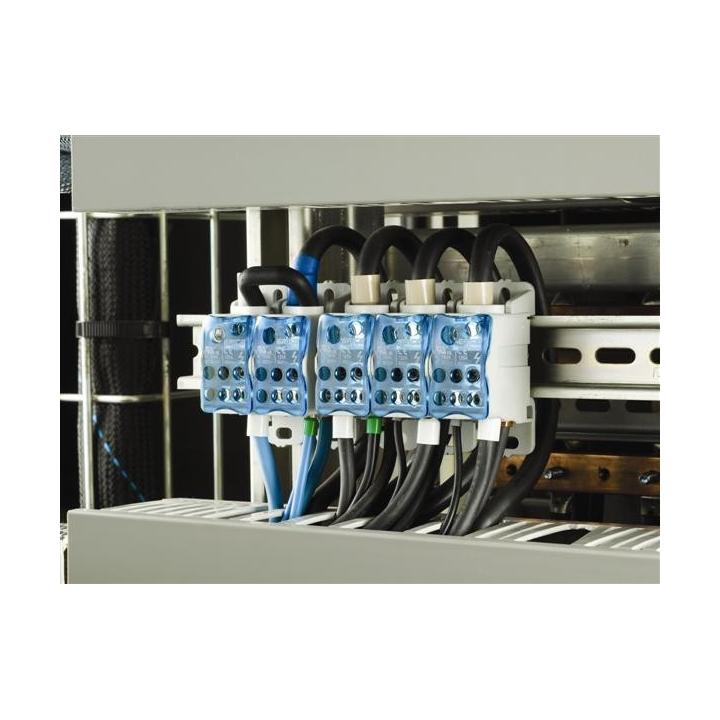

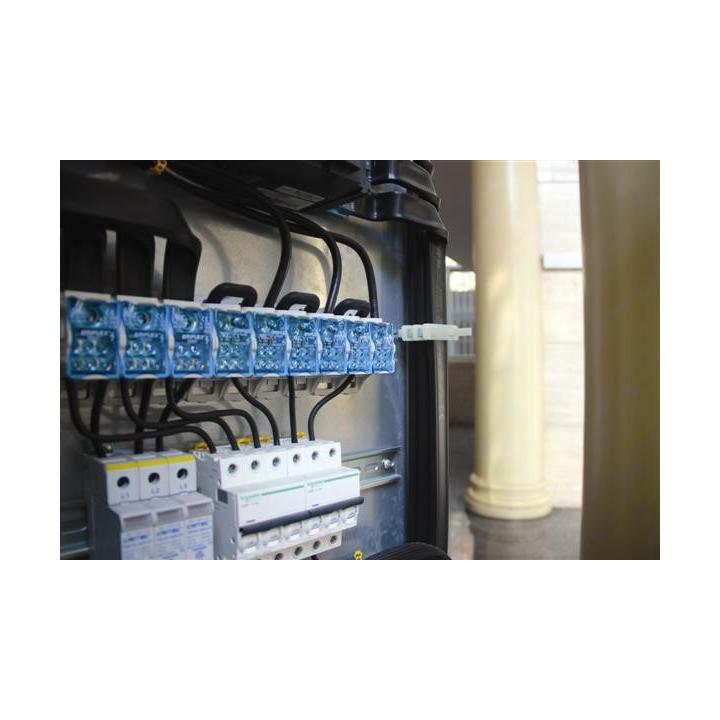

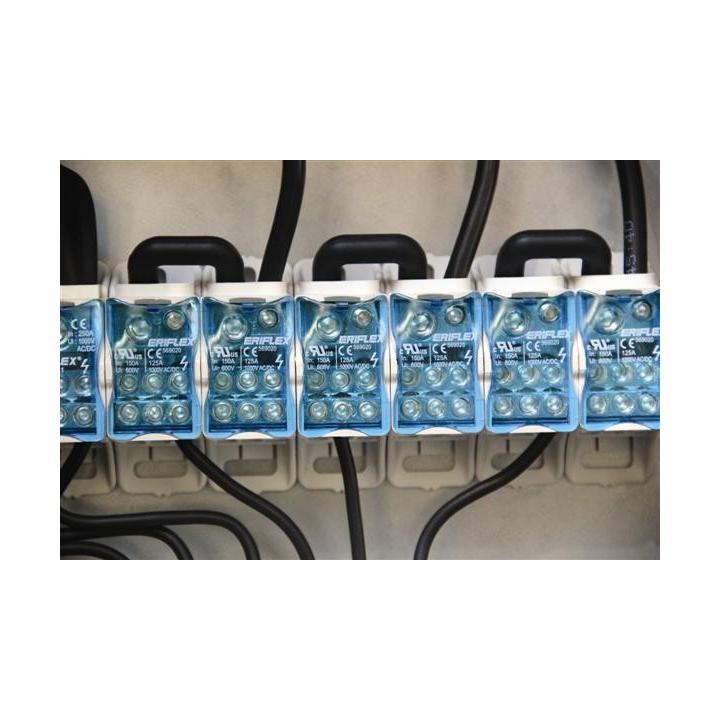

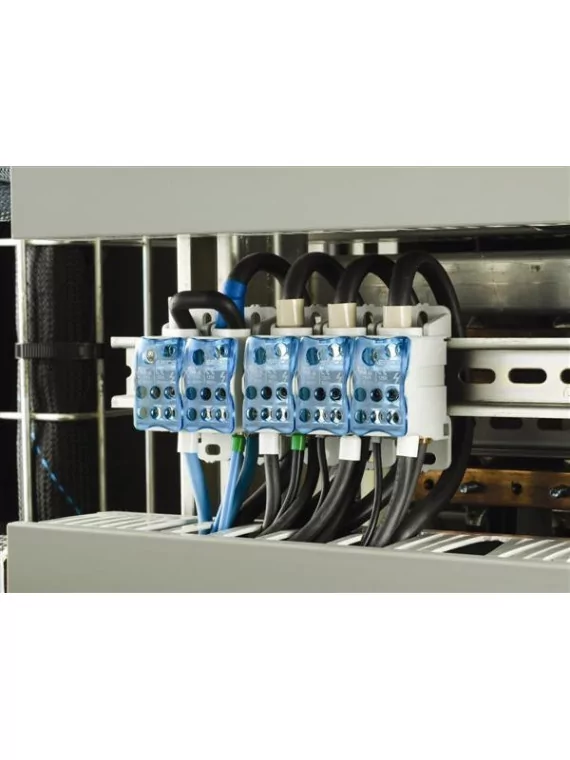

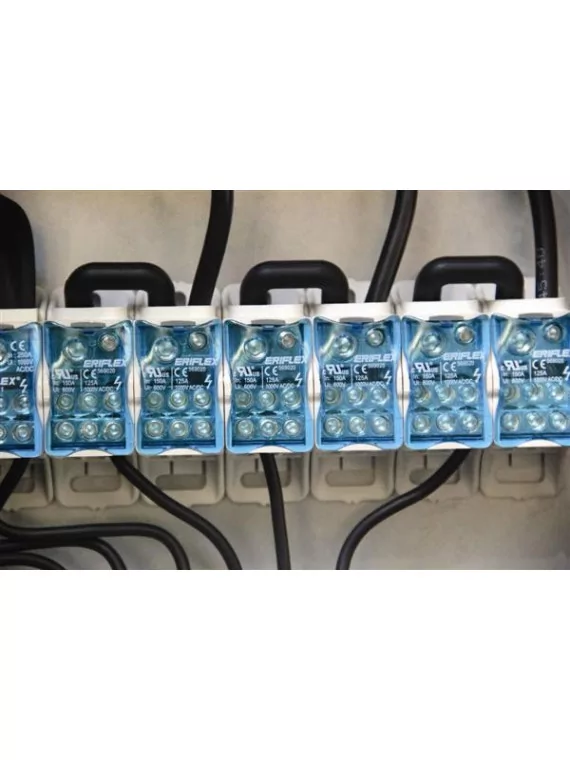

  • Gangable for building multi-pole power blocks

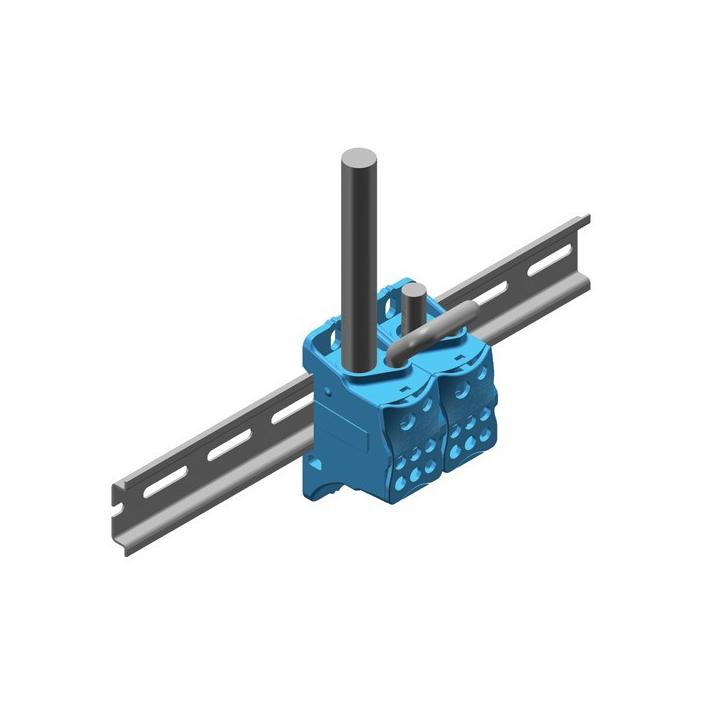

  • Easily clips onto DIN rail or mounts to panel with screws

  • 95% fill ratio

  • Halogen free

  • RoHS compliant



Specifications :

Material: Copper; Thermoplastic

Finish: Tinned

Part Number    UDj-125A

Article Number    569020





Max Current Rating, IEC 125A
Max Current Rating, UL/CSA 150A
Short Term Withstand Current (Icw) 1s 4.2kA
Peak Short Circuit Current (Ipk)    30kA
Short Circuit Current Rating (SCCR) 100kA
Max Working Voltage, IEC (Ui) 1000 VAC/DC
Max Working Voltage, UL (Vin) 600V

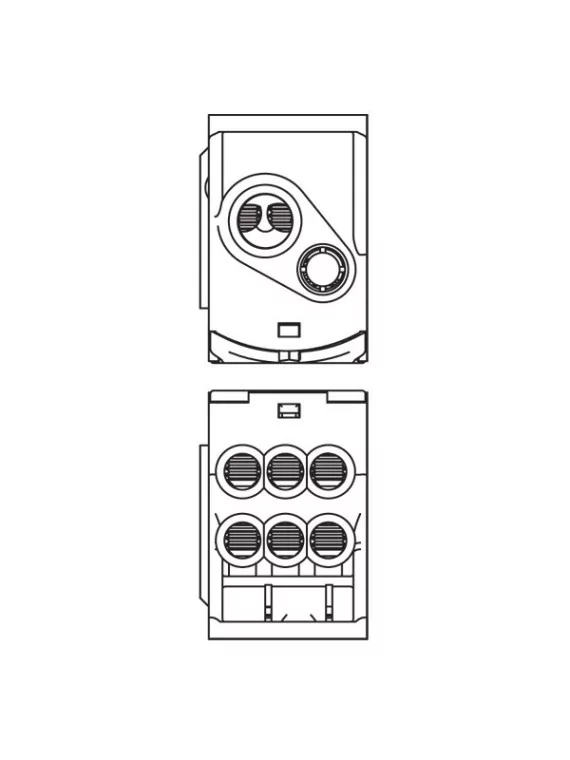

Line Side Number of Connections 1
Line Side Compact Stranded Wire Size 10 - 35 mm²
Line Side Wire Size #8 – 1/10
Load Side Number of Connections 7
Load Side Compact Stranded Wire Size (1) 6 - 16 mm²
(6) 2,5 - 6 mm²
Load Side Stranded Wire Size - Ferrule (1) 6 - 16 mm²
(4) 2,5 - 16 mm²
Load Side Wire Size (1) #14 - #2 Stranted ; #14 - #10 Solid
(6) #10 - #4
Enclosure Rating IP 20

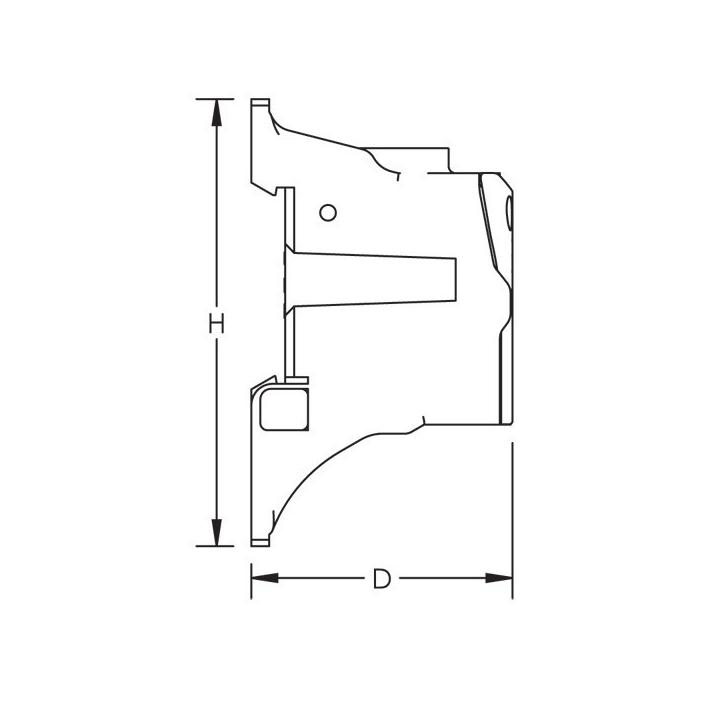

Depth (D) 46 mm
Height (H) 77 mm

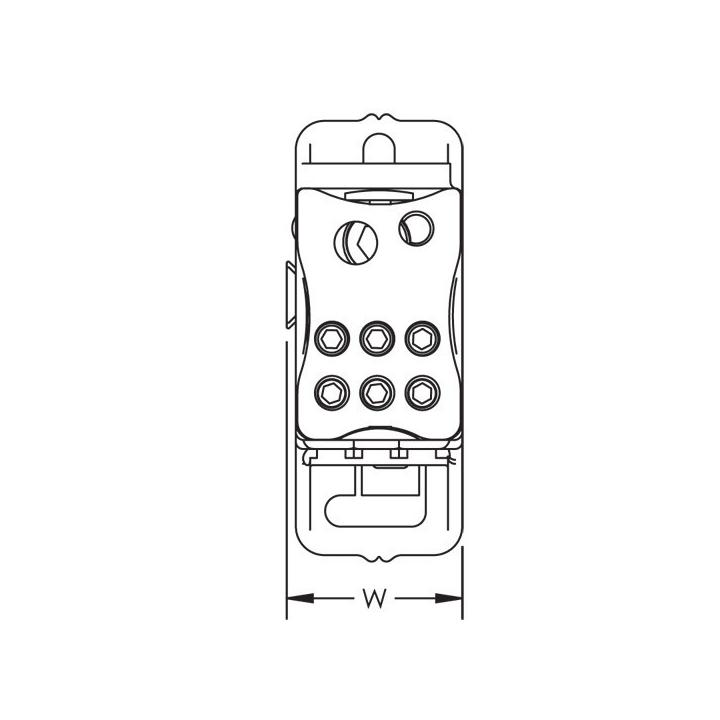

Width (W) 29 mm
Unit Weight 0,15 kg
Certification Details UL® 1059
Flammability Rating UL® 94V-0
Complies With IEC® 60947-7-1
