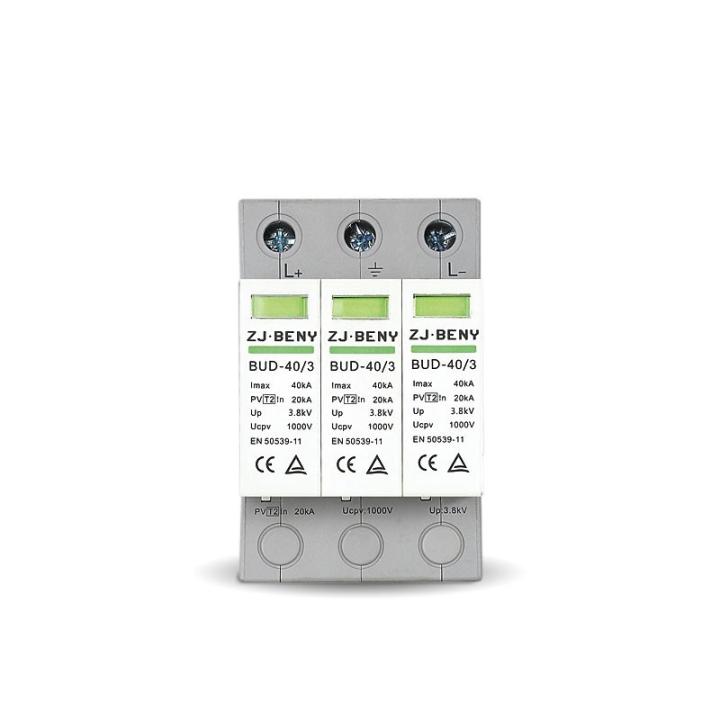

PV DC Surge Protection Device - 3P

60,15 €
Inklusive Steuer
0767
0712971128897

3 pole DC Surge protection device according the PV standard EN50539-11

  • Rated voltage : 1000 V DC
  • Maximum discharge current  : 40KA
  • High Energy Varistor
  • 3 pole
  • high effective for lightning protection

Kommentare (0)

Aktuell keine Kunden-Kommentare

" PV DC Surge Protection Device - 3P"





Technical details lightning arrester



DC Surge protection device to protect your PV installation.

  • Rated voltage : 1000 V DC
  • Maximum discharge current  : 40KA
  • High Energy Varistor
  • high effective for lightning protection















DC SPD 3 pole - Technical characteristics



Characteristics
Pole 3P
Surge Protection Device According to EN 50539-11
Category IEC/EN IEC II/EN2
Open Voltage 1000V DC
Max Continuous Operational Voltage 1000V DC
Nominal Discharge Current 20KA
Maximum Discharge Current 40KA
Voltage Protection Level Up ≤3.8KV
Response Time ≤25ns
LED Operating State/fault Indication Green / Red
Protection IP20
Weight 0,36 kg
For Mounting on TH35-7.5/DIN35
Operating Temperature Range (TU) -40℃~+80℃
Relative Humidity 30%~90%





0767

Datenblatt

Art des elektrischen Materials
Parafoudre
Pole
3P

Spezifische Referenzen

upc
712971128897
ean13
0712971128897
