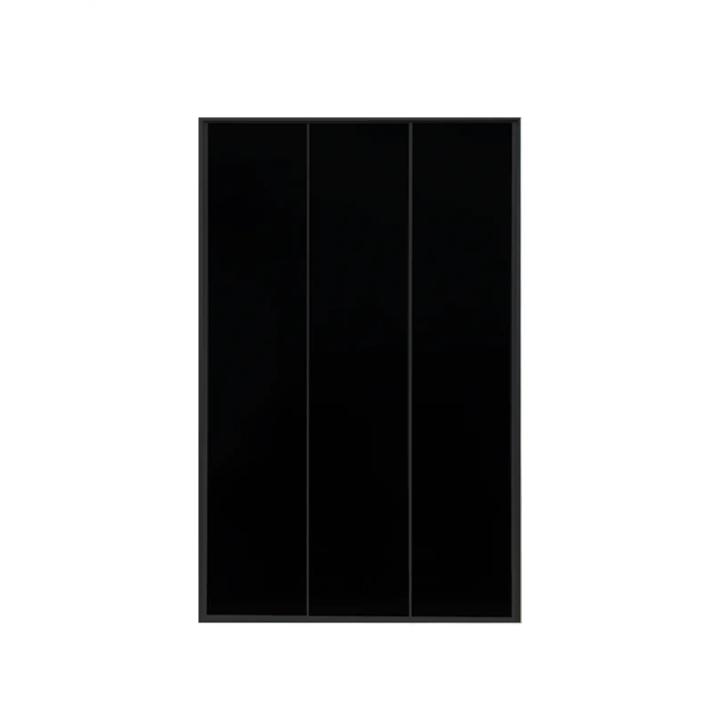

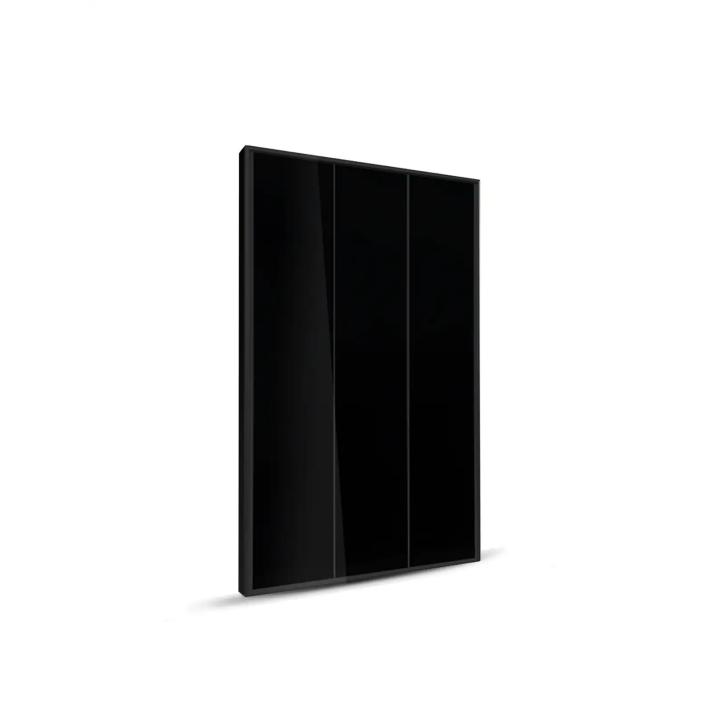

De MX200 Full Black-panelen
Afmetingen: 1100*890*30 mm
Gewicht: 10,2 kg
Max. vermogen: 200 Wp
Actie: Bij aankoop van één paneel krijgt u een tweede paneel gratis, waardoor u uw investering kunt verdubbelen zonder extra kosten. Deze speciale aanbieding is bedoeld om de waarde van uw aankoop te maximaliseren en u te helpen uw projecten met meer efficiëntie te realiseren.
5-year manufacturer's warranty
• The original cell sorting system ensures the best match of electrical cells. EL test before packaging.
• 5-year manufacturer's warranty.
• Complete test of the power of the module.
• Superior module efficiency and compact size. Reduced hot spot effect, reduced module failure rate.
• Module failure rate and increased stability due to shingle technology.
• The special connection method reduces internal resistance and ensures better performance than the traditional connection with the bar set.
• IP67 junction box, reliable cables and standard MC4 connectors improve stability. and standard MC4 connectors improve stability.
| MX-200 | |
| Mechanical data | |
| Standard test conditions AM=1.5, E=1000W/m2, TC=25°C | |
| Rated power | 200 |
| Cell type | Monocrystalline |
| Cell efficiency | 22% |
| Maximum power current (Impp) | 11.02A |
| Maximum power voltage (Vmpp) | 18.15V |
| Open circuit Voltage (Voc) | 21.57V |
| Current (Isc) | 11.69A |
| Maximum system voltage | 500V |
| Output tolerance | 3% (+-) |
| Cable Type | 700mm / 2.5mm2 |
| Connector Type | MC4 / Compatible MC4 |
| Structure of the module |
Aluminum frame / Glass / EVA /
Background |
| Nominal value of the junction box | IP67 |
| Diode | V |
| Operating temperature | -40~+80°C |
| Packaging | |
| Module dimensions | 1100*890*30mm |
| Module weight | 10.2kGv |
