Roof mounting kit in steel tray

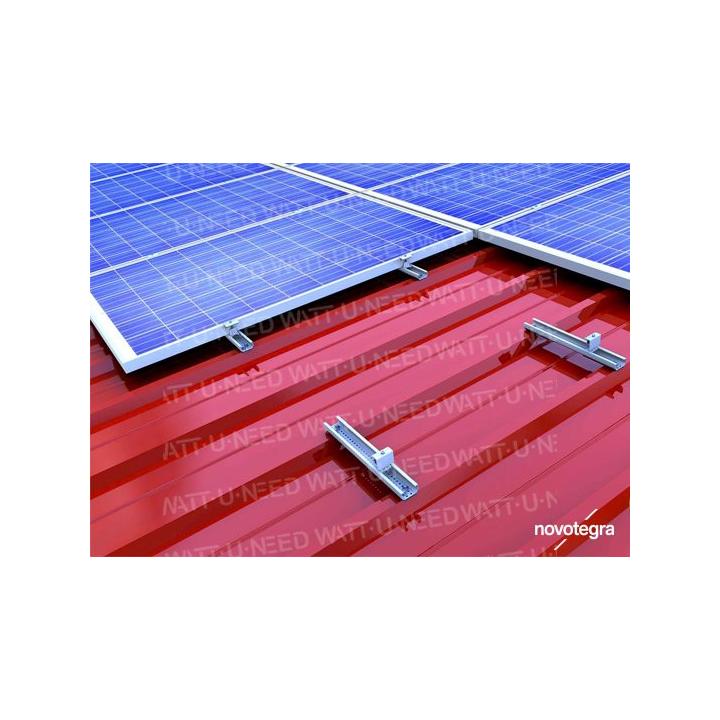

This kit contains the necessary material for fixing your photovoltaic panels on a trapezoid corrugated iron roof.
Simply select from the options the number of panels arranged in portrait or the number of panels arranged landscape on your roof >> the contents of the mounting kit adapt automatically.

Contents of the mounting kit

Fastener for corrugated sheet trapezoidal light + middle clam

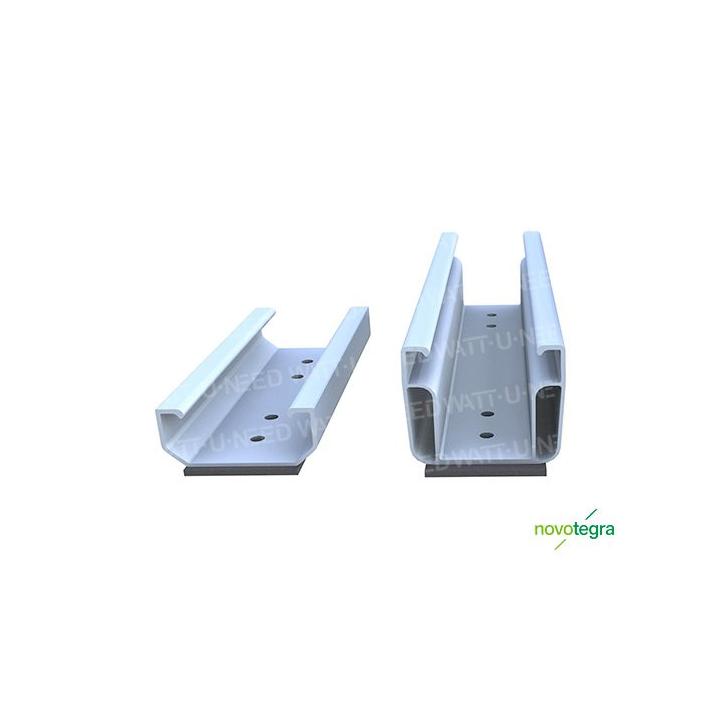

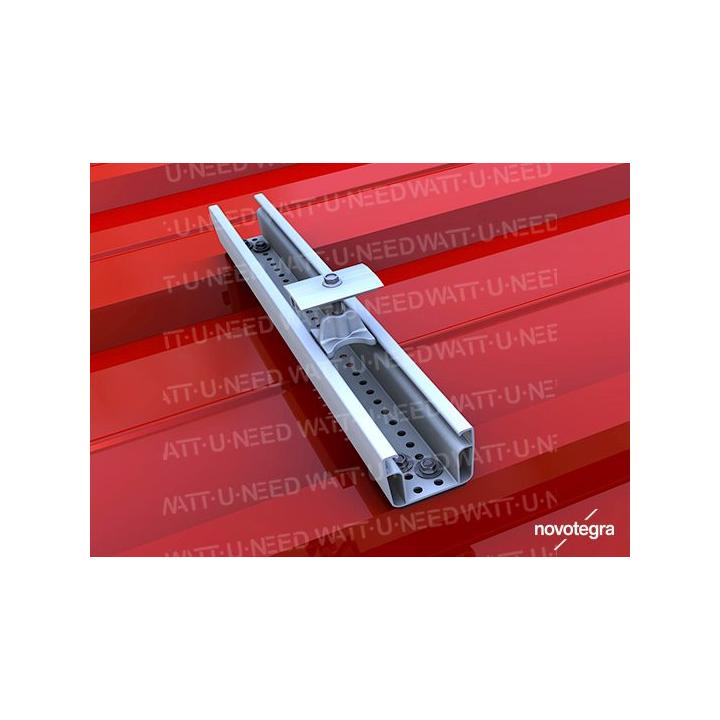

Fixing rail for steel tray sheet roof. Provides with middle clam. Fasteners for steel with a thickness greater than 0.63 mm.
For all framed panels with a frame thickness of 30 mm to 50 mm

>> Learn more about the steel tray roof mounting rail

Fastening for corrugated sheet trapezoid light + end clam

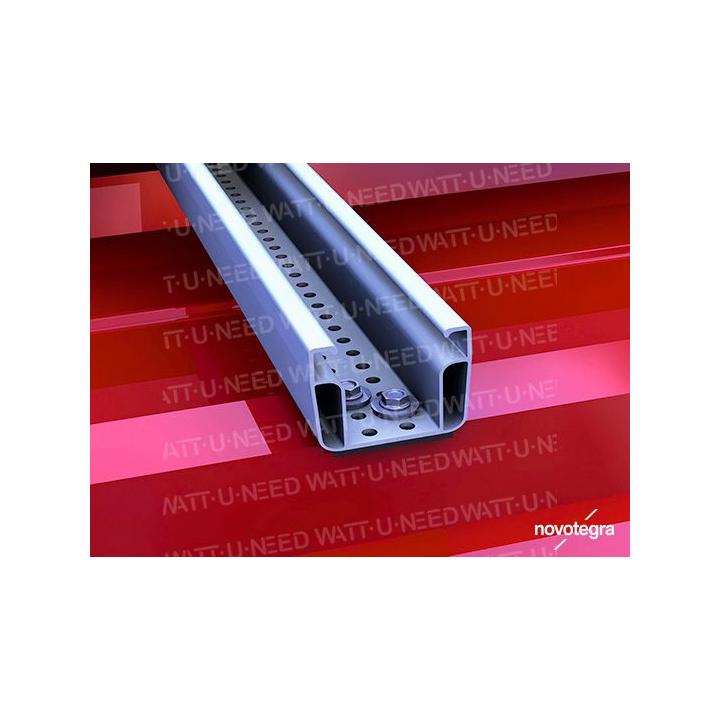

Fixing rail for steel tray sheet roof.
Supplied with end clam for fixing the panel.

>> Learn more about the steel tray roof mounting rail

How do I choose a kit adapted to my panels?

The mounting kit is suitable for all slate roofs. Thanks to its options, it adapts to the layout of your panels.

The fasteners are compatible with panels of classic dimensions (maximum 1m66 / 1m03).

1. Select the quantity of portrait or landscape panels

Choose, by row, the amount of panels arranged in portrait or landscape.

Like what, the provision opposite requires 3x the product Fixing Kit:
> 1st kit for row 1: 3 portrait panels
> 2nd kit for row 2: 2 panels in landscapes
> 3rd kit for row 3: 2 panels in landscapes

2. Select the right advertisement for your panel

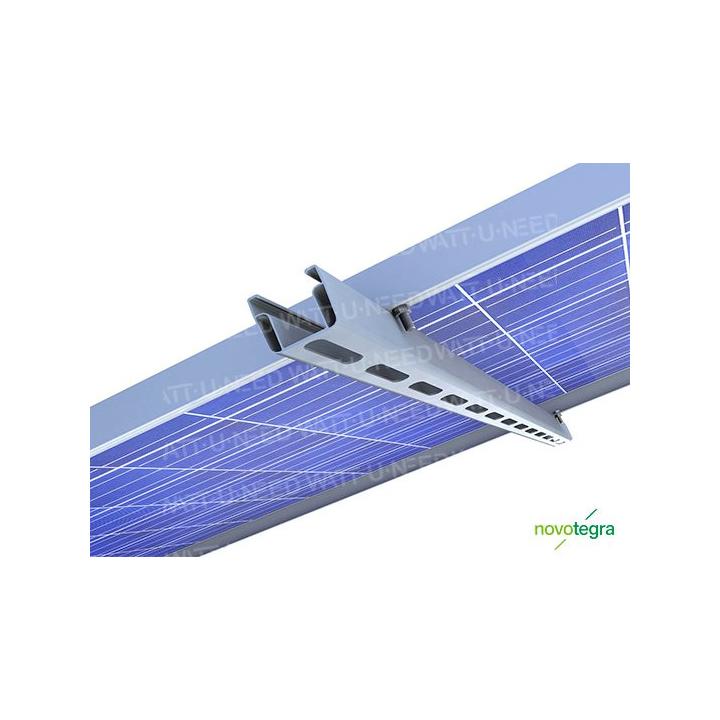

The clam is used to fix the panel on the aluminum rail. Its height must correspond to the thickness of the frame of your panel so that it is securely attached to the rail.

Available clam heights: 35 - 40 - 45 - 47 - 50 mm

Detail of the material provided according to the quantity of panel
