Single-phase 230V 32A changeover switch with socket

€302.98
Tax included
coffret-inverseur-mono-230-32A-avec-prise
0768563823794

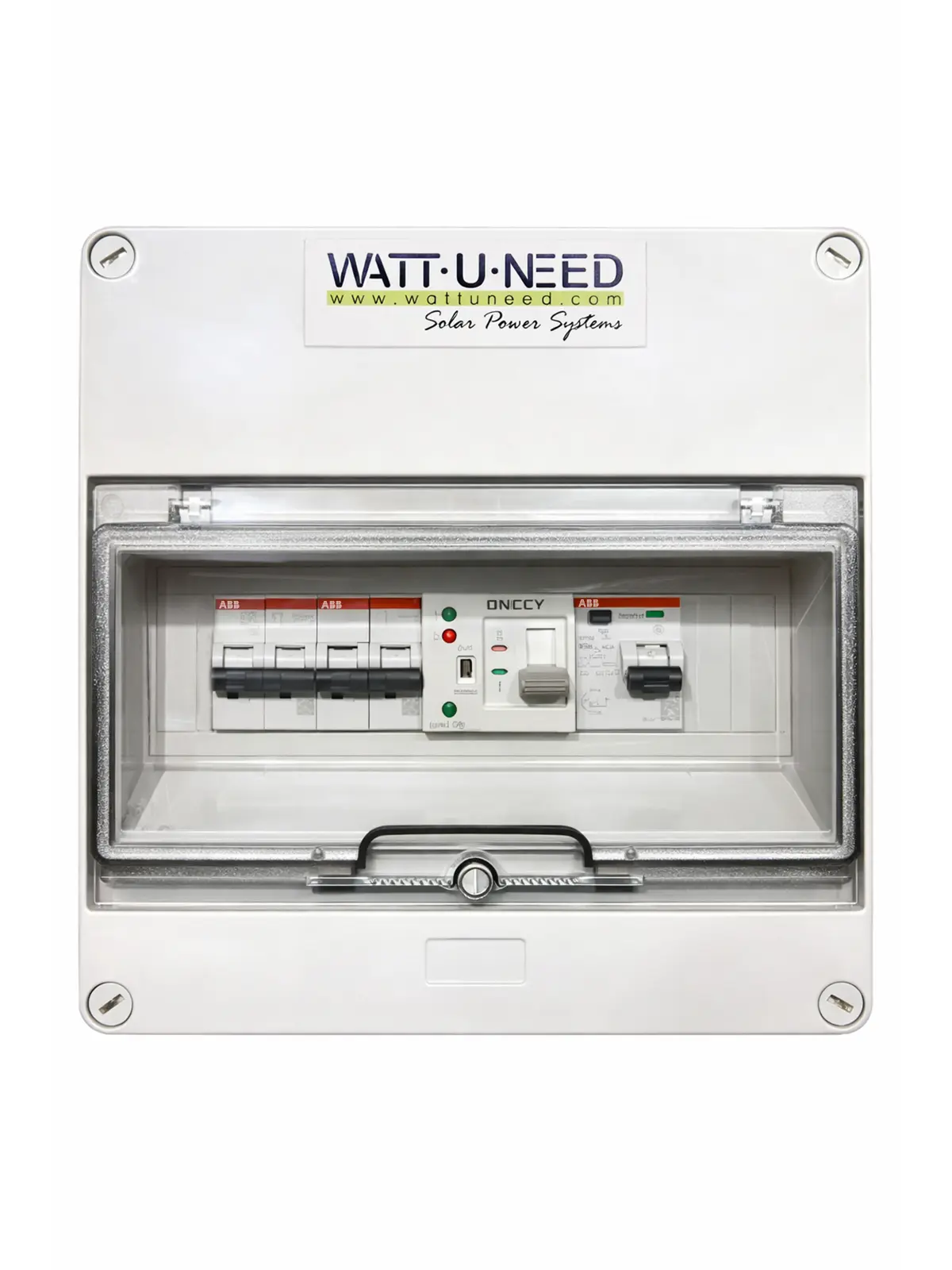

This single-phase 230 V / 32 A changeover switch box with integrated socket includes two 32 A circuit breakers, a type A 63 A / 300 mA differential switch and a 4-pole 63 A modular changeover switch, all mounted in a ready-to-install box.
It makes it easy to switch between two power sources while protecting your electrical circuits.
Perfect for domestic or commercial use, it offers safety and simplicity in a single unit.

Compatible avec :

Hybrid Inverter WKS EVO MAX II Twin Single-Phase 11 kW 48V
Hybrid Inverter WKS EVO MAX II Twin...
€1,319.25
Voir le produit →
WKS EVO MAX II Mono 10 kVA 48V Hybrid Inverter
WKS EVO MAX II Mono 10 kVA 48V Hybrid Inverter
€1,379.40
Voir le produit →
ℹ️ Cette liste est non exhaustive. Contactez-nous pour vérifier une combinaison.

Comments (0)

No customer reviews for the moment.

Single-phase 230V – 32A source transfer box with socket


Optimise the resilience of your electrical installation with this "Plug & Play" source transfer box. Designed to ensure continuity of power supply between your main network and a backup source (generator, solar, UPS), it combines robust safety and automation.





Wiring diagram

To ensure a compliant and secure installation, please refer to the connection diagram below:

schéma de câblage coffret inverseur monophasé 230V - 32A avec prise

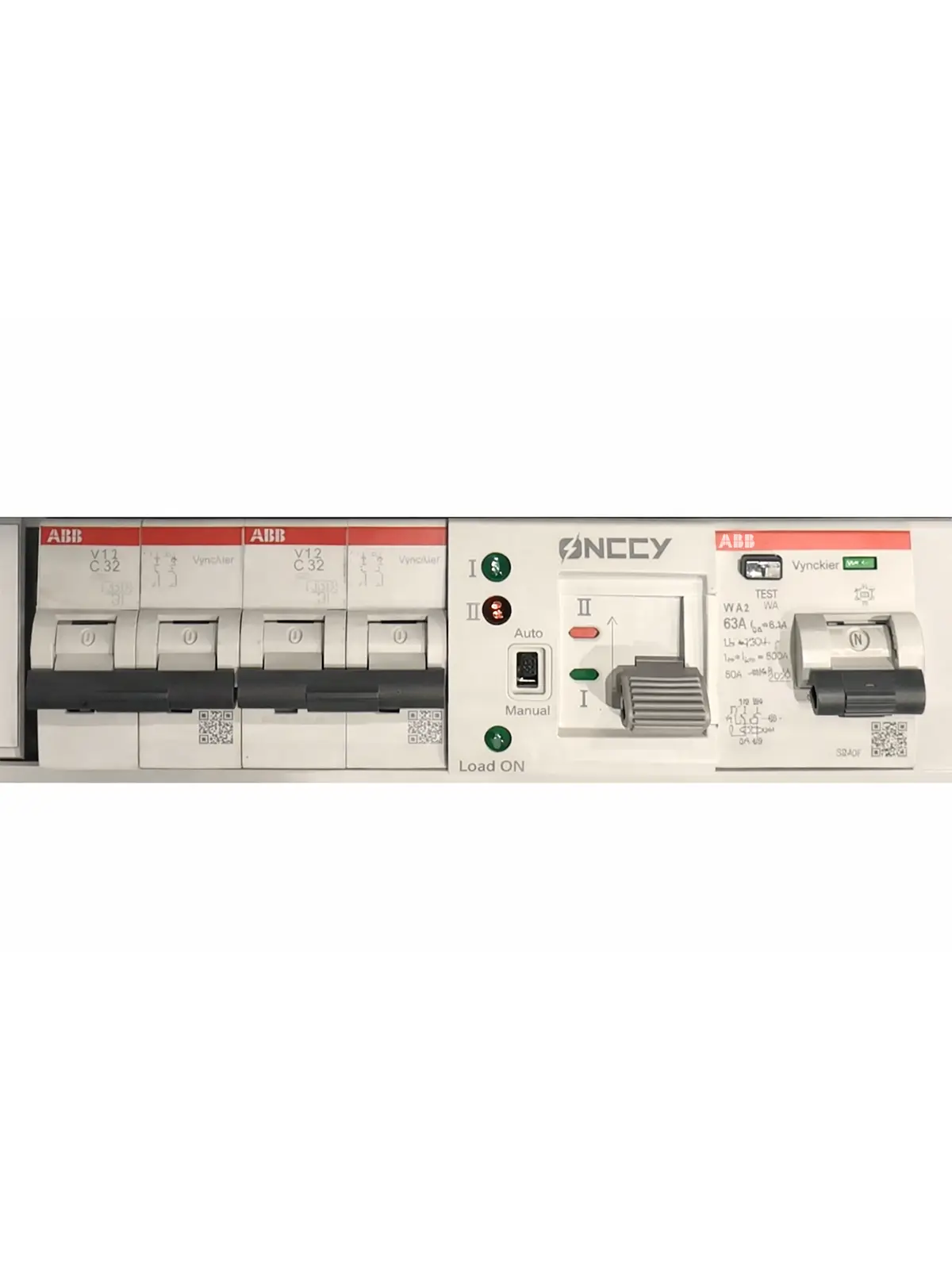

Box components


1. ONCCY EATS2 automatic transfer switch (4P - 63A)

The brain of your installation. It detects voltage loss and automatically switches to your secondary source.

  • Speed: Instantaneous switching to avoid prolonged power cuts.
  • Versatility: Compatible with networks, UPS systems and generators.
  • Safety: Complete circuit isolation to prevent any current from flowing back into the network.


2. Vynckier/ABB circuit breaker protection (32A)

A high-quality circuit breaker that protects your installation against overloads and short circuits.

  • Accuracy: Reliable tripping in the event of a short circuit.
  • Professional quality: Equipment certified for domestic and tertiary use.


3. Type A residual current device (2P - 63A - 300mA)

This residual current device protects people against earth leakage currents.

  • Type A: Specially designed to detect faults, including on circuits containing modern electronics (pulsed direct currents).
  • Peace of mind: Essential protection to ensure your emergency installation complies with regulations.

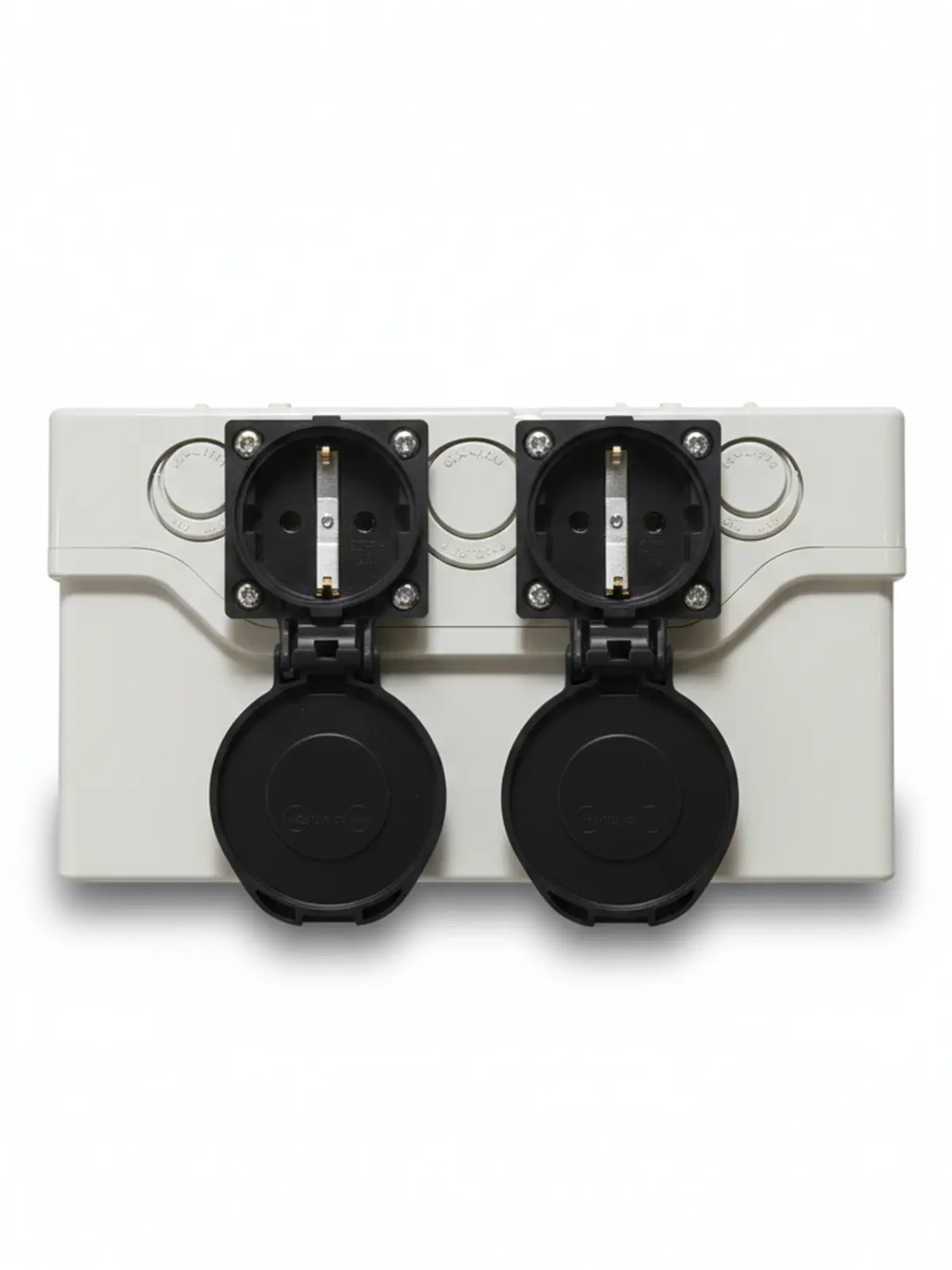

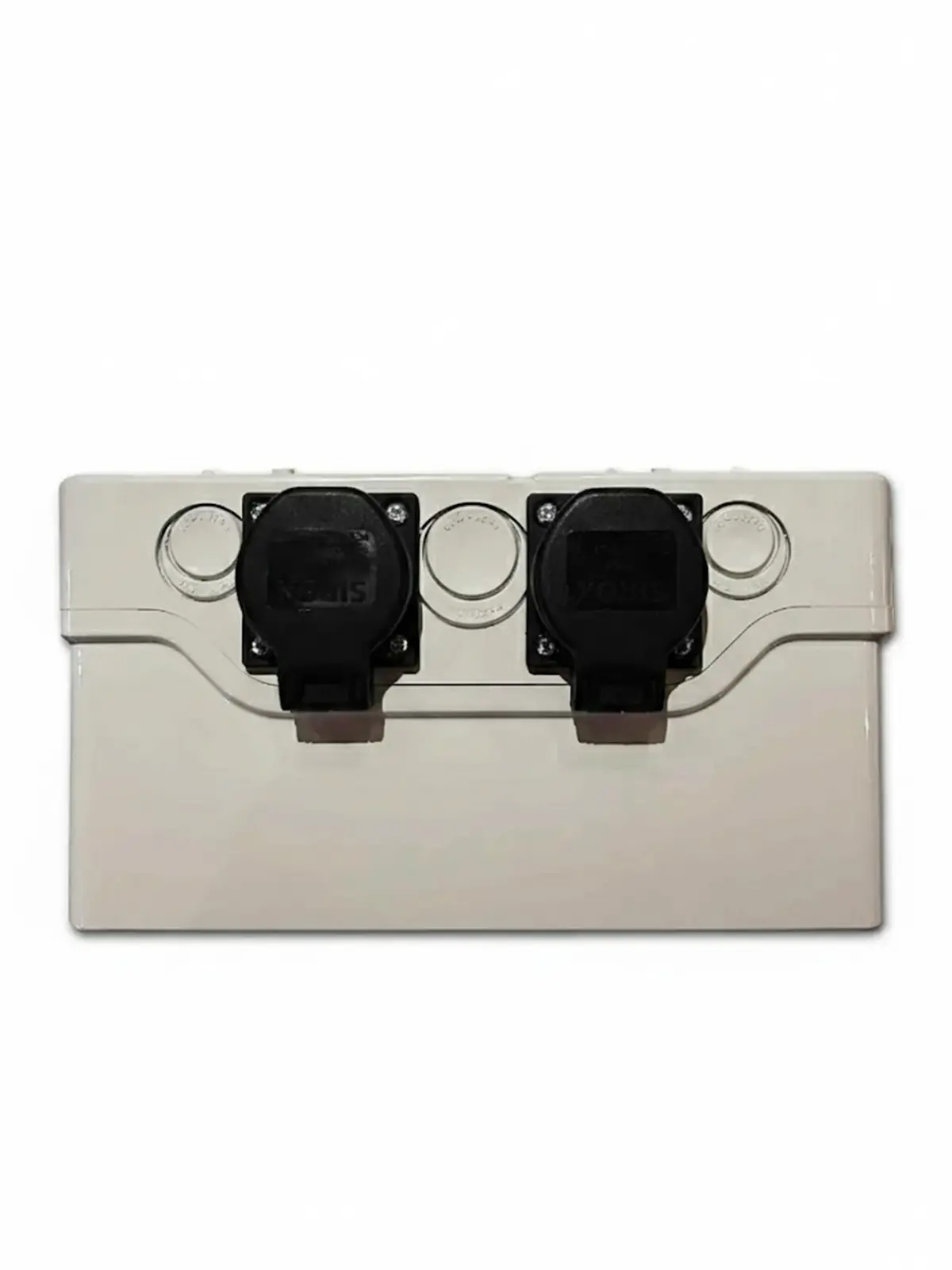

4. Integrated waterproof socket (IP44)

Practical and robust, this surface-mounted socket allows direct connection to the box.

  • Durable design: Splash-proof and dust-resistant housing.
  • Safety: Equipped with an earth pin and child safety feature.
  • Intensive use: Ideal for damp premises or demanding environments (garages, workshops).





AC Protection Box Specifications
Nominal voltage 230V AC
Maximum Current (Circuit Breaker) 32 A
Inverter Capacity 63 A
Protection rating IP44 (splash-proof)
Type of residual current device Type A (300mA)





Key features of this kit:

  • Ready to use: Components selected for their total compatibility.
  • Compliance: Meets current safety standards.
  • Efficiency: Automatic switching without manual intervention.





FAQ - 32A Source Inverter Kit with Socket

1. How does the automatic switchover work? +
The heart of the system is the ONCCY EATS2 automatic transfer switch. It instantly detects a loss of voltage on your main network and automatically switches to your backup source (generator or UPS). This ensures continuity of power supply without manual intervention.
2. Why has a Type A residual current device been integrated? +
Type A residual current protection is essential for modern installations. It is capable of detecting complex leakage currents, including those generated by the electronics of solar inverters or generators (pulsed direct currents), thus ensuring maximum safety for people.
3. What is the purpose of the IP44 waterproof socket integrated into the box? +
This surface-mounted socket offers a convenient "Plug & Play" solution for connecting your priority equipment directly to the box. IP44-certified, it is resistant to water splashes and dust, making it ideal for intensive use in demanding environments such as garages or workshops.
4. Does this cabinet protect against current flowing back into the grid? +
Absolutely. The inverter's design ensures complete isolation between the two power sources. It is physically impossible for the backup power to be fed back into the public grid, which protects technicians working on external lines and ensures that your backup installation complies with regulations.
