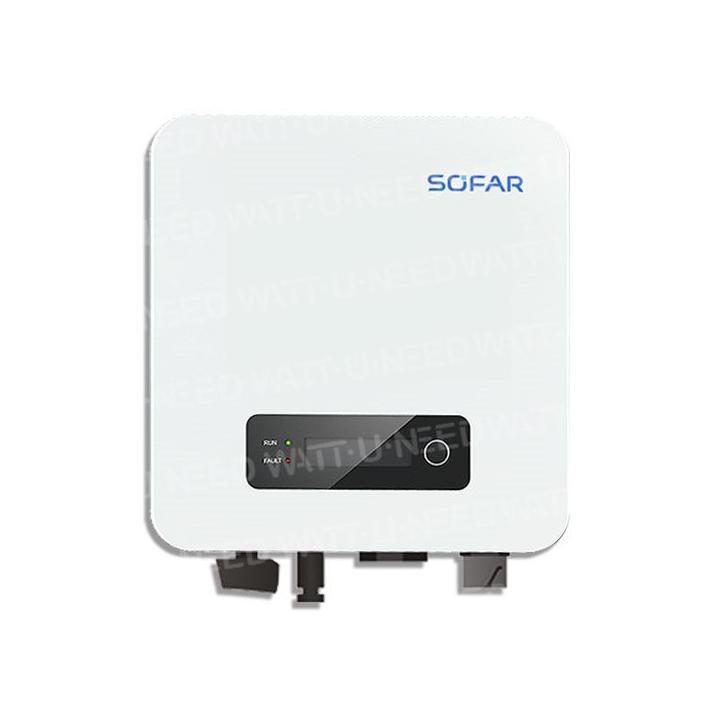

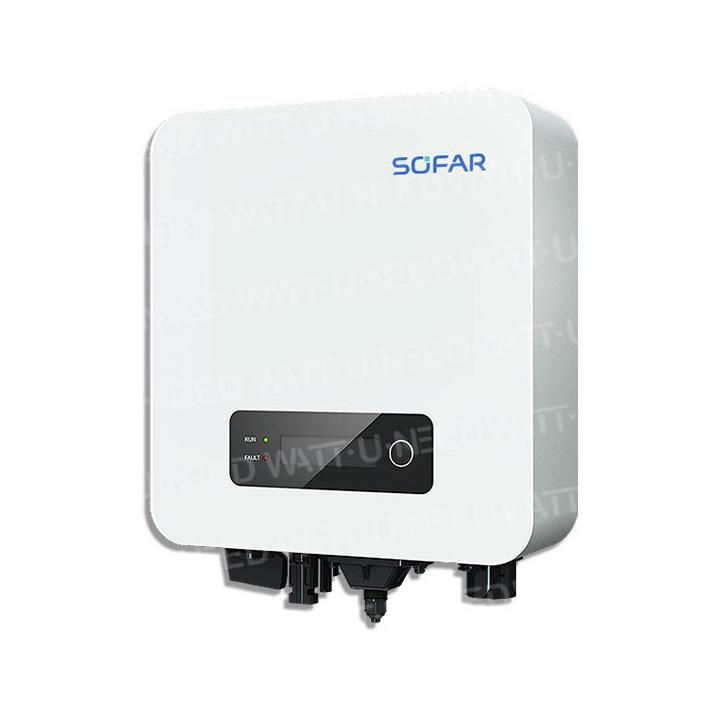

Grid Inverter Sofar Solar Single-Phase 3.3 kVA – 3300TL-G3

€351.80
Tax included
Sofar-3300TL-G3
0768563817380

The Sofar Solar 3300TL-G3 is the most powerful model in the entire TL-G3 range, with a rated power of 3,300 W and a recommended maximum PV power of 4,500 Wp. Sharing the same advanced platform as the 3000TL-G3, it features Bluetooth, MC4 connectors, a Type III varistor surge protector and a night-time power consumption of less than 1 W, whilst remaining within the single-phase Synergrid limit of 5,000 VA in Belgium.

  • Rated power: 3,300 W / 3,300 VA single-phase 230 VAC
  • Recommended max PV power: 4,500 Wp (140% DC overload)
  • MPPT: 1 tracker, range 50–550 Vdc, full power 300–500 Vdc
  • Max efficiency: 97.7% — European 97.2%
  • Cooling: natural convection — < 25 dB
  • Communication: RS485, Wi-Fi, Bluetooth — Ethernet optional
  • DC connectors: MC4 type
  • Zero export: built-in function (with external CT)
  • DRMs: integrated grid demand response
  • Surge protection: Integrated Type III varistor
  • Standby power consumption: < 1 W
  • Protection: IP65 — indoor or outdoor installation
  • Certifications: C10/11 (Belgium), VDE-AR-N 4105, G83/2, RD 1699
  • Warranty: 10 years
  • Weight: 6.3 kg — dimensions 321 × 260 × 131.5 mm

Comments (0)

No customer reviews for the moment.

Sofar 3300TL-G3 solar inverter: Maximise your energy production

Compact single-phase inverters for small grid-connected PV systems

SofarSolar 1.1K...3.3KTL-G3 is a polished, compact and lightweight solar inverter for smaller single-phase PV systems.

With an efficiency of up to 97.7%, it maximizes the energy yield of your PV system. The integrated zero export function allows the user to limit the power supplied to the grid by simply adding a current transformer to the system.

The inverter also comes with a WiFi key for easy connection to the SofarSolar monitoring portal.

High efficiency

- Maximum efficiency of 97.5%.
- Precise real-time MPPT algorithm for maximum utilization
- Wide input voltage operating range

All in one. Flexible, cost-effective system solution

- Free choice of location thanks to IP65 rating
- Plug & Play" connection for easy installation and maintenance
- Interface selection - Wi-Fi / RS485 /GPRS
- LCD + LED display
- Integrated zero export function (optional)

Low maintenance costs

- Detachable lid for easy installation
- Stainless aluminum covers
- A flexible control solution

Intelligent grid management

- Reactive power capacity
- Automatic power reduction in the event of overfrequency
- Remote control of active/reactive power limit

Features

DC INPUT
PV input power max.
Recommended 4500 Wp
Max. input voltage 550
V
Starting voltage 70 V
Nominal input voltage 360 V
MPPT operating voltage range 50 - 550 V
Full MPPT power in voltage range 300 - 500 V
Max. MPPT input current 12
A
Max. DC input short-circuit current.

P

er MPPT 15 A
Number of MPPT / string per MPPT
/ I
Type of input terminal Type MC4
AC output
Rated power 3300 W
Max. power.
In AC 3300 W
Max. output current 16
A
Nominal mains voltage
/ N / PE,
230 Vac
Mains voltage range 180 - 276 Vac (according to local standards)
Nominal mains frequency 50 Hz / 60 Hz
Mains frequency range 45 - 55 Hz / 54 - 66 Hz (according to local standards)
THDi <
3%
Power factor
default (adjustable +/-0.8)
PERFORMANCE
Max. efficiency 97,7%
Weighted European efficiency 97,20%
PROTECTION
Anti-islanding protectionislanding
Yes
DC reverse polarity protection Yes
DC switch Optional
protection
Yes
Leakage current protection Yes
Earth fault protection Yes
Surge arrester Varistor :
Type III standard
COMMUNICATION
Standard communication mode RS485 / Wi-fi / Bluetooth, optional :

E

thernet
GENERAL
Topology
Transformerless
Ambient temperature range
30°C to 60°C
Night-time power consumption <1 W
Permissible relative humidity range
- 100%
< 25 dB
Cooling Natural
Max. altitude.
Operating 2000 m
Dimensions 321 x 260, 131.5 mm
Bracket Wall mounting
Weight
,3 kg
Display LCD + LED
Degree of protection IP65
Warranty 10 years
Standards
(electro-magnetic compatibility) EN 61000-6-1, EN 61000-6-3,
EN 61000-3-2, EN 61000-3-3
Safety standards IEC 62116, IEC 61727, IEC 61683, IEC 60068 (1,2,14,30), IEC 62109-1/2
Mains standards
V 0124-100, VDE V 0126-1-1, VDE-AR-N 4105, G83/2, C10/11, RD1699
Sofar-3300TL-G3

Data sheet

Inverter power in VA
3300 VA
Max.PV Input Power
4500 Wp
MPPT/PWM
MPPT
Phase
Monophasé
Starting voltage
70 V
Nominal mains voltage
L / N / PE, 230 Vac
Rated mains frequency
50/60 Hz
Type of cooling
Natural
THDi (Nominal power)
less than 3%
Max. output current
16 A
Anti-islanding protection
Oui
Relative humidity range
0~100 %
Maximum operating altitude
2000 m
Topology
Transformerless
Noise
inférieur 25 dBA
Nominal input voltage
360 V
Maximum efficiency
97,7 %
Rated power
3300 W
Number of MPPT / strings per MPPT
1 / 1
Max. input voltage
550 V
Max. MPPT input current
12
Protection against reversed DC polarity
Oui
Maximum DC short-circuit current
15 A
Ambient temperature range
-30℃ – 60℃
Maximum AC power
3300 VA
MPPT operating voltage range
50 - 550 V
Mains voltage range
180 - 276 Vac (according to local standards)

Specific References

UPC
768563817380
EAN13
0768563817380
