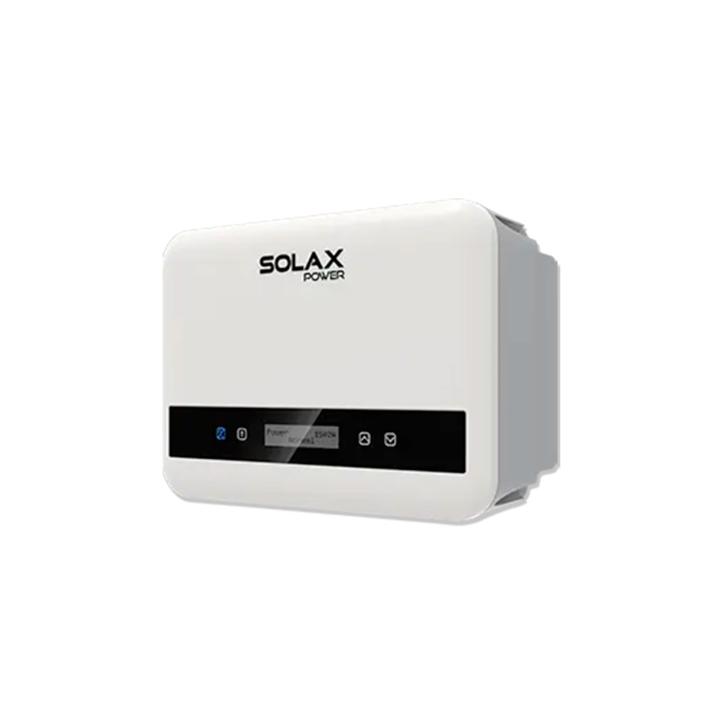

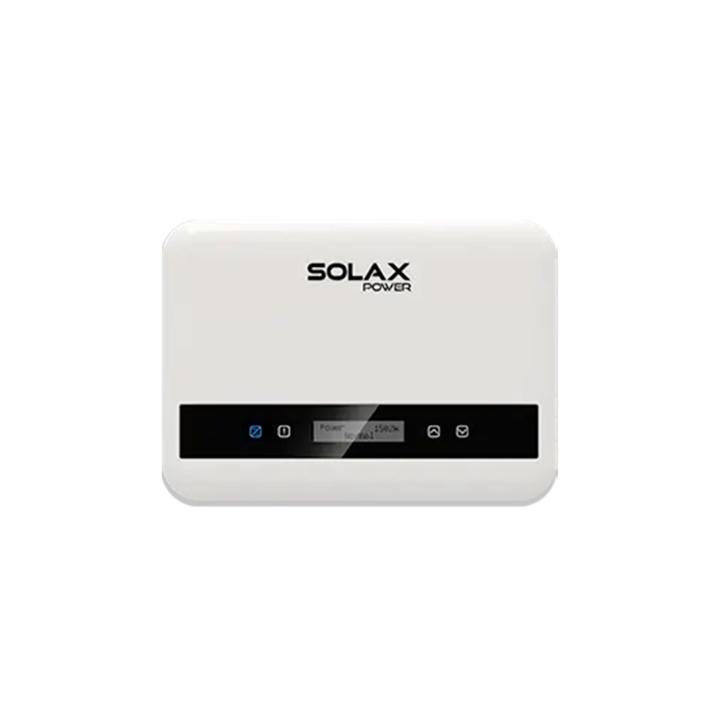

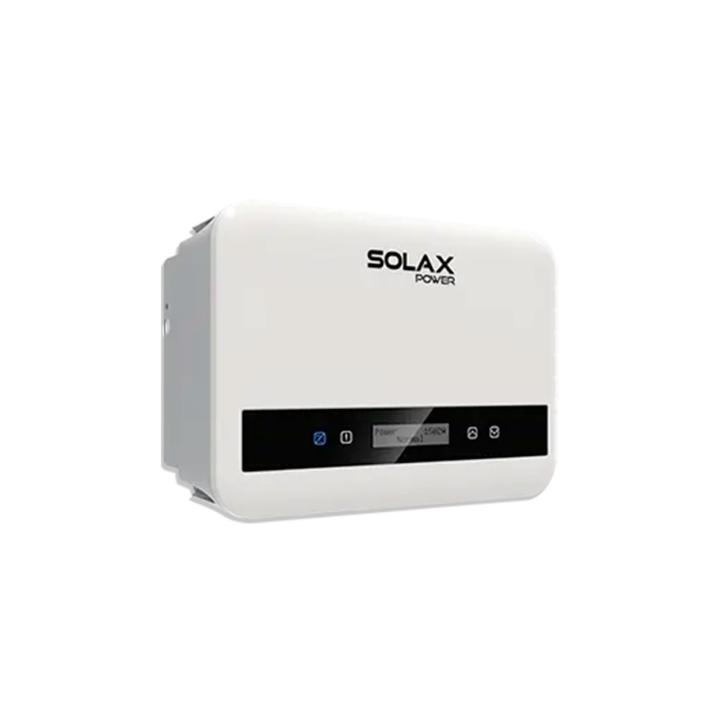

SolaX X1 Mini Mono 2 kW Grid-Connected Inverter – X1-Mini-2.0K-G4
€568.87
Tax included
X1-MINI-2.0K-G4
0712971136649
The SolaX X1-Mini-2.0K-G4 is a 2, 000 W single-phase grid-tied inverter from the 4th generation X1-Mini series, designed to maximise energy production on small residential roofs, flat roofs, balcony installations and compact spaces. Its low start-up voltage of just 50 Vdc, permitted PV oversizing of up to 200% and global MPP tracking make it a particularly effective choice for sub-optimal configurations.
Rated power: 2,000 W / 2,000 VA single-phase 220/230/240 Vac
PV oversizing: up to 200% (5,000 Wp max recommended)
MPPT: 1 tracker, range 40–450 Vdc, max current 16A, max Isc 22A
Start-up voltage: 50 Vdc — power generation from very low light levels
Global MPP tracking: integrated anti-shading optimisation
Protection: IP66 — integrated Type II AC/DC surge protector (optional)
Intelligent monitoring : SolaX X1 Mini solar inverter
Unleash the full potential of the X1-MINI G4 inverter and transform your solar journey with an impressive starting voltage of 50V. Enjoy unrivalled performance with 200% oversizing capability, wide MPPT voltage range and global MPP sweep. Explore enhanced monitoring, advanced safety features and seamless adaptability for home charger solutions for electric vehicles.
Grow your business effortlessly with Datahub and Modbus integration. Maximize your energy potential and efficiency in an inverter even smaller than an A4 sheet of paper, ideal for balcony installations.
Take the reins with the X1-MINI G4 and embrace the power of solar energy like never before.
Superior performance
DC input: 200% oversizing, 16A current, wider MPPT voltage range of 40~450V
Global MPP sweep for integrated higher efficiencies
Easy-to-use monitoring
10-second data update interval (optional Wi-Fi dongle required)
Multiple interfaces for data presentation
Advanced security
Integrated type II AC/DC PD (optional) and I-V curve diagnostics
supported
Support for external quick shutdown device (RSD)
Optional ARC detection (AFCI)
Integrated export control function
Excellent adaptability
Home EV Charger and Heat Pump Adaptable solution
Mass management and wide expansion via Datahub
Master/slave parallel solution via Modbus supported
X1-MINI-2.0K-G4
Data sheet
Inverter power in VA
2000 VA
MPPT/PWM
MPPT
Phase
Monophasé
Number of MPPT
1 MPPT
IP protection
IP 66
Max. recommended PV input power
-
Tension DC max.
-
Max. input current
-
Max. short-circuit current (A)
-
MPPT voltage range
-
Starting voltage
-
Rated AC power
-
Max. AC power
-
Nominal mains voltage
-
Rated mains frequency
50/60; ±5 Hz
Rated AC current
-
Max. AC current
-
Displacement power factor
0.8 capacitive - 0.8 inductive
Standby consumption (night)
-
Protection against overvoltage and overcurrent
Yes
Monitoring of DC insulation resistance, earth fault current, DC injection
Yes
Protection by differential circuit breaker
Yes
Safety
IEC 62109-1/-2
EMC
EN 61000-6-1/2/3/4, EN 61000-3-2/3/11/12
Certification
IEC61727, EN50549, G98/G99, AS 4777.2, VDE4105, CEI 0-21, RD1699, UNE 206007-1, VFR
Degree of protection (in accordance with IEC 60529)
