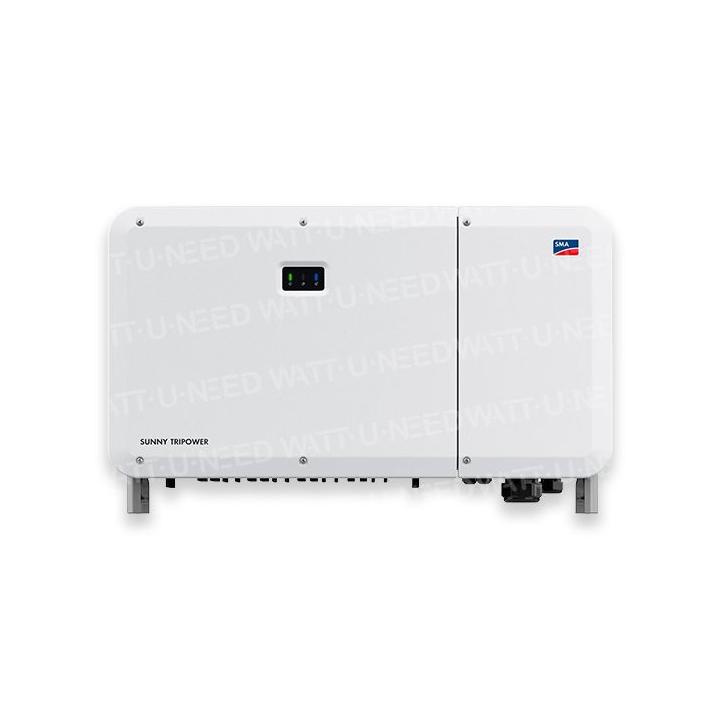

SMA Sunny Tripower CORE2 110kVA: Maximize Your Solar Energy Production
Discover the SMA Sunny Tripower CORE2 110kVA three-phase inverter, designed for large photovoltaic installations. With its high power, flexibility, and smart features, it allows you to optimize your solar energy production and reduce your energy costs.
Why choose it?
Advantages:
Trust SMA, a global leader in solar energy.
ATTENTION: SMA inverters are delivered without integrated Wi-FI connection!
Flexible plant design for large-scale industrial photovoltaic systems: the Sunny Tripower CORE2 is the ideal inverter for decentralized megawatt plants. With an output of 110 kilowatts, 24 strings and 12 MPP trackers, it provides a particularly high degree of solar coverage throughout the day, for both ground-mounted and roof-mounted installations with different inclinations. The integrated SMA ShadeFix software solution optimizes system performance automatically and continuously, even for partially shaded panels.
With the Sunny Tripower CORE2 inverter as the central component of the SMA Energy System Business solution, installers and system owners benefit from high-quality components from a single manufacturer, and the possibility of future options for adding SMA storage solutions.
More optionsMaximum flexibility in the design of medium and large-scale ground-mounted and roof-mounted systems.
More integrationCentral element of the SMA Energy System Business and ennexOS, ready for all future needs.
More performanceA "ready-to-use" solution with integrated optimization of energy production guarantees efficient installation and service.
SMA ShadeFix is a patented, integrated software solution for optimizing plant energy production that outperforms most conventional hardware solutions for managing shading in PV installations.
| Input (DC) |
| Max. power of photovoltaic generator | 165000 Wp STC |
| Max. input voltage |
| 1100 V |
| MPP voltage range | 500 V to 800 V |
| Rated input voltage |
| V |
| Min. input voltage / start-up input voltage | 200 V / 250 V |
| Max. input current./max. short-circuit current per MPP tracker | 26 A / 40 A |
| Number of independent MPP trackers / strings per MPP tracker | 12/02/20 |
| Output (AC) |
| Rated power at nominal voltage | 110000 W |
| Max. apparent AC power | 1100000 |
| VA |
| Rated AC voltage | 400 V |
| AC voltage range | 320 V to 460 V |
| AC mains frequency | 50 Hz / 45 Hz `to 55 Hz / 60 Hz / 55 Hz to 65 Hz |
| frequency |
| 50 Hz |
| Maximum output current | 159 A |
| Power factor at rated power/adjustable phase shift factor |
| / 0,8 overexcited to 0.8 underexcited |
| Harmonic distortion (THD) | < |
| 3% |
| Injection phases / AC terminal |
| / 3-PE |
| Yield |
| Max. yield./European efficiency | 98.6% / 98. |
| General data |
| Dimensions (W / H / D) | 1117 mm / 682 mm / 363 mm |
| Weight | 93.5 kg |
| Operating temperature range | -30 °C to +60 °C |
| Noise emissions, typical | < |
| 65 db(A) |
| Self-consumption (night) | < |
| 5 W |
| Topology / cooling system | Transformerless / active cooling |
| Degree of protection (to IEC 60529) | IP66 |
| Maximum permissible value for relative air humidity (non-condensing) | 100 |
| Equipment / Function / | |
| Accessories |
| DC | |
| / AC connection | Sunclix / terminal lug (up to 240 mm²) |
| LED display (status/error/communication) |
| Yes |
| Ethernet interface |
| Ports |
| Data interface | Web / Modbus interface SunSpec |
| type |
| / rack |
